Component Locations

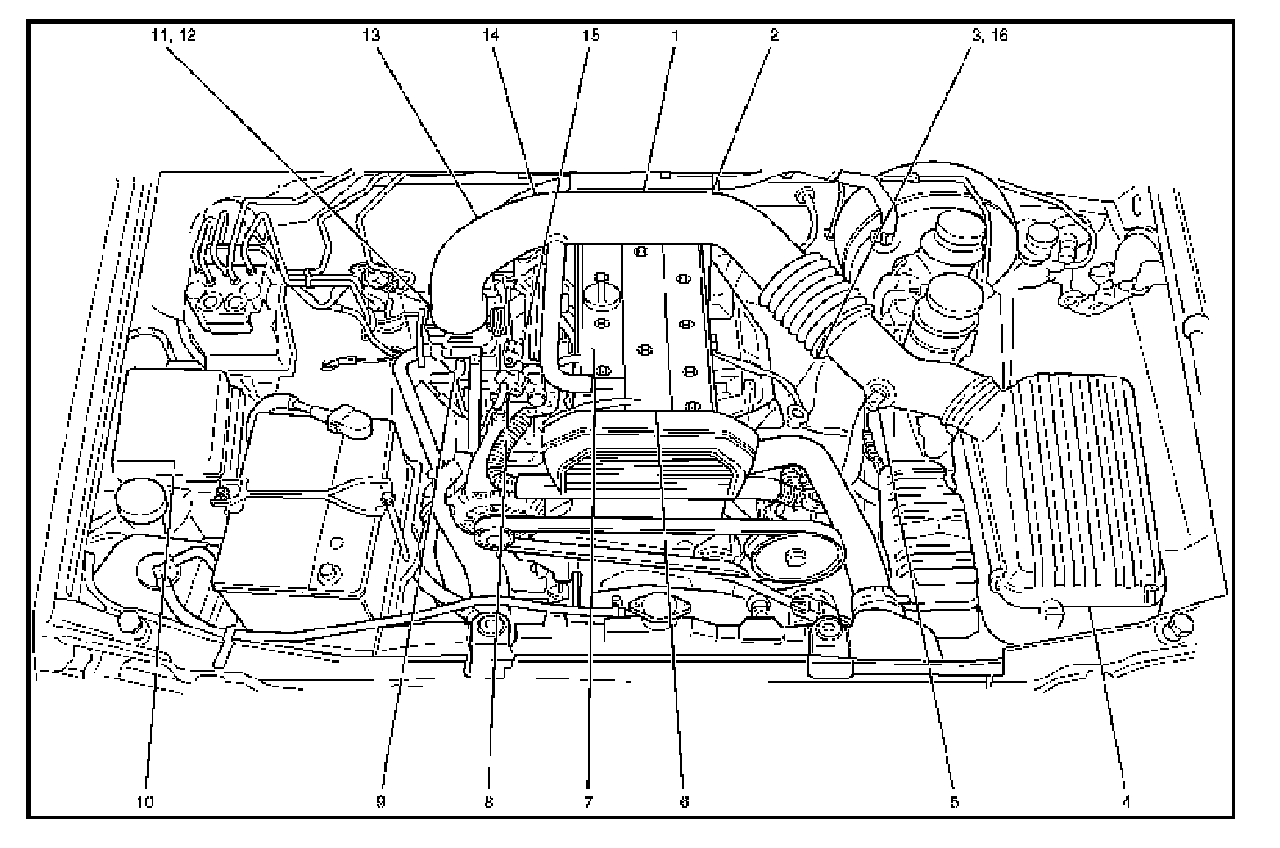

Component Locator:



Component Locator Part 2:



Component Locator Part 3:

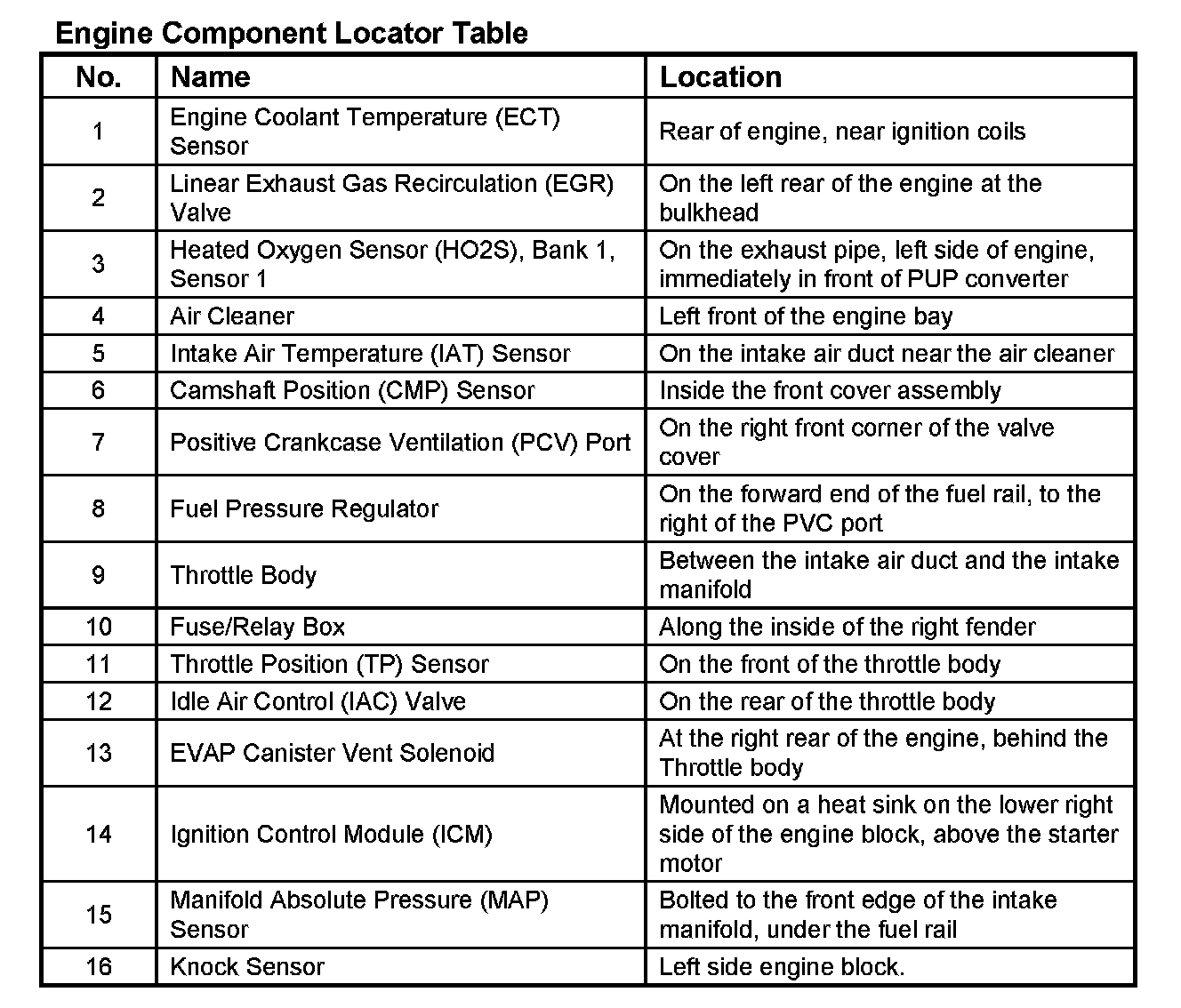

Engine Component Locator Table:



Undercarriage Component Locator Table:
