Information Bus: Locations

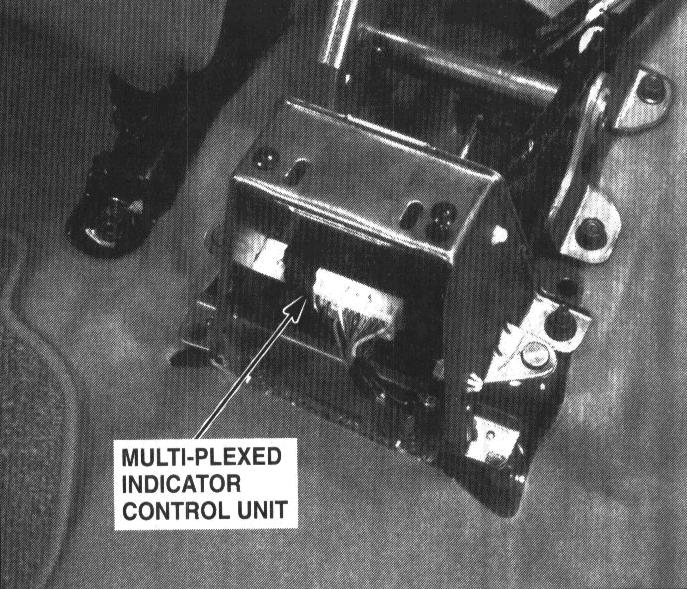

Multi-Plexed Indicator Control Unit Index Image 50-3:

79 - Under Rear Of Center Console:

Component Location Index photographs can be found at Diagnosis and Repair/Locations/Components.

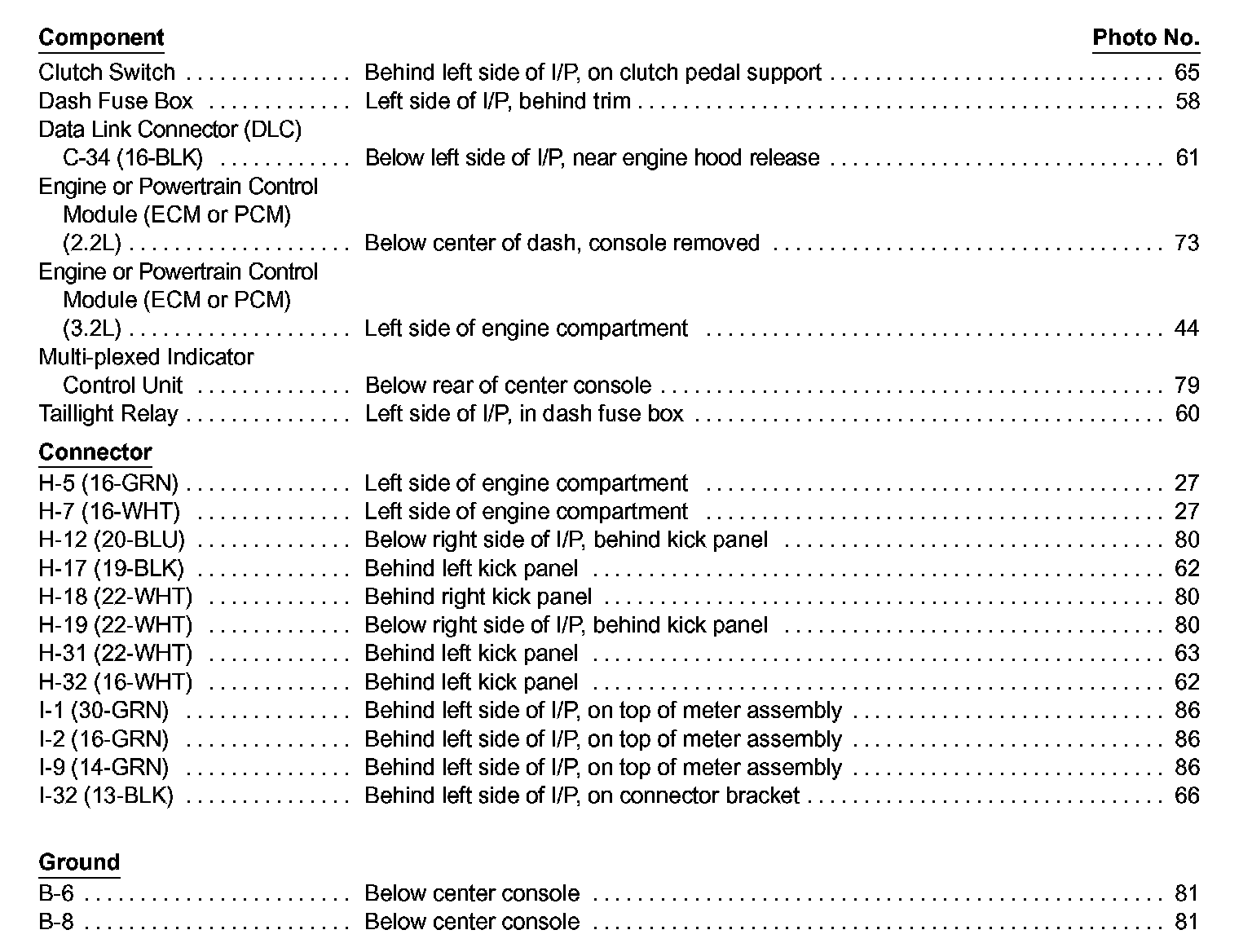

Component Locations
