Connector Locations

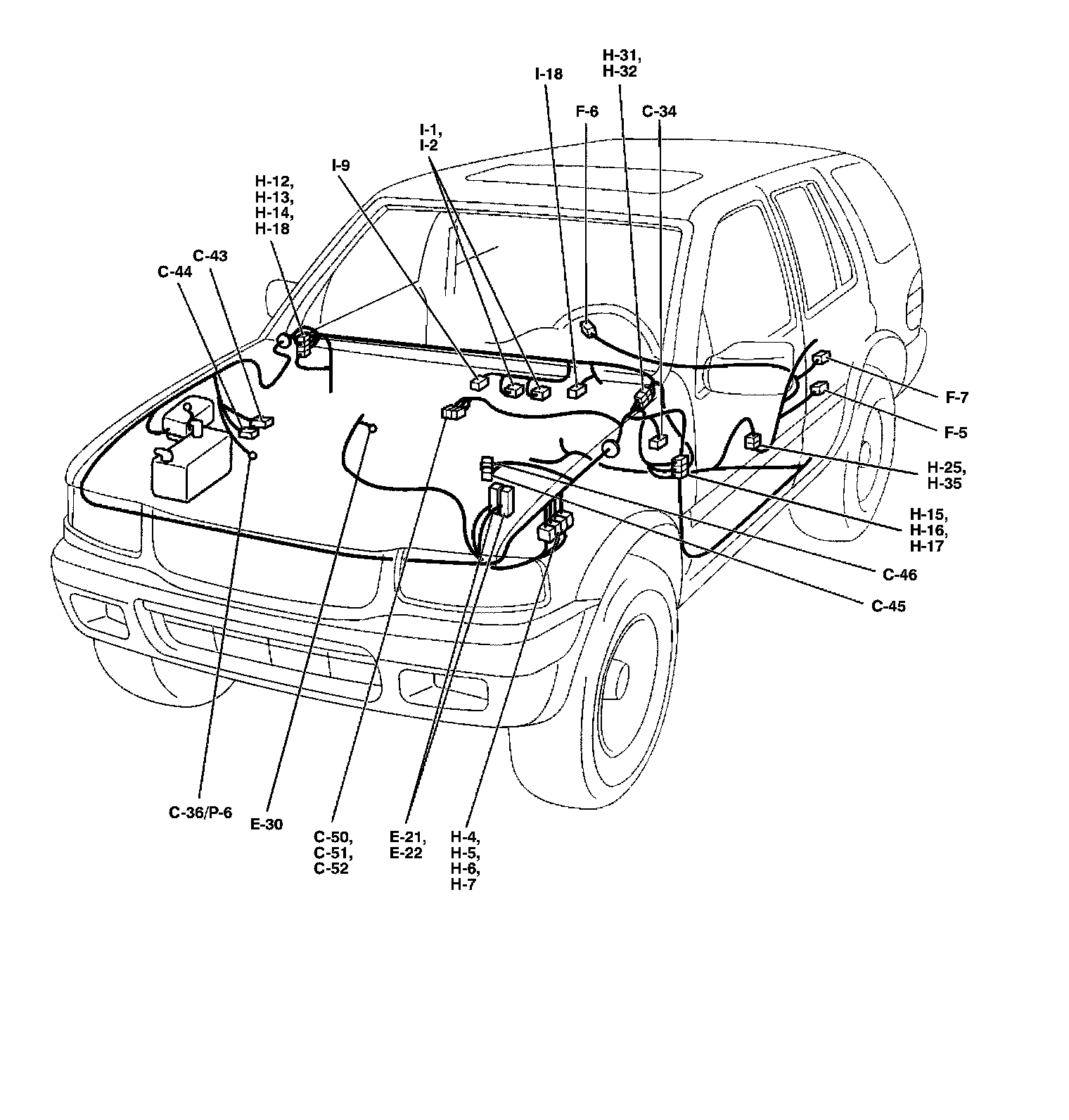

Connector And Harness Routing Image 203:

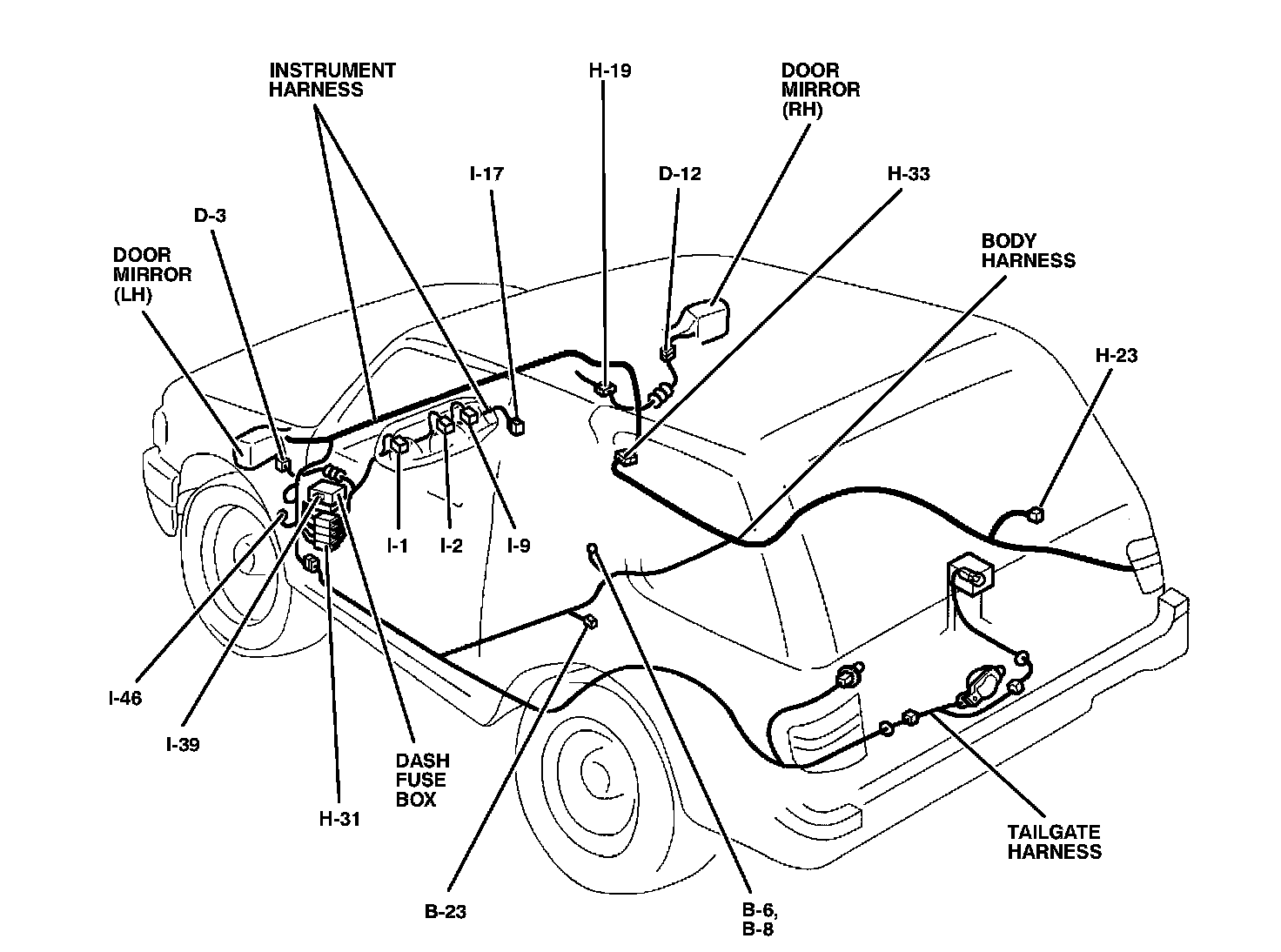

Connector And Harness Routing Image 203-1:

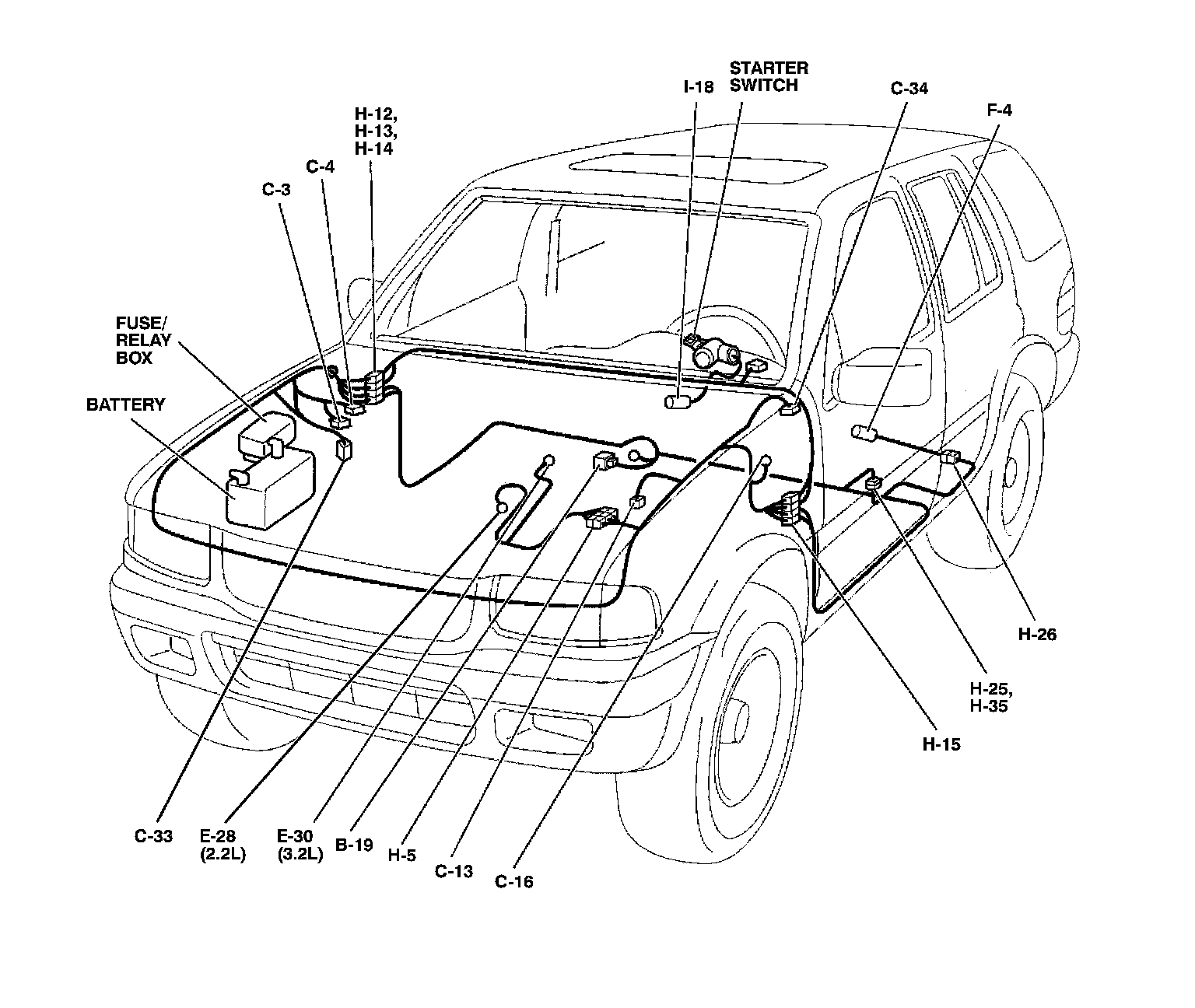

Connector And Harness Routing (SWB):

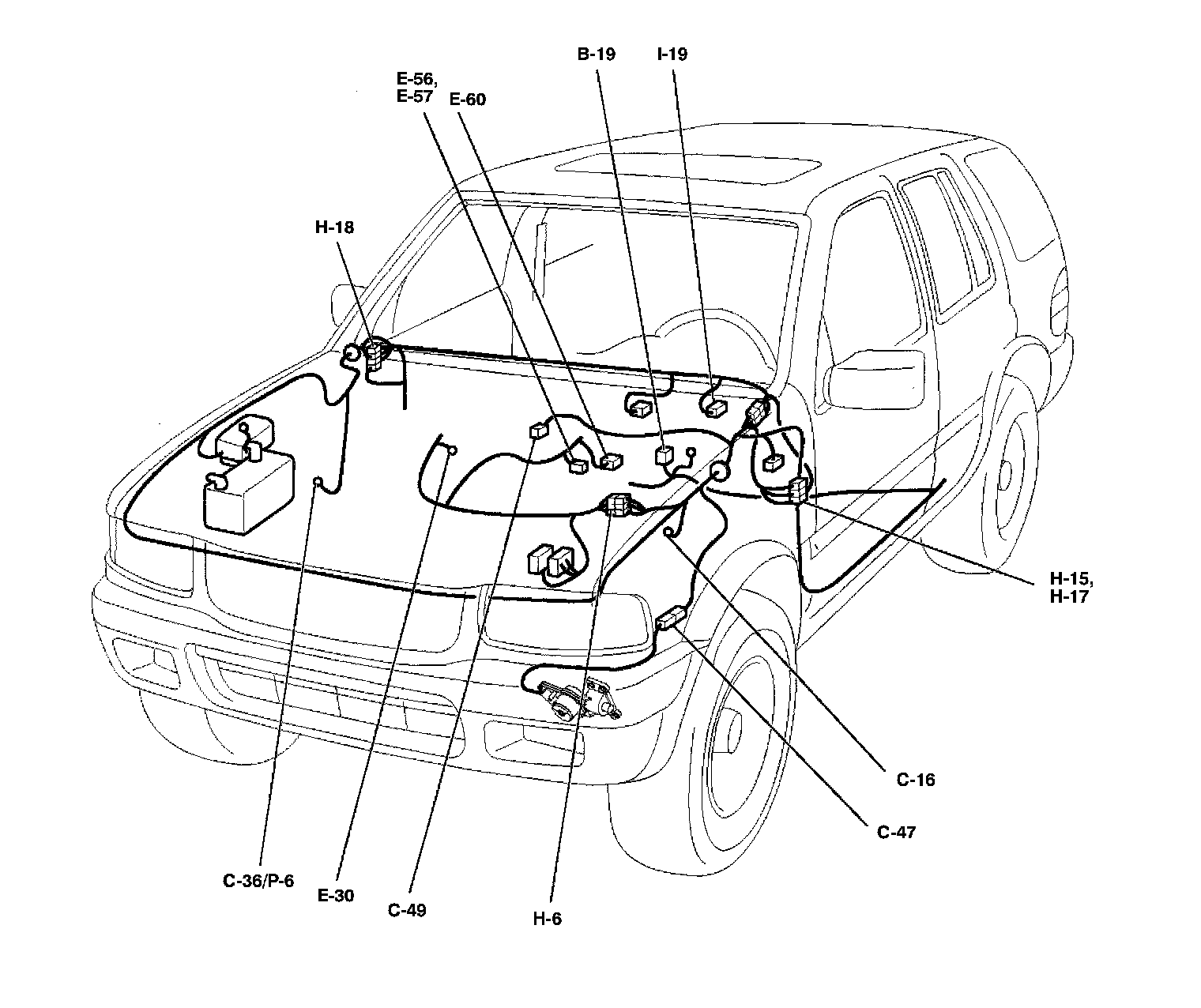

Connector And Harness Routing (LWB):

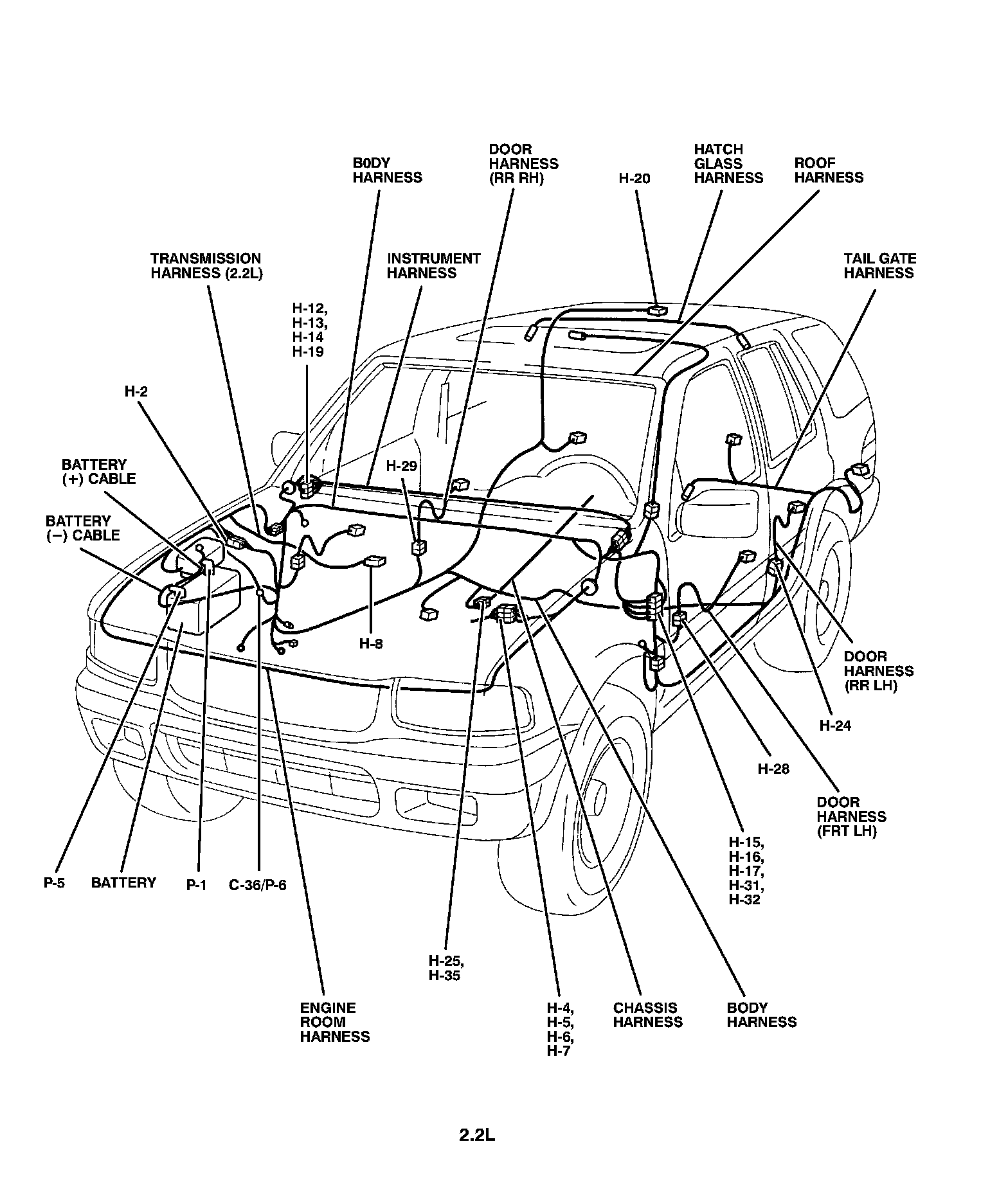

Connector And Harness Routing Image 203-4:

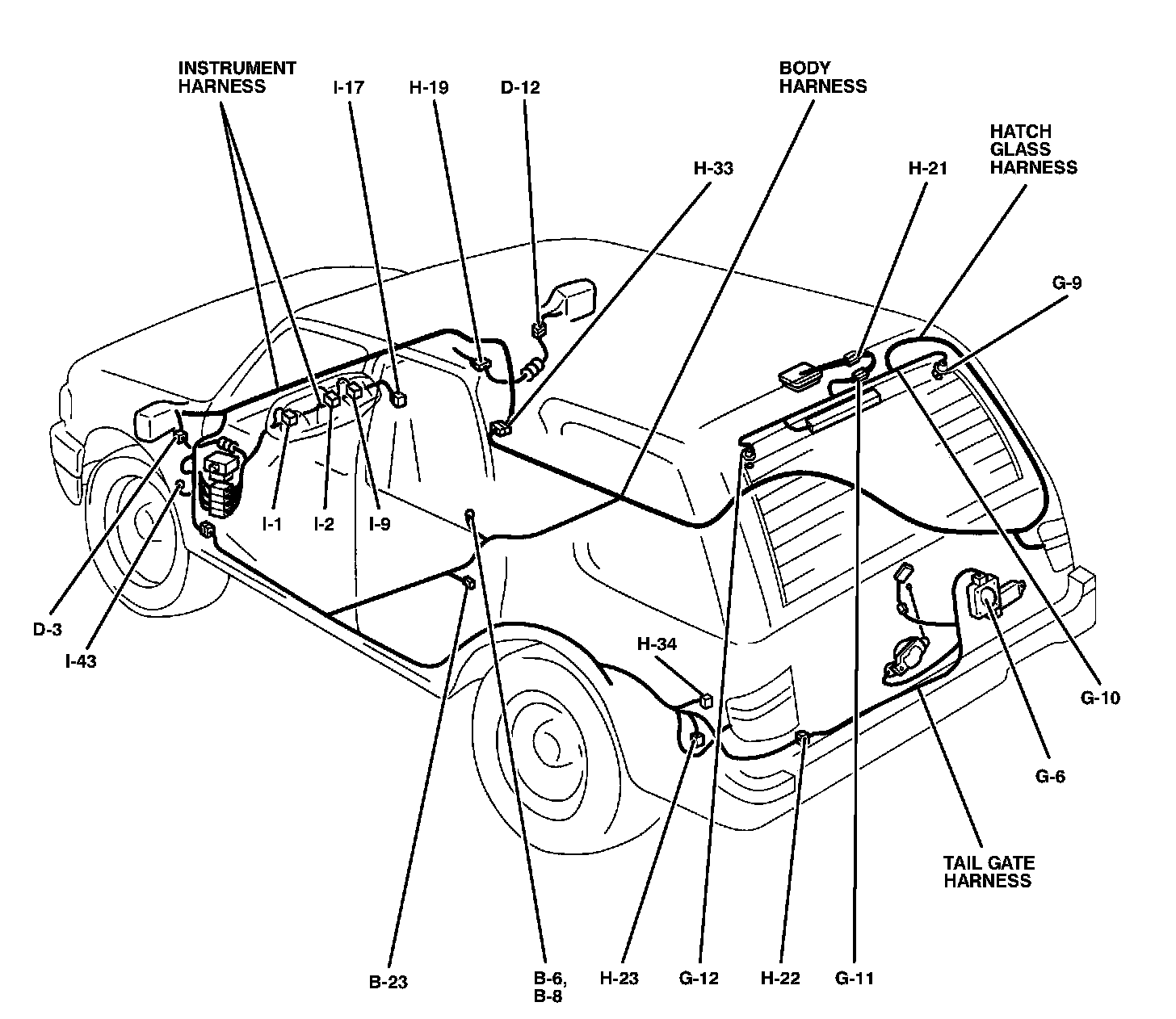

Connector And Harness Routing Image 203-5:
