Wiper/ Washer

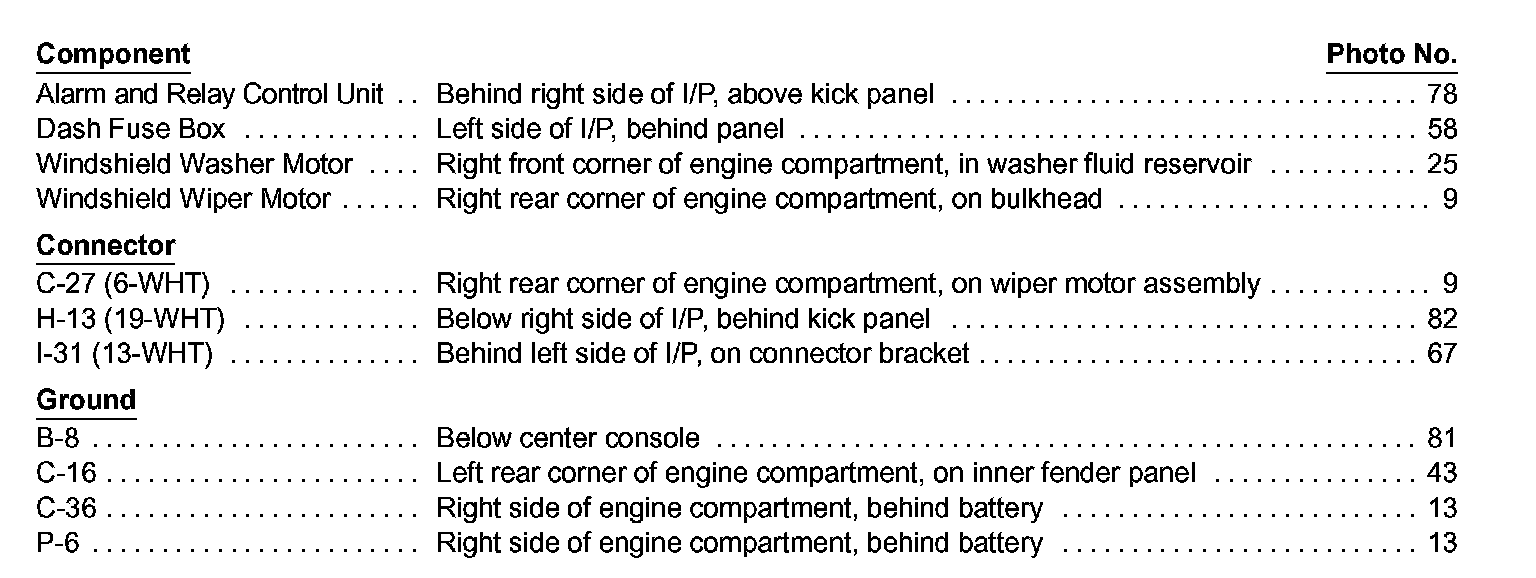

Windshield Wiper/Washer Index Image 90-2:

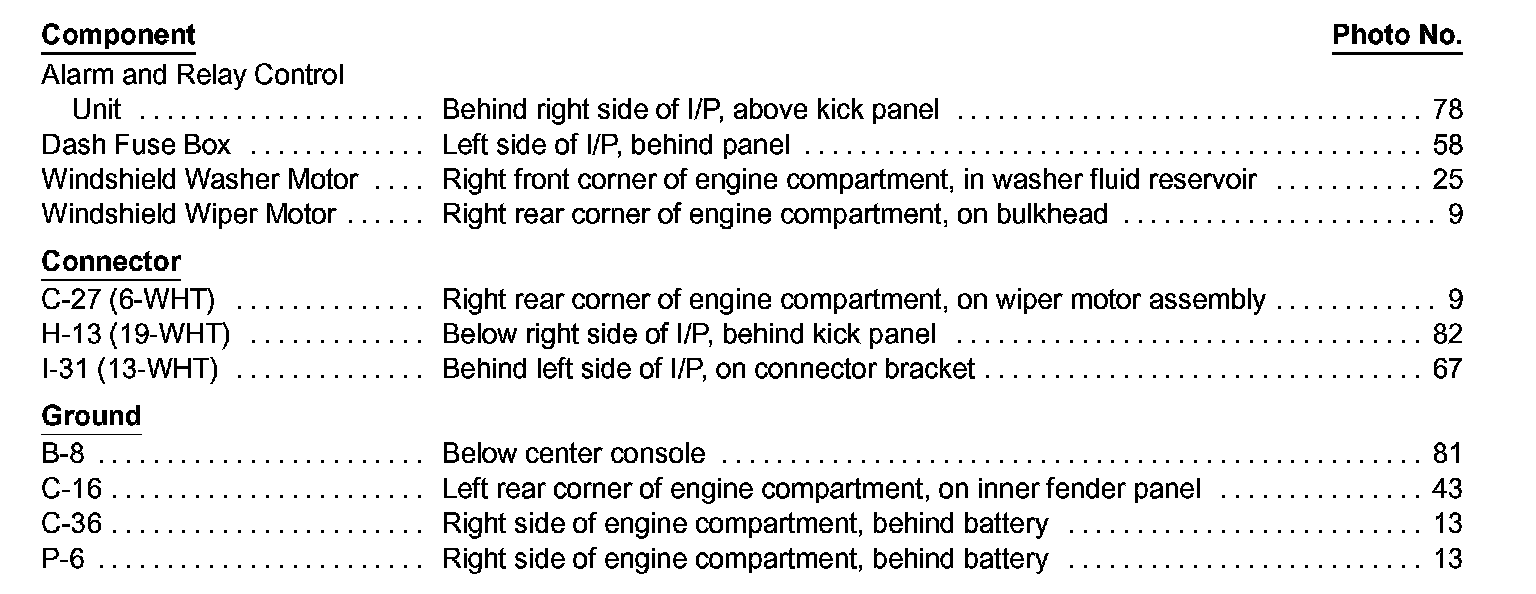

Windshield Wiper/Washer - Variable Intermittent Index Image 91-2:

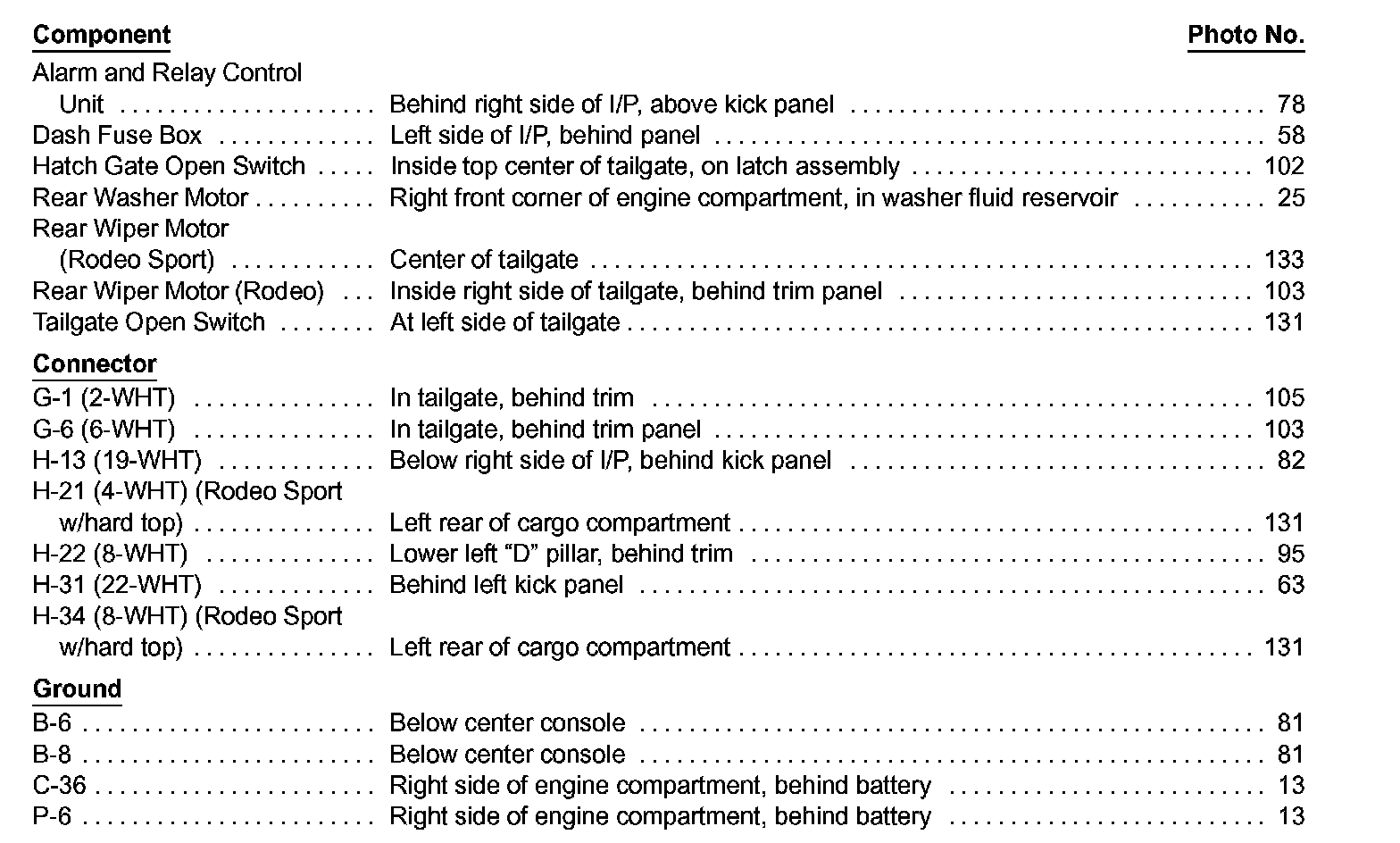

Rear Wiper/Washer Index Image 92-4:
