Engine Control Module

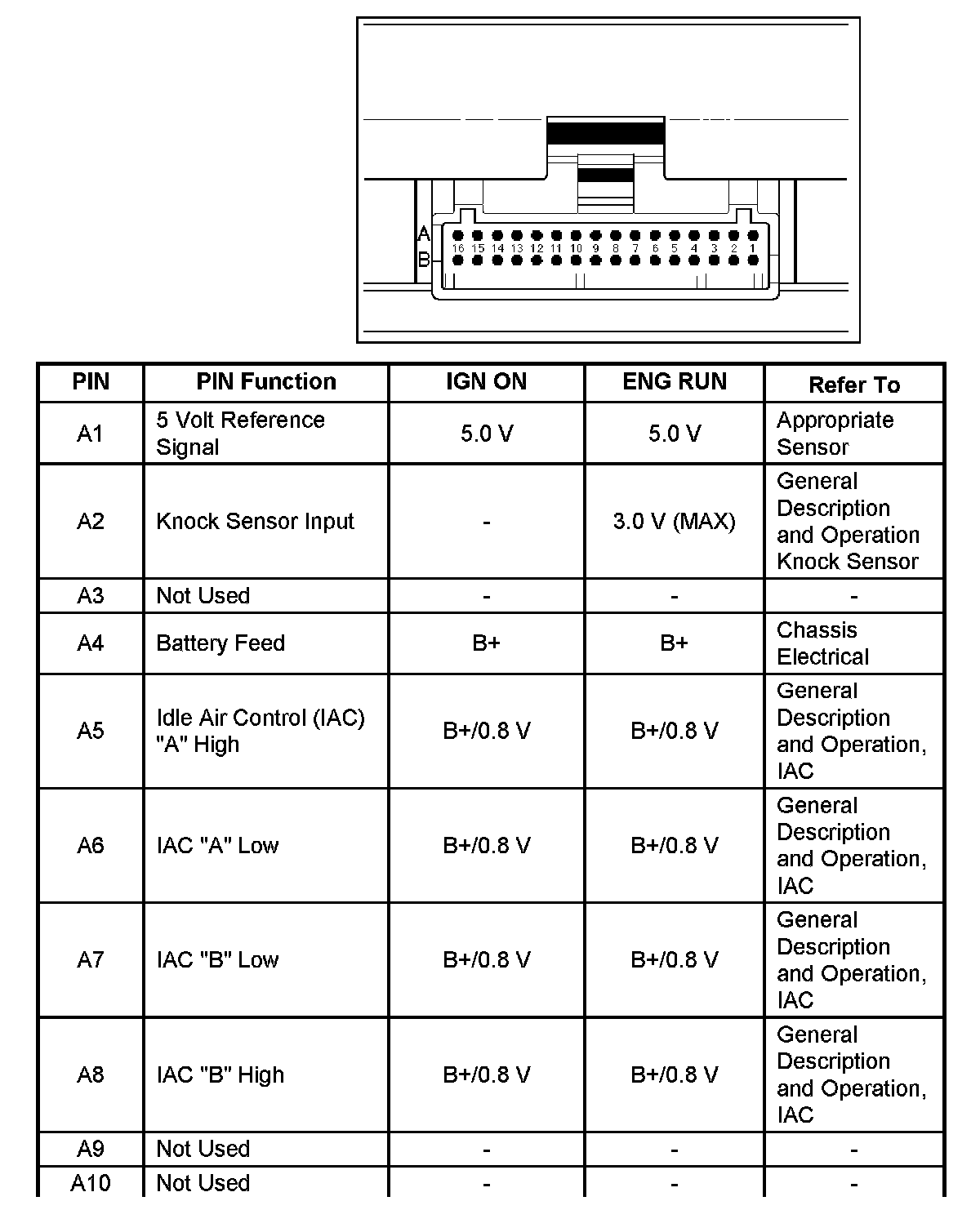

PCM Pinout Table, 32-Pin Connector-Row "A" Pin A1 - A10:
PCM Pinout Table, 32-Pin Connector-Row "A" Pin A11 - A16:

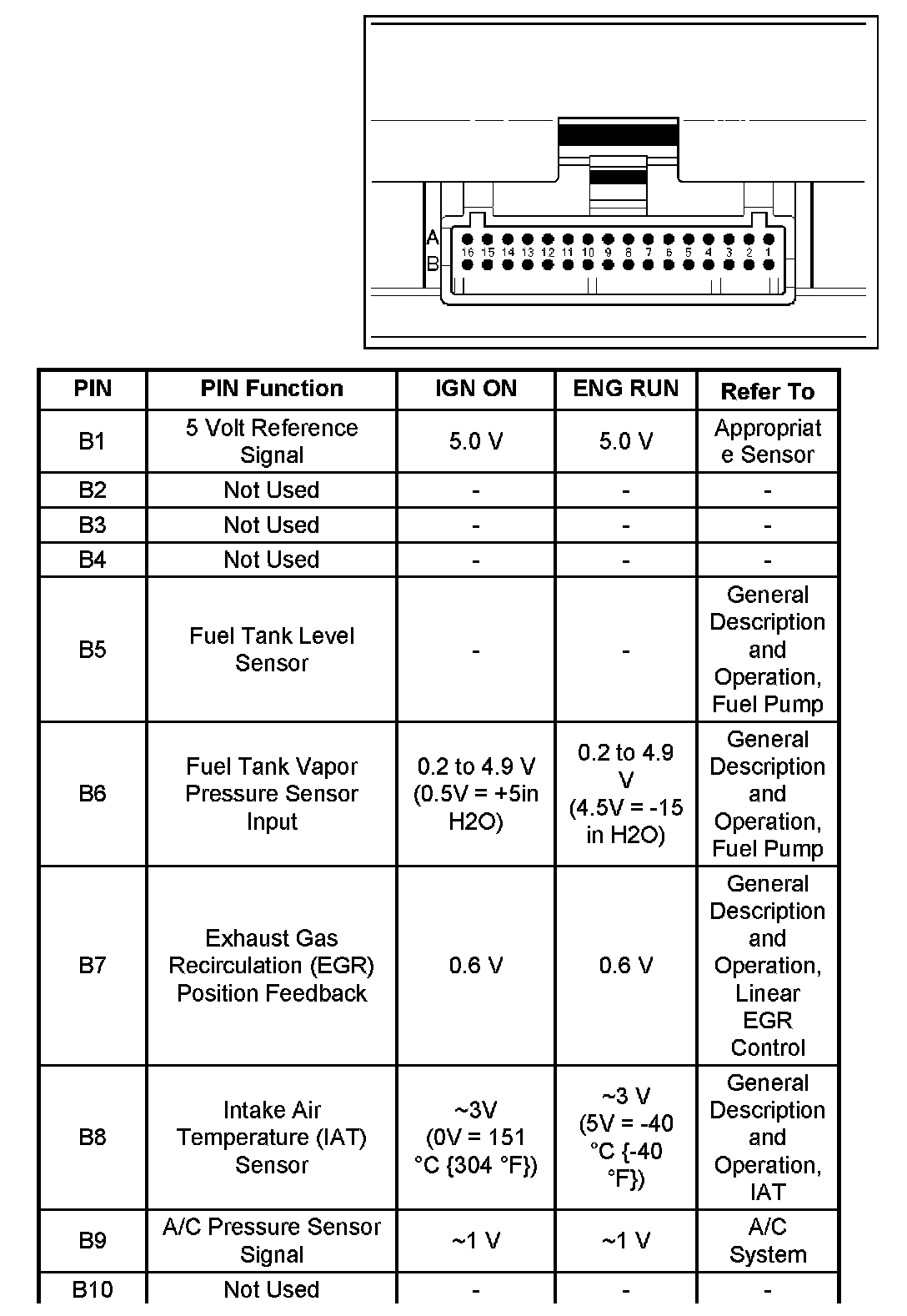

PCM Pinout Table, 32-Pin Red Connector-Row "B" Pin B1 - B10:
PCM Pinout Table, 32-Pin Red Connector-Row "B" Pin B11 - B16:

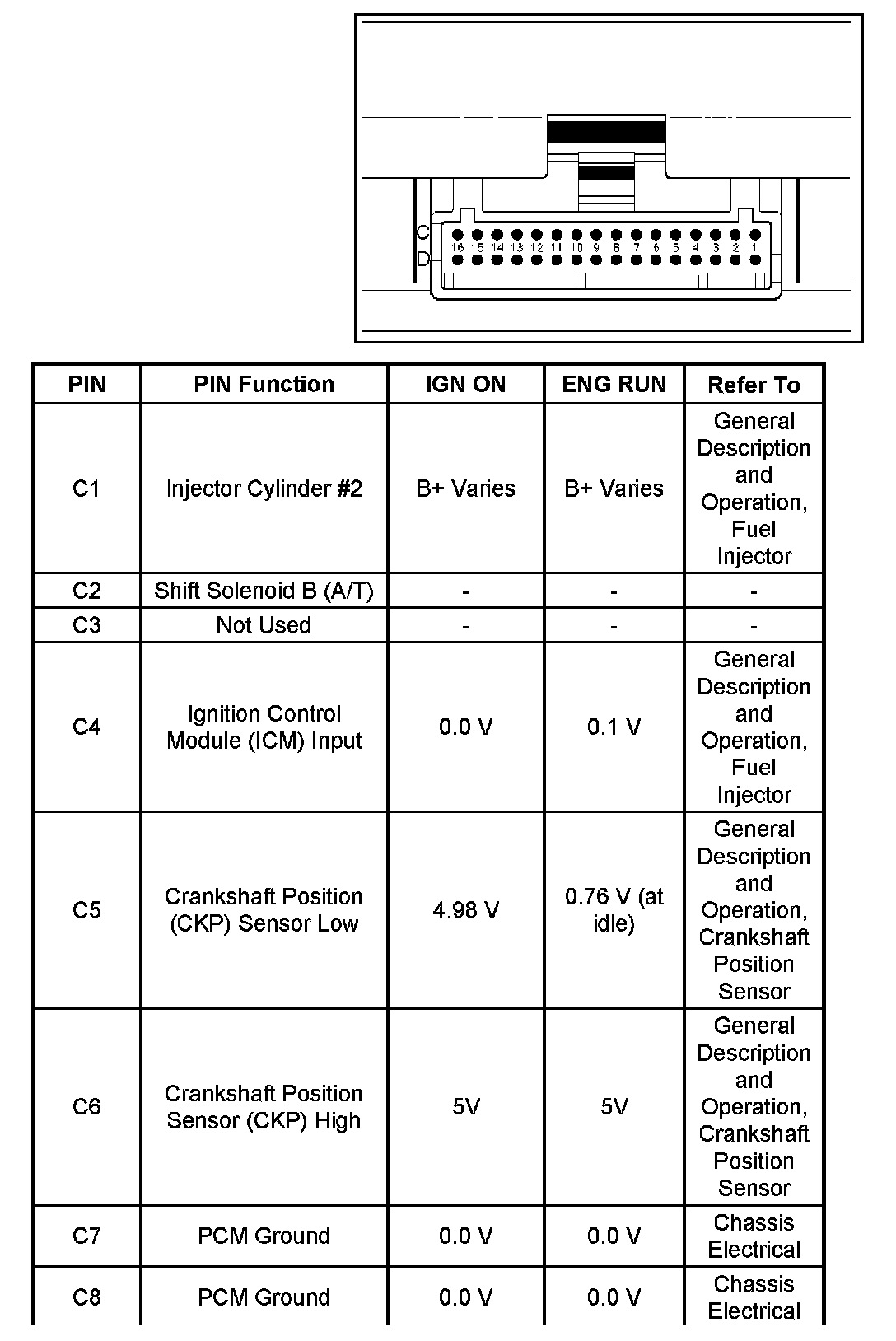

PCM Pinout Table, 32-Pin Red Connector-Row "C" Pin C1 - C8:

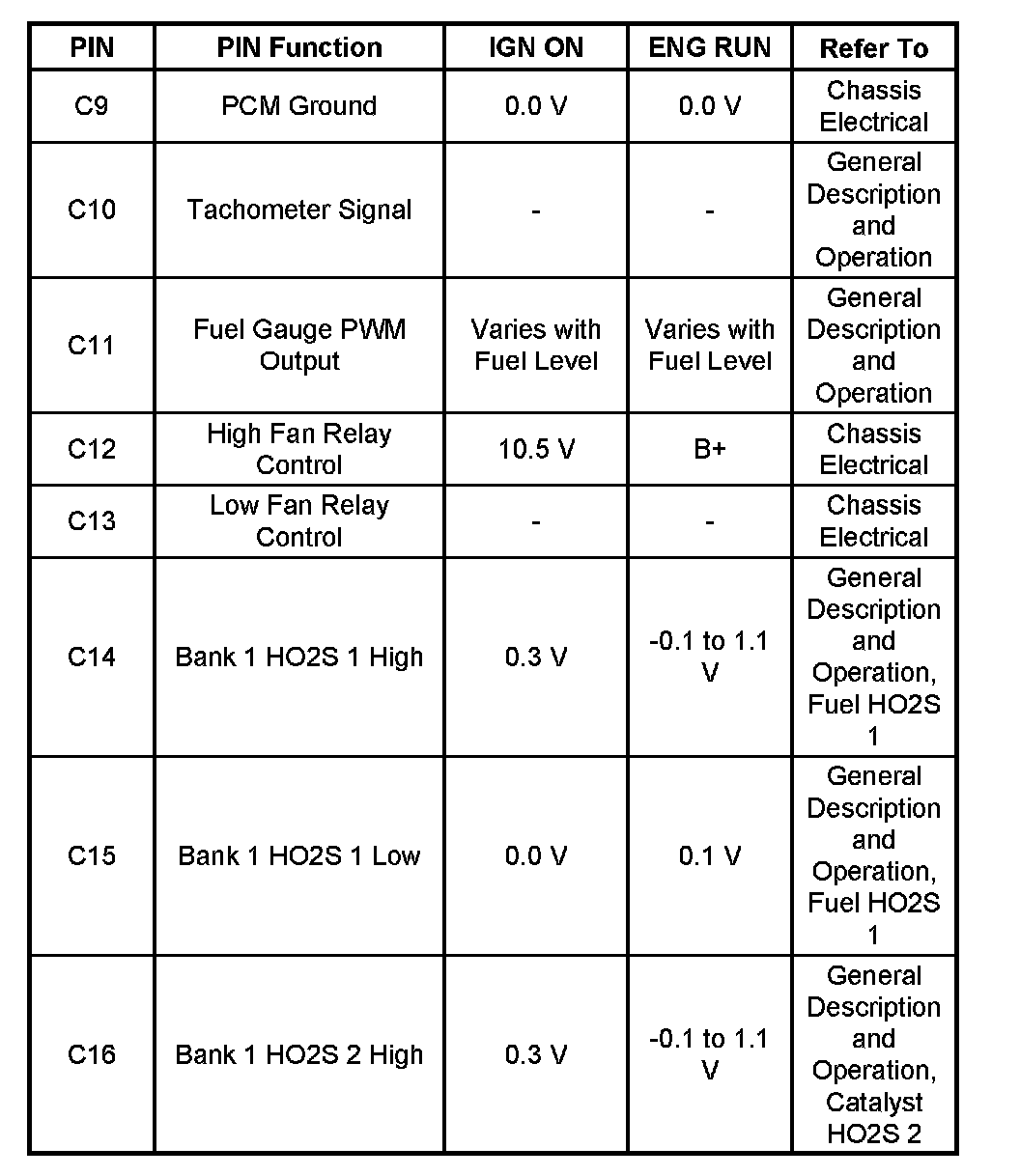

PCM Pinout Table, 32-Pin Red Connector-Row "C" Pin C9 - C16:

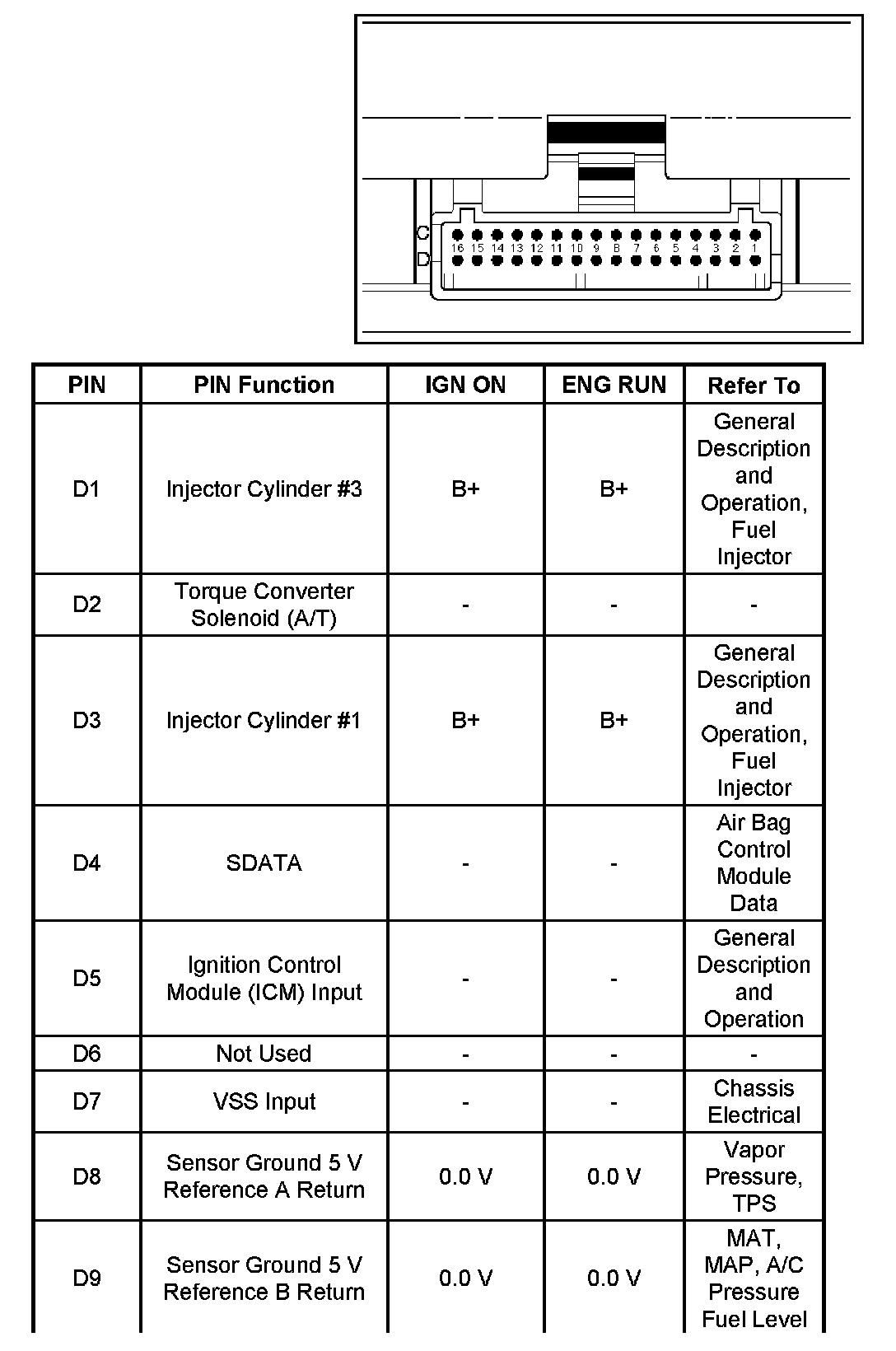

PCM Pinout Table, 32-Pin Red Connector-Row "D" Pin D1 - D9:
PCM Pinout Table, 32-Pin Red Connector-Row "D" Pin D10 - D16:

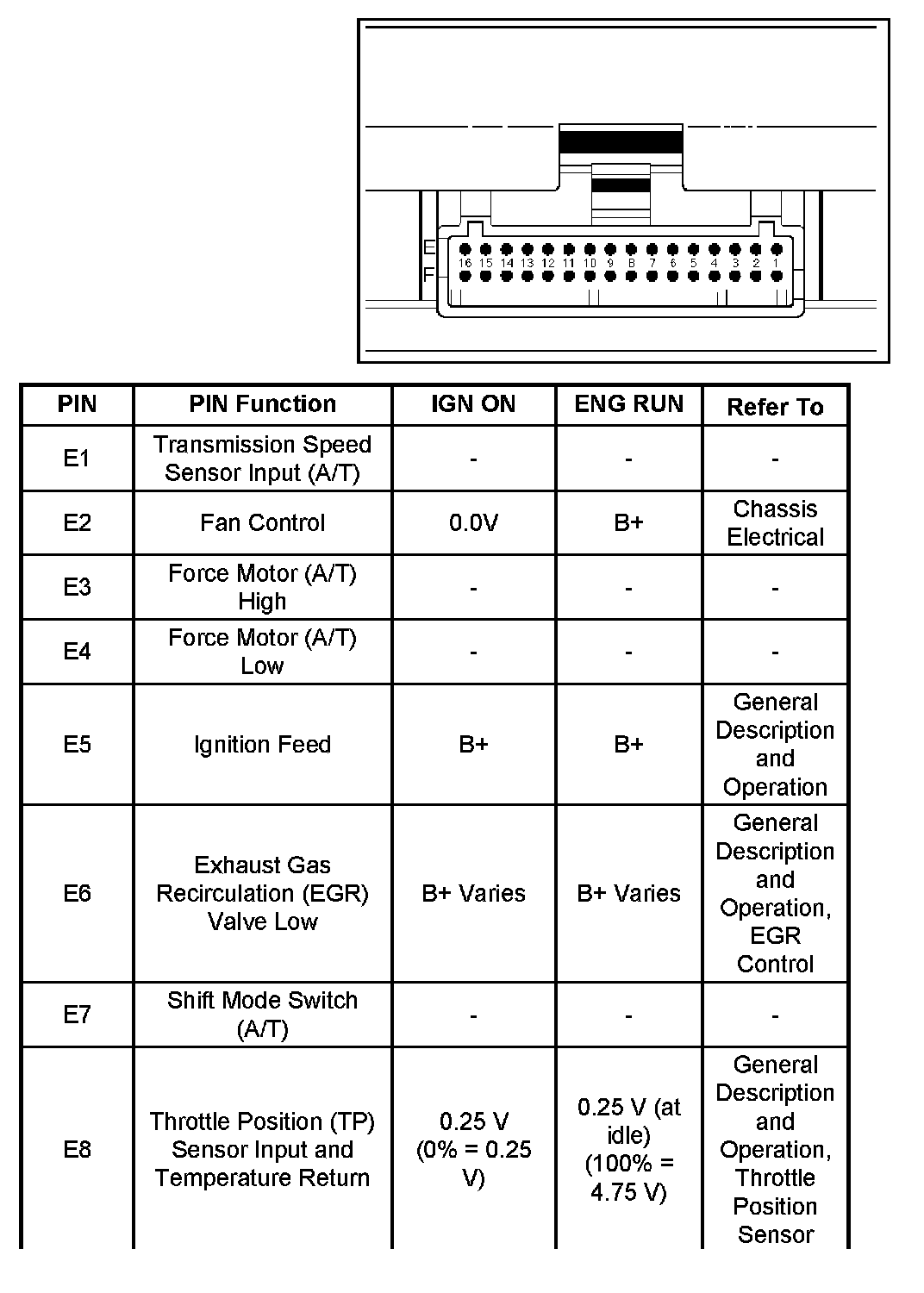

PCM Pinout Table, 32-Pin Red Connector-Row "E" Pin E1 - E8:
PCM Pinout Table, 32-Pin Red Connector-Row "E" Pin E9 - E16:
PCM Pinout Table, 32-Pin Red Connector-Row "F" Pin F1 - F12:
PCM Pinout Table, 32-Pin Red Connector-Row "F" Pin F13 - F16:
