Cruise Control: Testing and Inspection

Diagnosis

DTC P0565 - P0575:

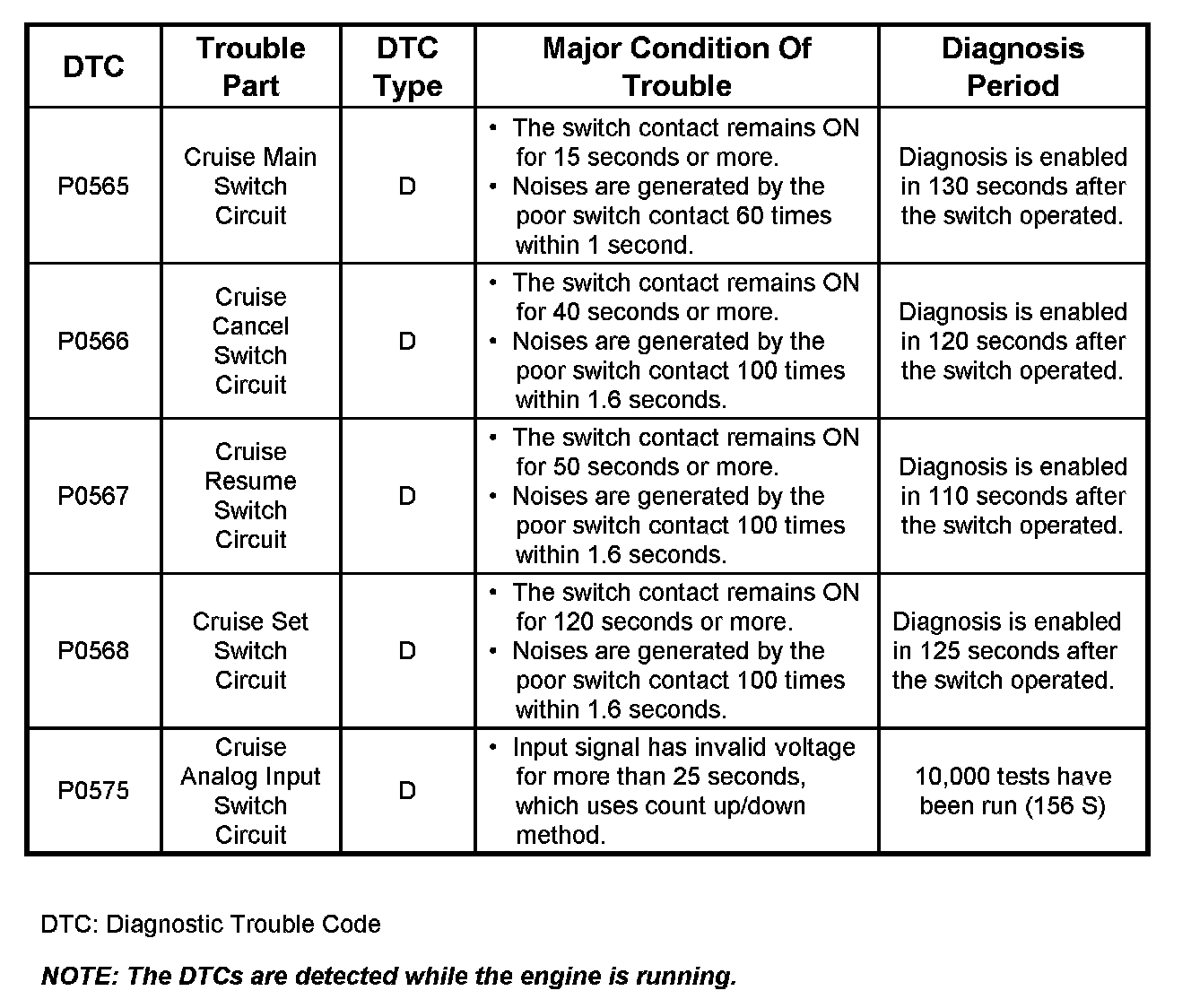

Cruise control system is controlled by the ECM as well as 6VE1 engine. DTC codes are stored in the ECM if troubles occur in the circuit. DTC codes categorized "type D" are shown only by the Tech 2 scan tool. The following chart only shows some typical DTCs for cruise control system. Refer to ECM Diagnostic Trouble Codes in Driveability and Emissions - 3.2L or PCM Diagnosis in Driveability and Emissions - 2.2L for entire DTC diagnosis.
