Transmission Oil Temperature Sensor (Main Case): Removal
- Raise the vehicle and support it on jack stands.
- Disconnect battery ground cable.
- Drain fluid.
- Remove sixteen 10 mm main case oil pan fixing screws, main case oil pan, and gasket.

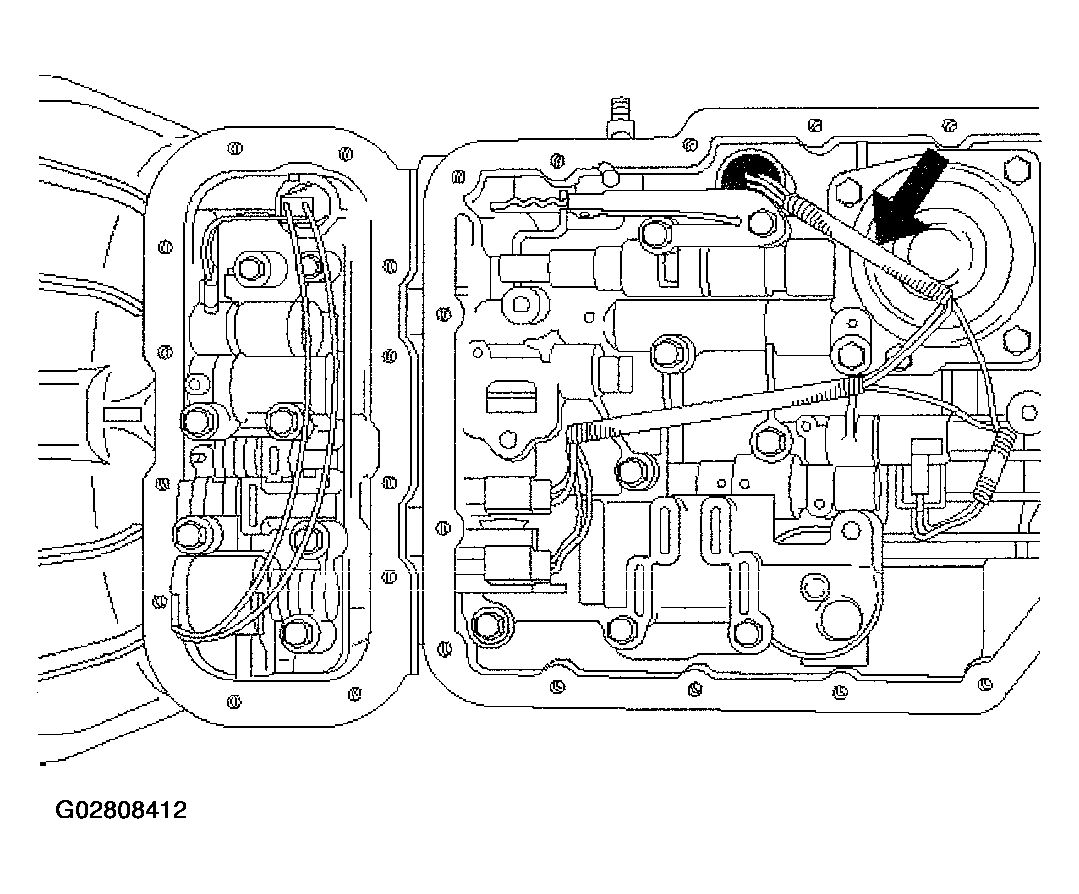

- Disconnect wiring harness from shift solenoids, band apply solenoid, and 7 way connector of main case. Pull only on connectors, not on wiring harness.
- Remove wiring harness assembly with transmission oil temperature sensor.
