General Specifications - Front End Alignment Inspection and Adjustment

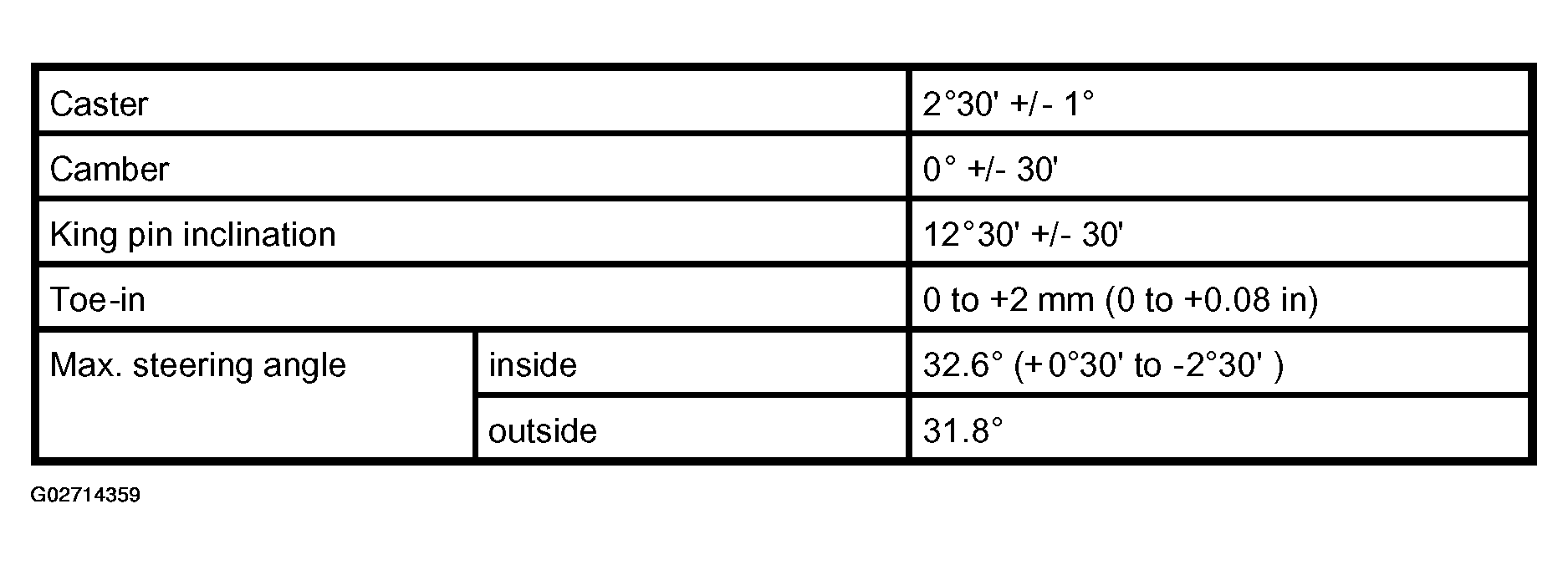

Fig 1: Specifications Chart
G02714359Courtesy of ISUZU MOTOR CO.
