Torque Specifications
WARNING: This page is about a different car, the 2002 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.

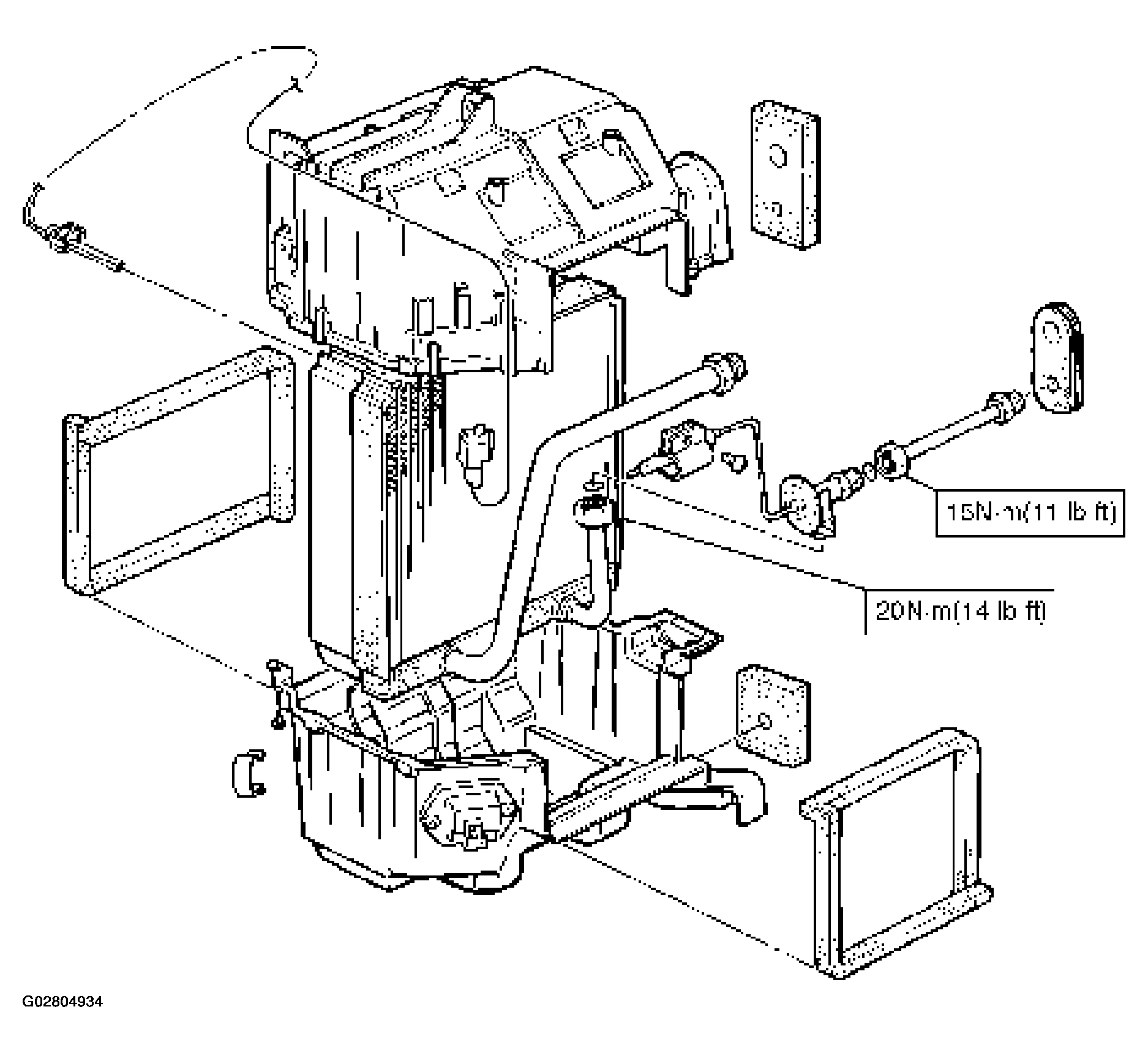

Fig 1: Refrigerant Line & Associated Parts Torque Specifications (1 Of 2)
Courtesy of ISUZU MOTOR CO.

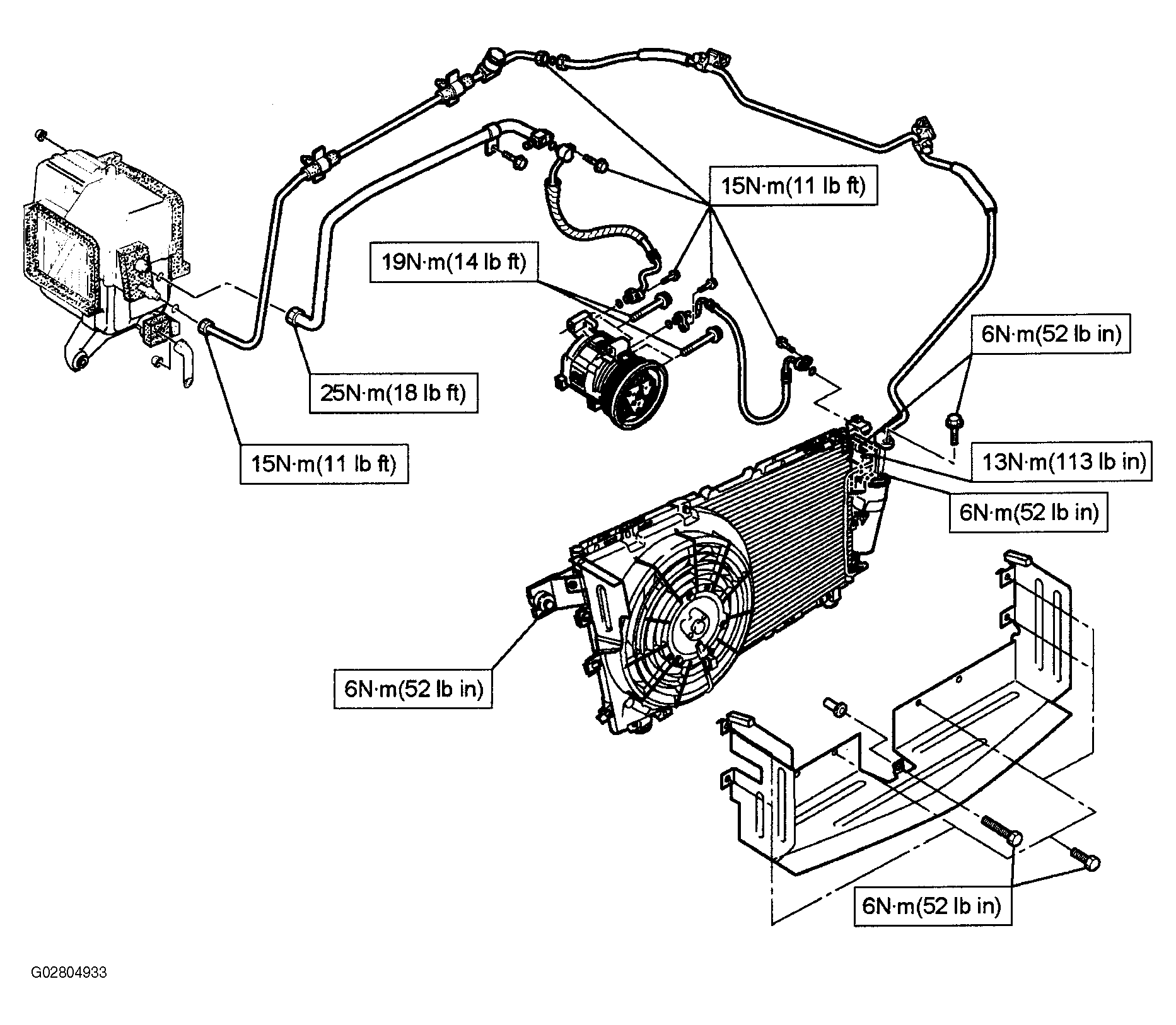

Fig 2: Refrigerant Line & Associated Parts Torque Specifications (2 Of 2)
Courtesy of ISUZU MOTOR CO.

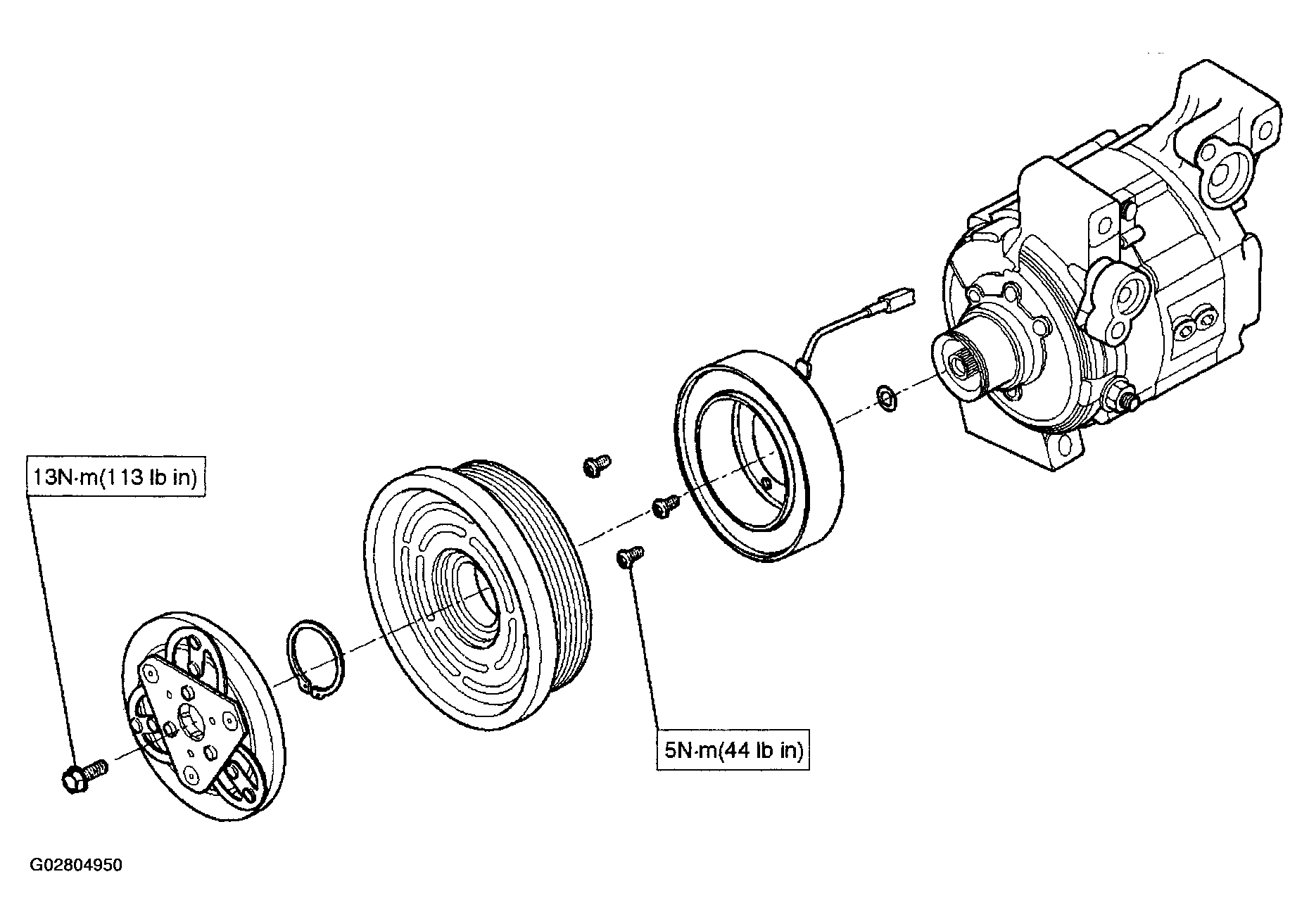

Fig 1: Compressor Magnetic Clutch Torque Specifications
