DTC P0722: Automatic Transmission Output Speed Sensor (OSS) Low Input

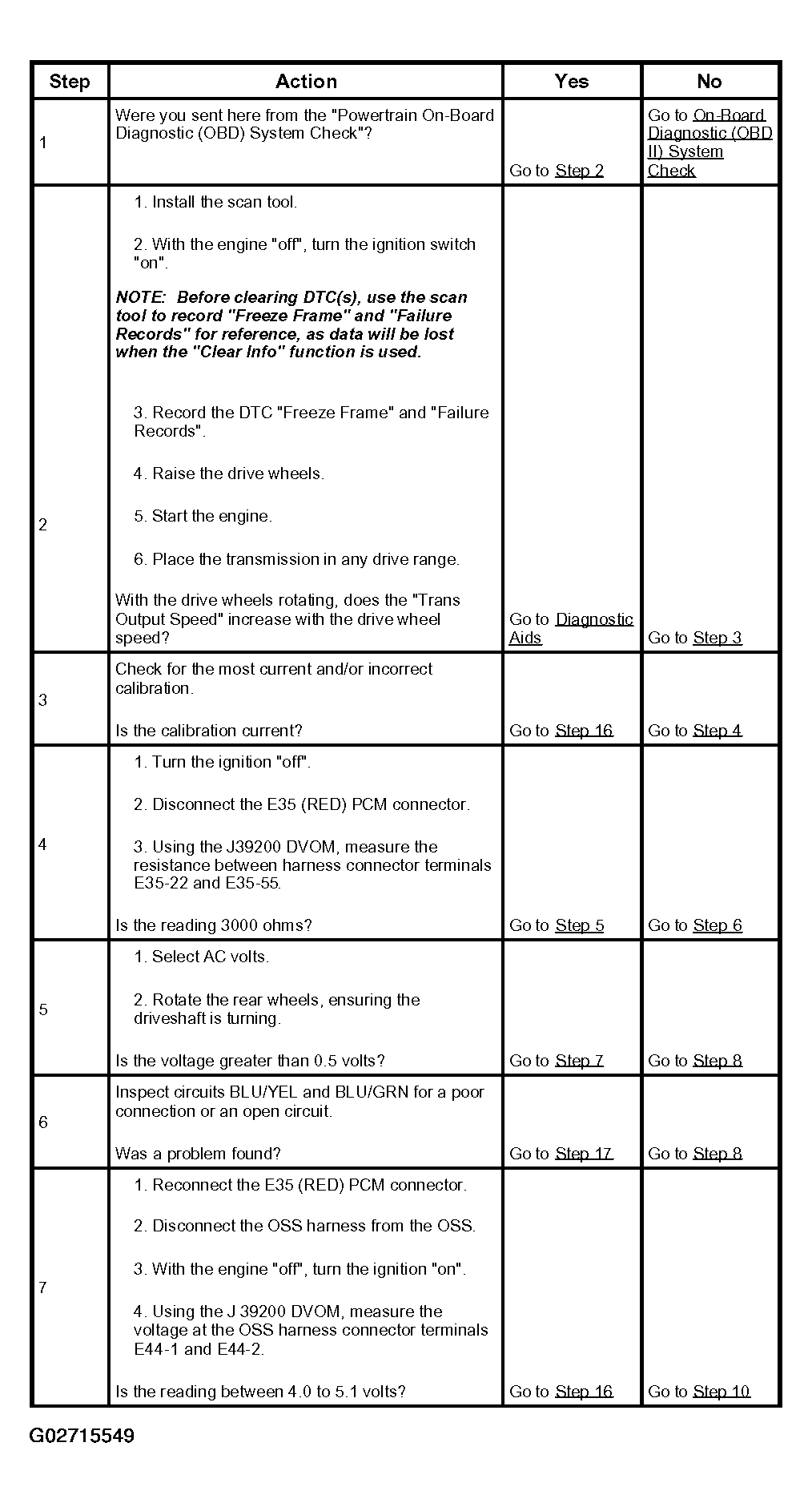

Fig 1: DTC P0722 Automatic Transmission Output Speed Sensor (OSS) Low Input Diagnostic Chart (Steps 1-7)
G02715549Courtesy of ISUZU MOTOR CO.

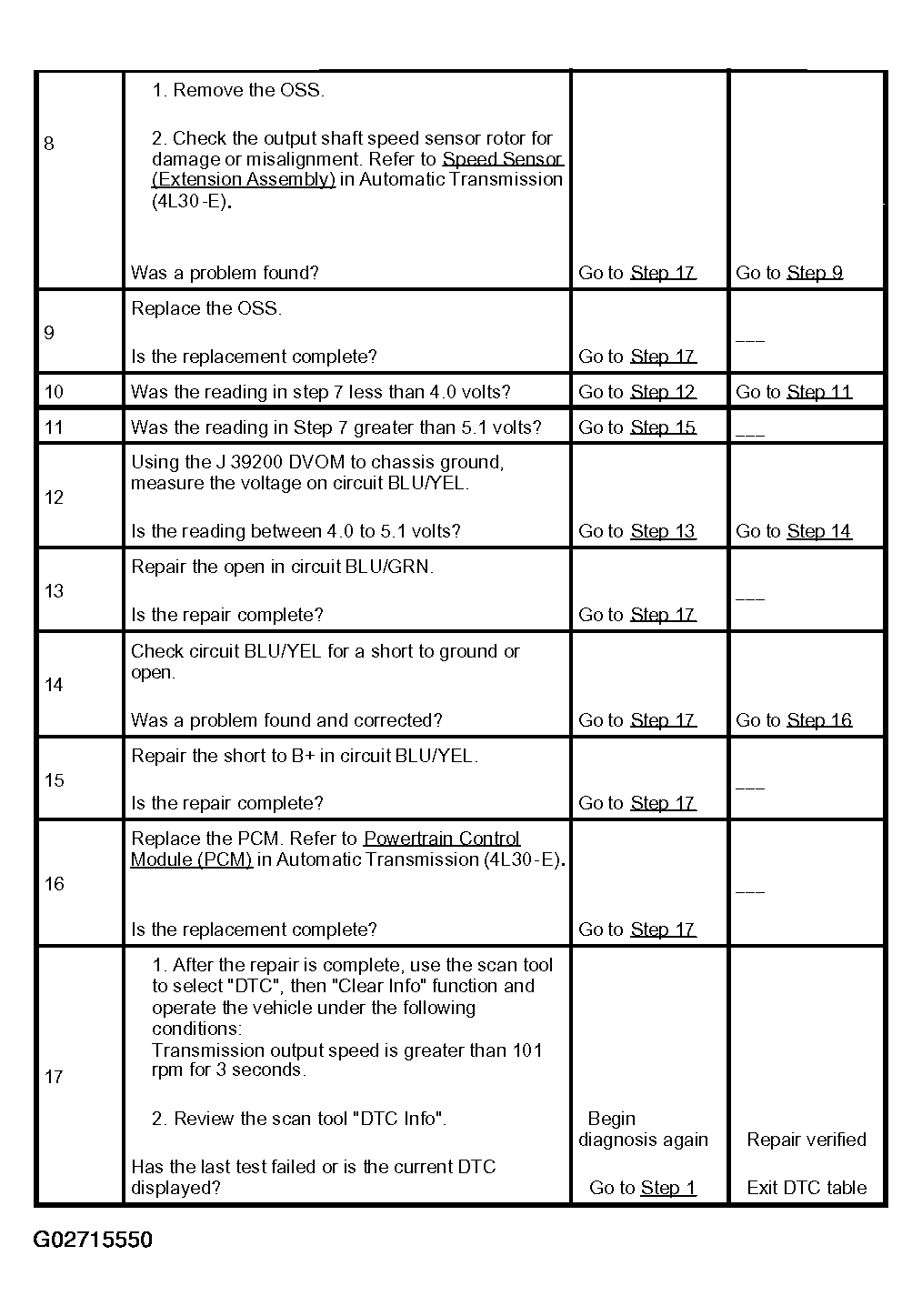

Fig 2: DTC P0722 Automatic Transmission Output Speed Sensor (OSS) Low Input Diagnostic Chart (Steps 8-17)
G02715550Courtesy of ISUZU MOTOR CO.
