Diagnostic Procedure

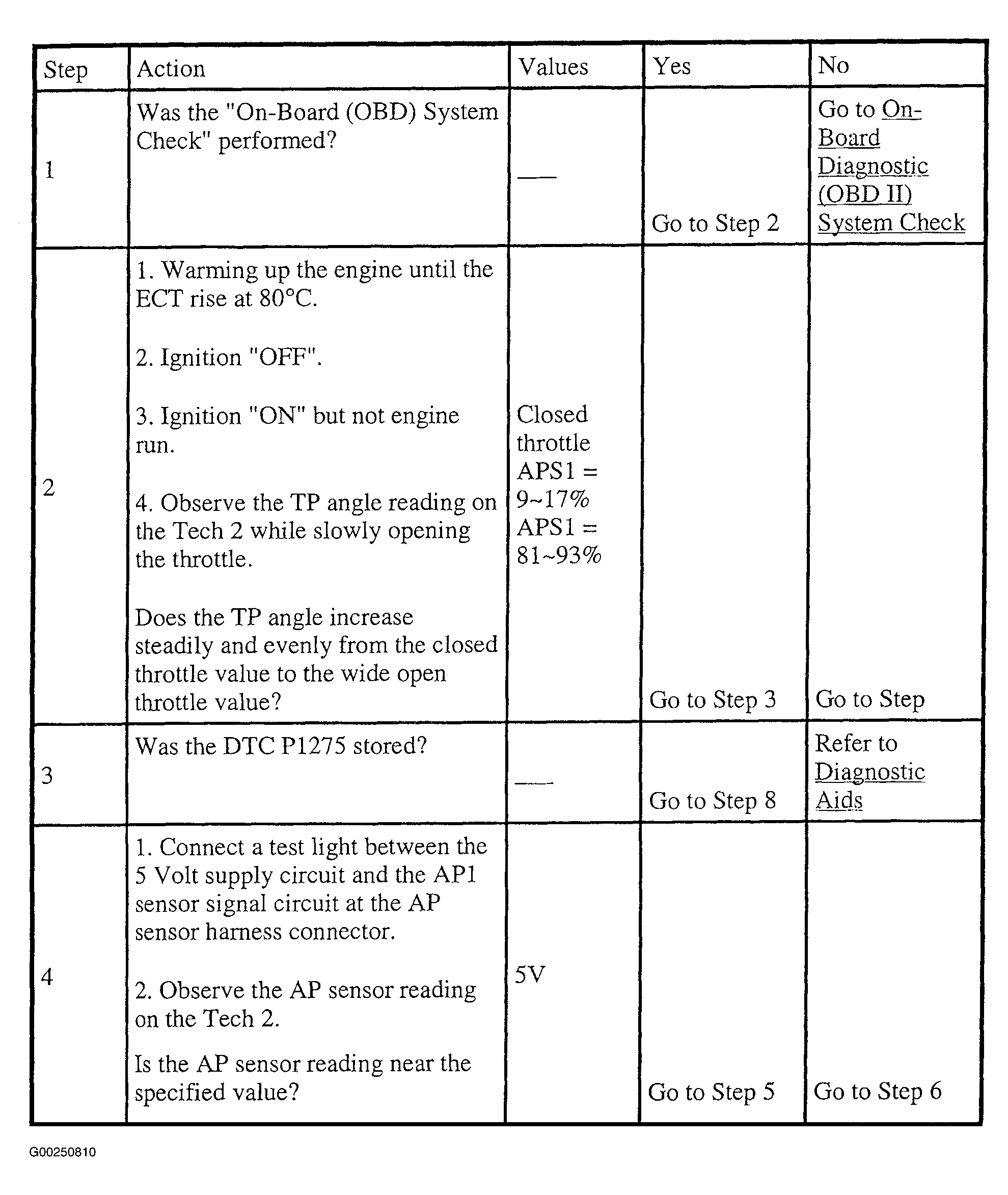

Fig 1: DTC P1275: AP Sensor 1 Circuit Fault (Steps 1-4)
G00250810Courtesy of ISUZU MOTOR CO.

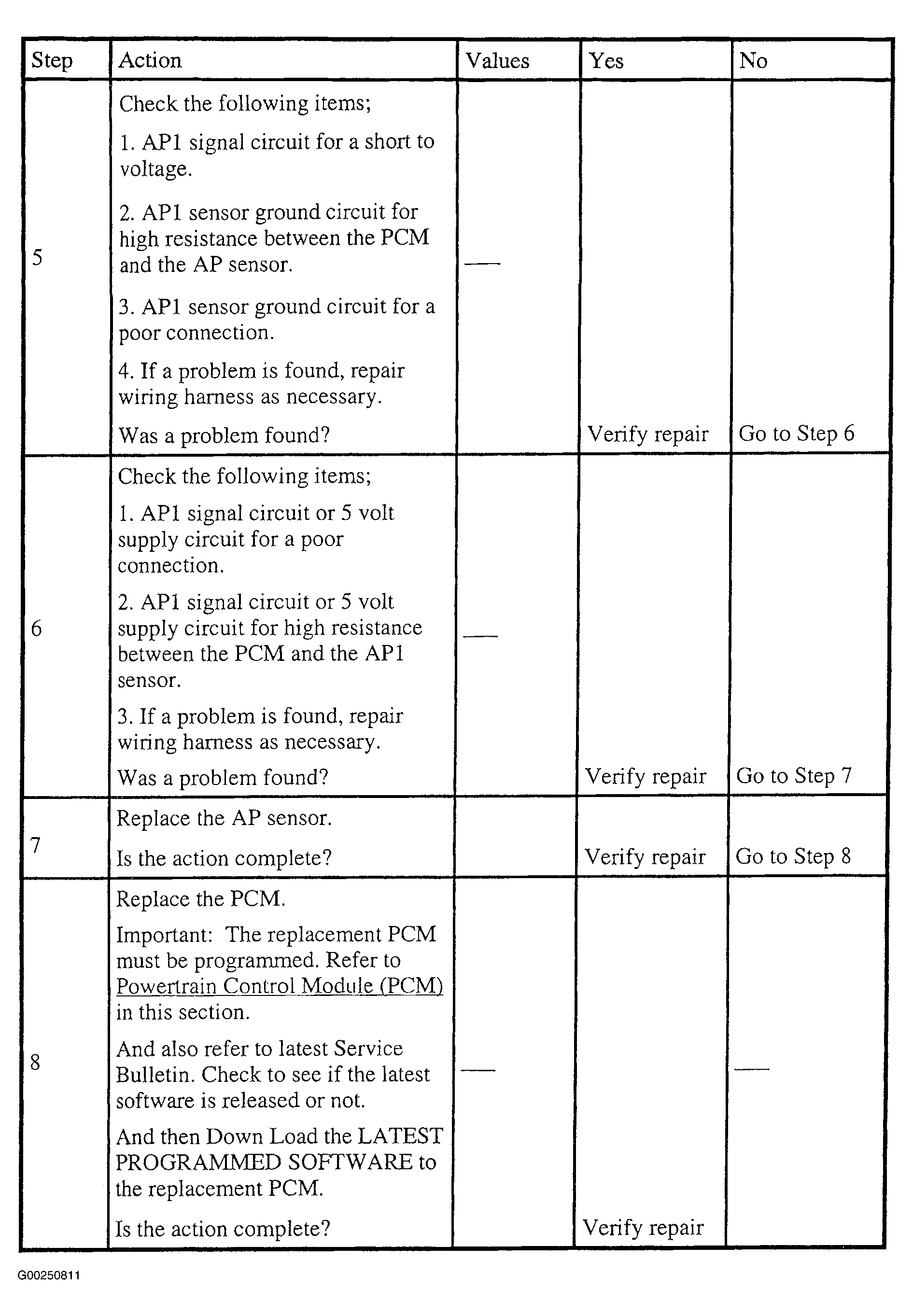

Fig 2: DTC P1275: AP Sensor 1 Circuit Fault (Steps 5-8)
G00250811Courtesy of ISUZU MOTOR CO.
