Diagnostic Procedure

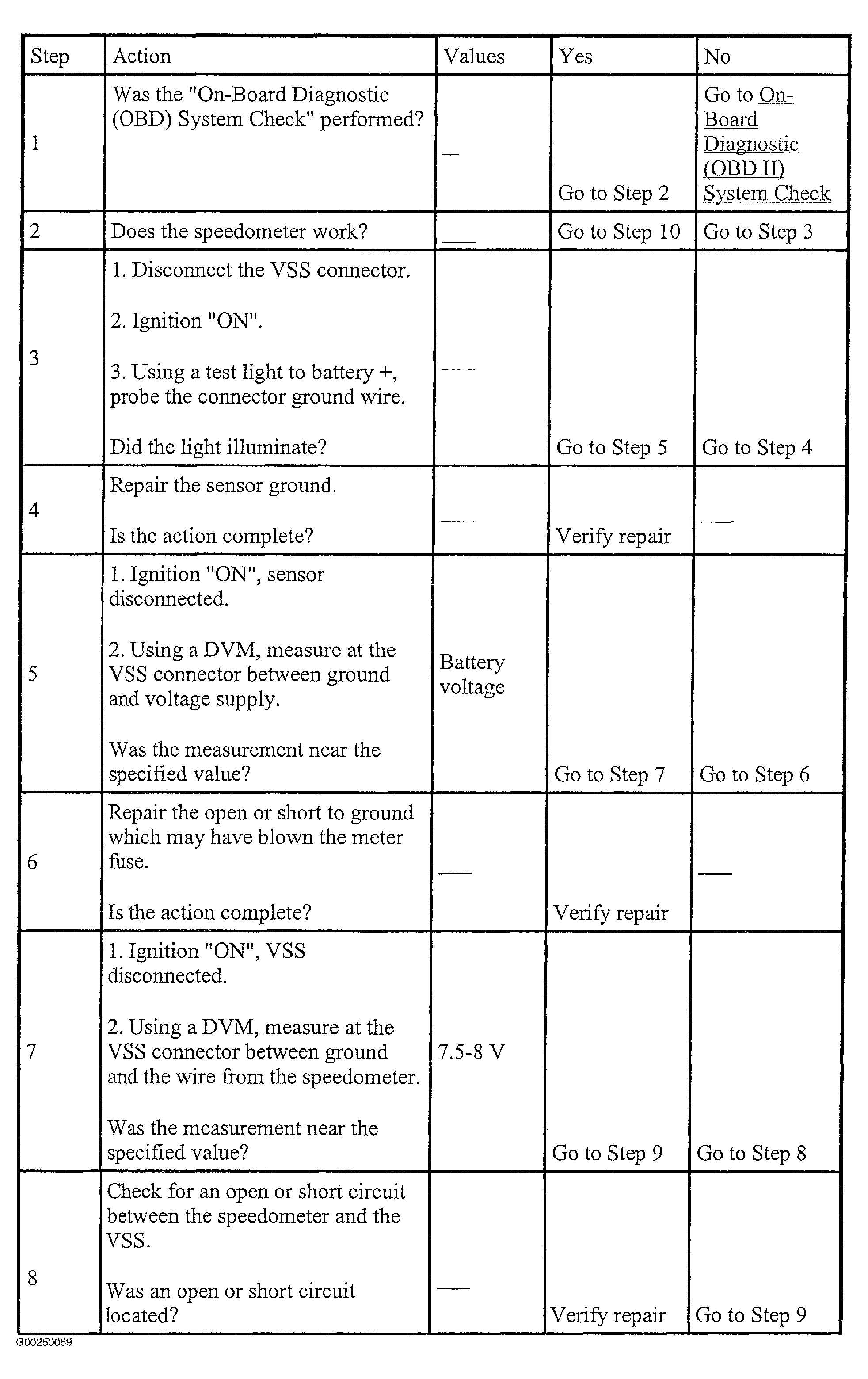

Fig 1: DTC P0502: VSS Circuit - Low Input (Steps 1-8)

Courtesy of ISUZU MOTOR CO.

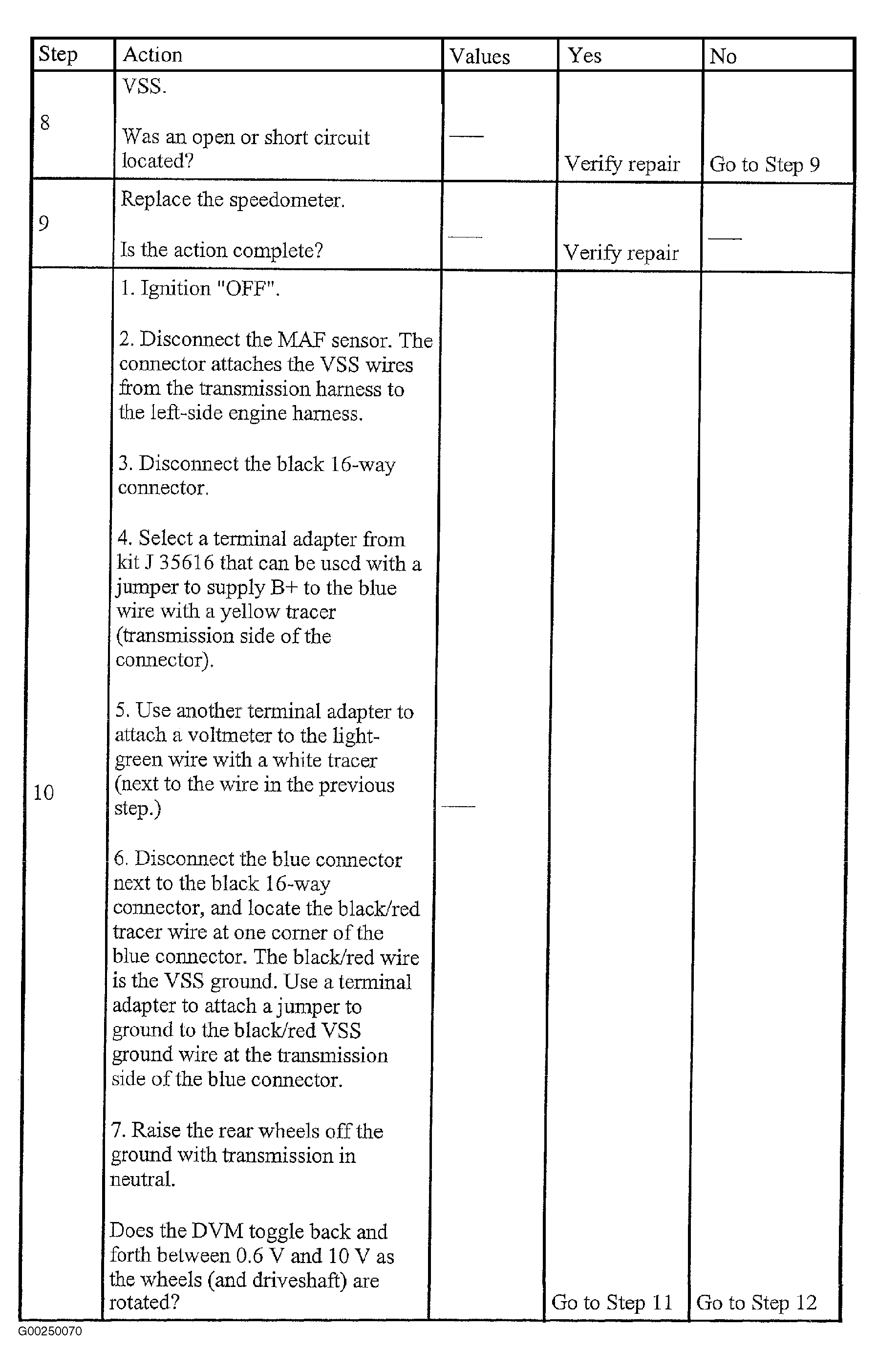

Fig 2: DTC P0502: VSS Circuit - Low Input (Steps 9 & 10)

Courtesy of ISUZU MOTOR CO.

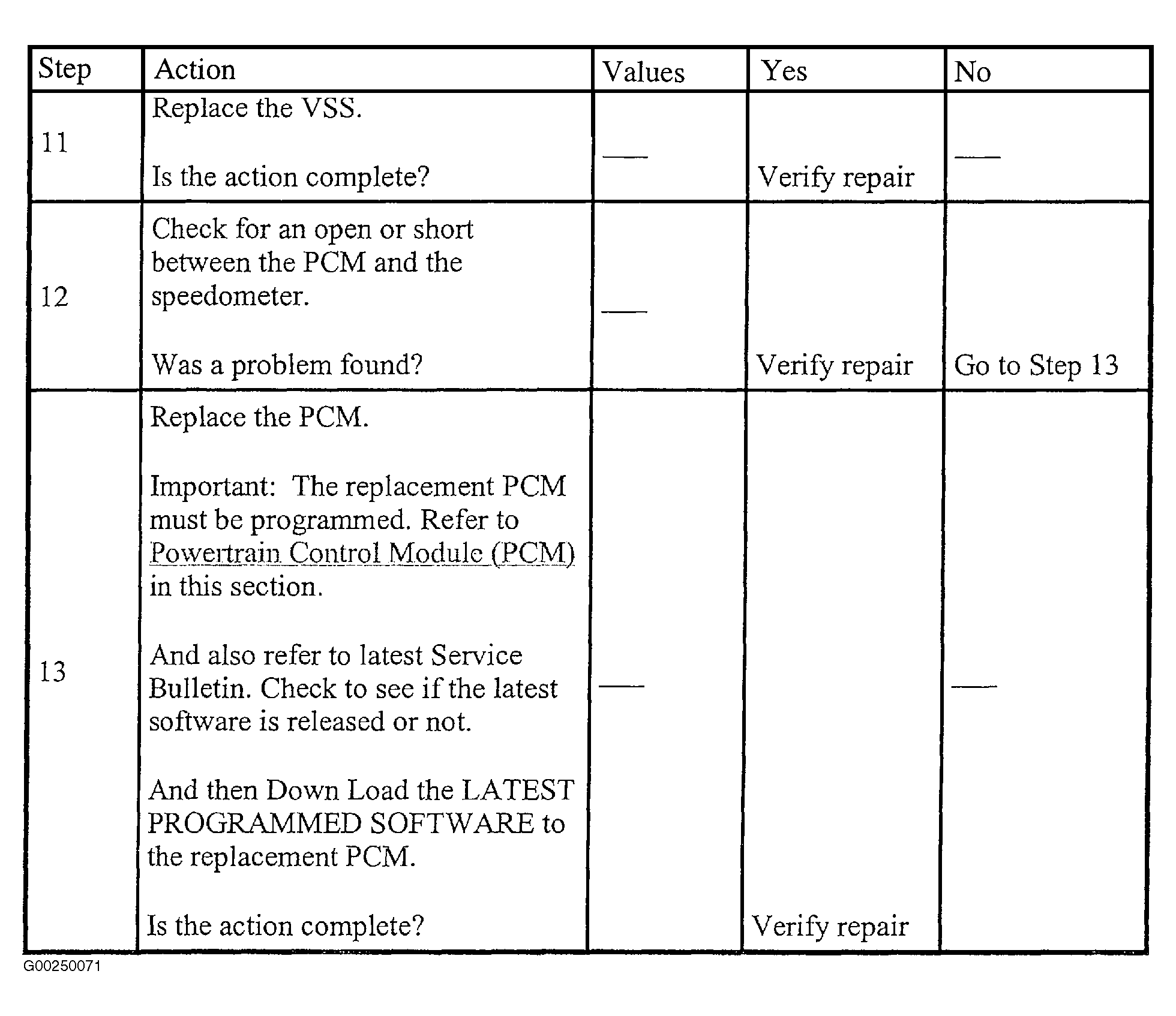

Fig 3: DTC P0502: VSS Circuit - Low Input (Steps 11-13)

Courtesy of ISUZU MOTOR CO.
