Diagnostic Procedure

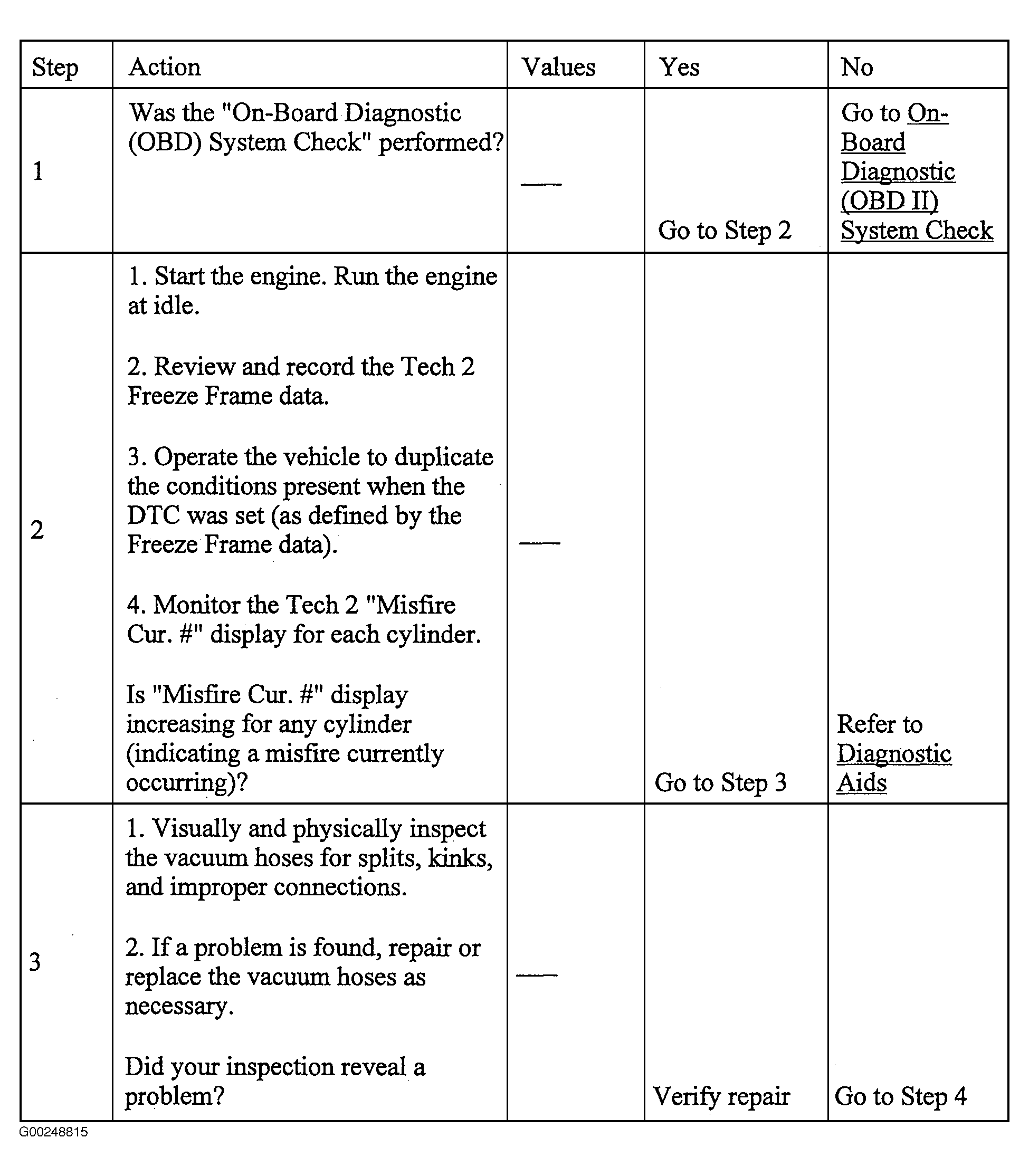

Fig 1: DTC P0300: Engine Misfire Detected (Steps 1-3)

Courtesy of ISUZU MOTOR CO.

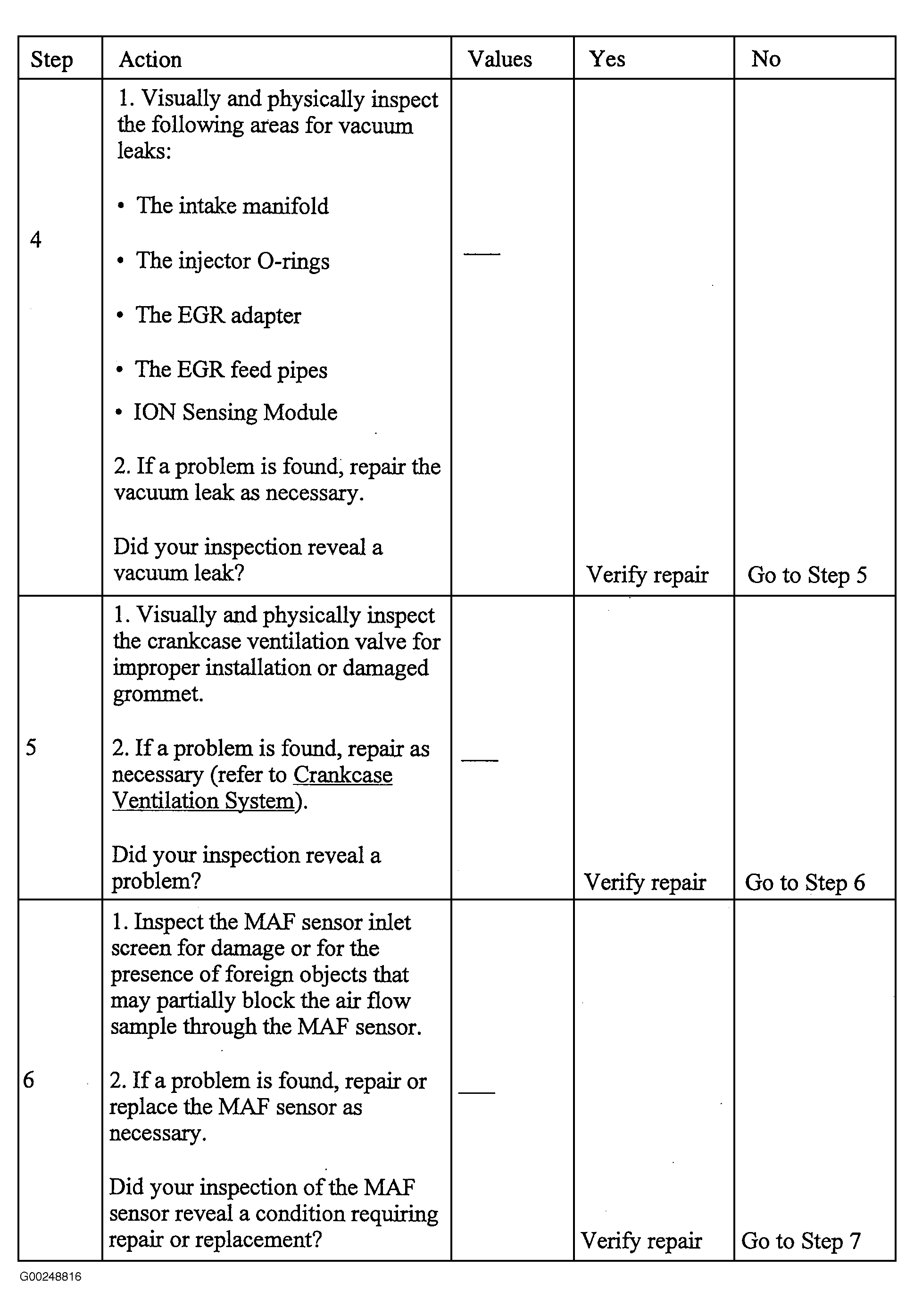

Fig 2: DTC P0300: Engine Misfire Detected (Steps 4-6)

Courtesy of ISUZU MOTOR CO.

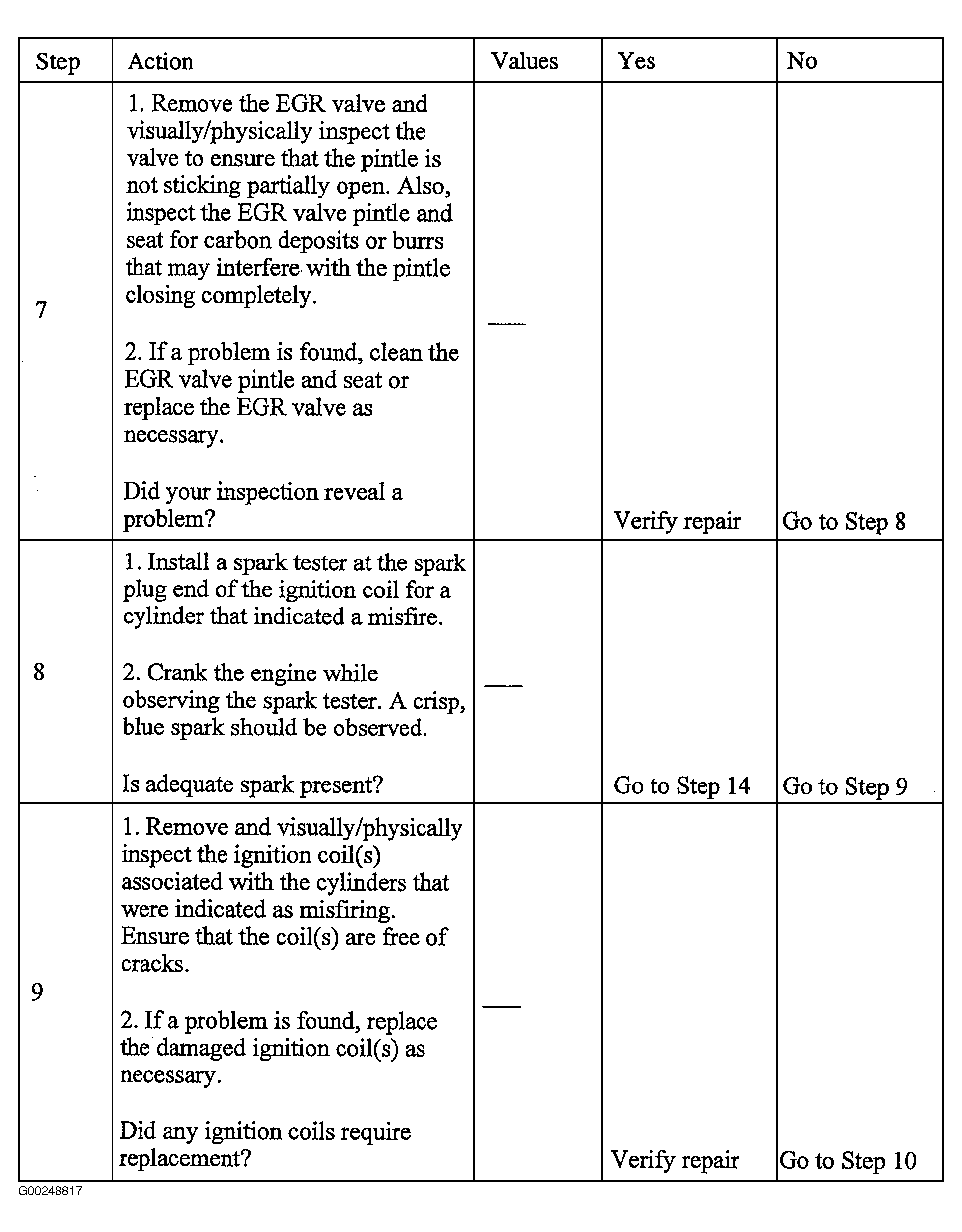

Fig 3: DTC P0300: Engine Misfire Detected (Steps 7-9)

Courtesy of ISUZU MOTOR CO.

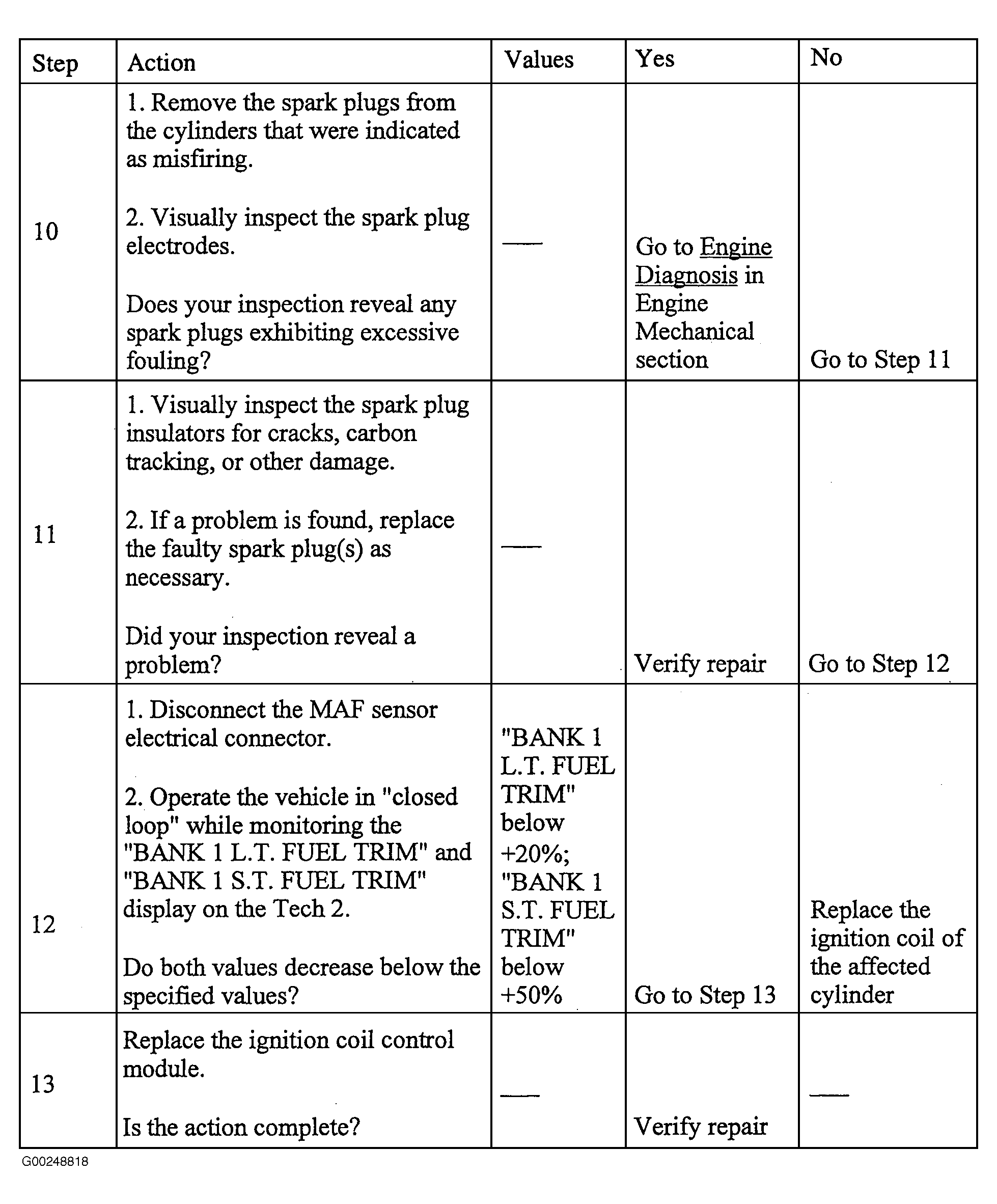

Fig 4: DTC P0300: Engine Misfire Detected (Steps 10-13)

Courtesy of ISUZU MOTOR CO.

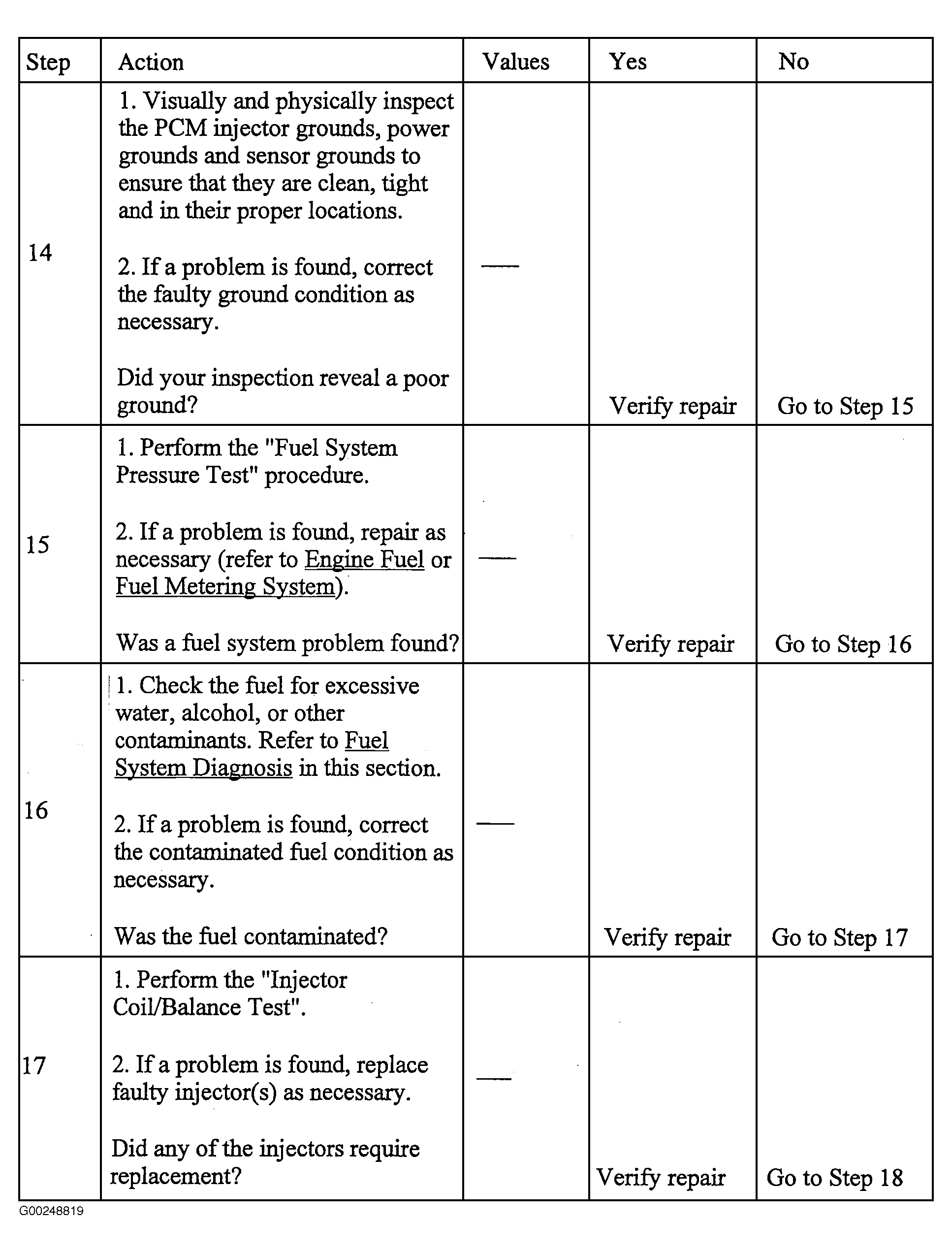

Fig 5: DTC P0300: Engine Misfire Detected (Steps 14-17)

Courtesy of ISUZU MOTOR CO.

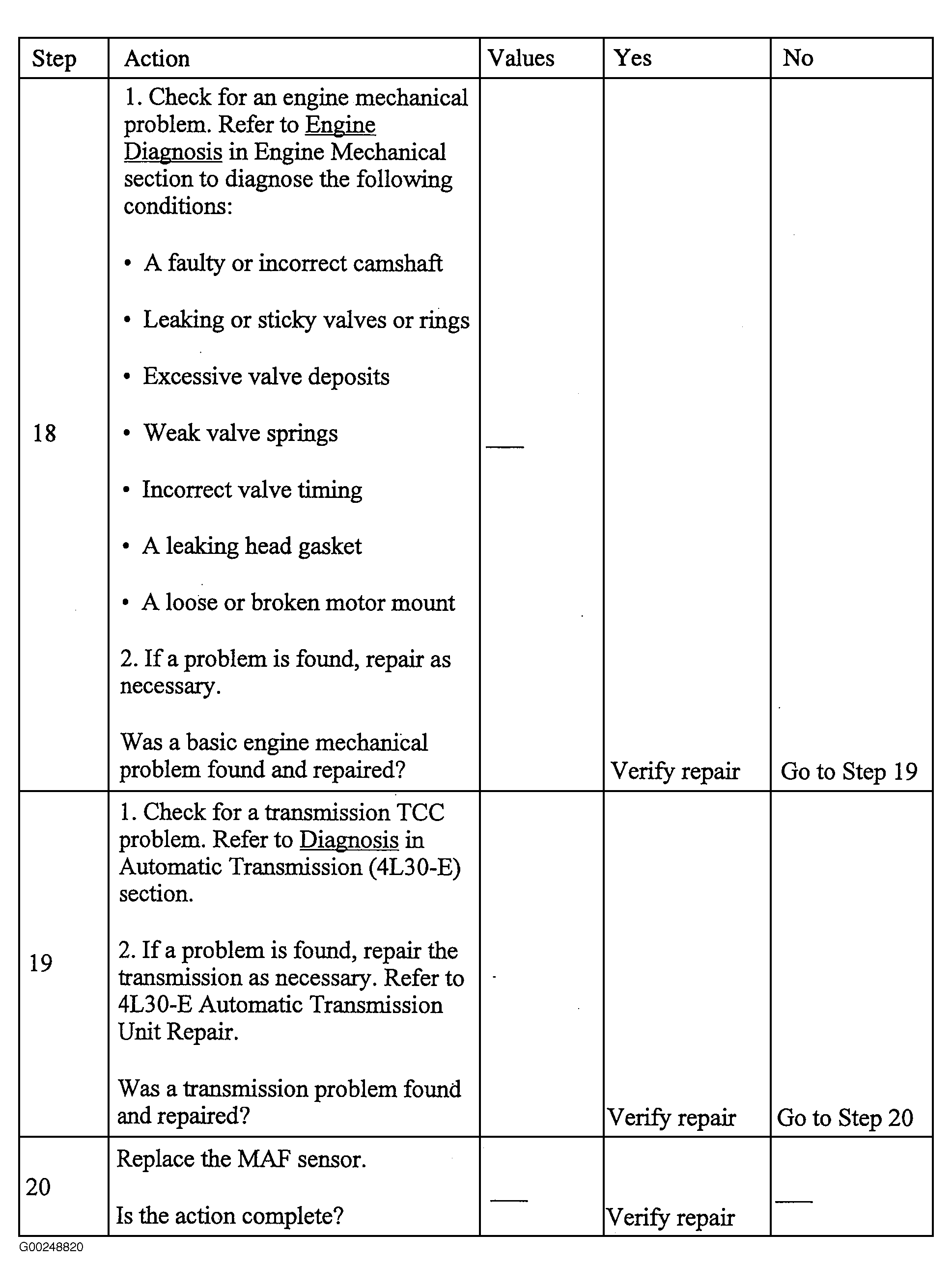

Fig 6: DTC P0300: Engine Misfire Detected (Steps 18-20)

Courtesy of ISUZU MOTOR CO.
