Under-Hood Fuse/Relay Box

NOTE: Under-hood fuse/relay box is located in right side of the engine compartment. See Fig 1 . Under-hood fuse/relay box components are identified on the fuse/relay box cover.

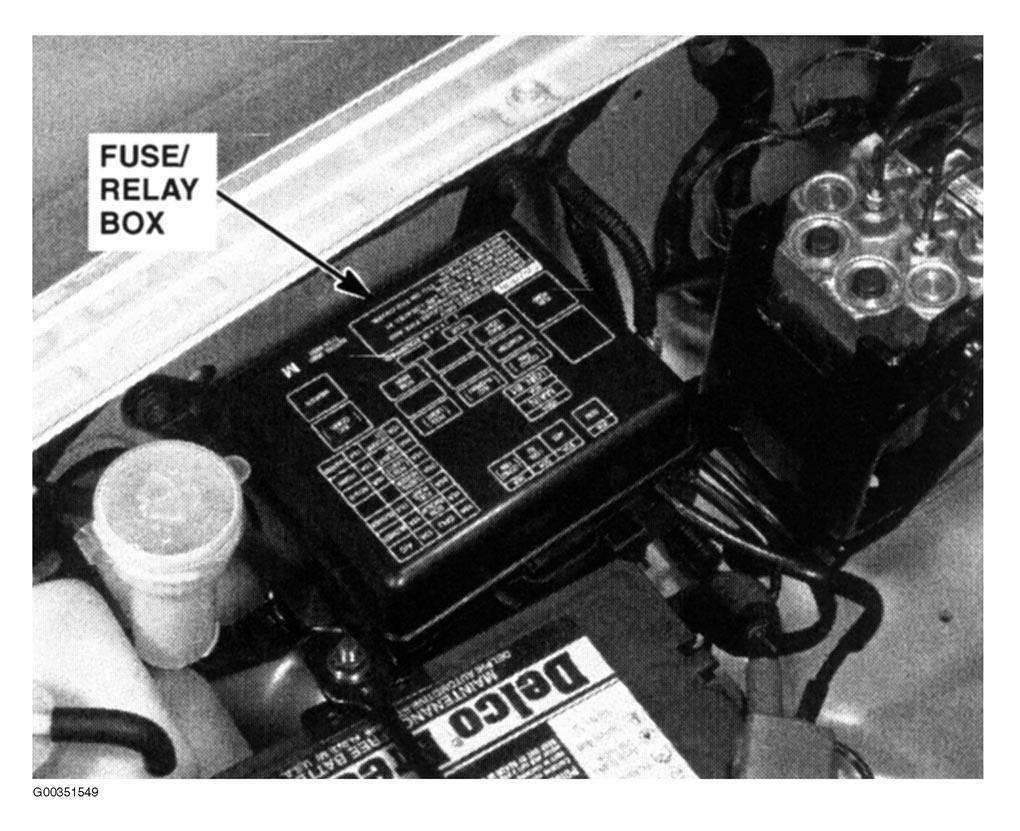

Fig 1: Locating Under-Hood Fuse/Relay Box
G00351549Courtesy of ISUZU MOTOR CO.
