Brake Switch: Installation

  1. Adjust stop light switch to specified clearance between switch housing and brake pedal by rotating switch housing. See Fig 1 .
    NOTE: Do not attempt to force the push rod into position during the stoplight switch installation and adjustment procedure.

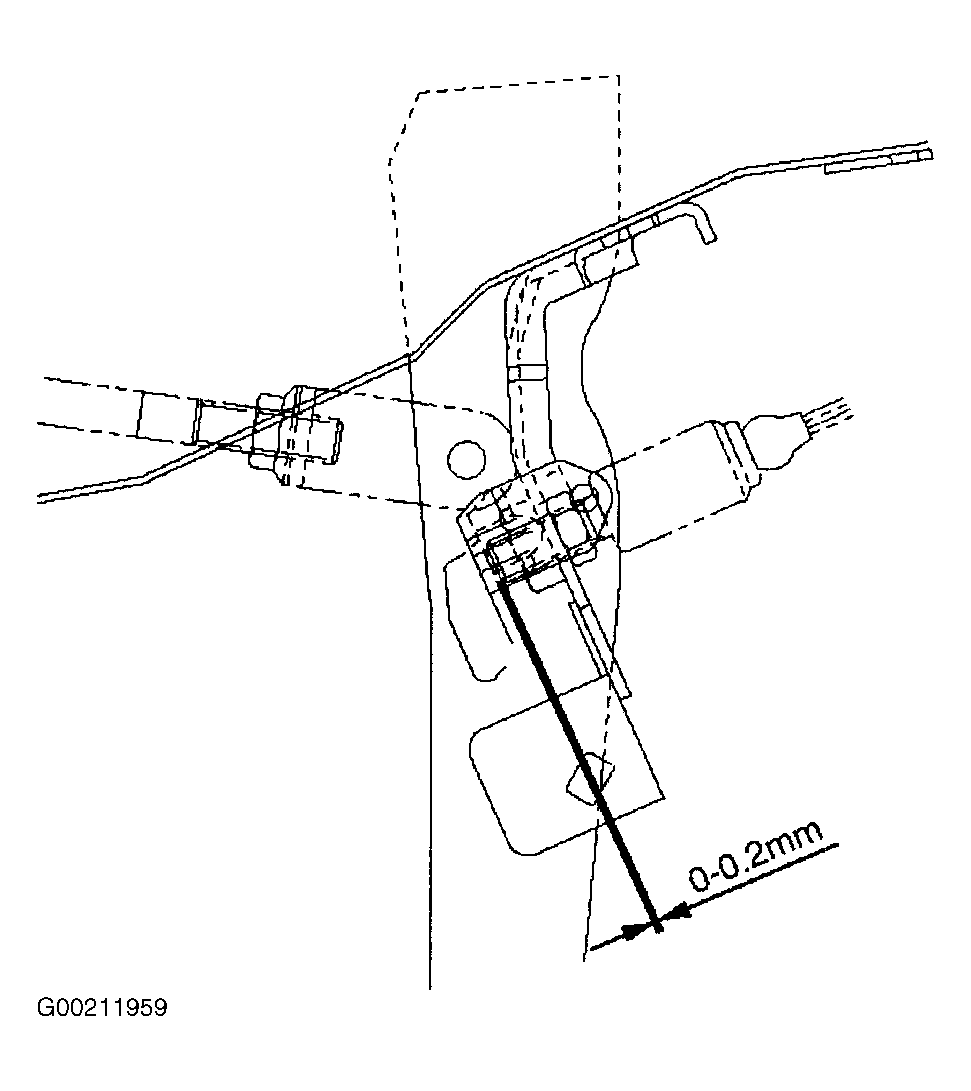

    Fig 1: Adjusting Stop Light Switch Between Housing & Brake Pedal
    G00211959Courtesy of ISUZU MOTOR CO.
  2. Connect connector (1).
  3. Install lock nut (3).
