Immobilizer Control Unit (ICU): Pin-Outs

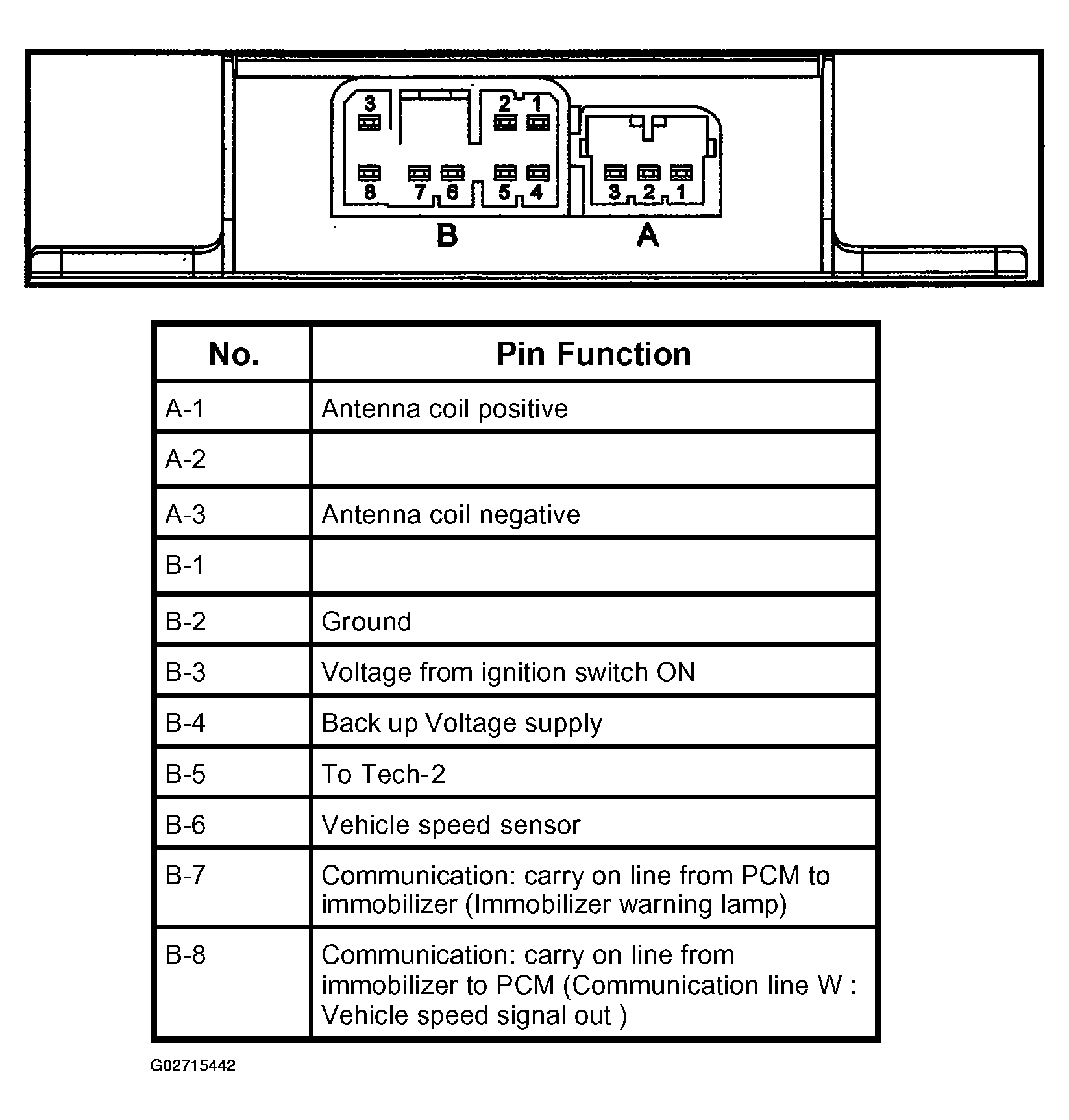

Fig 1: Identifying Immobilizer Control Unit Connector Terminals
G02715442Courtesy of ISUZU MOTOR CO.
