Checking Failed Pin: Reference
Transfer connector pin assignment (connector on the transfer case) for inspection of transfer pins.

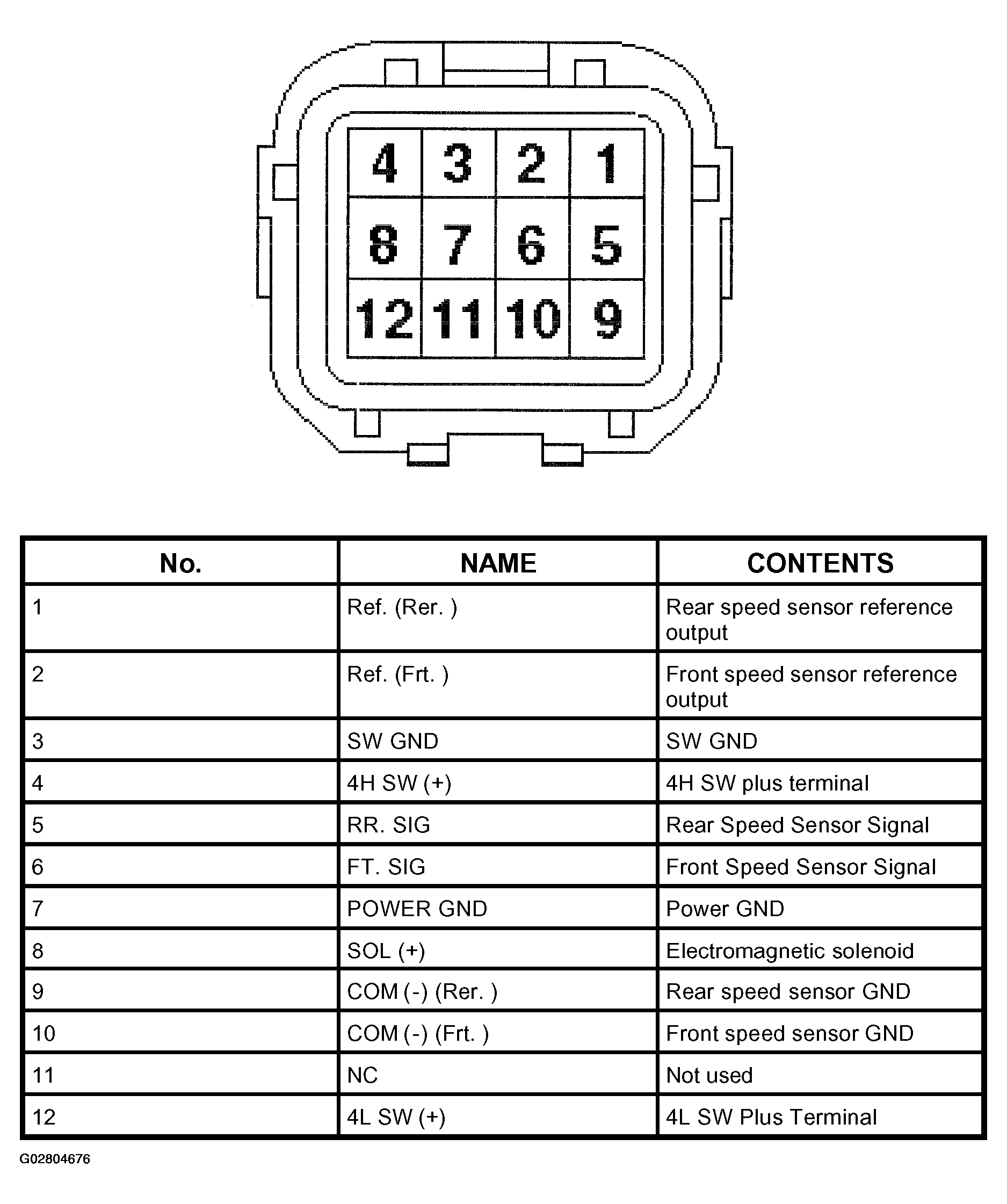

Fig 1: Identifying Transfer Case Connector & Pin Assignments (12-Pin)
Courtesy of ISUZU MOTOR CO.

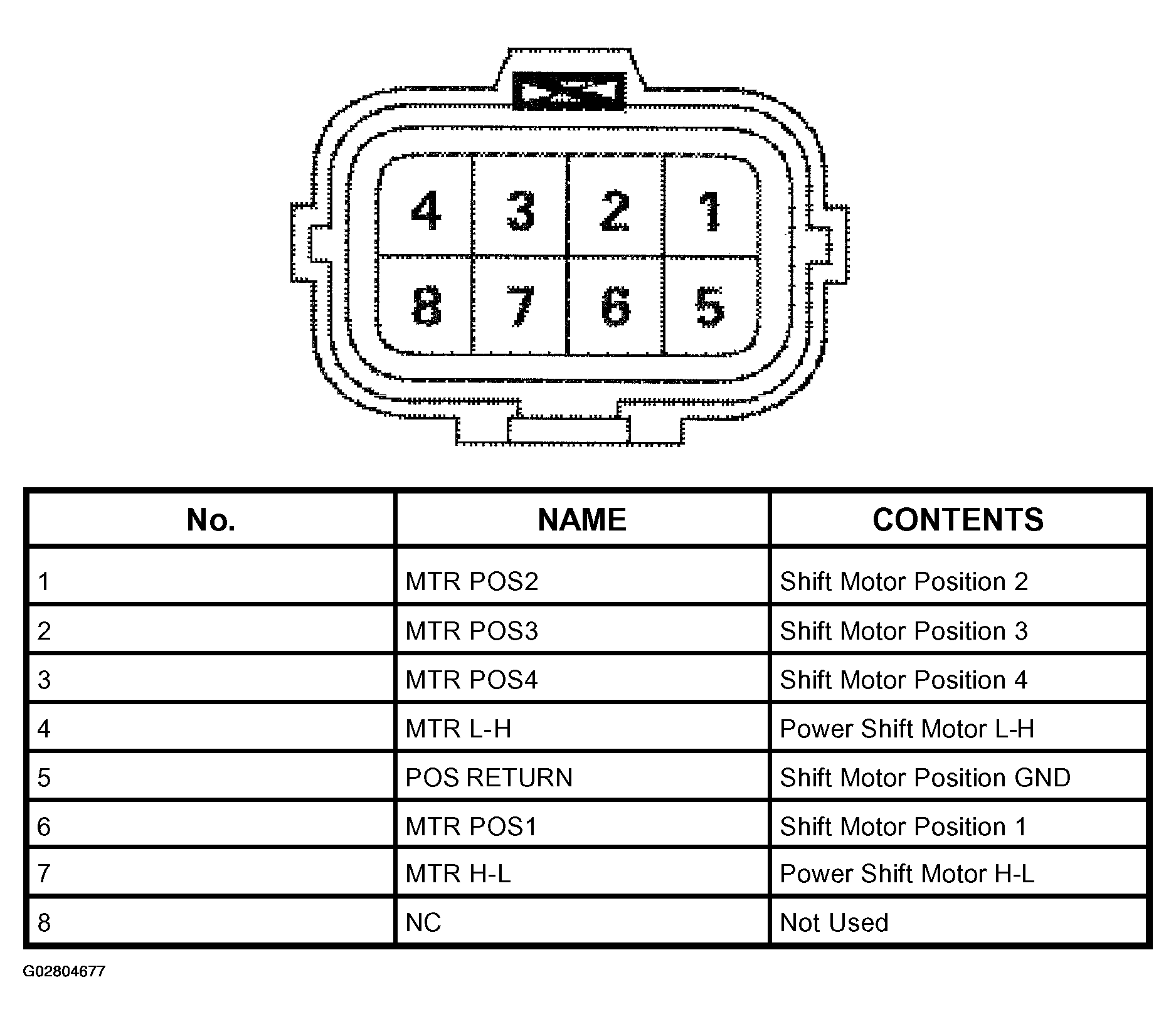

Fig 2: Identifying Shift Motor Position Connector & Pin Assignments (8-Pin)
Courtesy of ISUZU MOTOR CO.
