Refrigerant Pressure Sensor / Switch: Locations

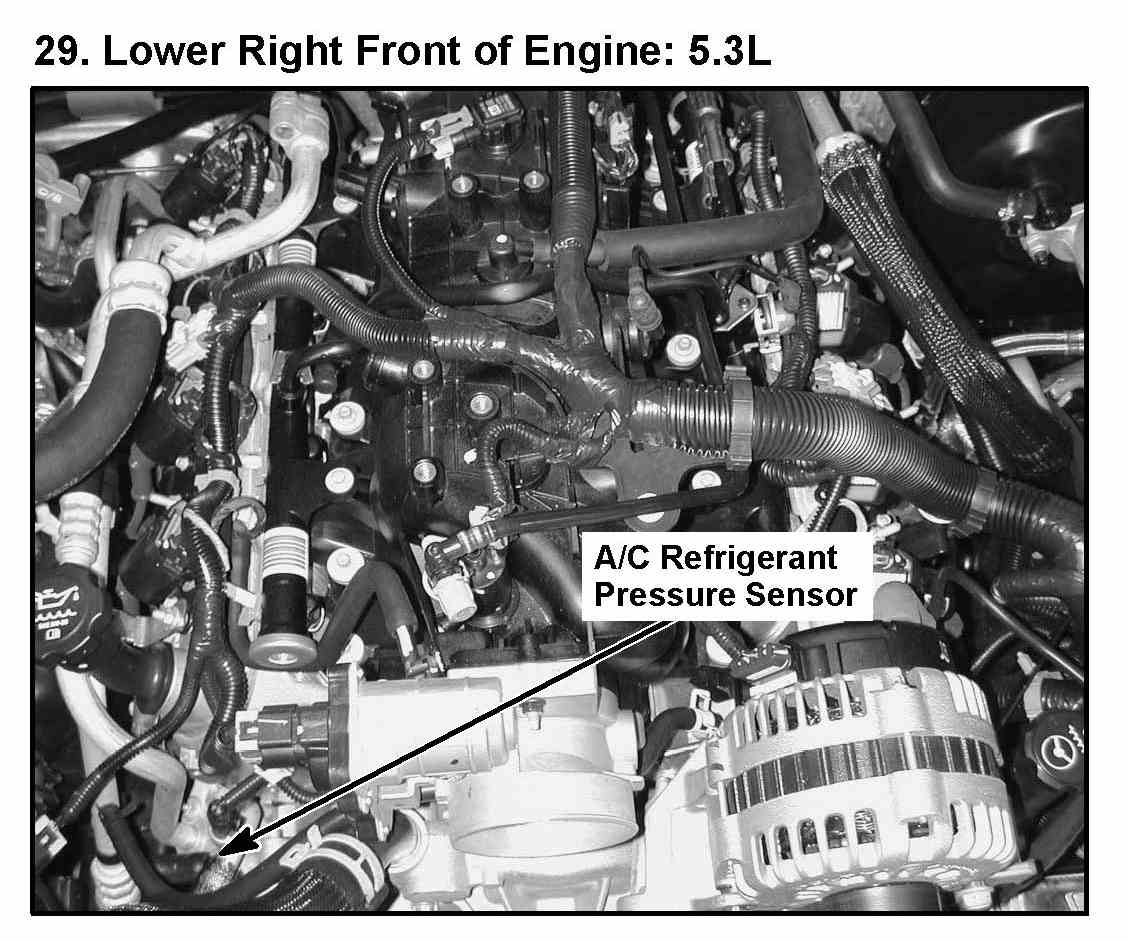

29. Lower Right Front Of Engine:

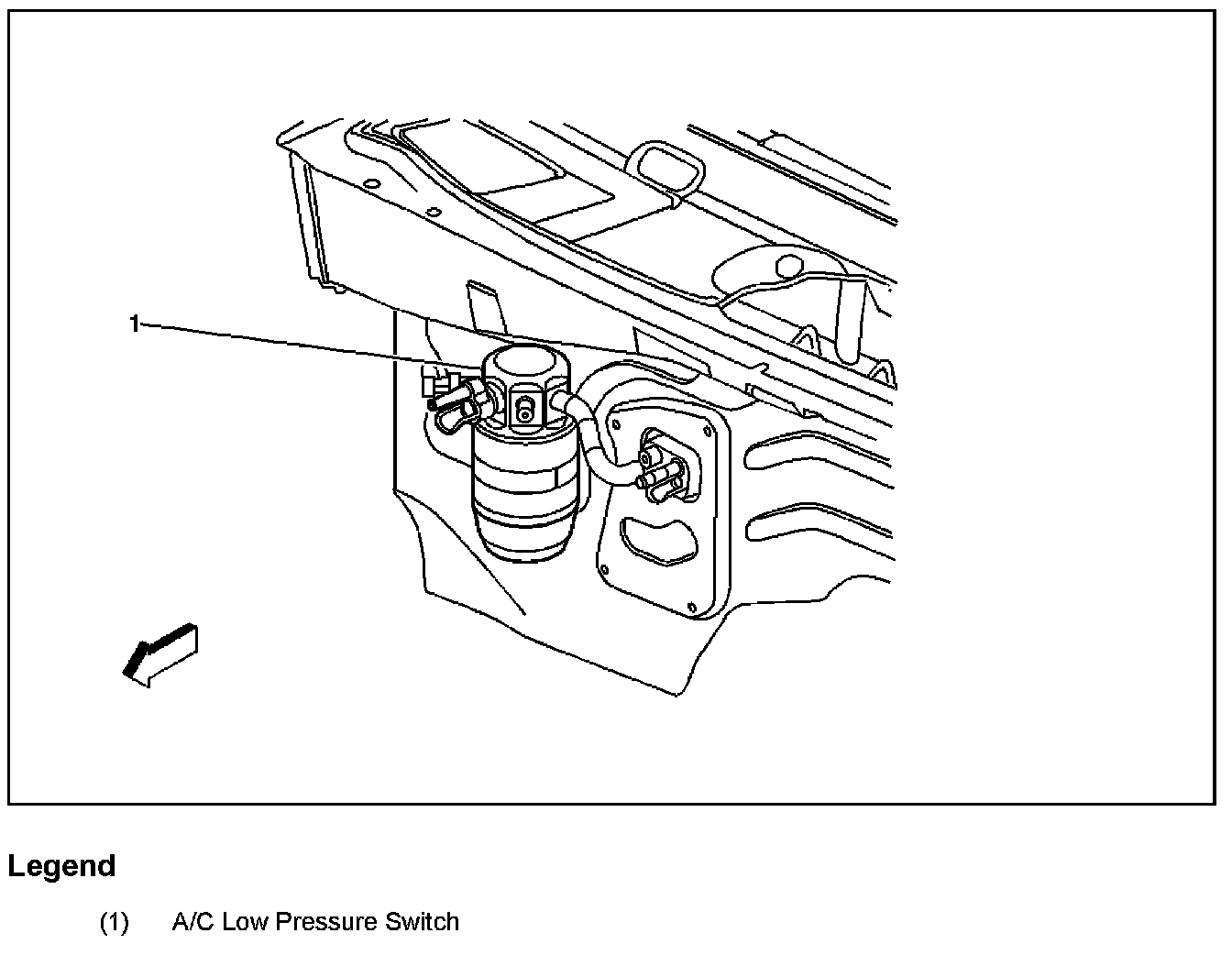

Engine Compartment, Right Rear (Automatic):
