Diagnosis By "ABS" Warning Light Illumination Pattern: Notes

In the event that there is abnormality in the "ABS" warning light illumination pattern while the key is in the ON position or if the warning light is actuated during driving, trouble should be diagnosed on a illumination pattern basis as follows:

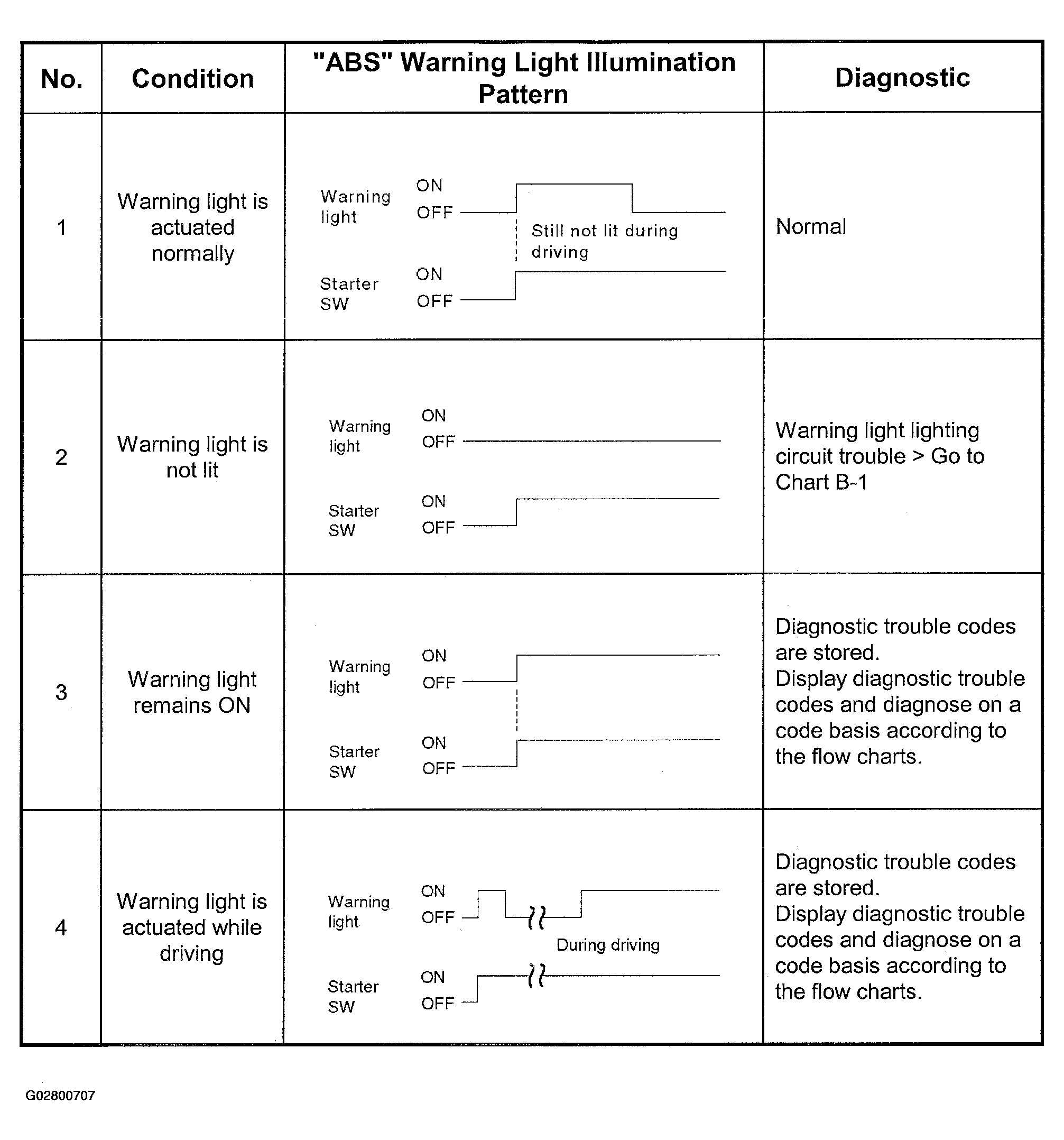

Fig 1: Diagnosis By "ABS" Warning Light Illumination Pattern

Courtesy of ISUZU MOTOR CO.
