Operating Procedure

The power up screen is displayed when you power up the tester with the Isuzu systems PCMCIA card. Follow the operating procedure below.

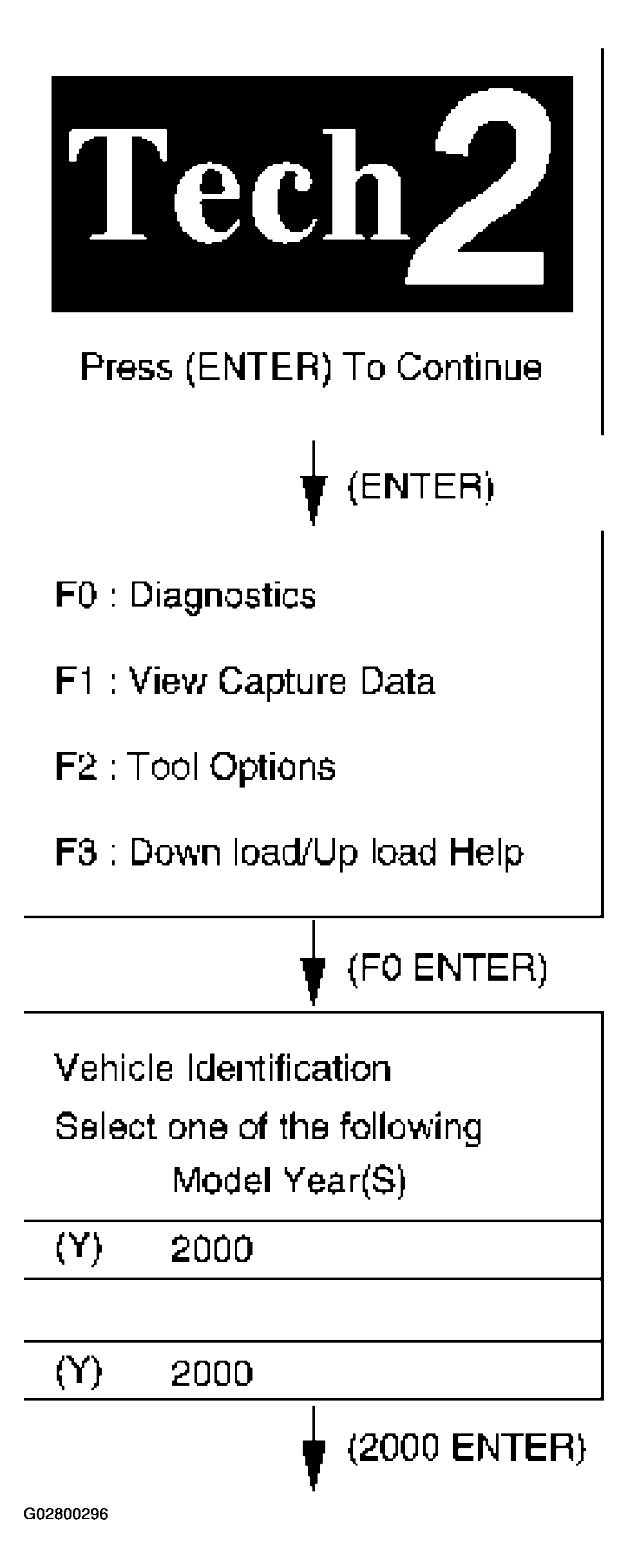

Fig 1: Identifying Tech 2 Operating Procedure (1 Of 2)
G02800296Courtesy of ISUZU MOTOR CO.

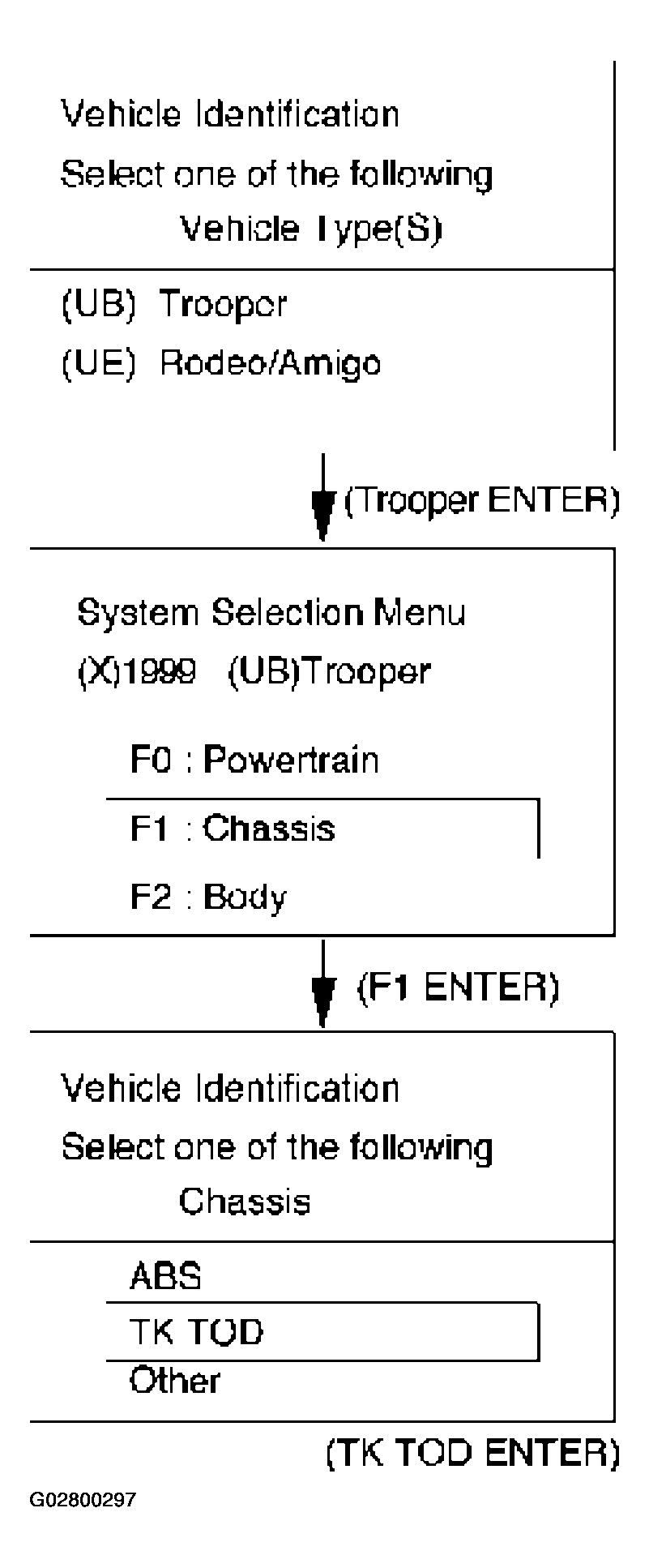

Fig 2: Identifying Tech 2 Operating Procedure (2 Of 2)
G02800297Courtesy of ISUZU MOTOR CO.
