New Compressor Installation

The new compressor is filled with 150cc (5.0 fl oz) of compressor oil and nitrogen gas. When mounting the compressor on the vehicle, perform the following steps:

  1. Gently release nitrogen gas from the new compressor.
    • Take care not to let the compressor oil flow out.
    • Inspect O-rings and replace if necessary.
      Fig 1: Identifying Compressor
      G02778836
  2. Turn the compressor several times by hand and release the compressor oil in the rotor.
  3. When installing on a new system, the compressor should installed as it is. When installing on a used system, the compressor should be installed after adjusting the amount of compressor oil. (Refer to COMPRESSOR  ).

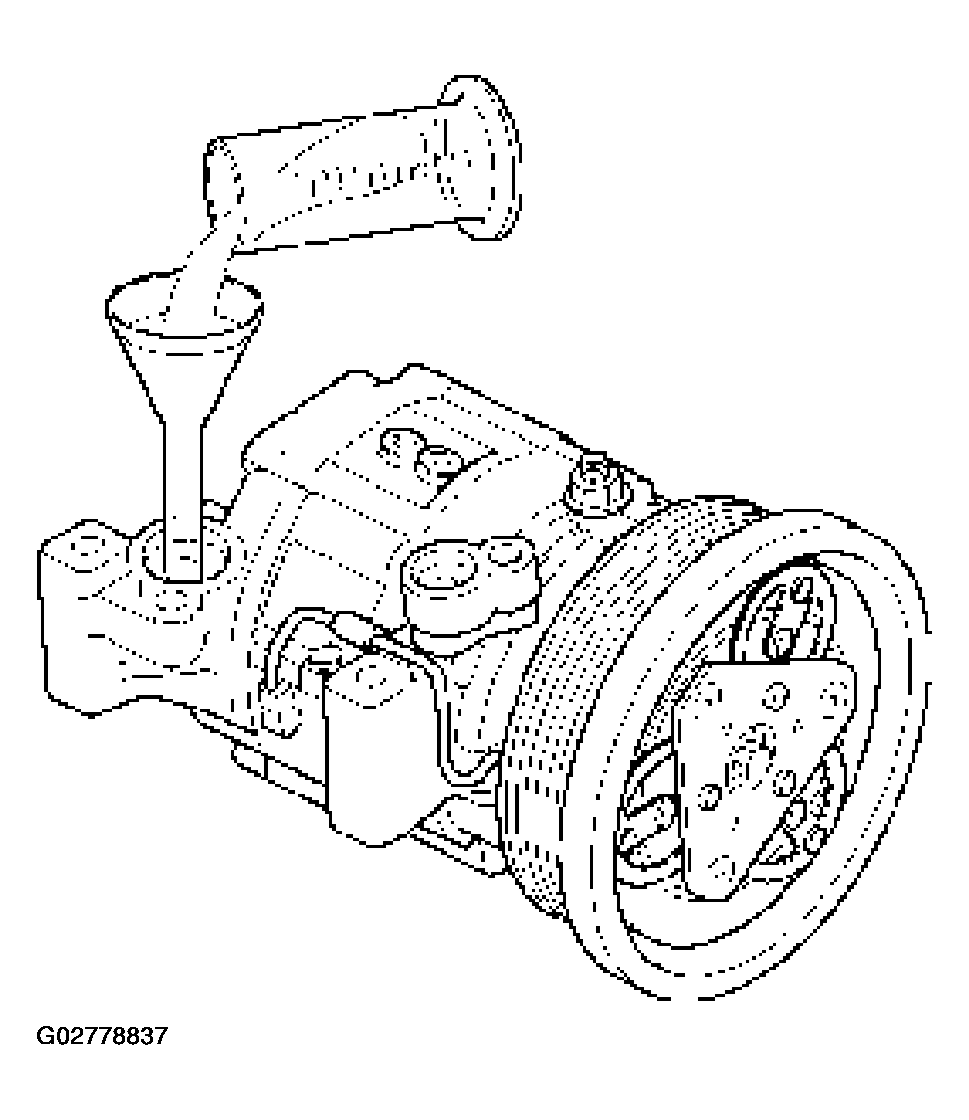

    Fig 2: Filling Compressor Oil
    G02778837


The new compressor is filled with 150cc (5.0 fl oz) of compressor oil and nitrogen gas. When mounting the compressor on the vehicle, perform the following steps:

  1. Gently release nitrogen gas from the new compressor.
    • Take care not to let the compressor oil flow out.
    • Inspect O-rings and replace if necessary.

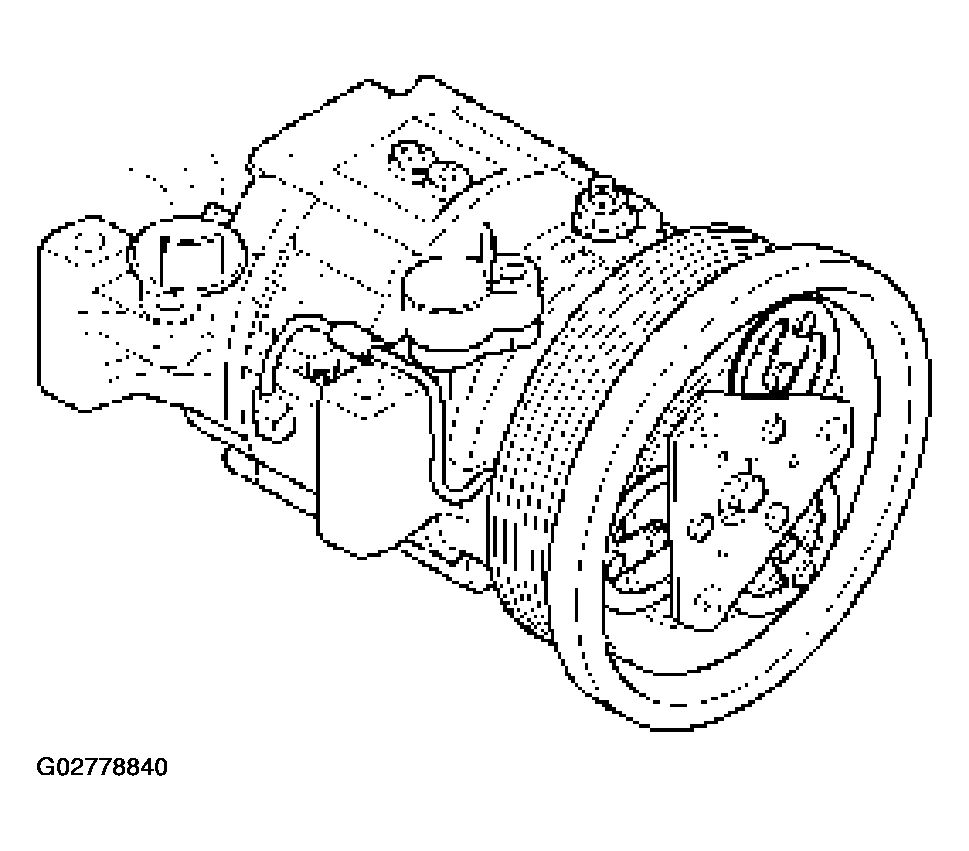

      Fig 1: Installing New Compressor
      G02778840
  2. Turn the compressor several times by hand and release the compressor oil in the rotor.
  3. When installing on a new system, the compressor should installed as it is. When installing on a used system, the compressor should be installed after adjusting the amount of compressor oil. (Refer to COMPRESSOR  ).
    Fig 2: Filling Oil In Compressor
    G02778841
