Engine Main Specifications

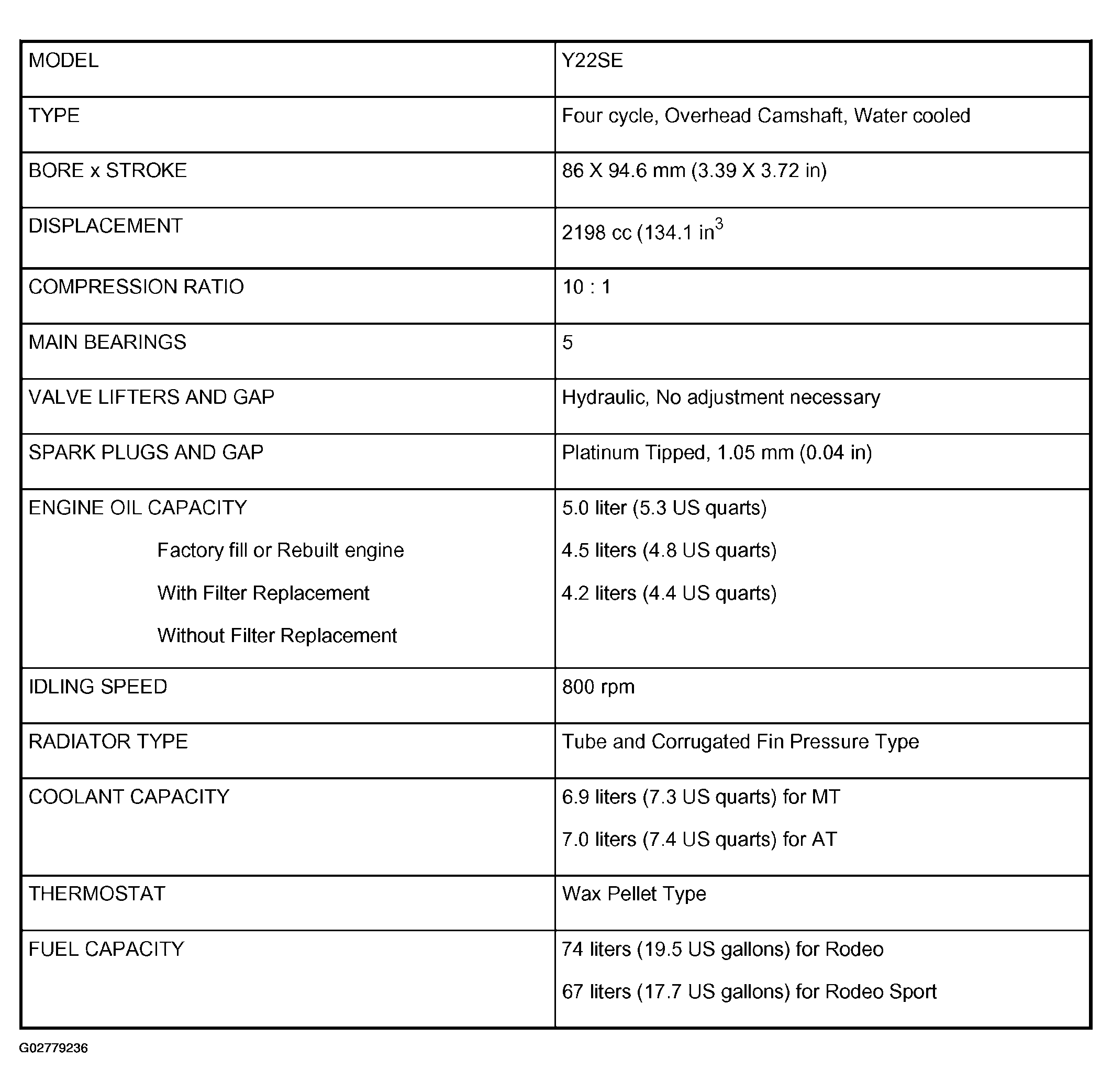

Fig 1: Engine Main Specifications Chart
G02779236Courtesy of ISUZU MOTOR CO.
