Home
>>
Isuzu
>>
2002
>>
Rodeo LS, 2.2 D
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Transmission Control System (4L30-E) (HEC 2.2L)
>>
General Description
>>
Functions of Input / Output Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Functions of Input / Output Components

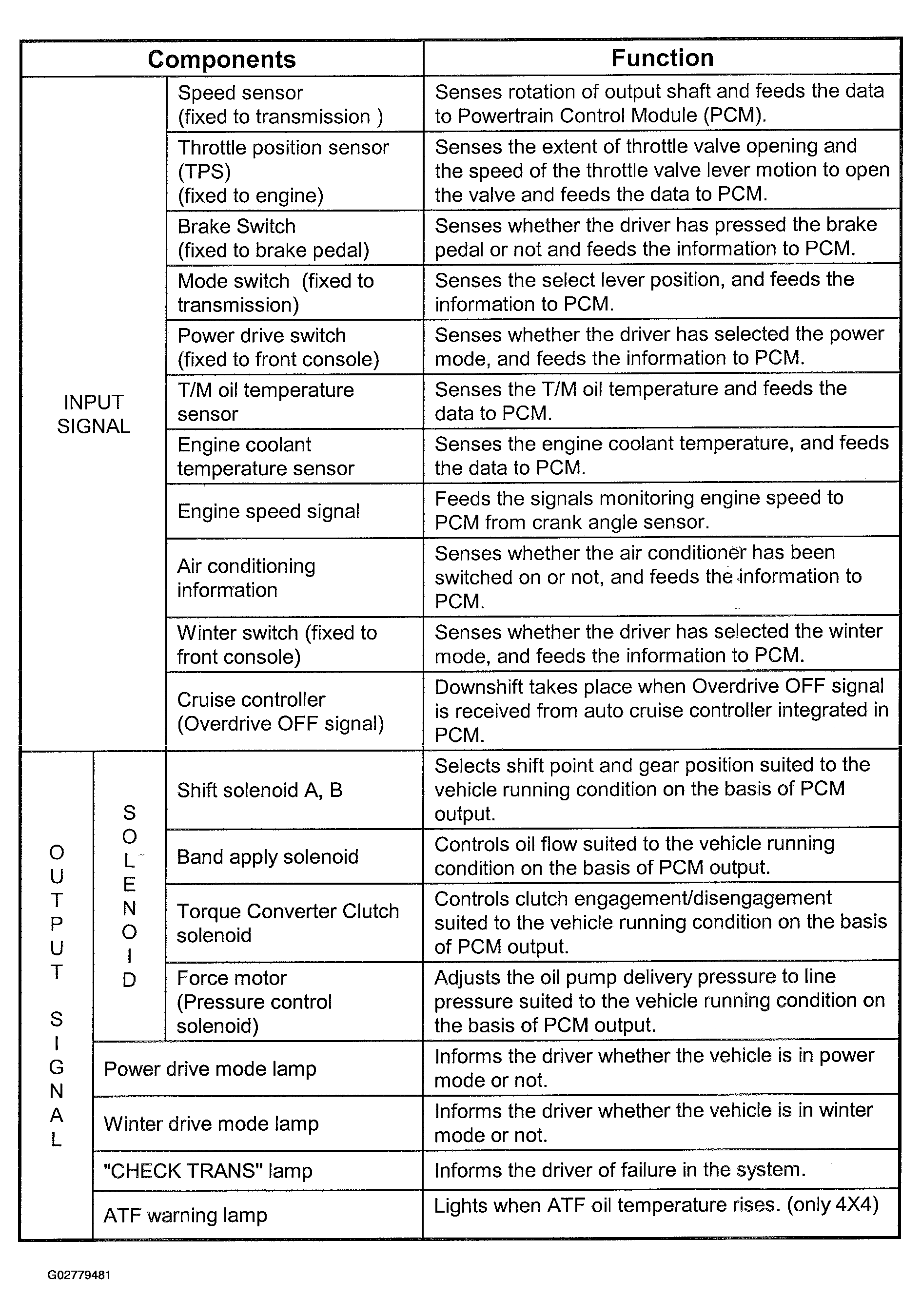

Fig 1: Functions Of Input/Output Components Chart
Courtesy of ISUZU MOTOR CO.
