Abbreviations Charts

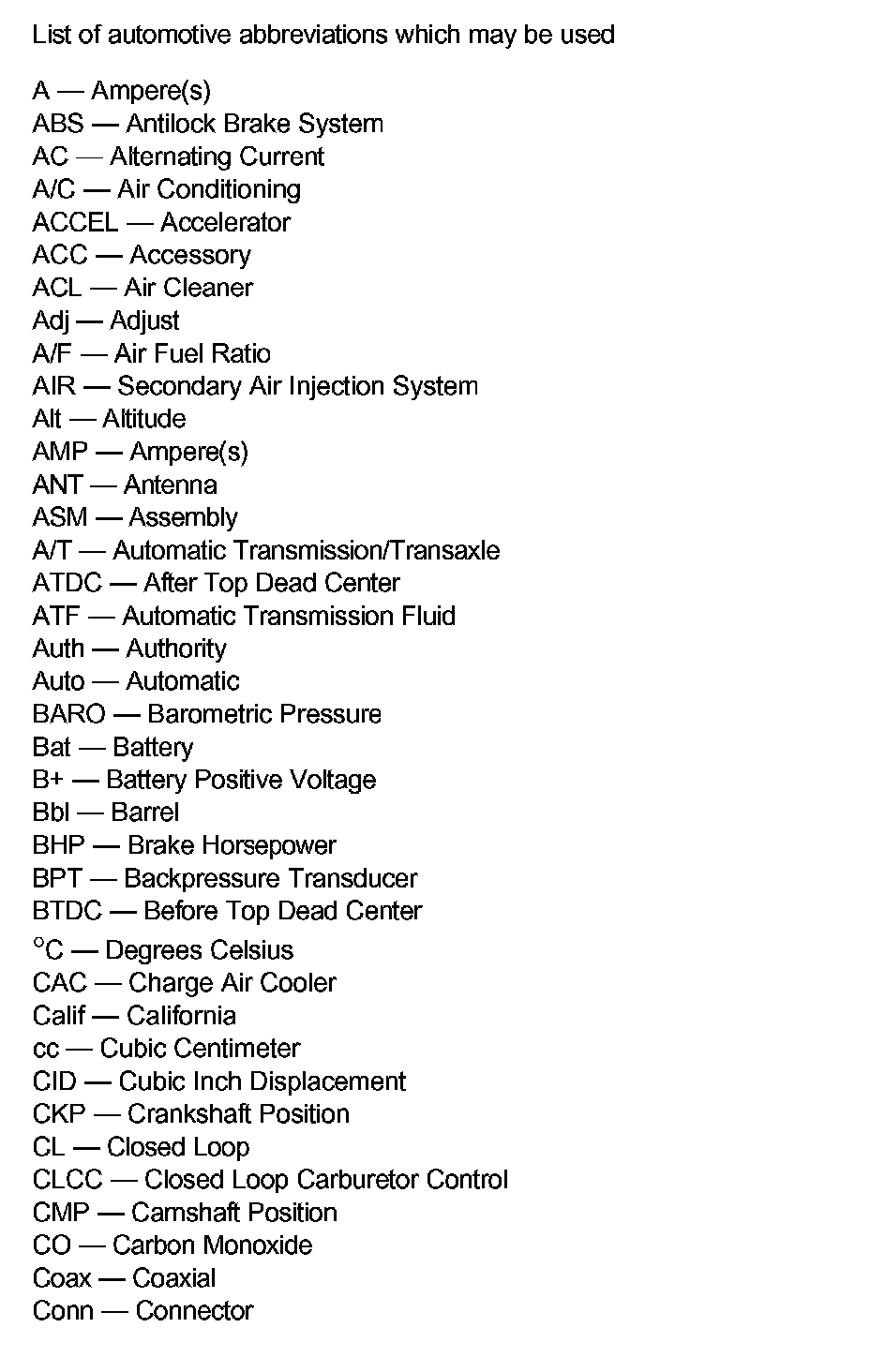

Abbreviations Chart 1:

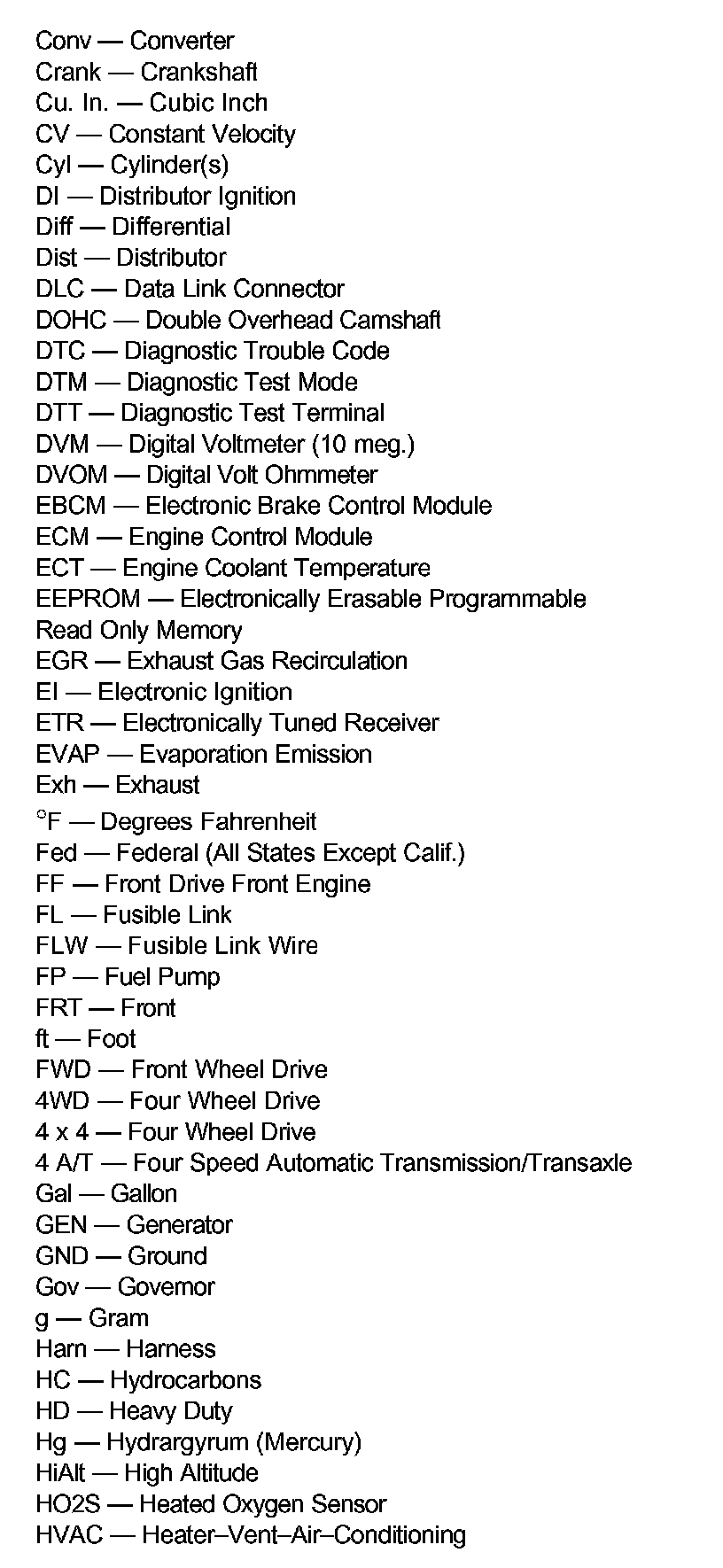

Abbreviations Chart 2:

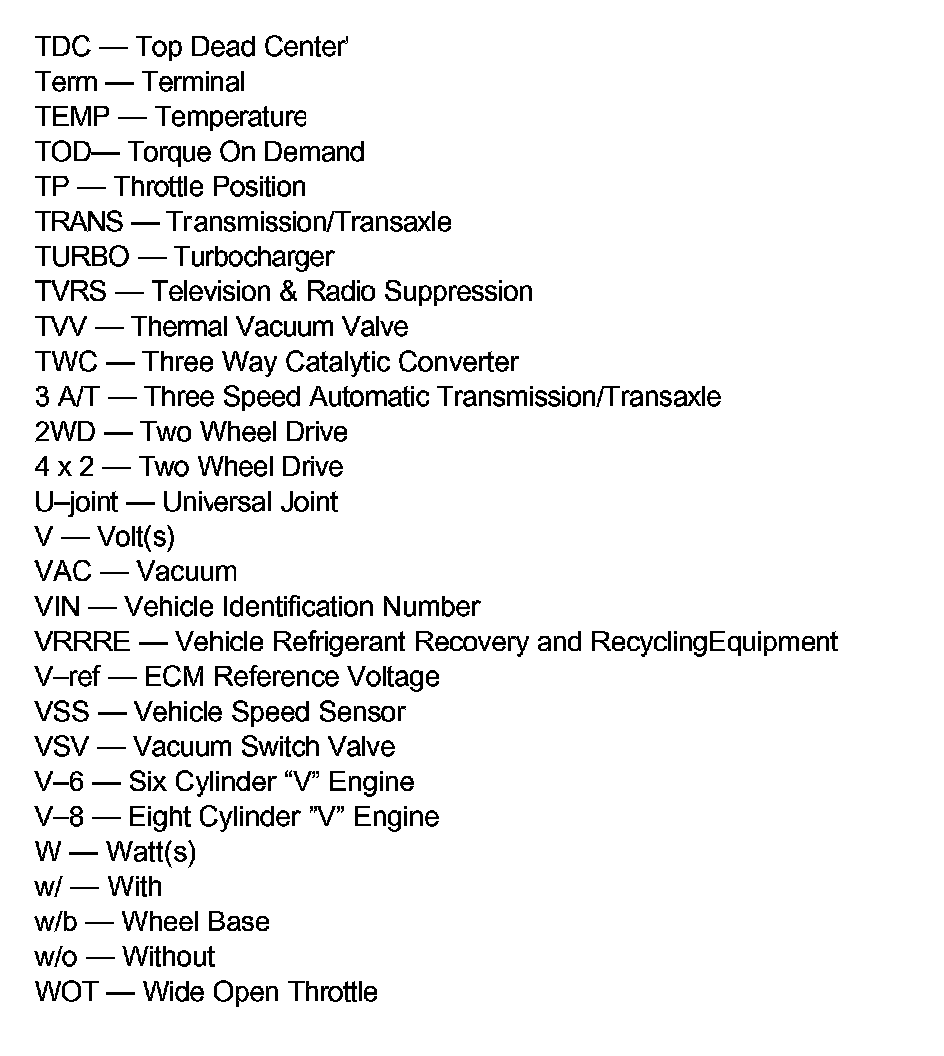

Abbreviations Chart 3:

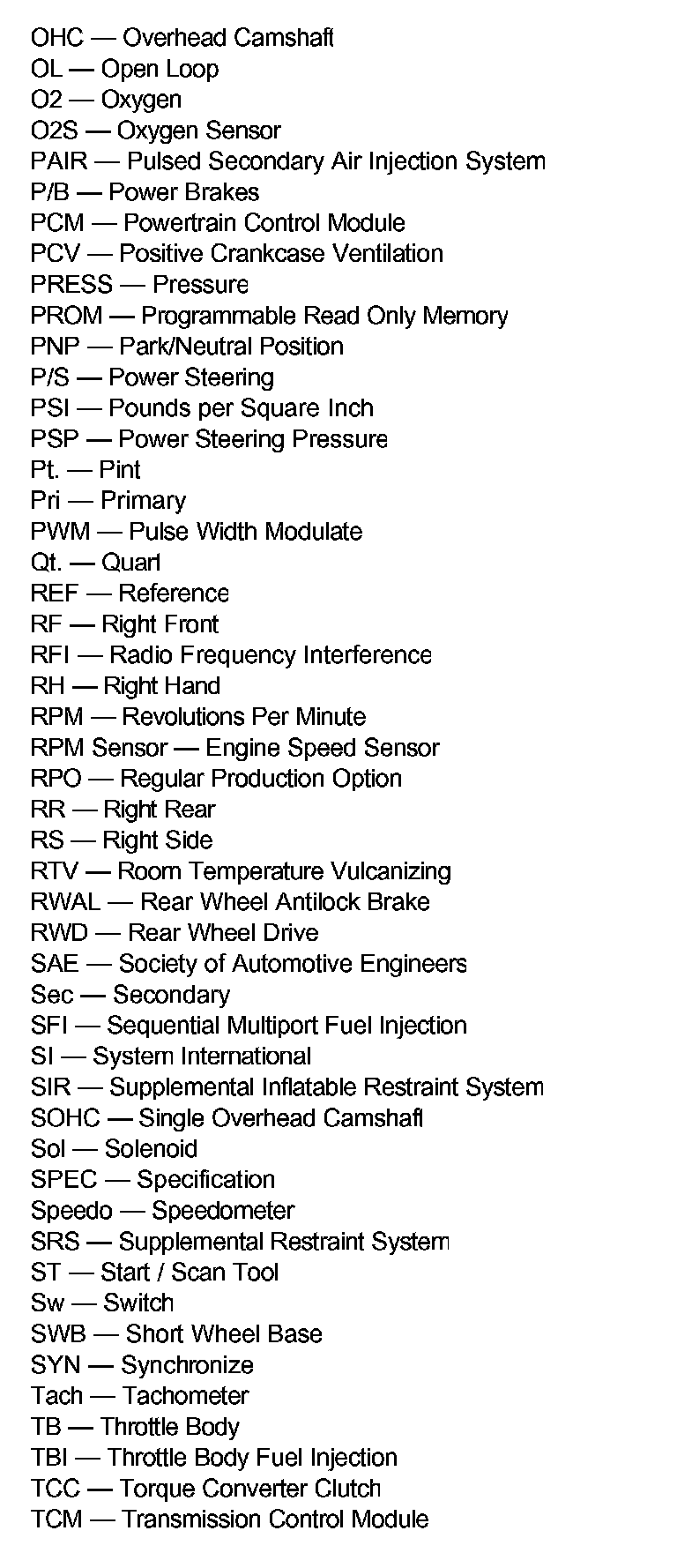

Abbreviations Chart 4:

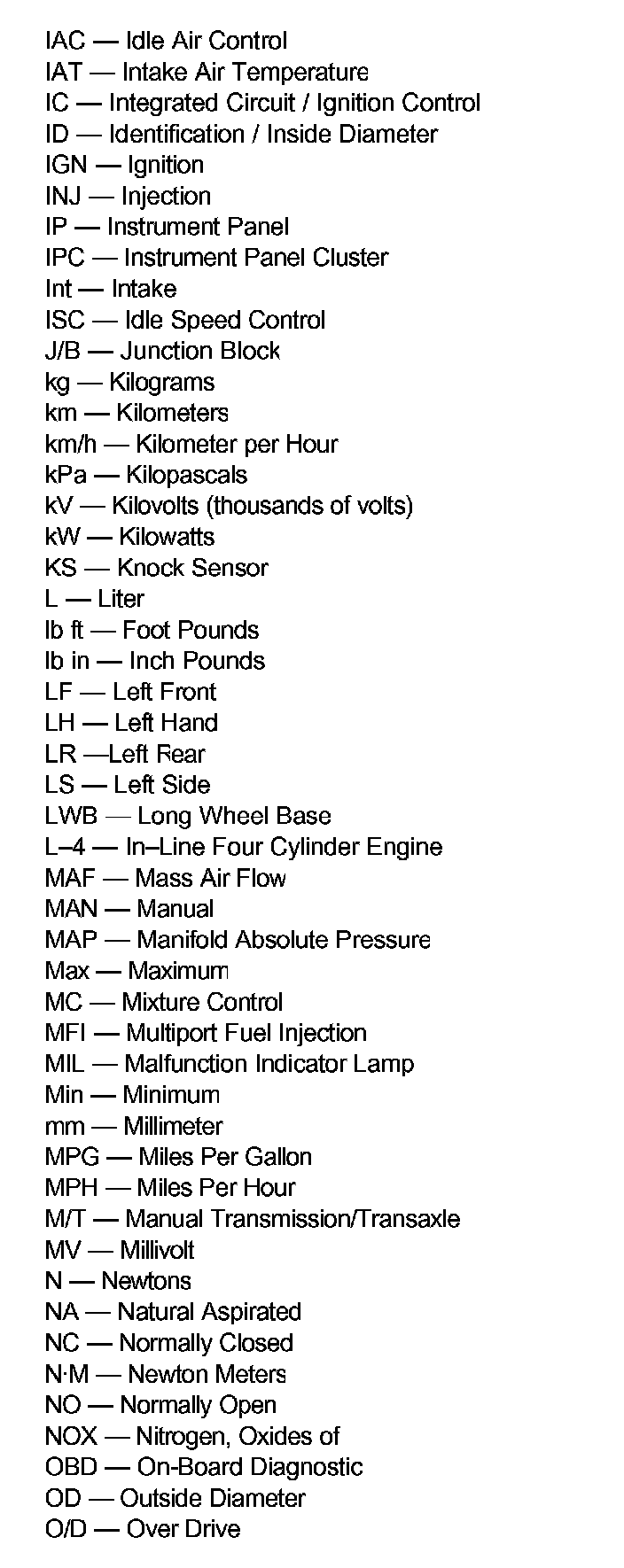

Abbreviations Chart 5:
