"Normal Mode": Downshift

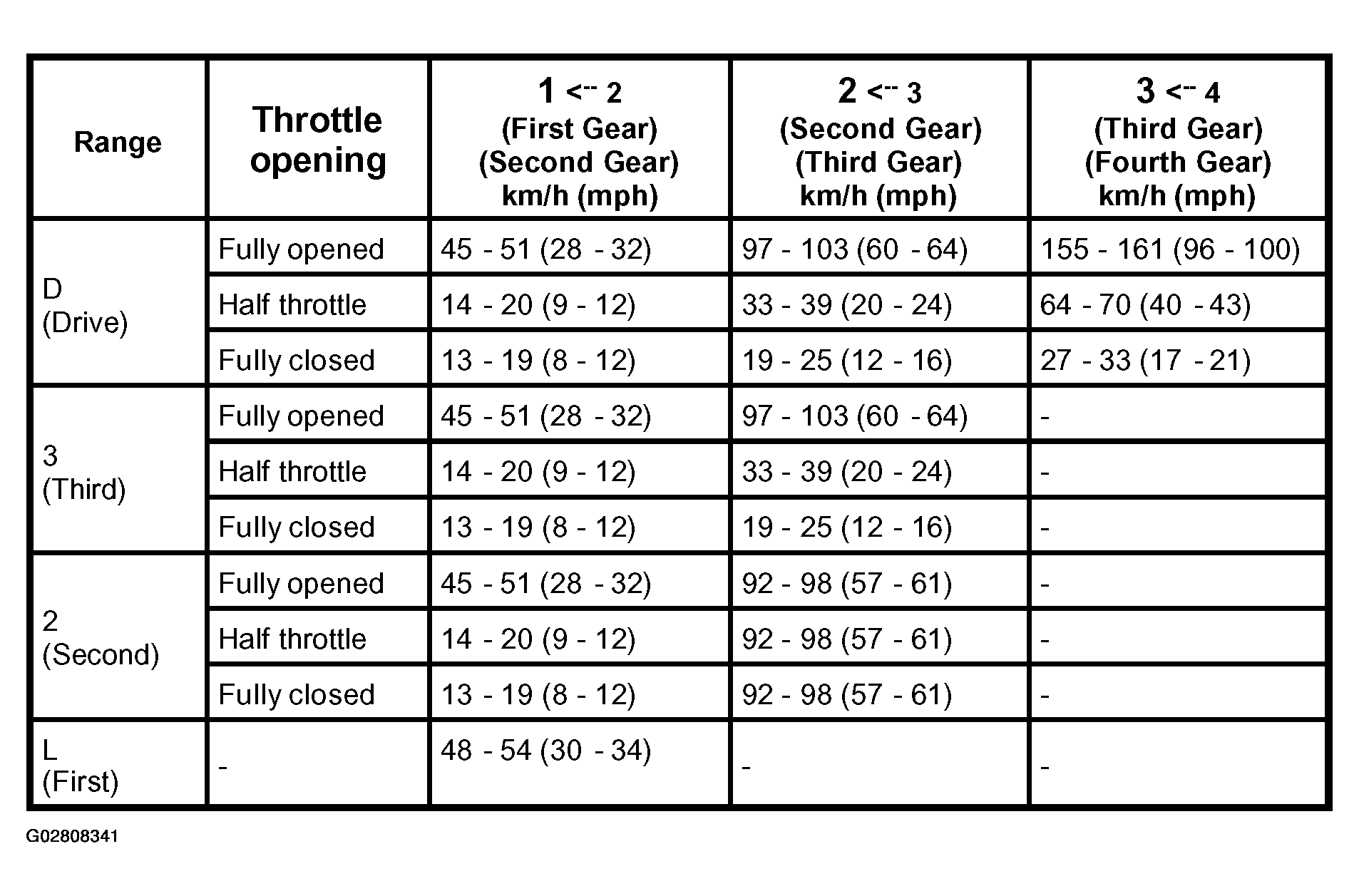

Fig 1: Downshift Speed Chart (Normal Mode)

G02808341

Courtesy of ISUZU MOTOR CO.
