Supportable Point: Front

  1. Position the chassis stands at the bottom of the frame sidemember, behind the front wheel.

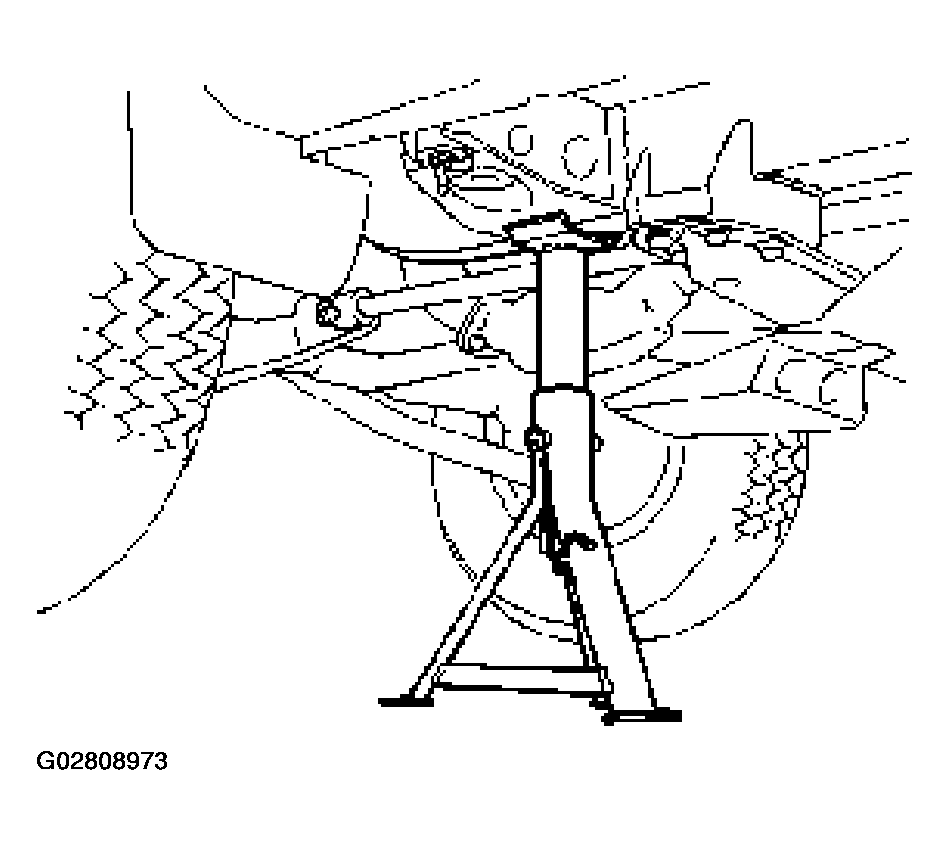

Fig 1: Identifying Supportable Point - Front
G02808973Courtesy of ISUZU MOTOR CO.
