Generators & Regulators: Overhaul: Generator: Notes

NOTE: Use exploded view of generator for overhaul. See Fig 1 .

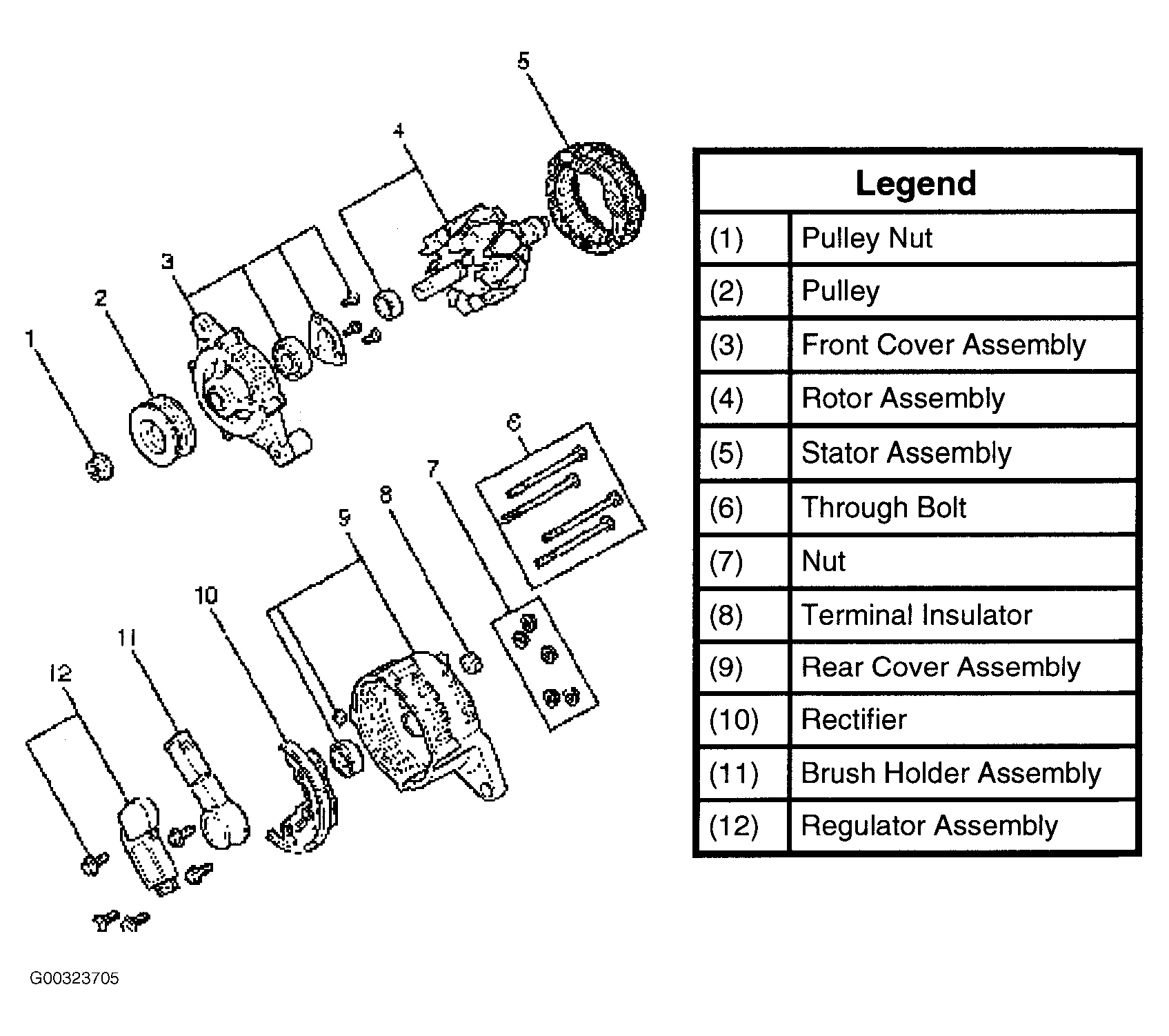

Fig 1: Exploded View Of Generator
G00323705Courtesy of ISUZU MOTOR CO.
