Part Location

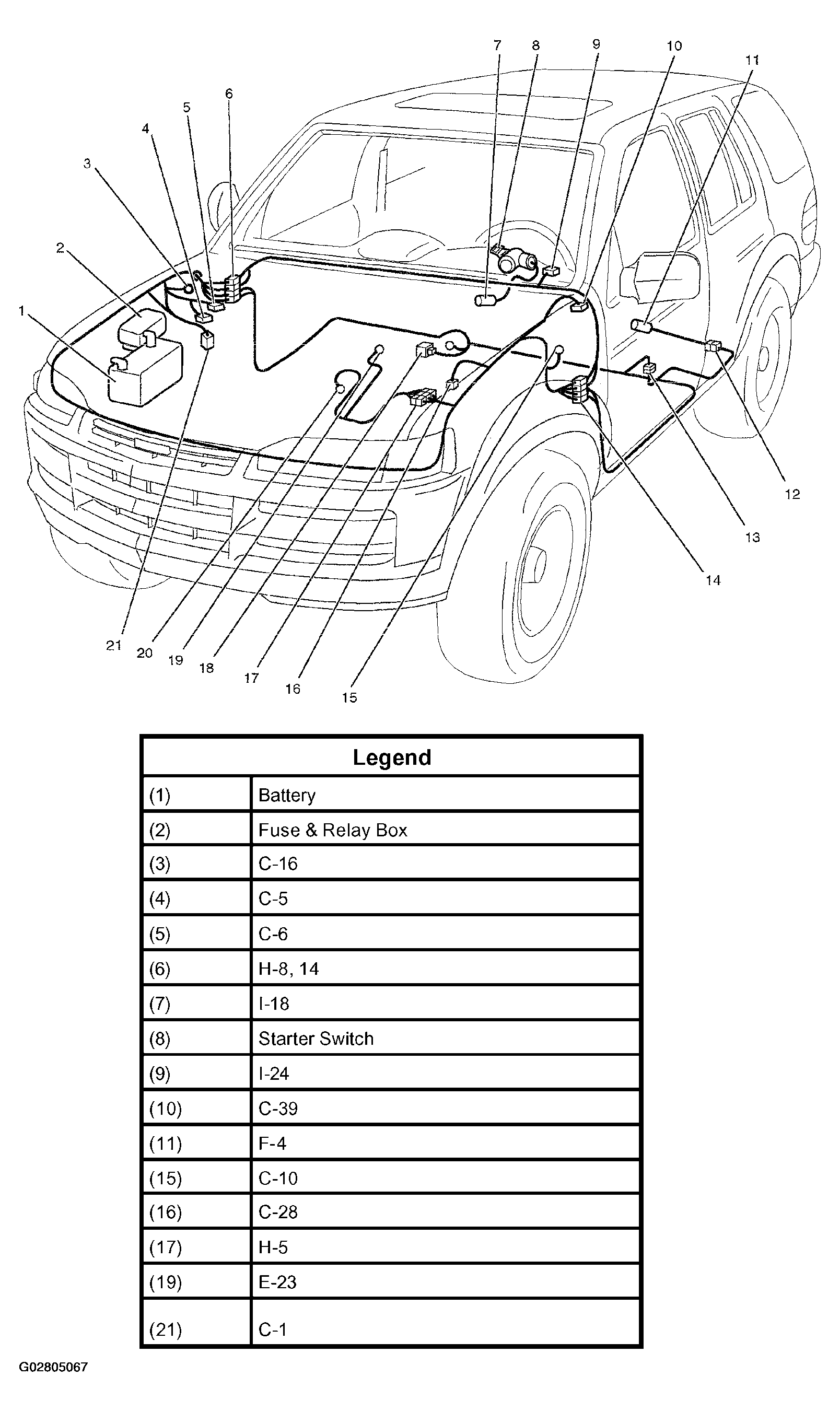

Fig 1: Identifying Parts & Connector Locations
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
