Shift Mode Control

  1. Mode Type
  2. Mode Selection
  3. Comparison of Mode

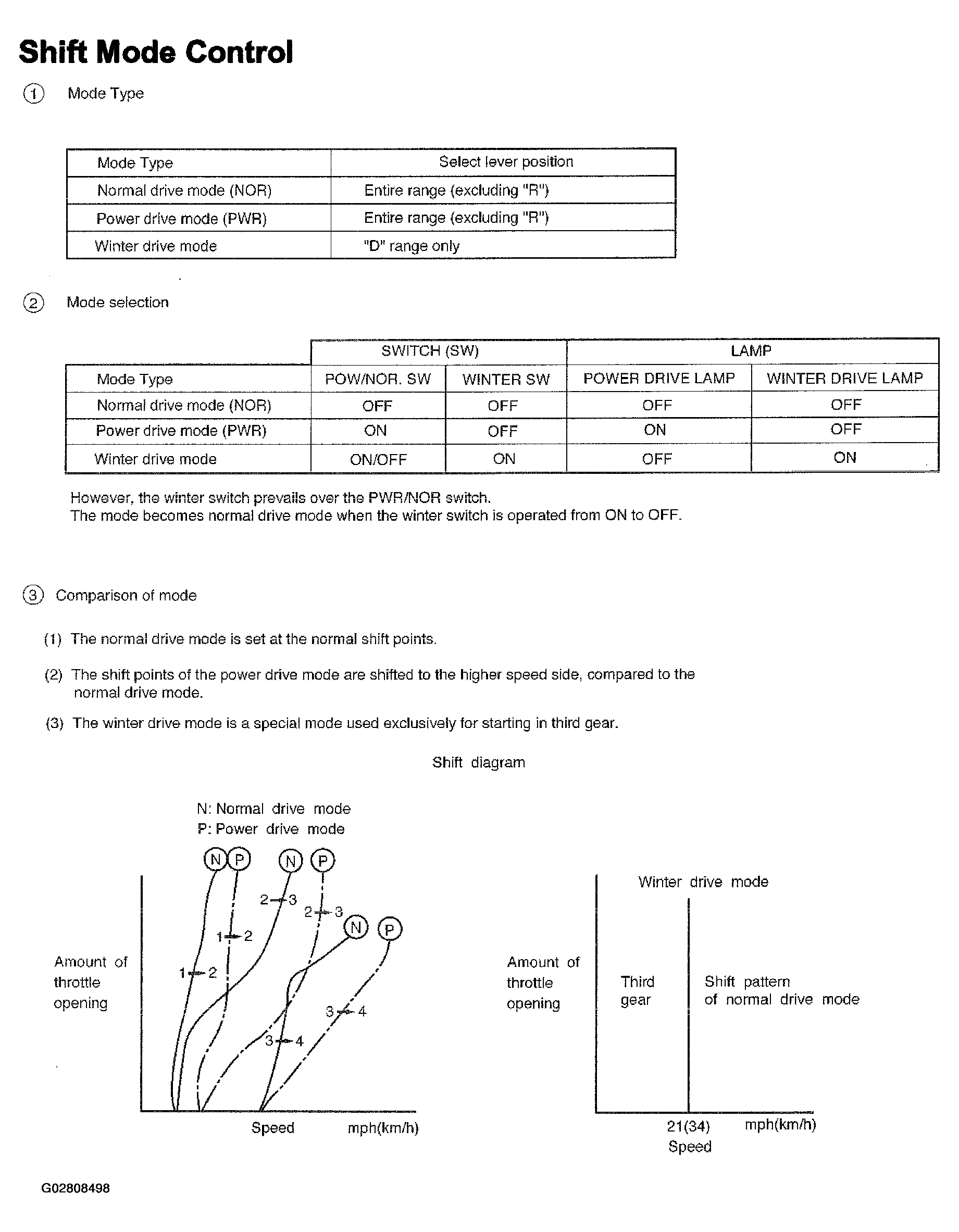

  4. Fig 1: Identifying Mode Type, Mode Selection Charts & Mode Comparison Graph
    G02808498Courtesy of ISUZU MOTOR CO.
