DTC P0705 Transmission Range Switch (Mode Switch) Illegal Position: Notes

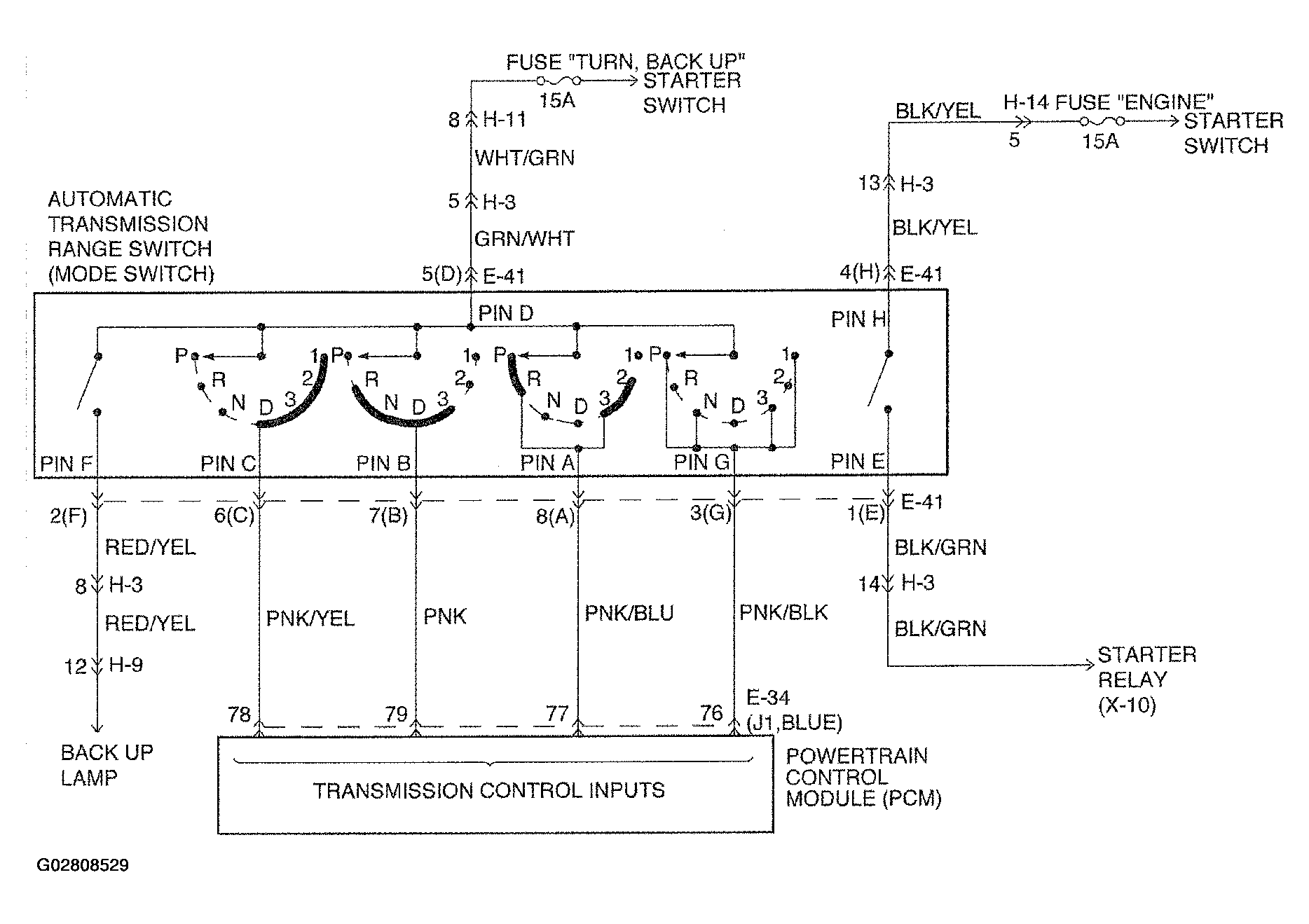

Fig 1: Circuit Diagram Referring DTC P0705
G02808529Courtesy of ISUZU MOTOR CO.
