Catalytic Converter

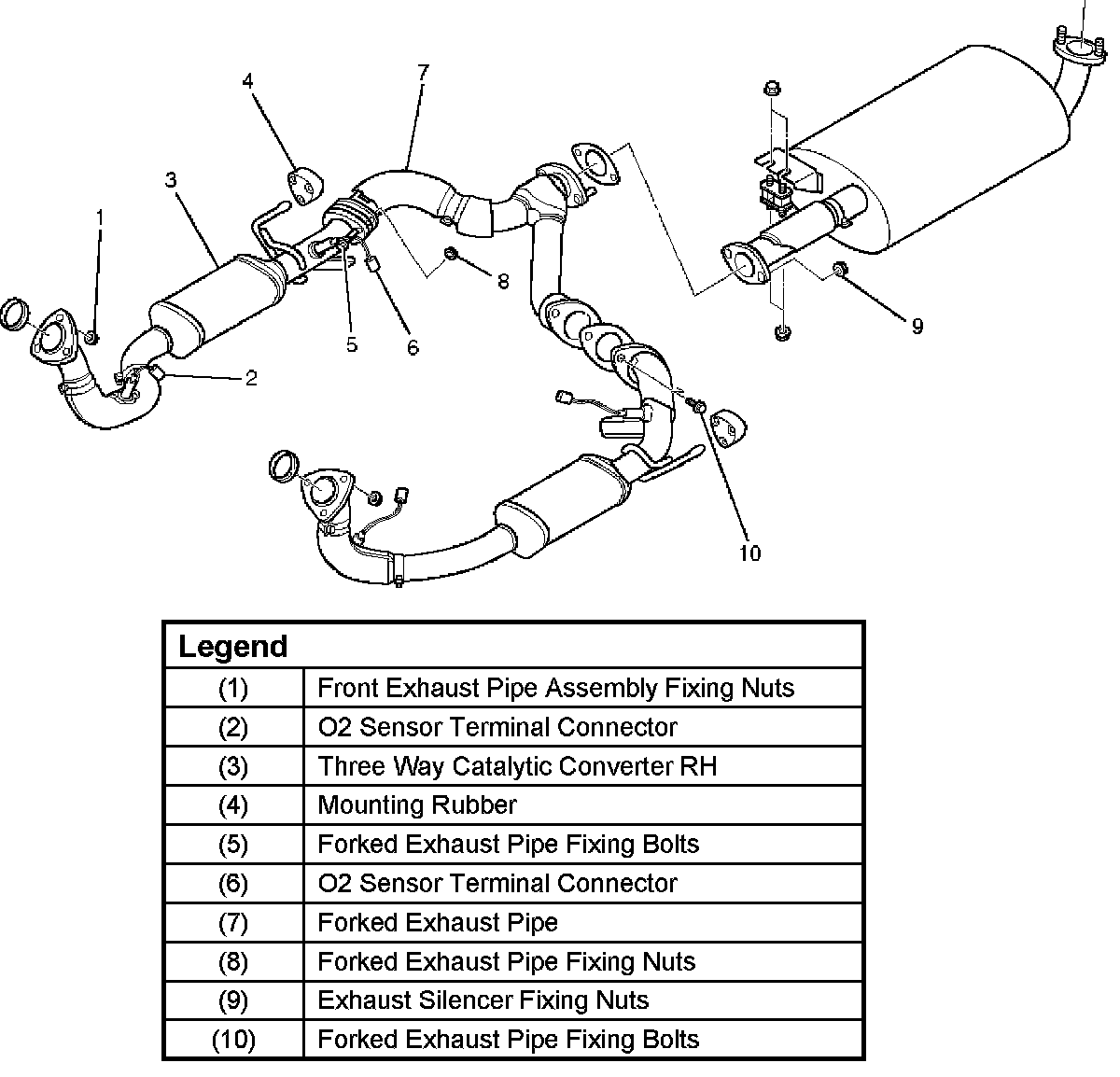

TWC Converter RH, Forked Exhaust Pipe and Associated Parts:

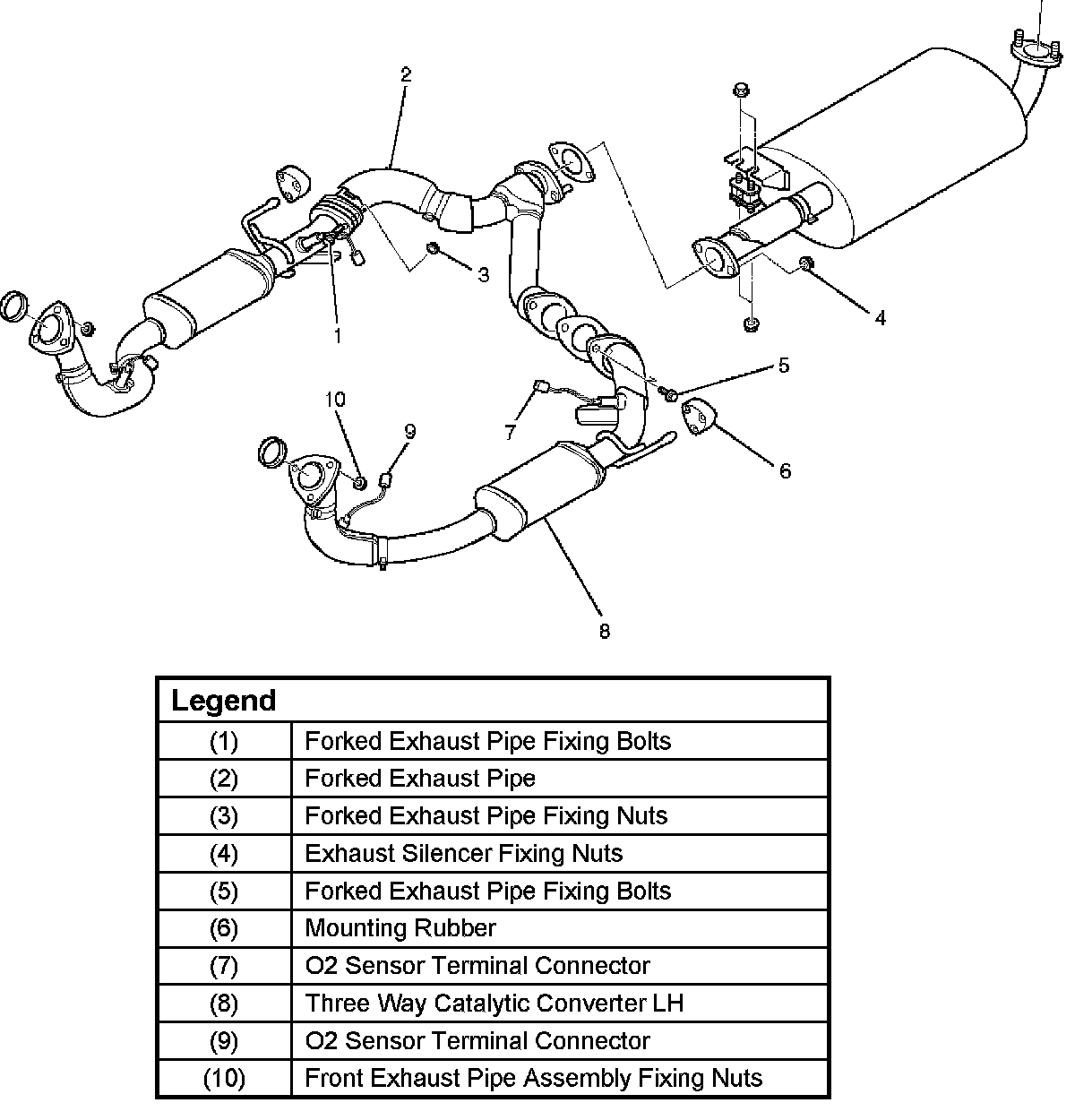

TWC Converter LH, Forked Exhaust Pipe and Associated Parts:
