Tailgate Frame Cover (LH): Removal

  1. Disconnect the battery ground cable.
  2. Remove tailgate frame cover.
    • Pull the tailgate frame cover (2) out.
    • Disconnect the washer tube (1) at the nozzle and pull the washer tube out from the frame cover (2).
    • Disconnect the rear defogger and pull the harness from the cover.

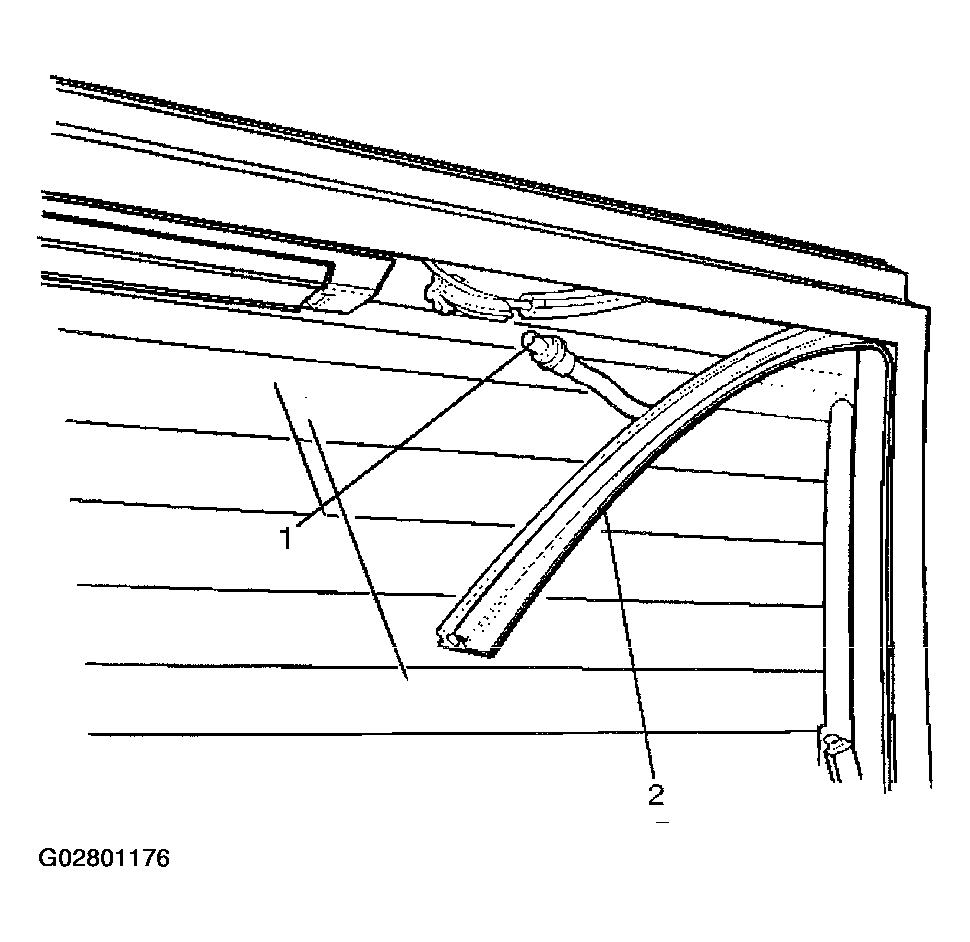

    Fig 1: Removing Tailgate Frame Cover
    G02801176Courtesy of ISUZU MOTOR CO.
