Dash Fuse Box

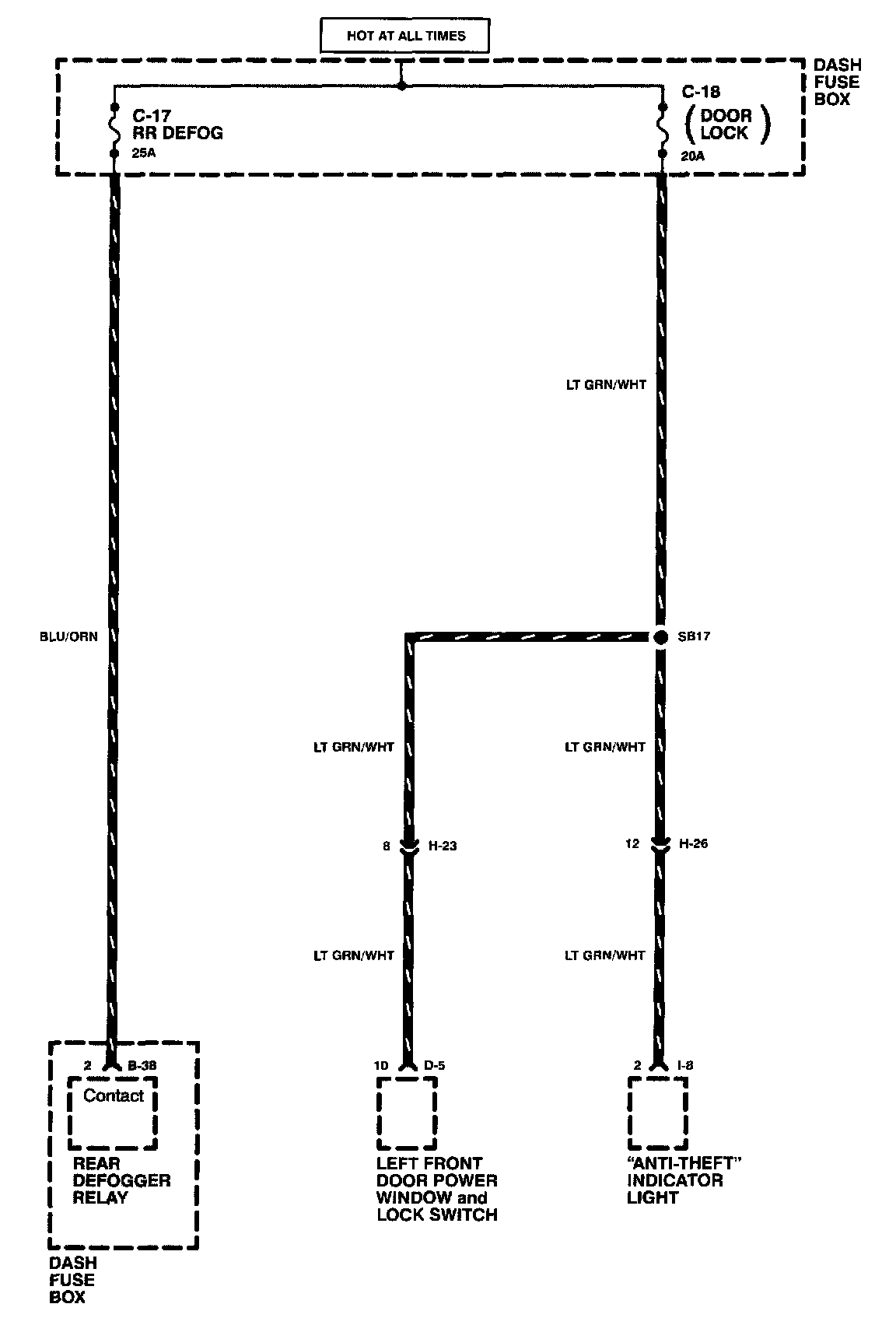

Dash Fuse Box (1 Of 8) Image 11:

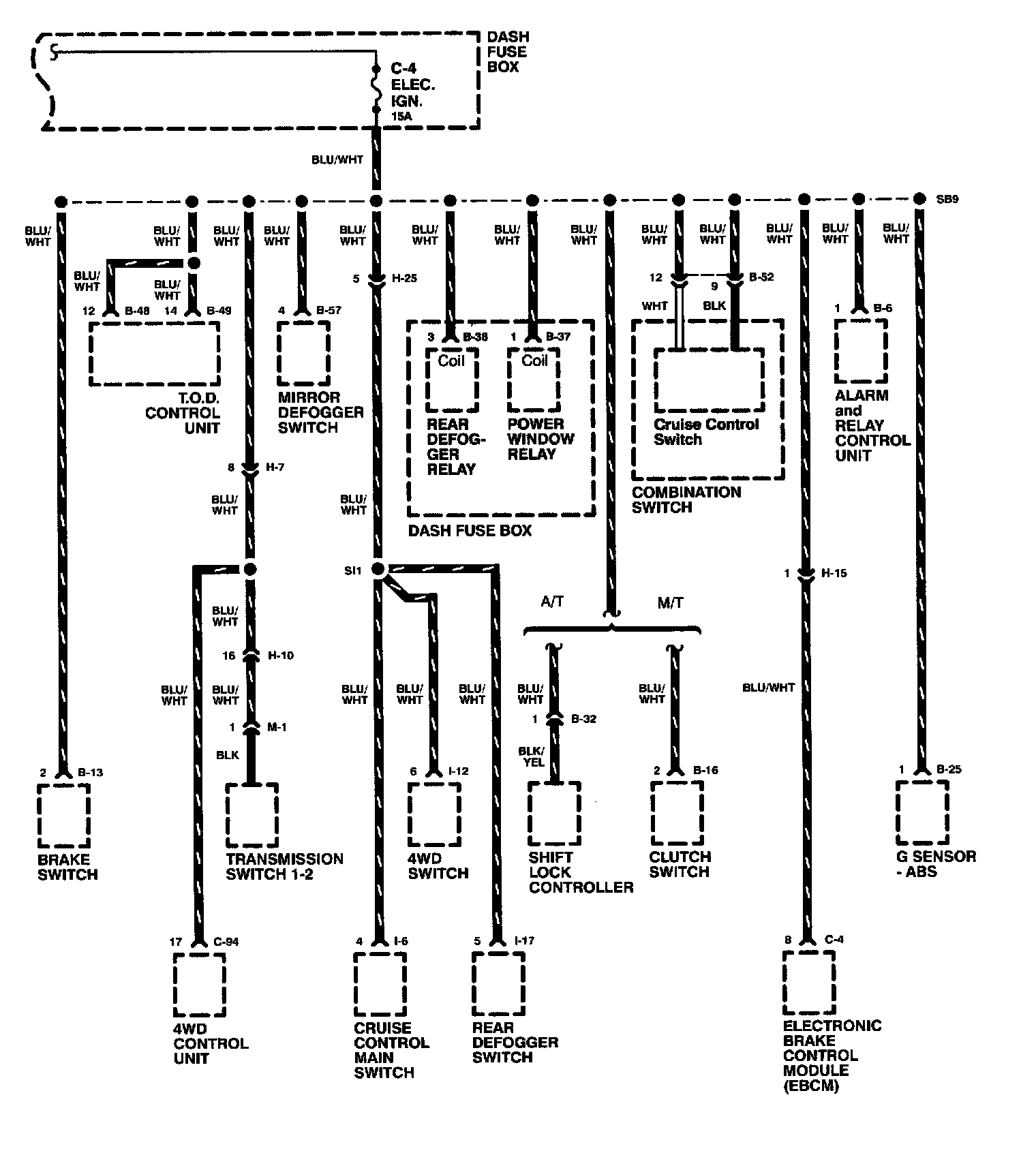

Dash Fuse Box (2 Of 8) Image 11-1:

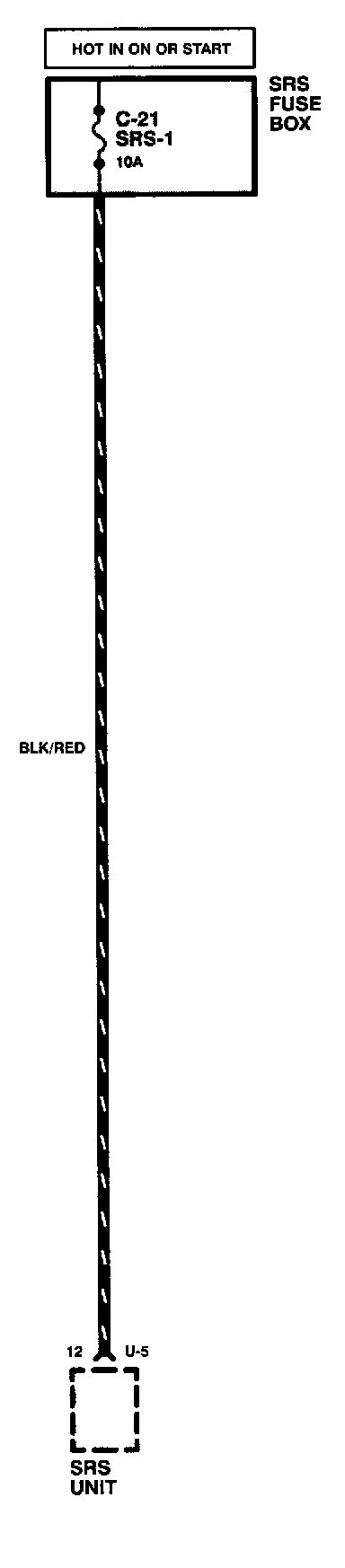

Dash Fuse Box (3 Of 8) Image 11-2:

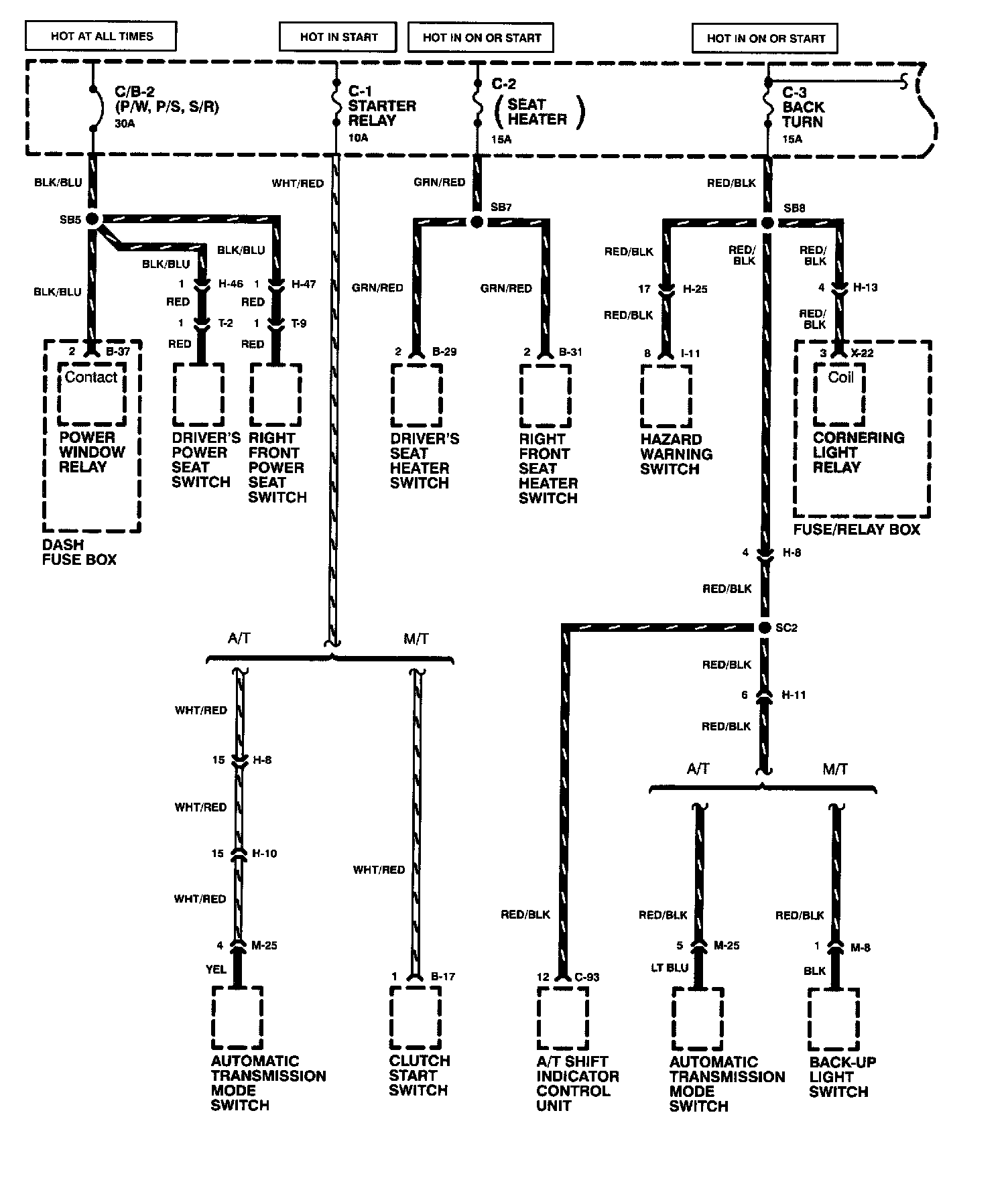

Dash Fuse Box (4 Of 8) Image 11-3:

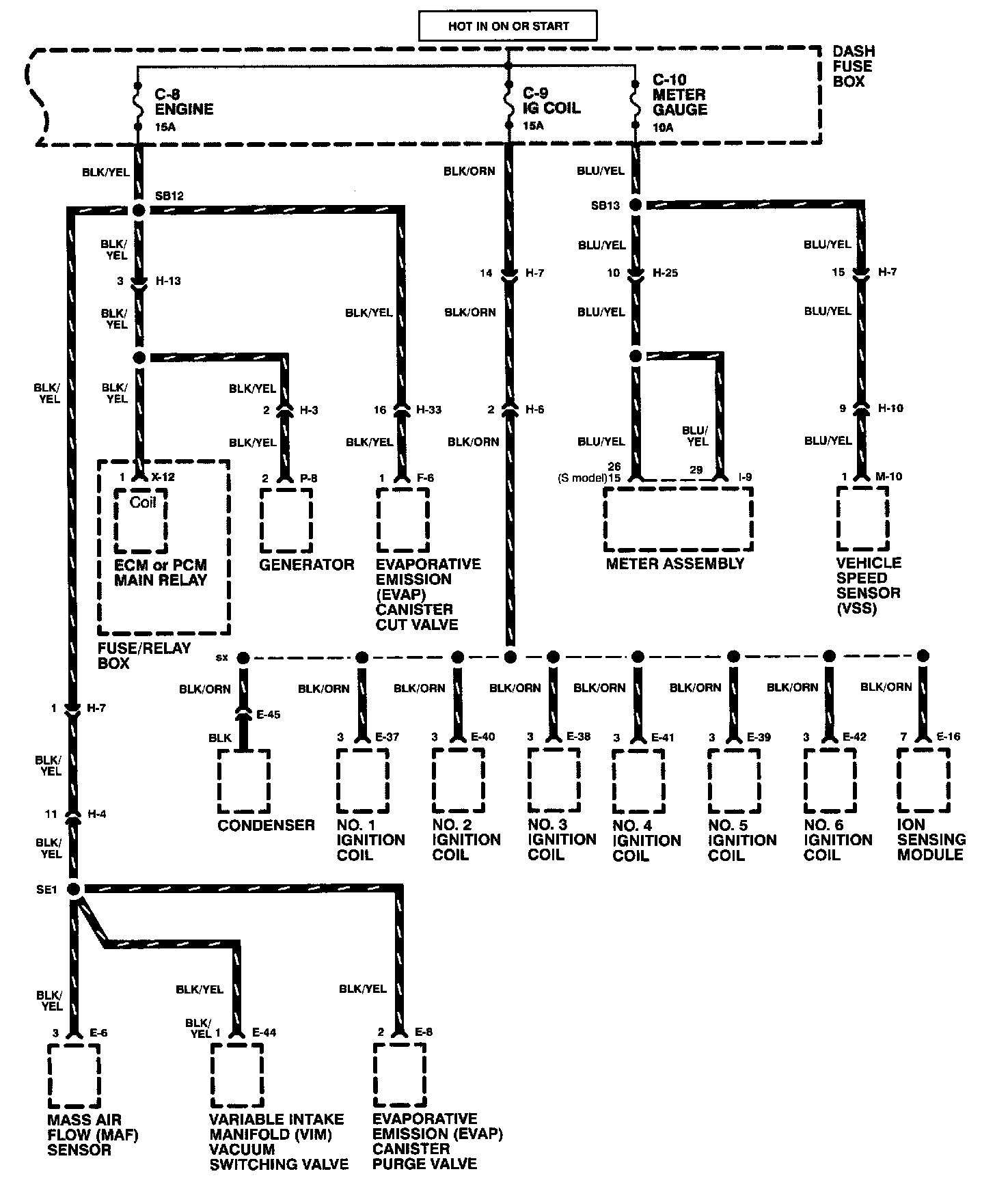

Dash Fuse Box (5 Of 8) Image 11-4:

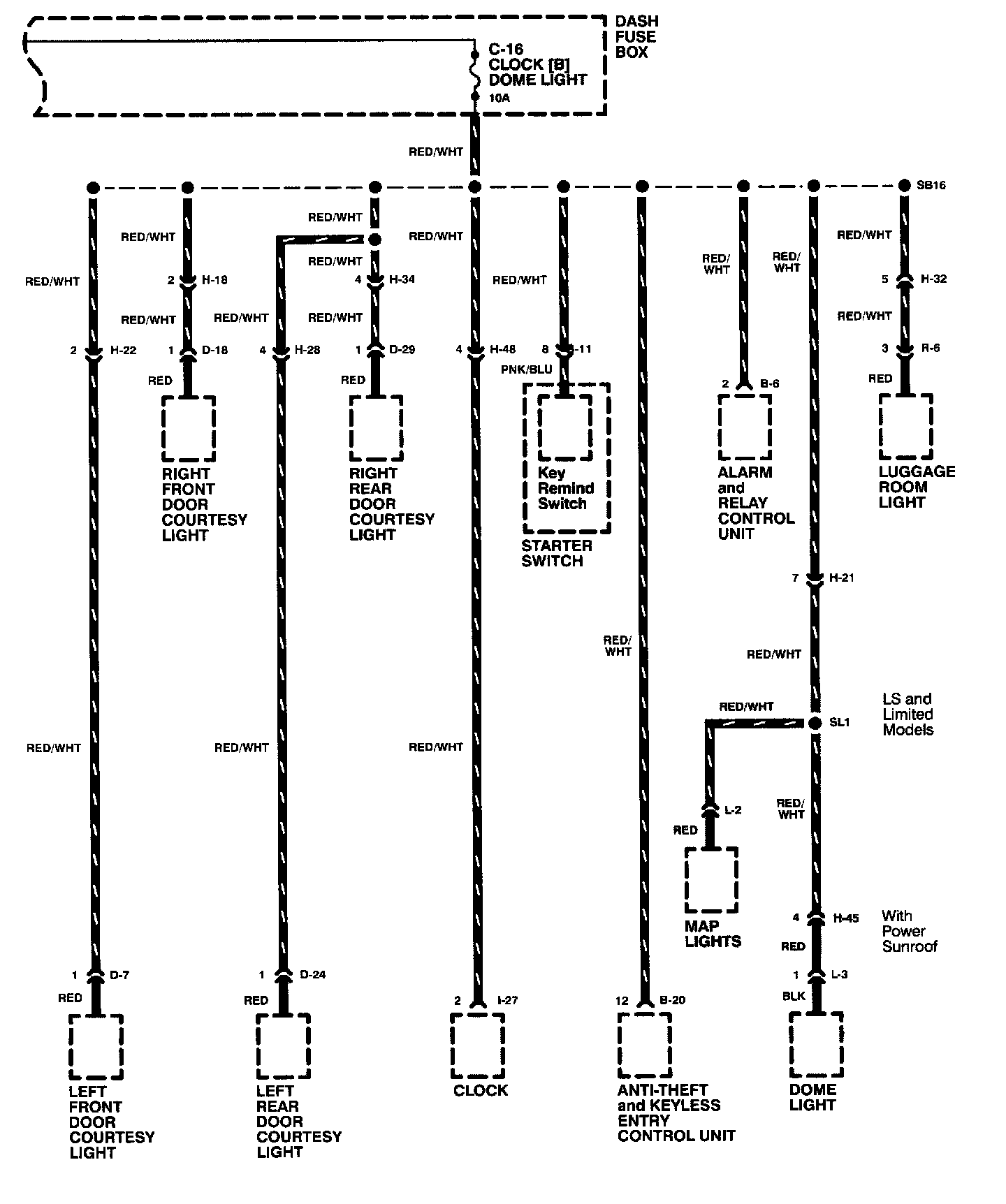

Dash Fuse Box (6 Of 8) Image 11-5:

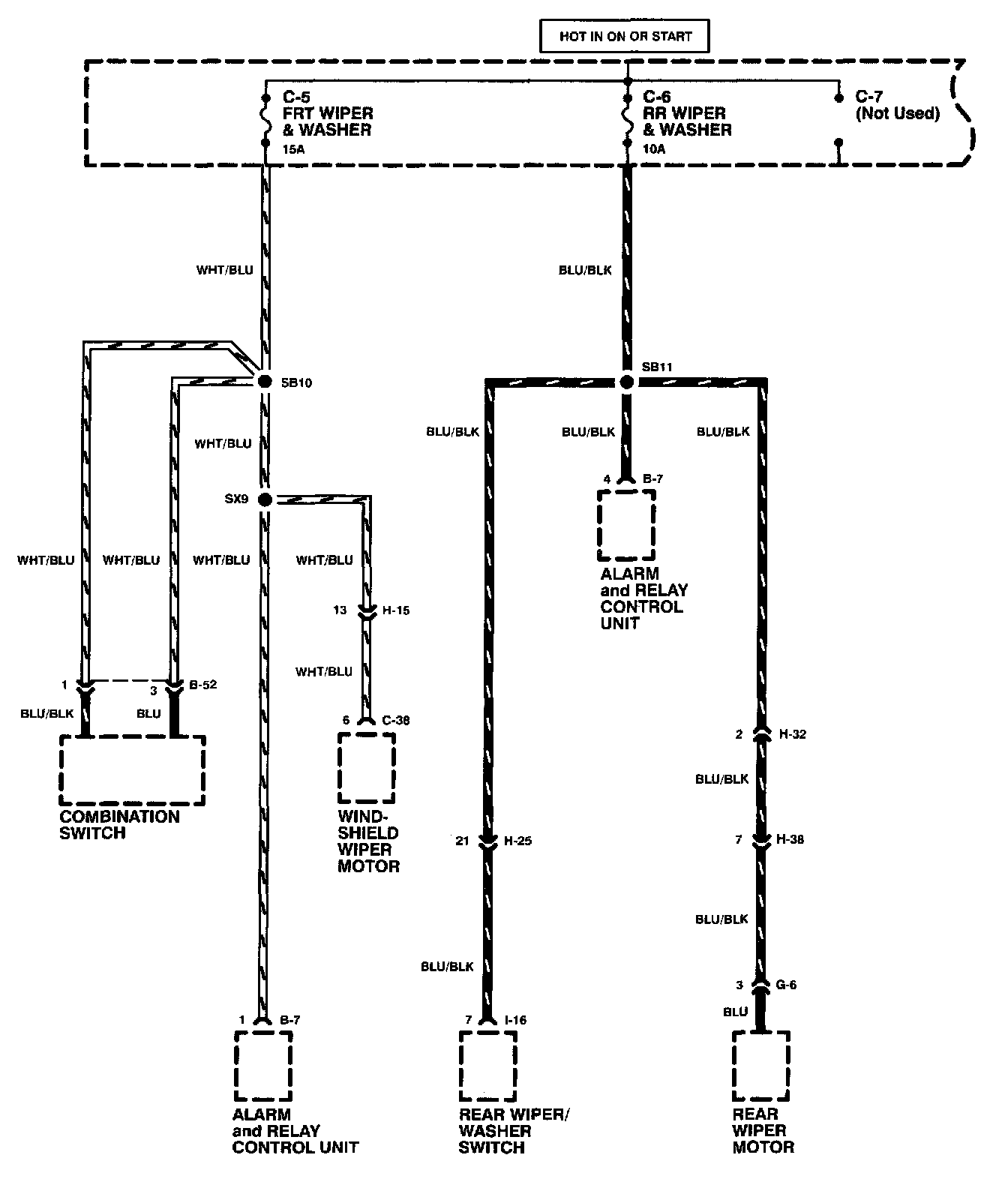

Dash Fuse Box (7 Of 8) Image 11-6:

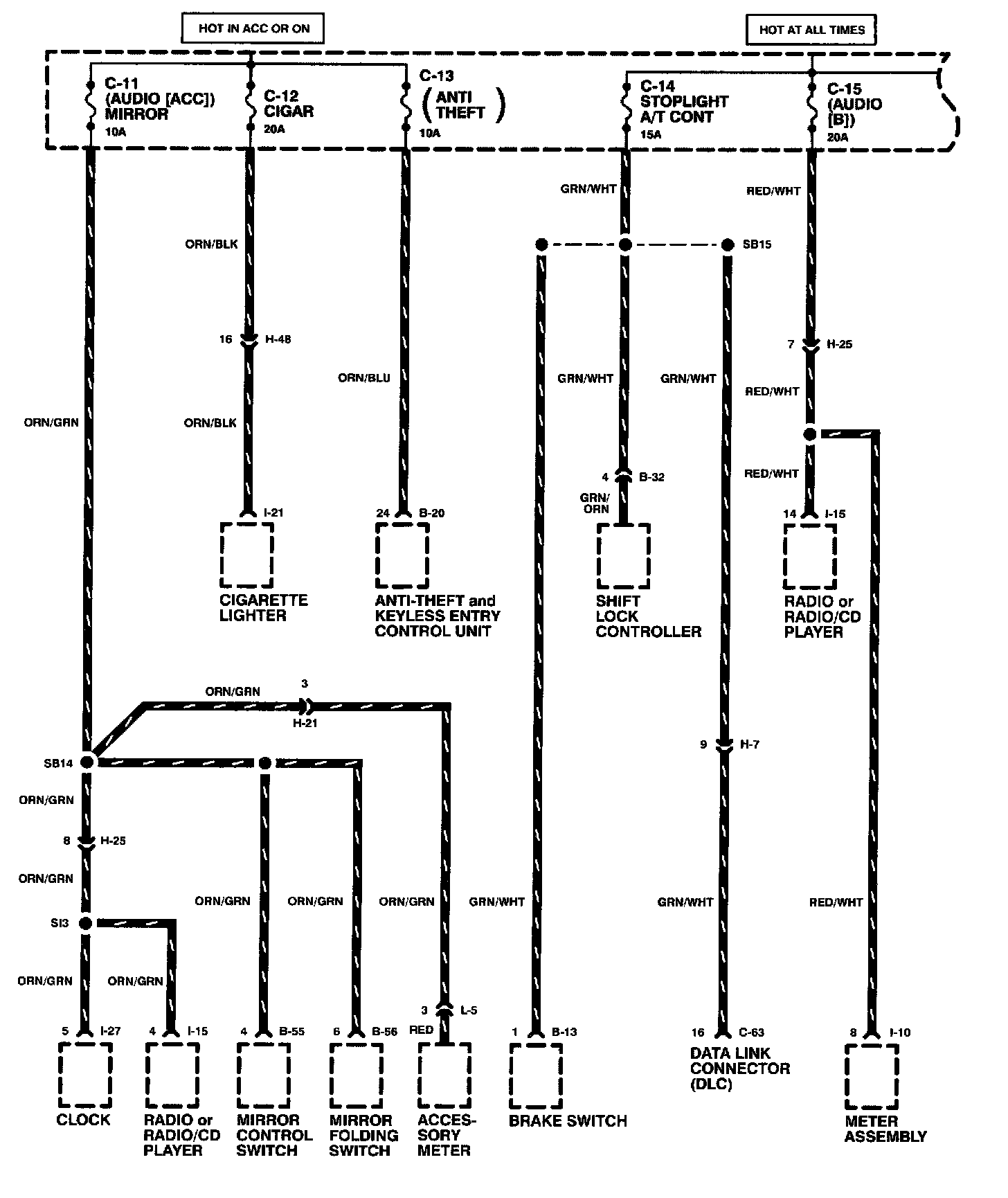

Dash Fuse Box (8 Of 8) Image 11-7:
