Fuse Box Component Identification

See Fig 1 for relay layout.

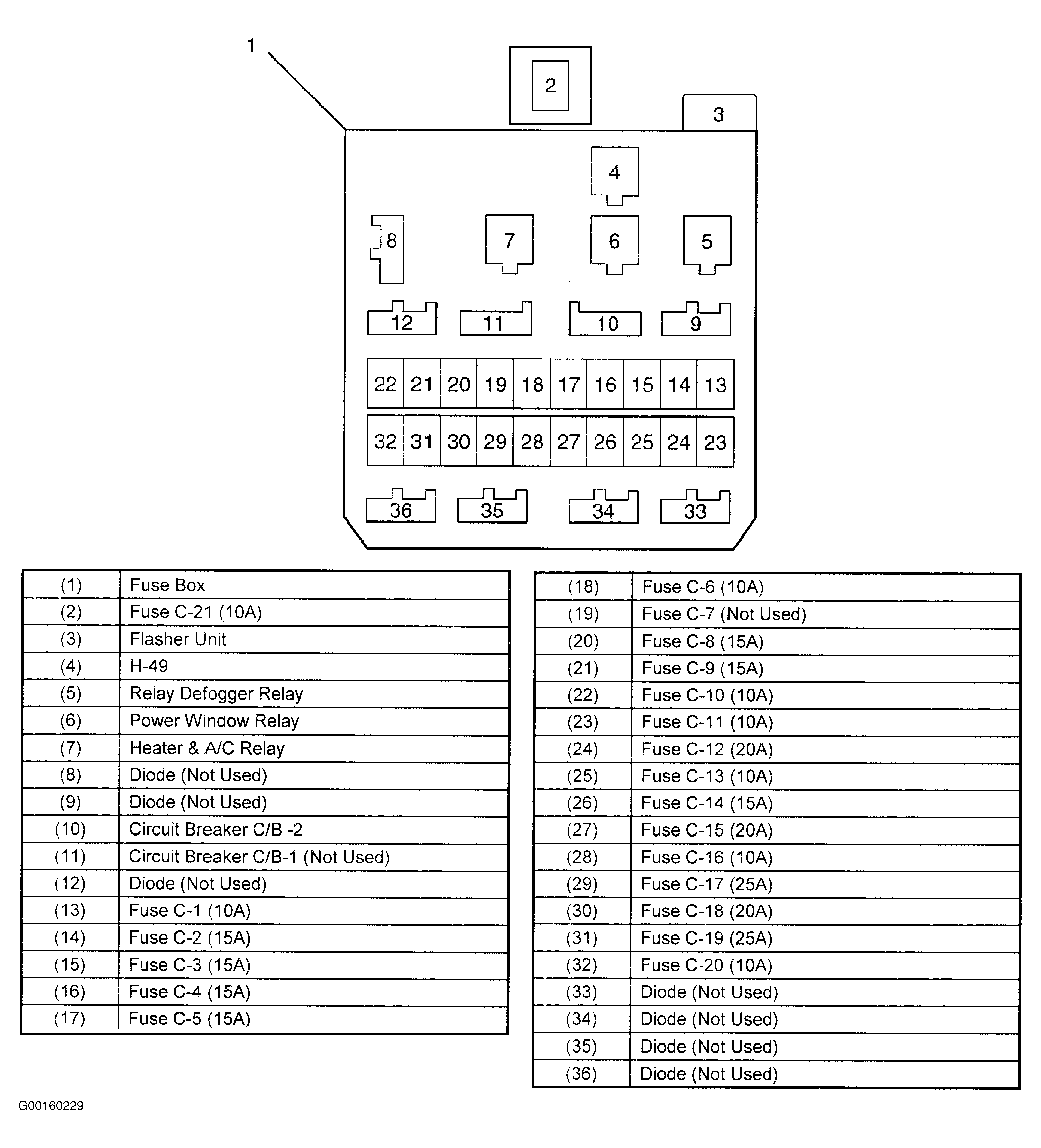

Fig 1: Identifying Fuse Box Component Identification
G00160229Courtesy of ISUZU MOTOR CO.
