Engine Control Diagrams

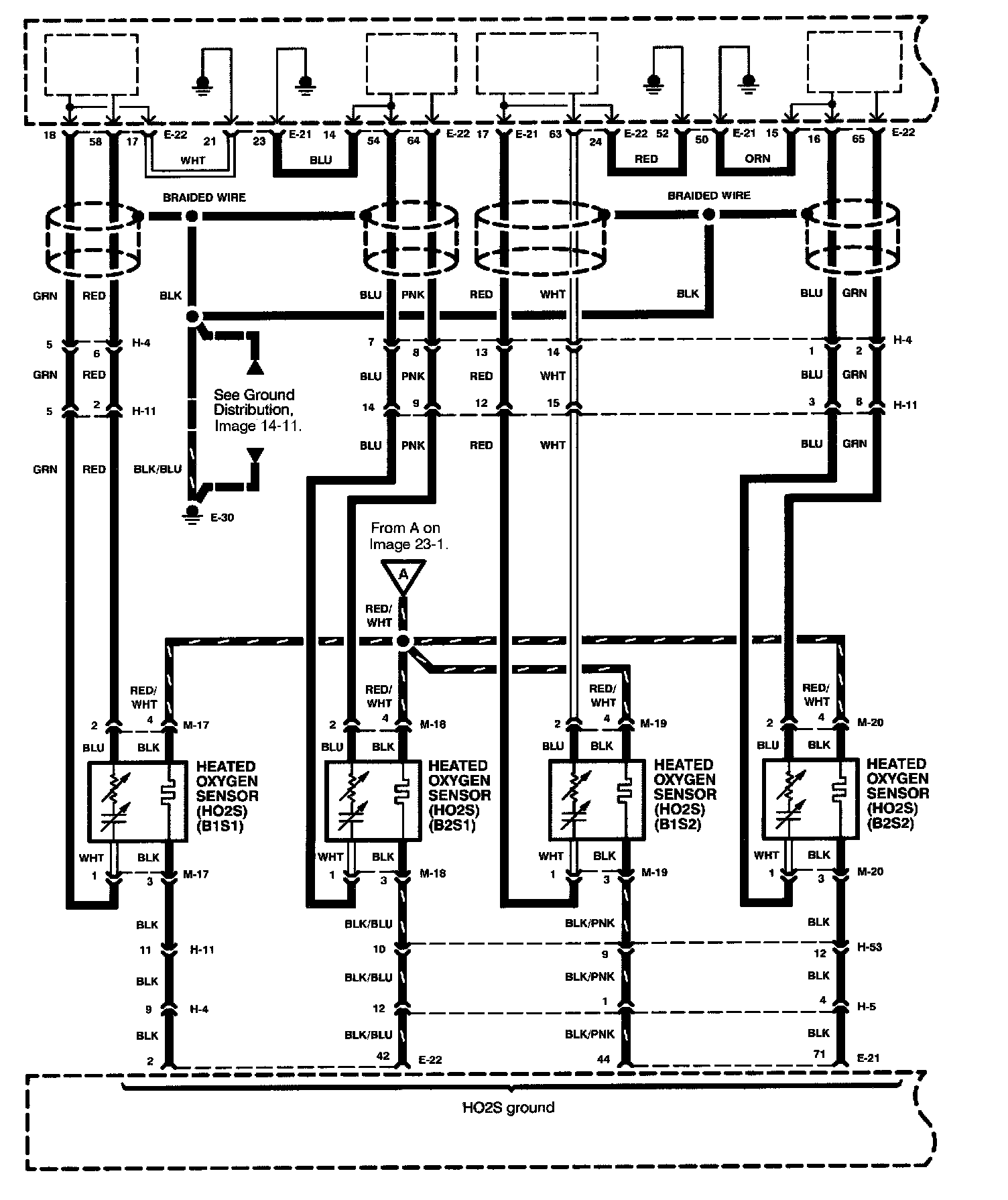

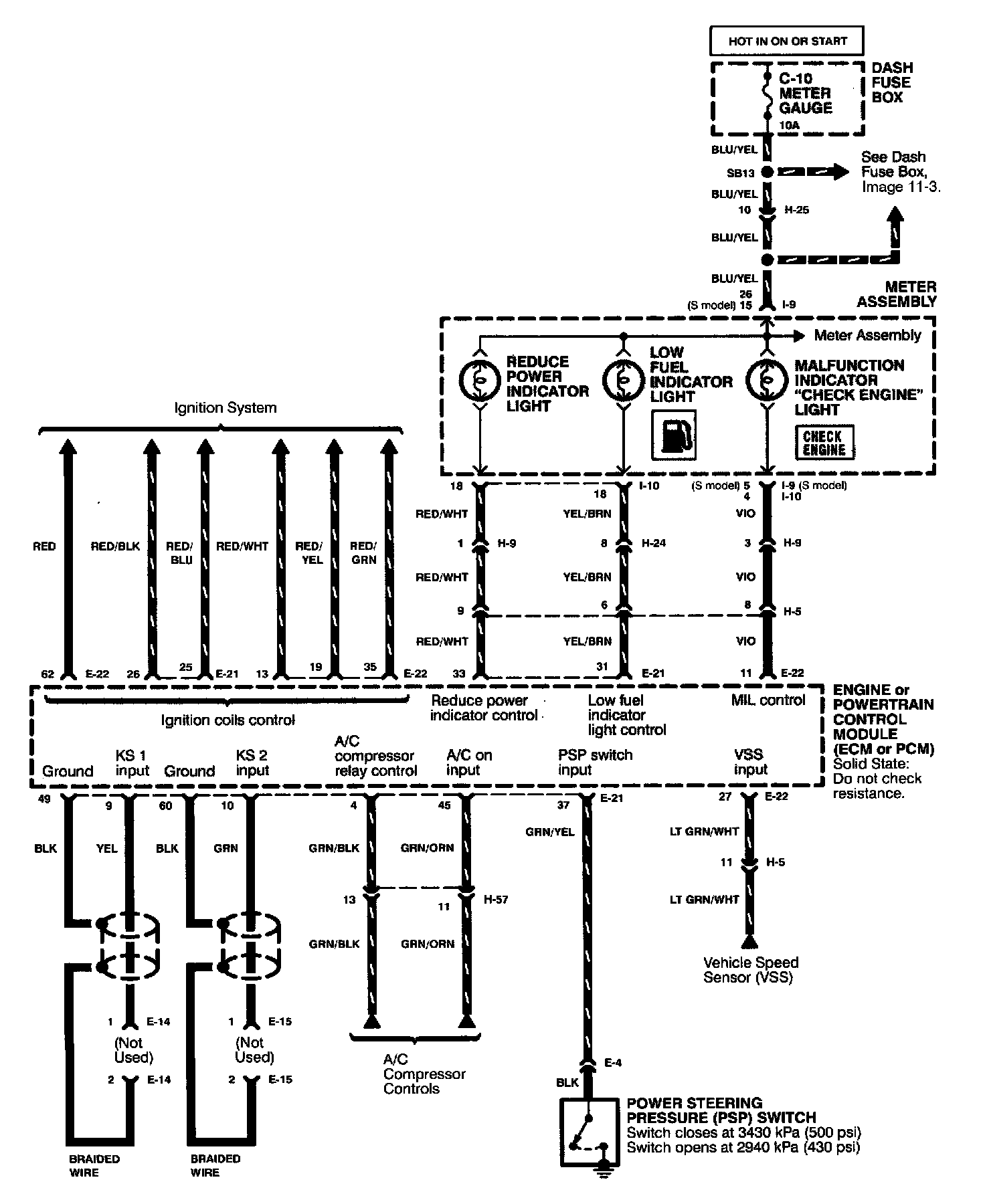

Engine Controls (1 Of 10) Image 23:

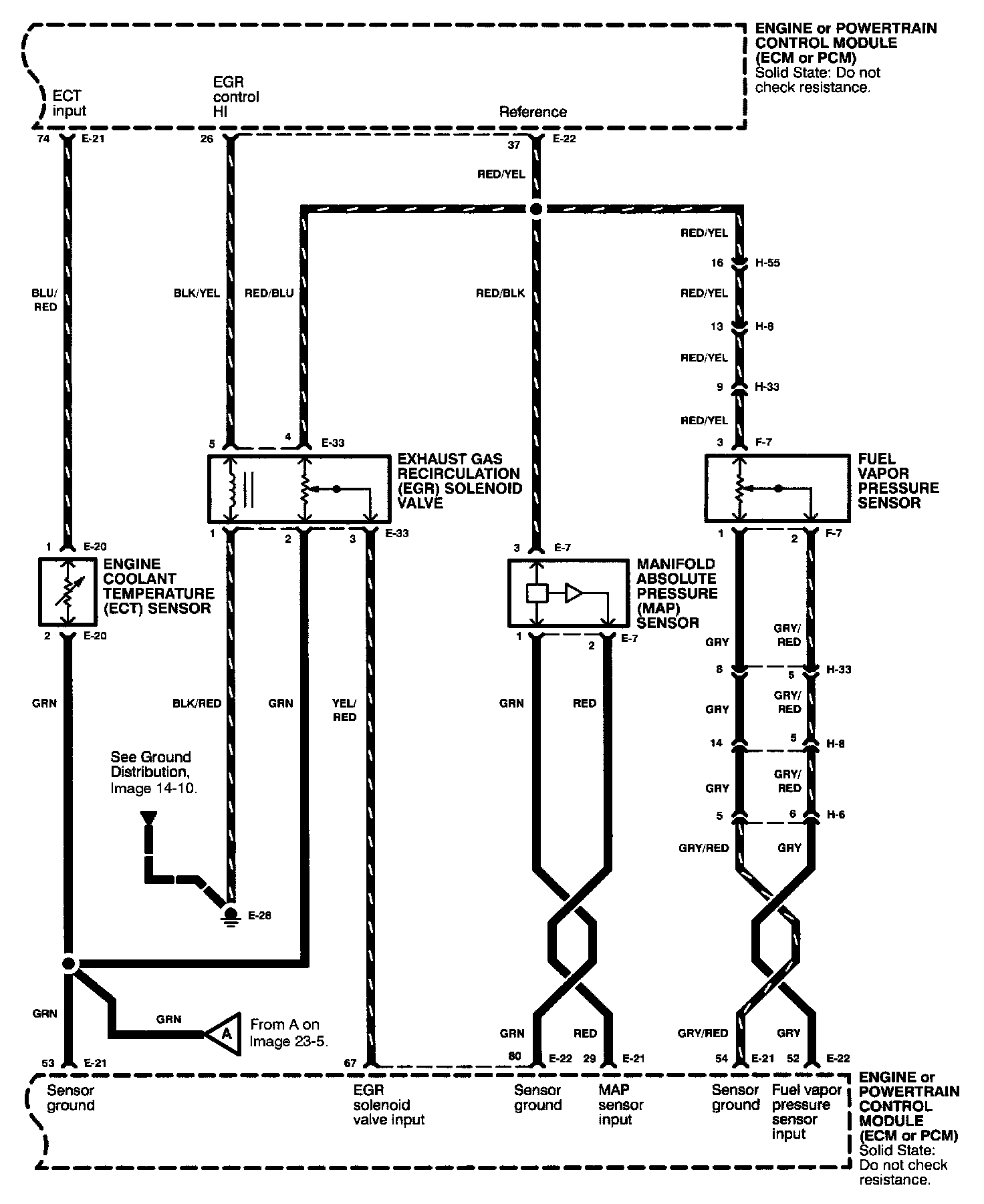

Engine Controls (2 Of 10) Image 23-1:

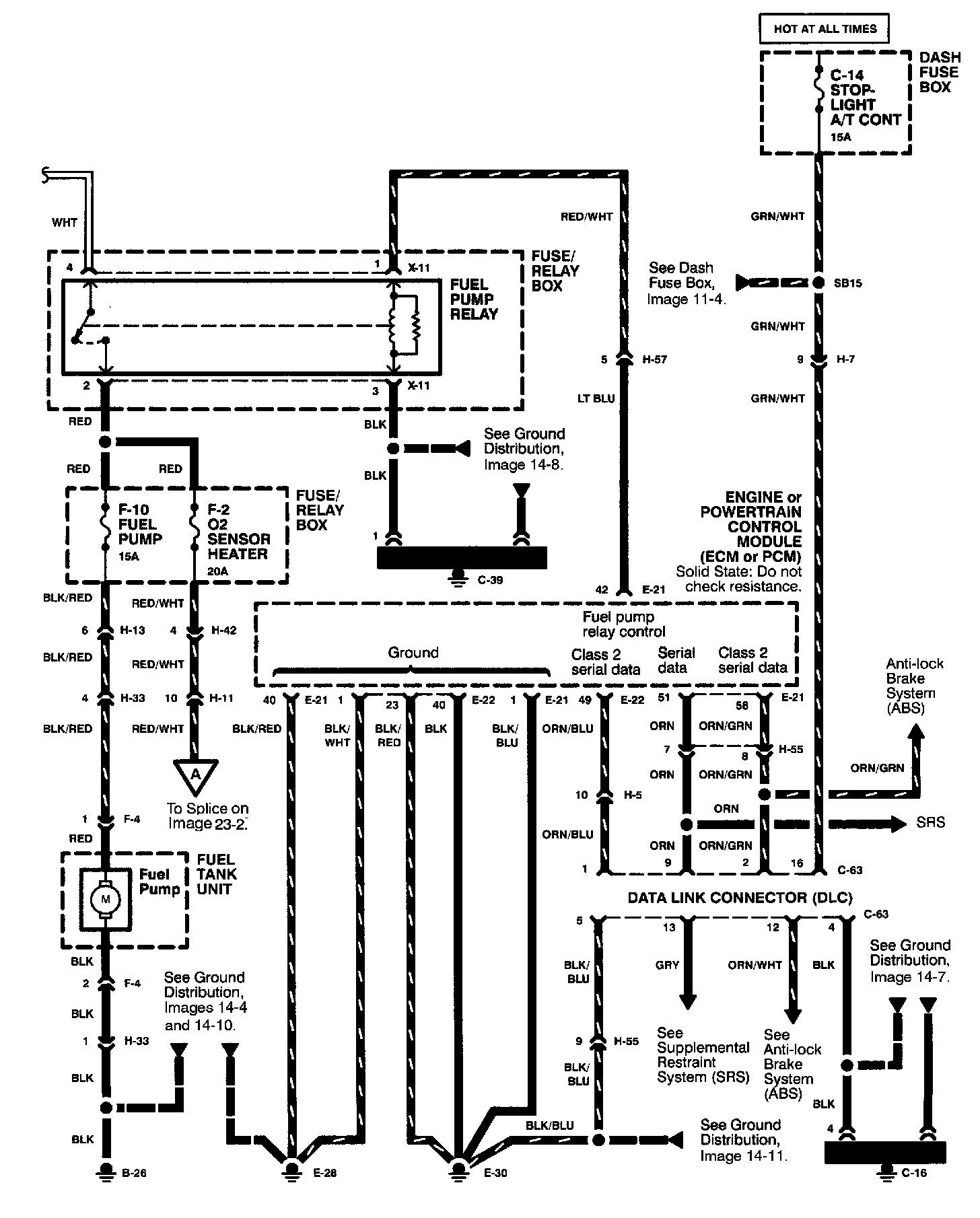

Engine Controls (3 Of 10) Image 23-2:

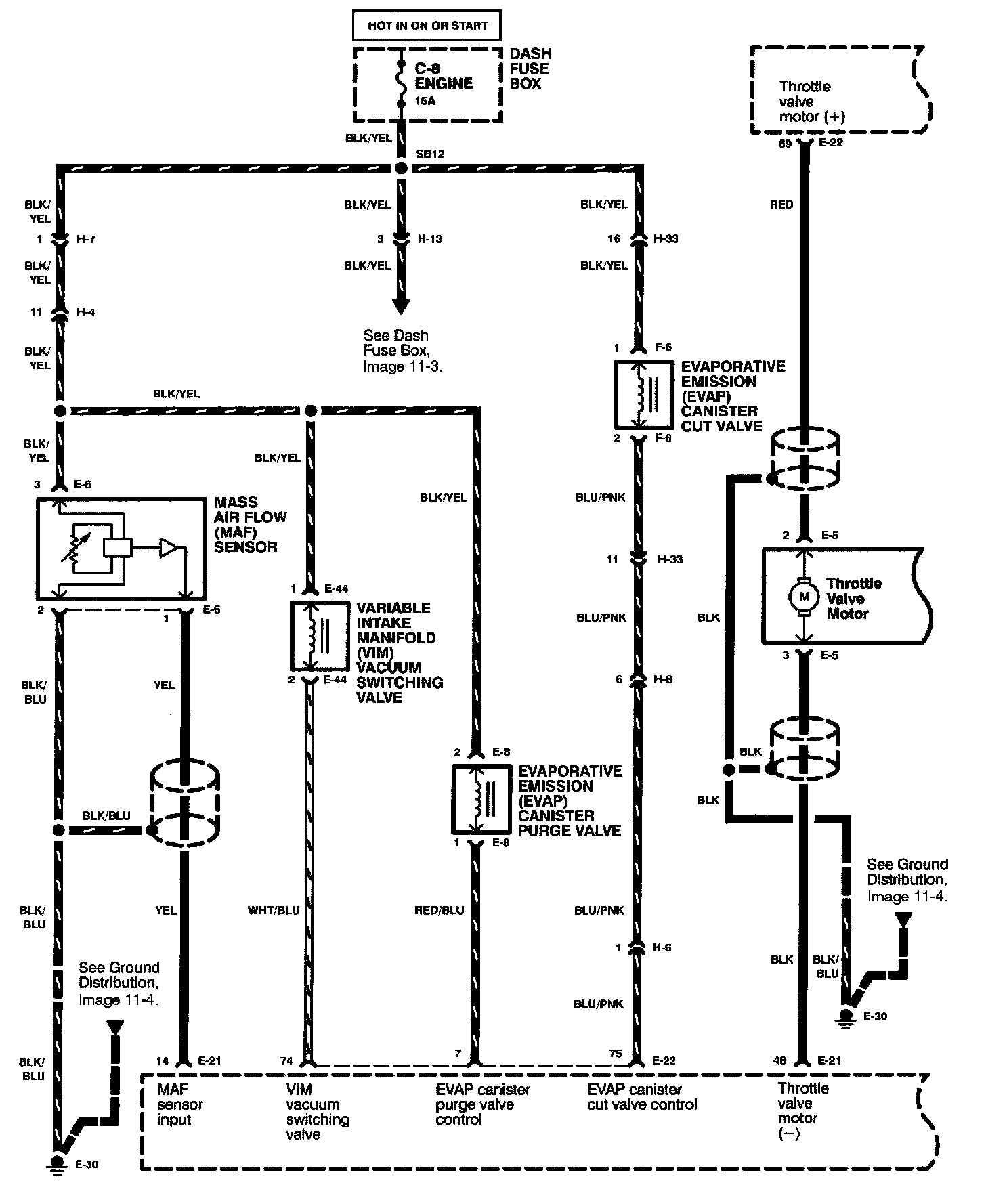

Engine Controls (4 Of 10) Image 23-3:

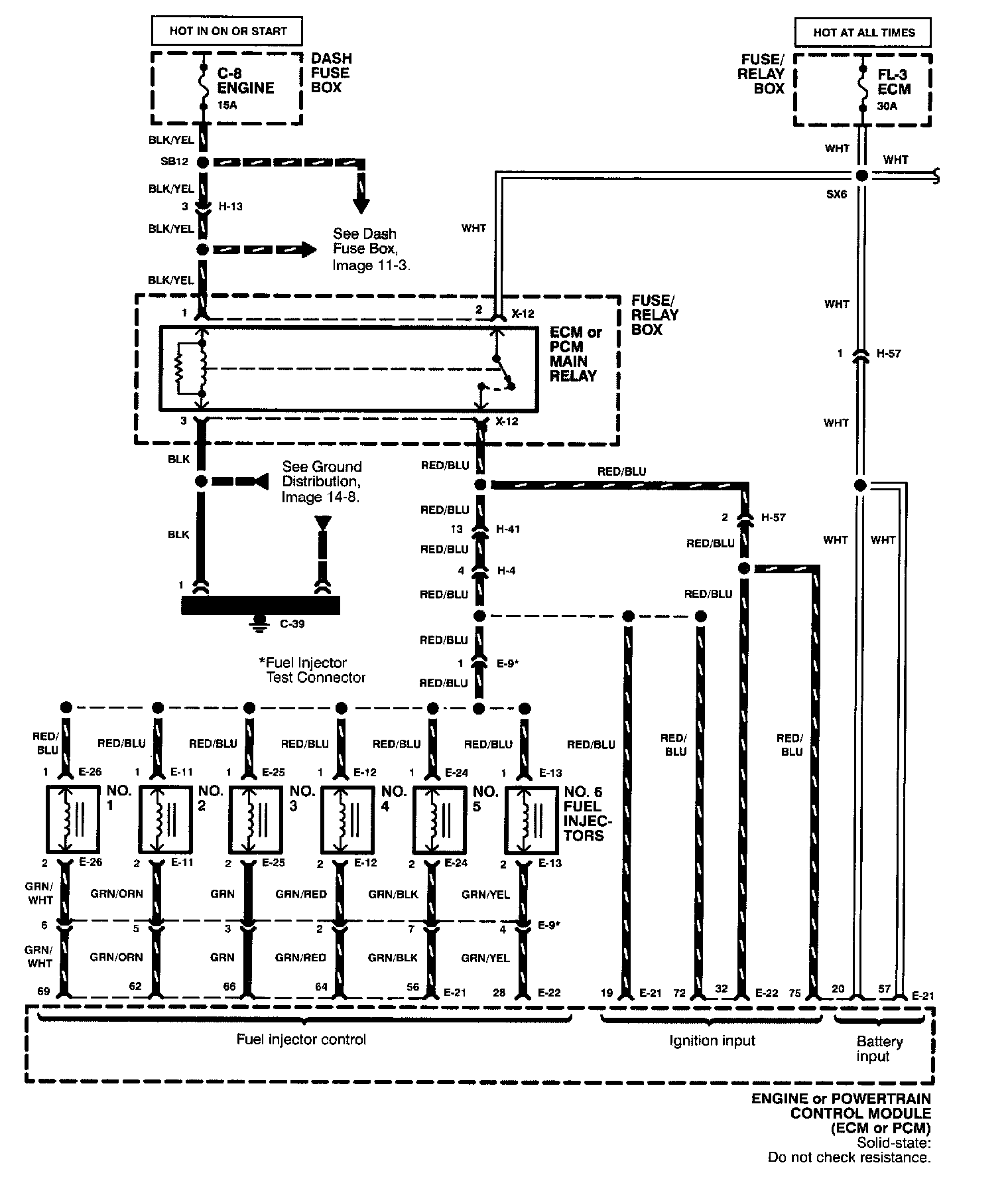

Engine Controls (5 Of 10) Image 23-4:

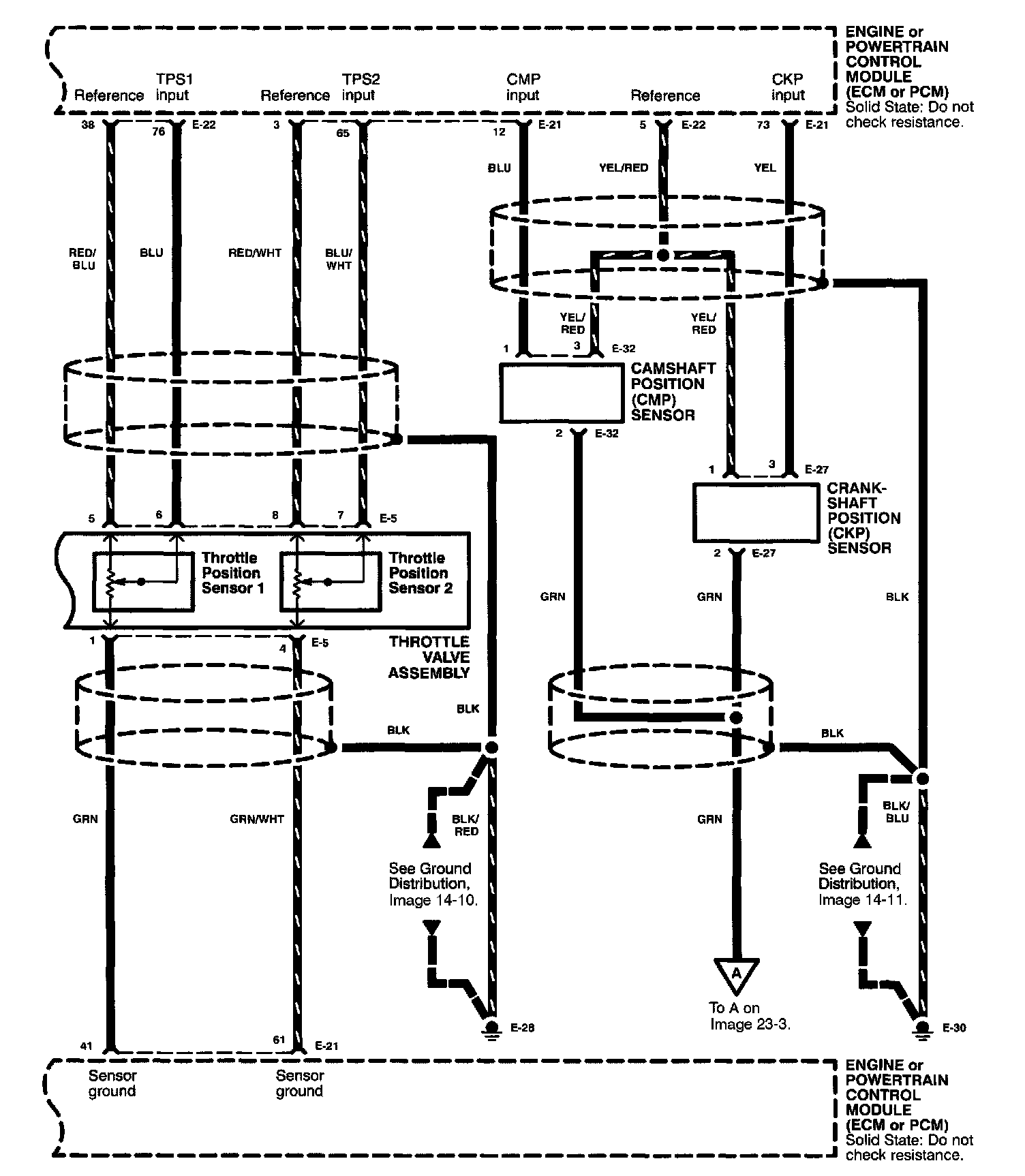

Engine Controls (6 Of 10) Image 23-5:

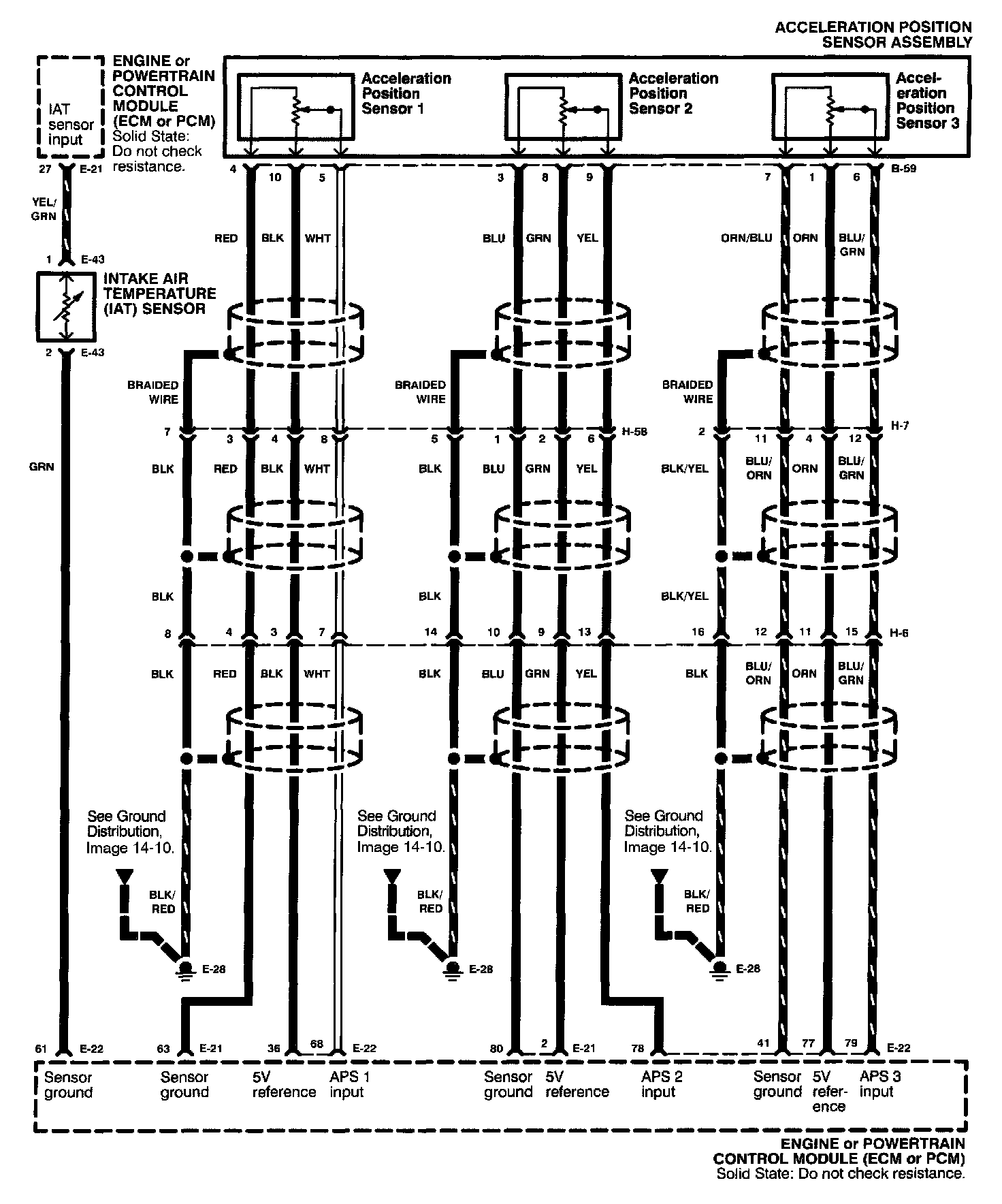

Engine Controls (7 Of 10) Image 23-6:

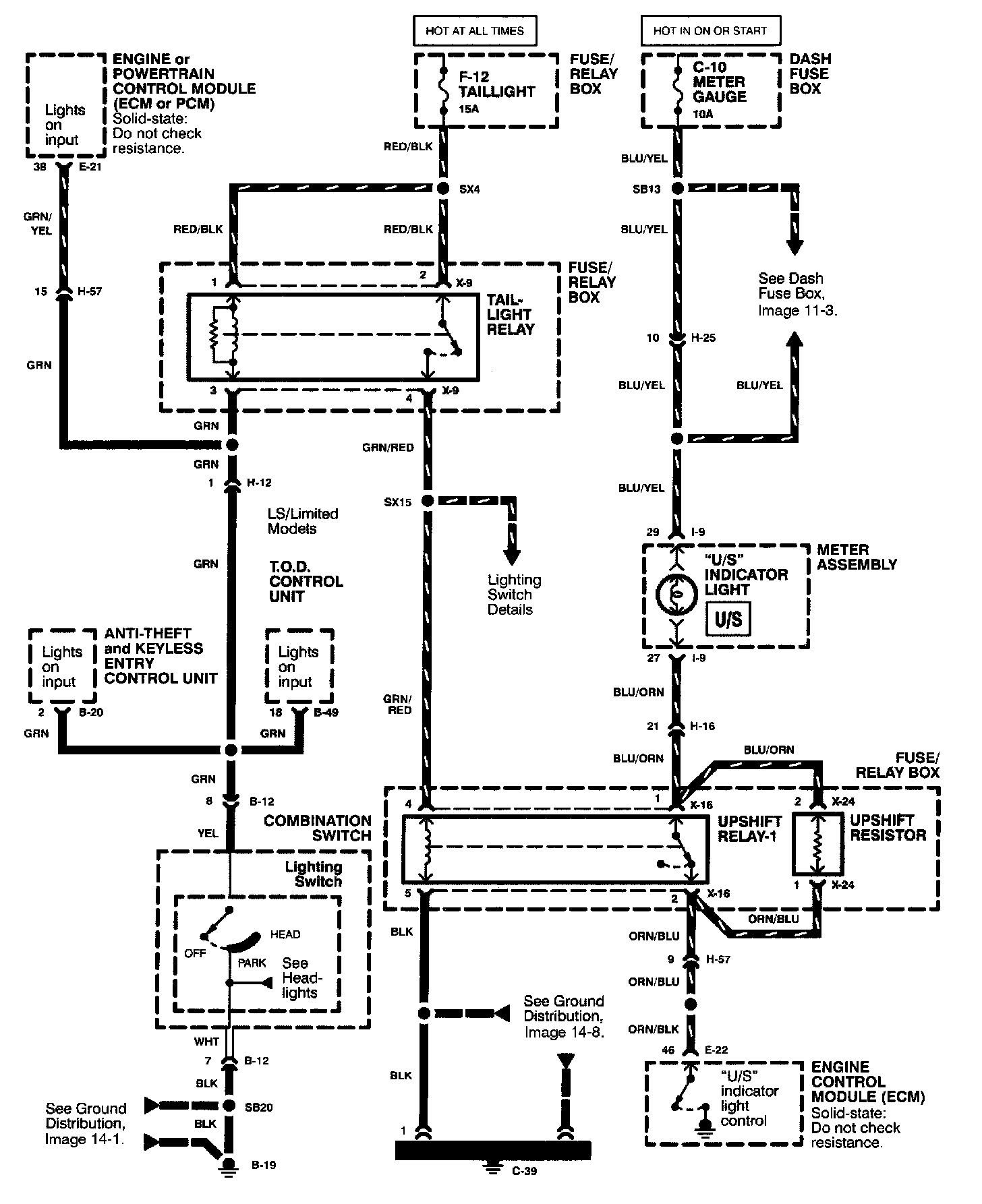

Engine Controls (8 Of 10) Image 23-7:



Engine Controls (9 Of 10) Image 23-8:



Engine Controls (M/T, 10 Of 10) Image 23-9:
