Antitheft and Alarm Systems

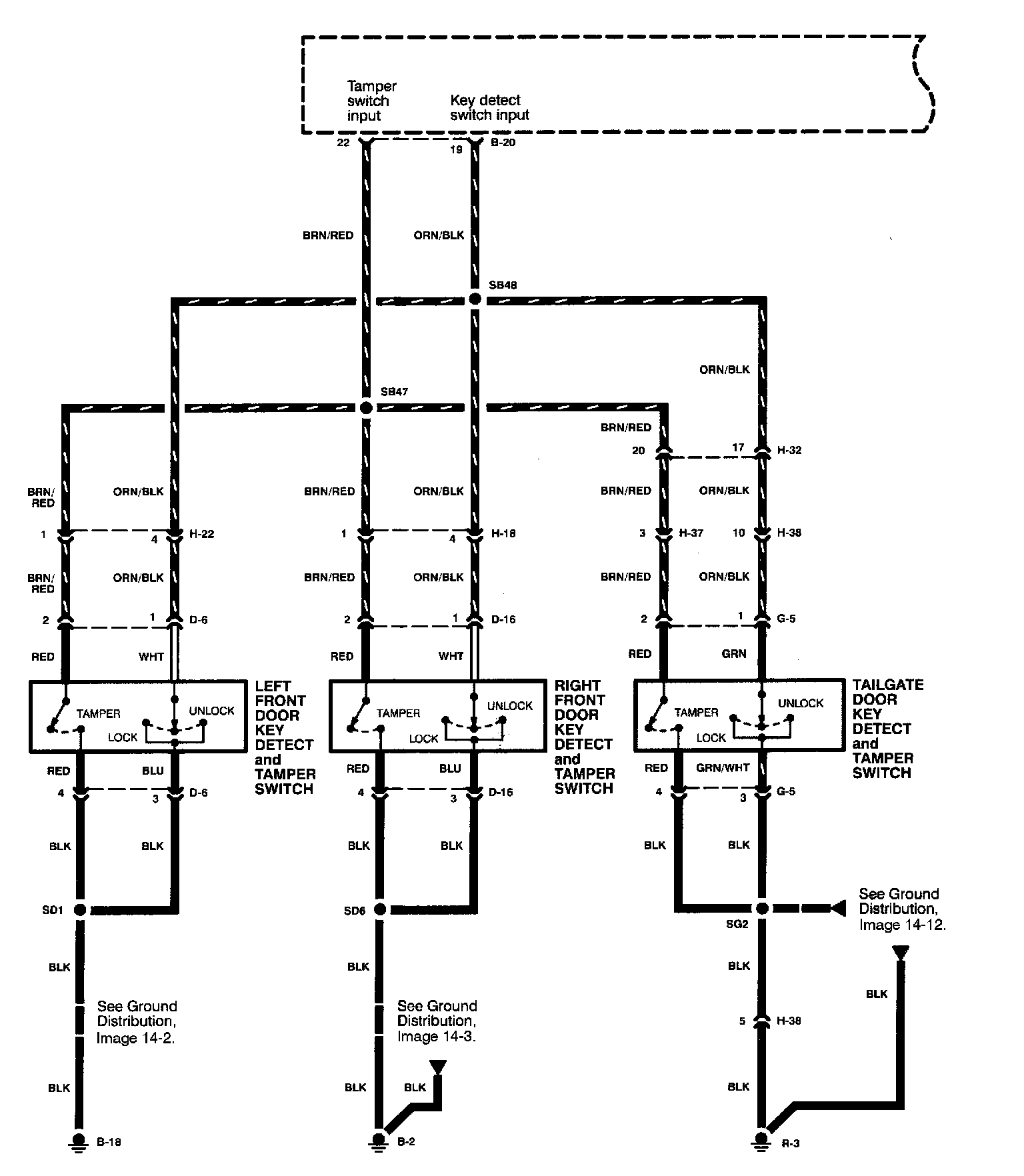

Anti-Theft System (1 Of 6) Image 133:

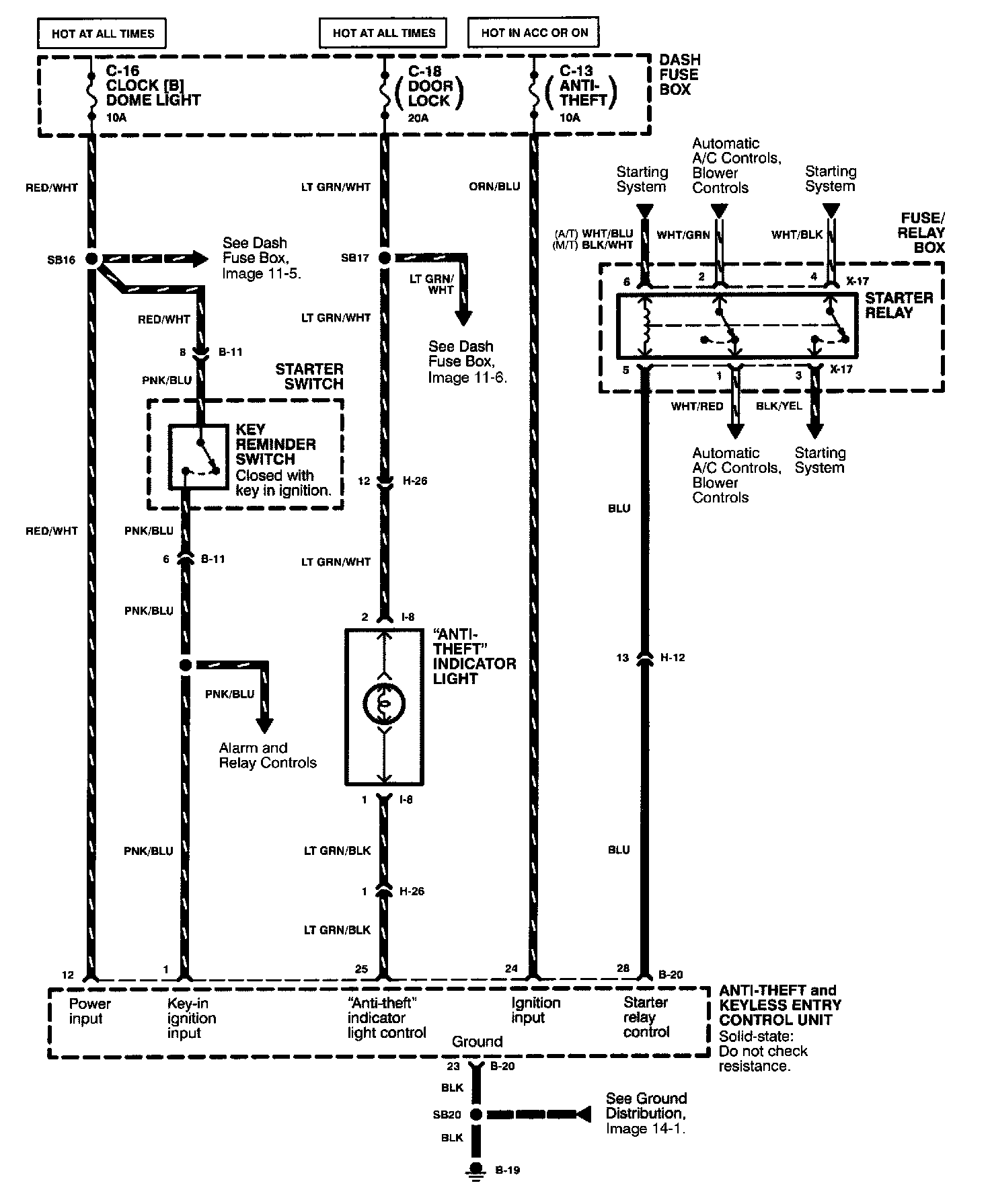

Anti-Theft System (2 Of 6) Image 133-1:

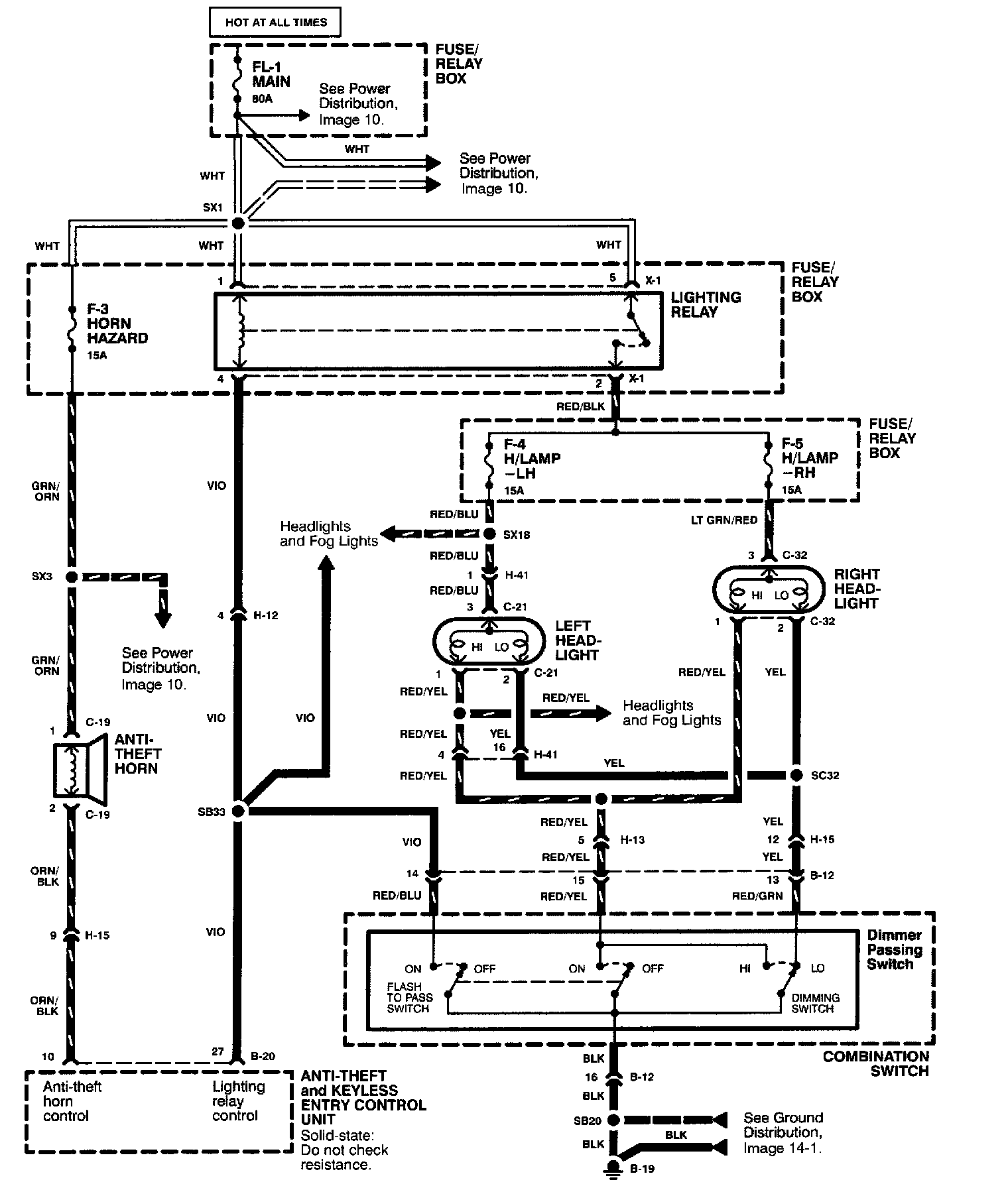

Anti-Theft System (3 Of 6) Image 133-2:

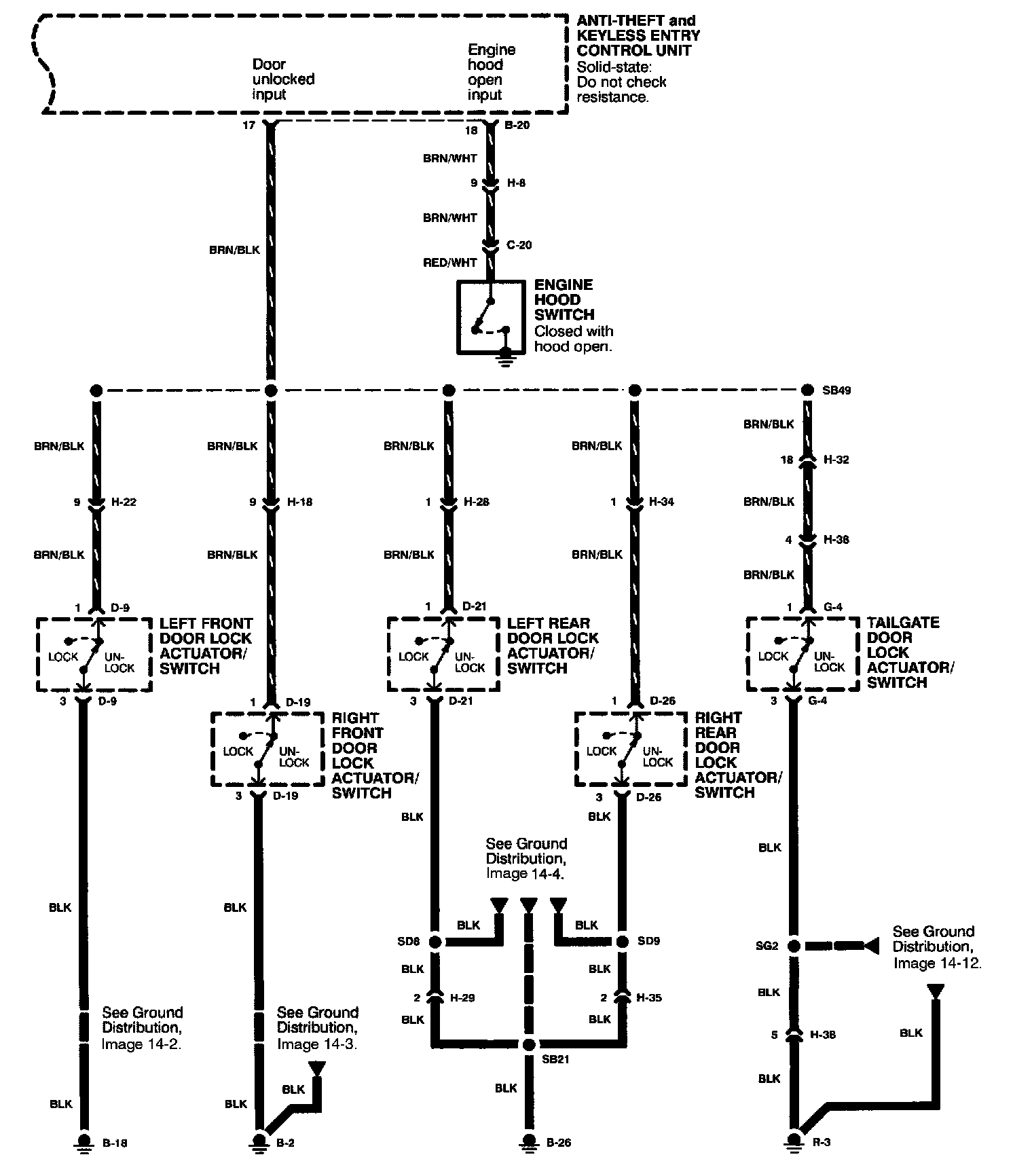

Anti-Theft System (4 Of 6) Image 133-3:

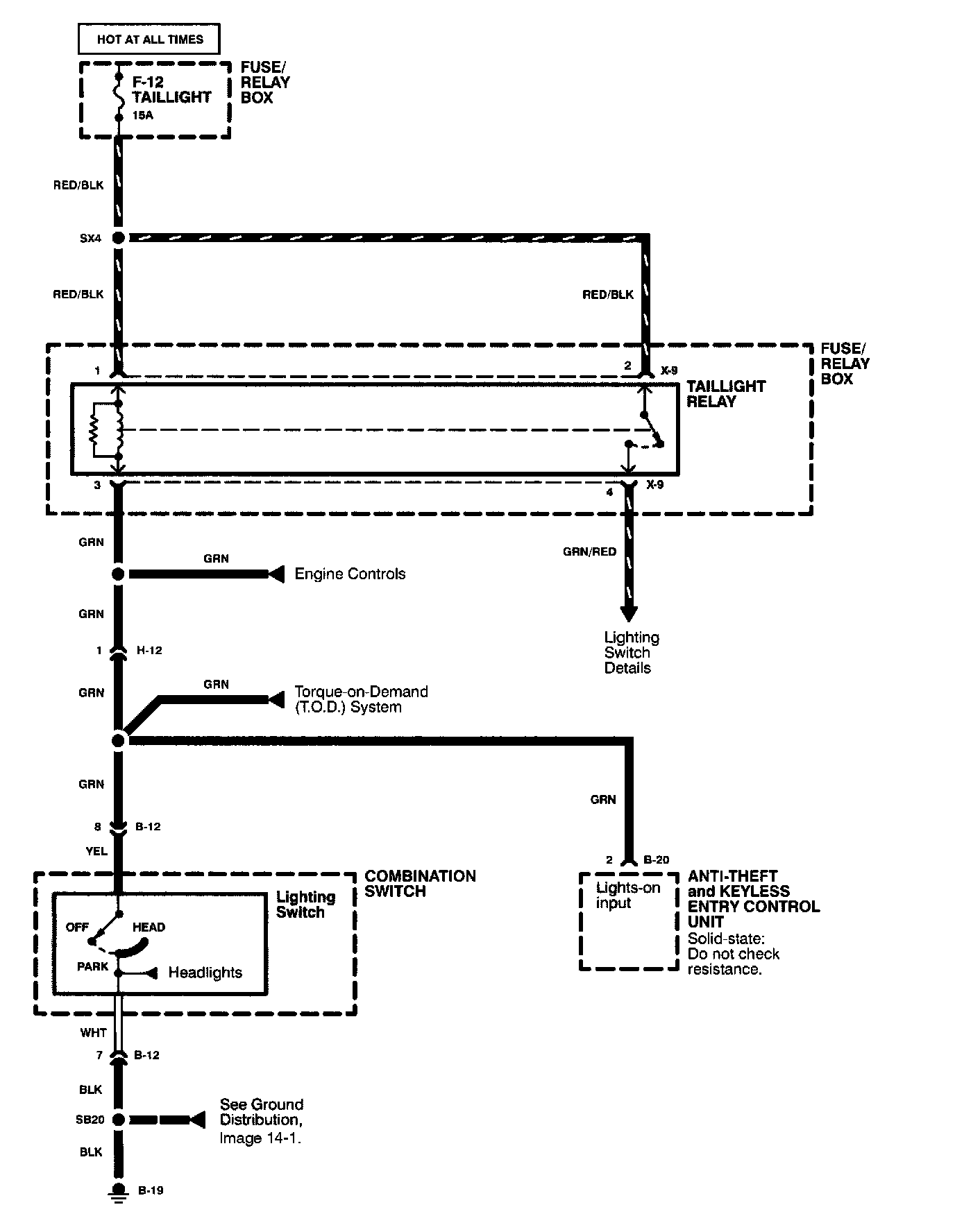

Anti-Theft System (5 Of 6) Image 133-4:

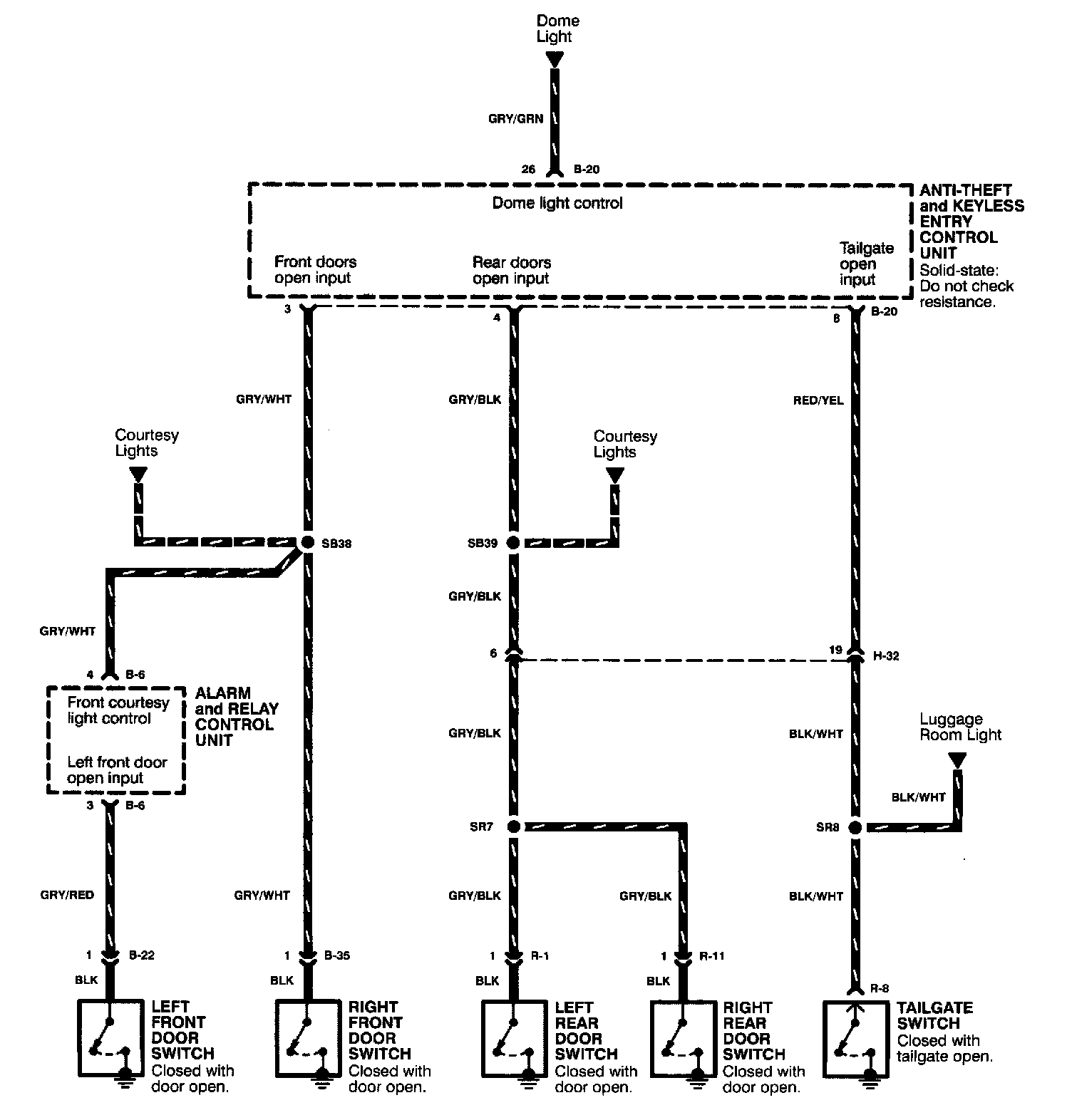

Anti-Theft System (6 Of 6) Image 133-5:
