Electrical Diagrams

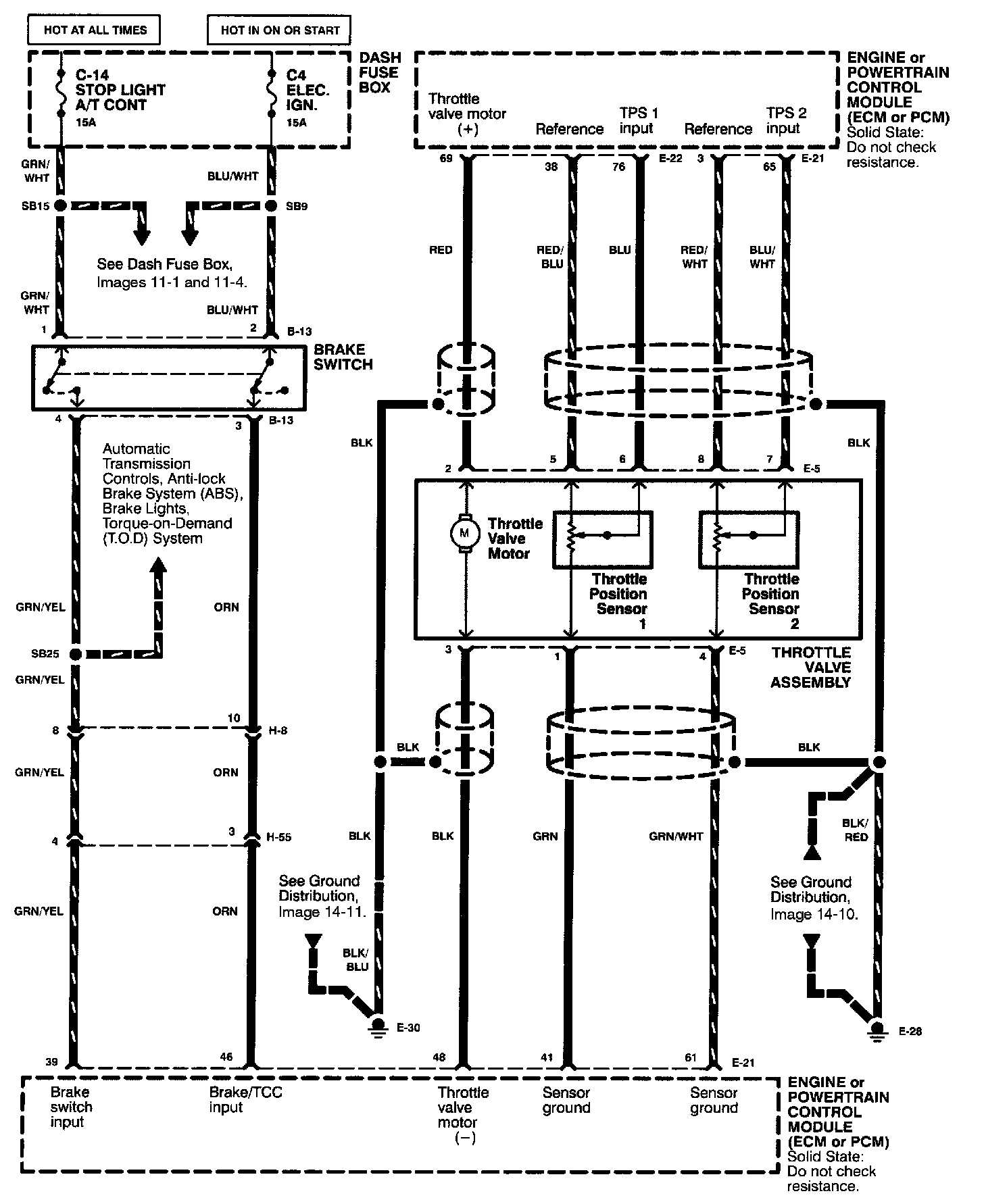

Cruise Control (1 Of 4) Image 34:

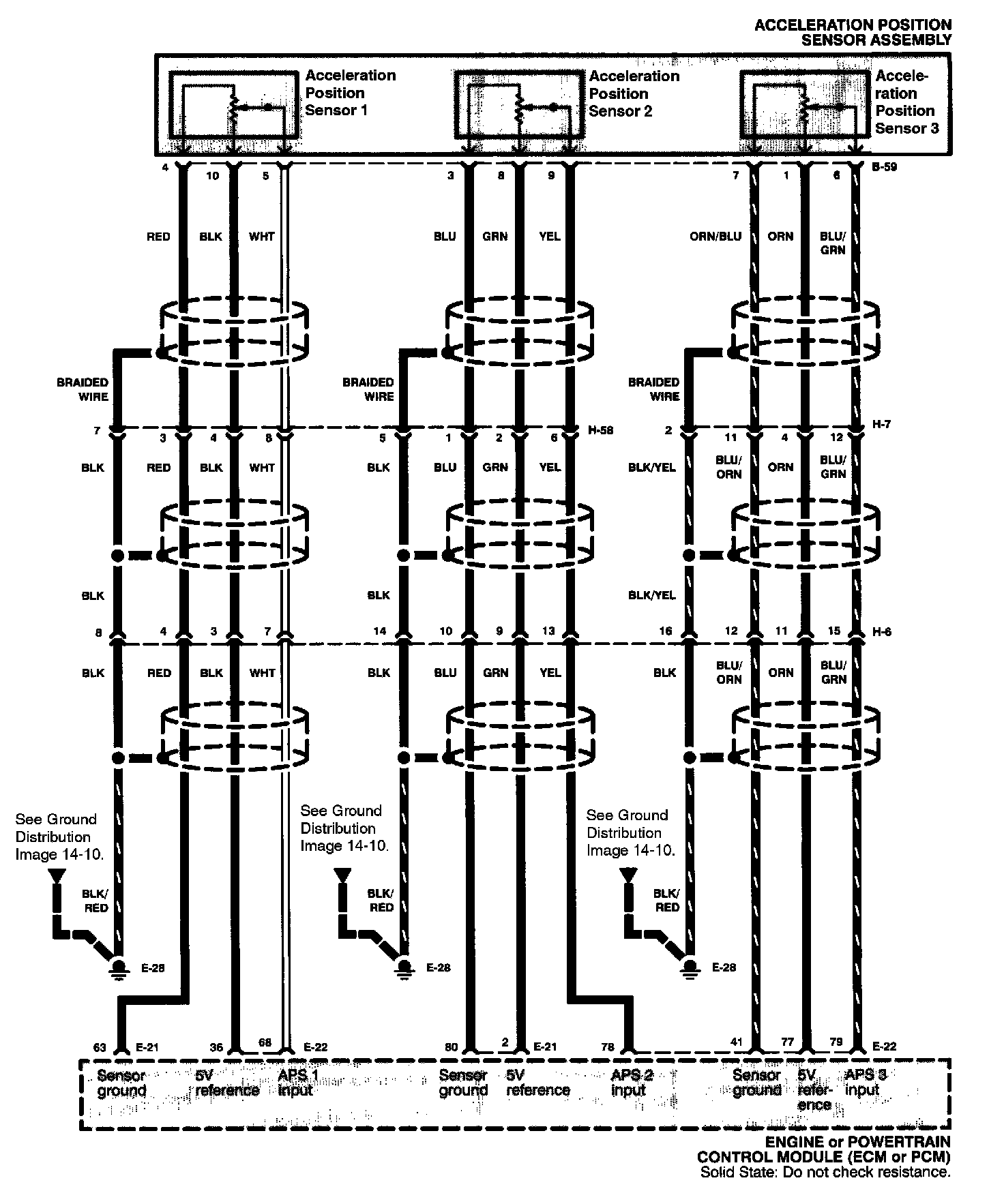

Cruise Control (2 Of 4) Image 34-1:

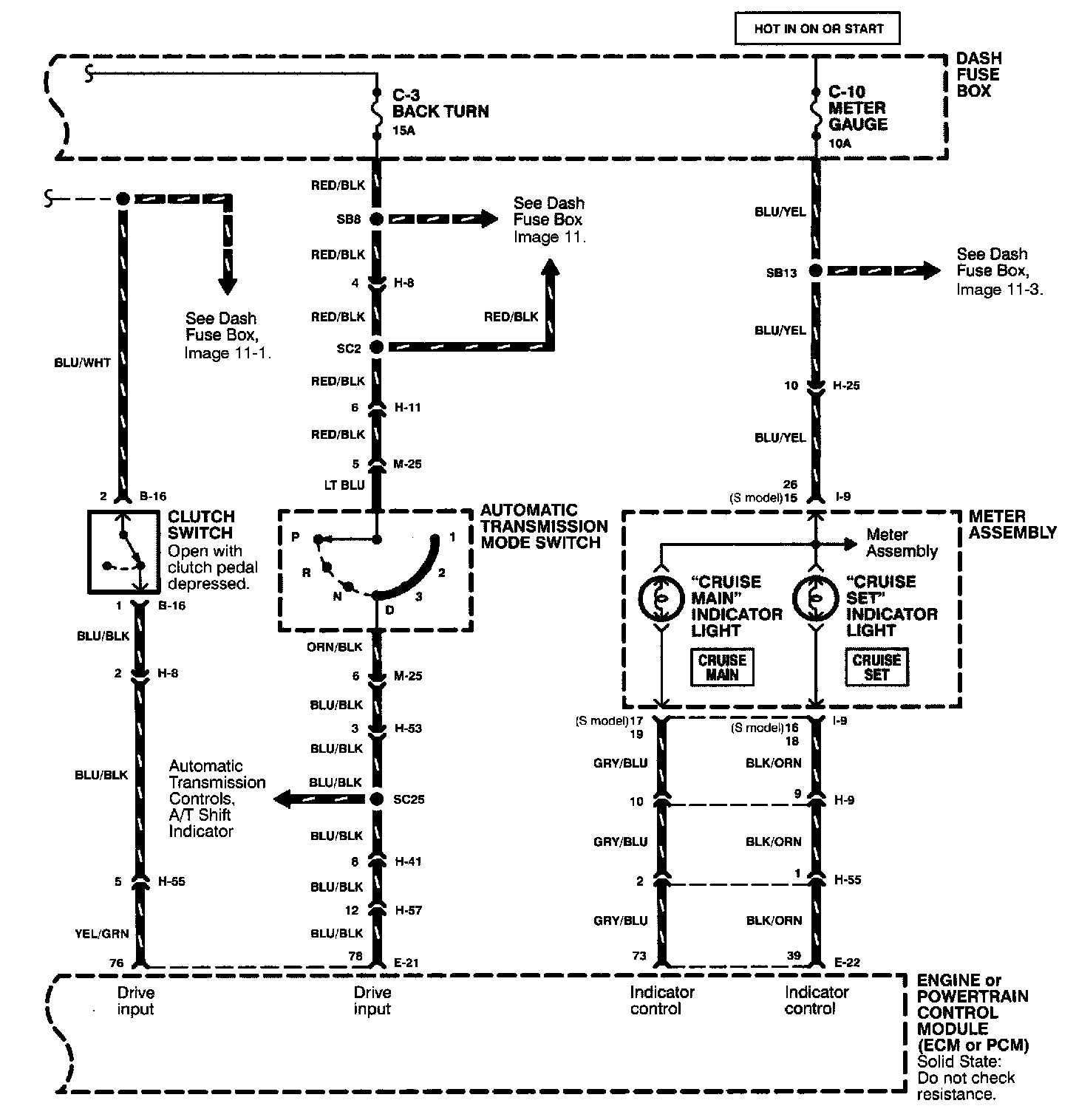

Cruise Control (3 Of 4) Image 34-2:

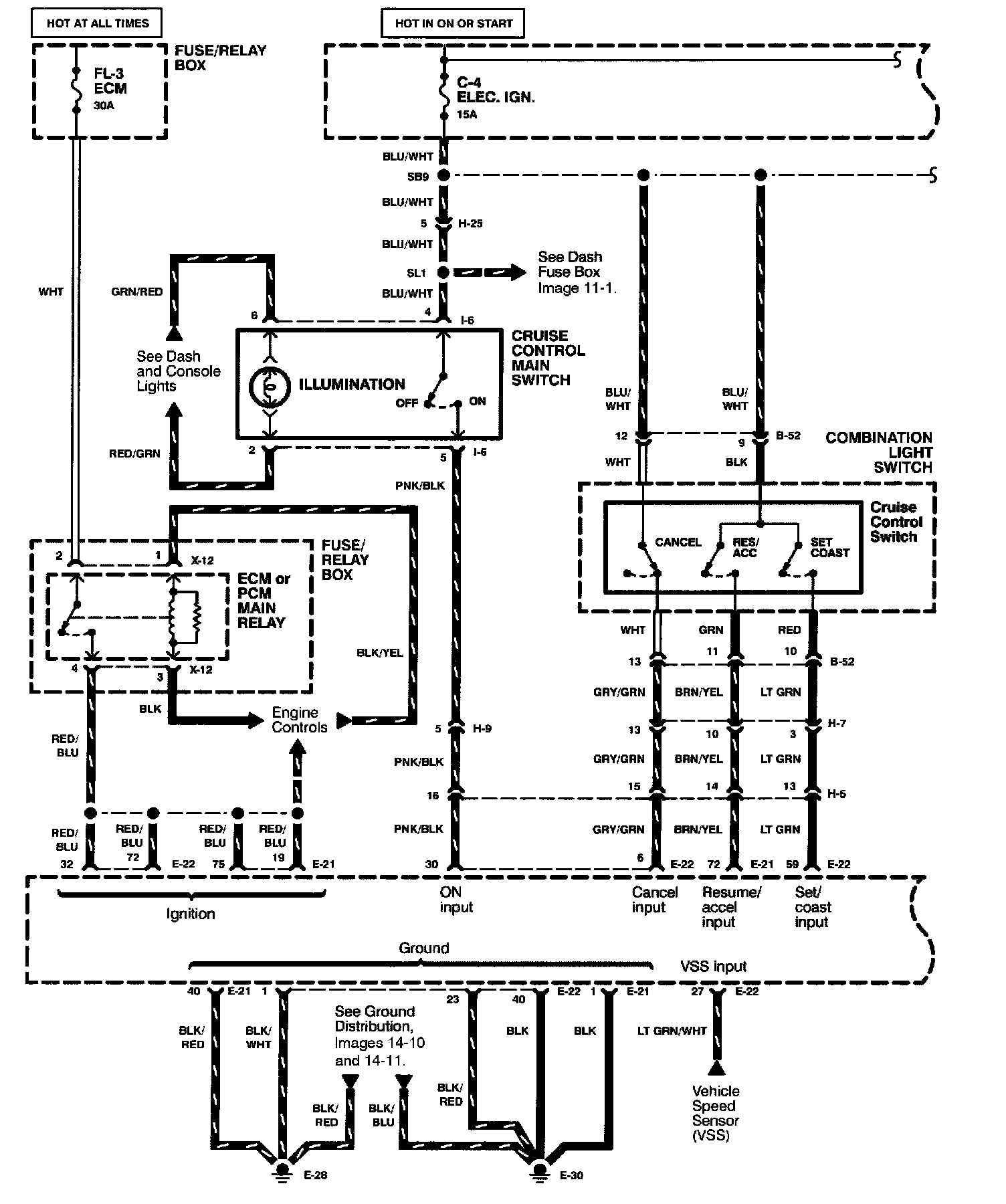

Cruise Control (4 Of 4) Image 34-3:
