Interior Light Switch: Service and Repair

Removal
1. Disconnect the battery ground cable.

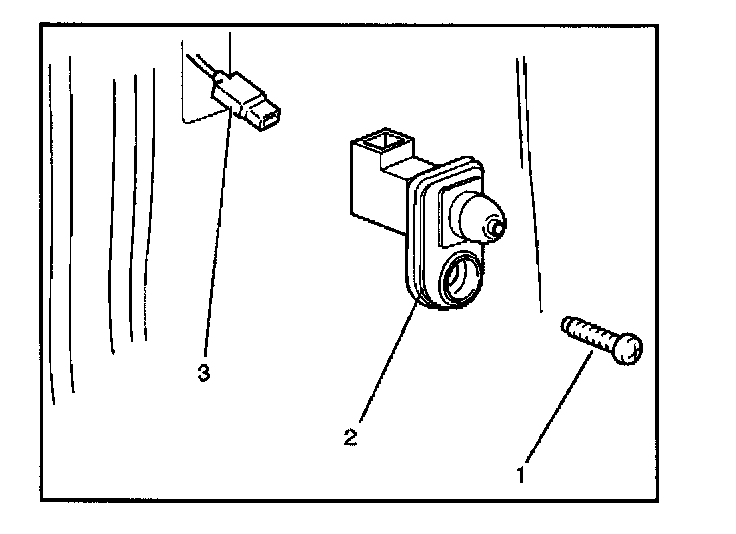

2. Remove the door switch (2).
- Remove the screw (1).
- Disconnect the connector (3).

Installation
To install, follow the removal steps in the reverse order.
