Keyless Entry

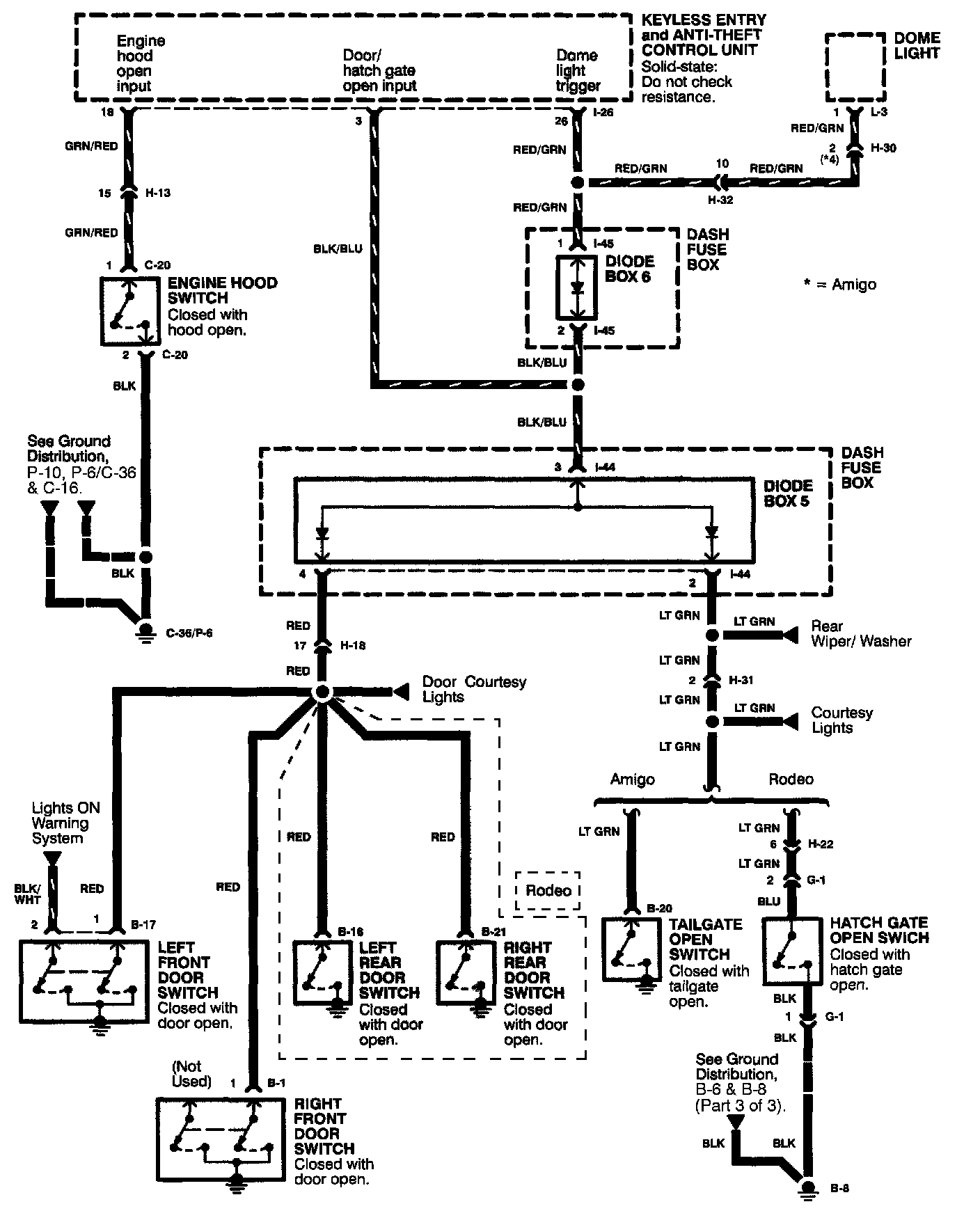

Keyless Entry & Anti-Theft System (1 Of 8):

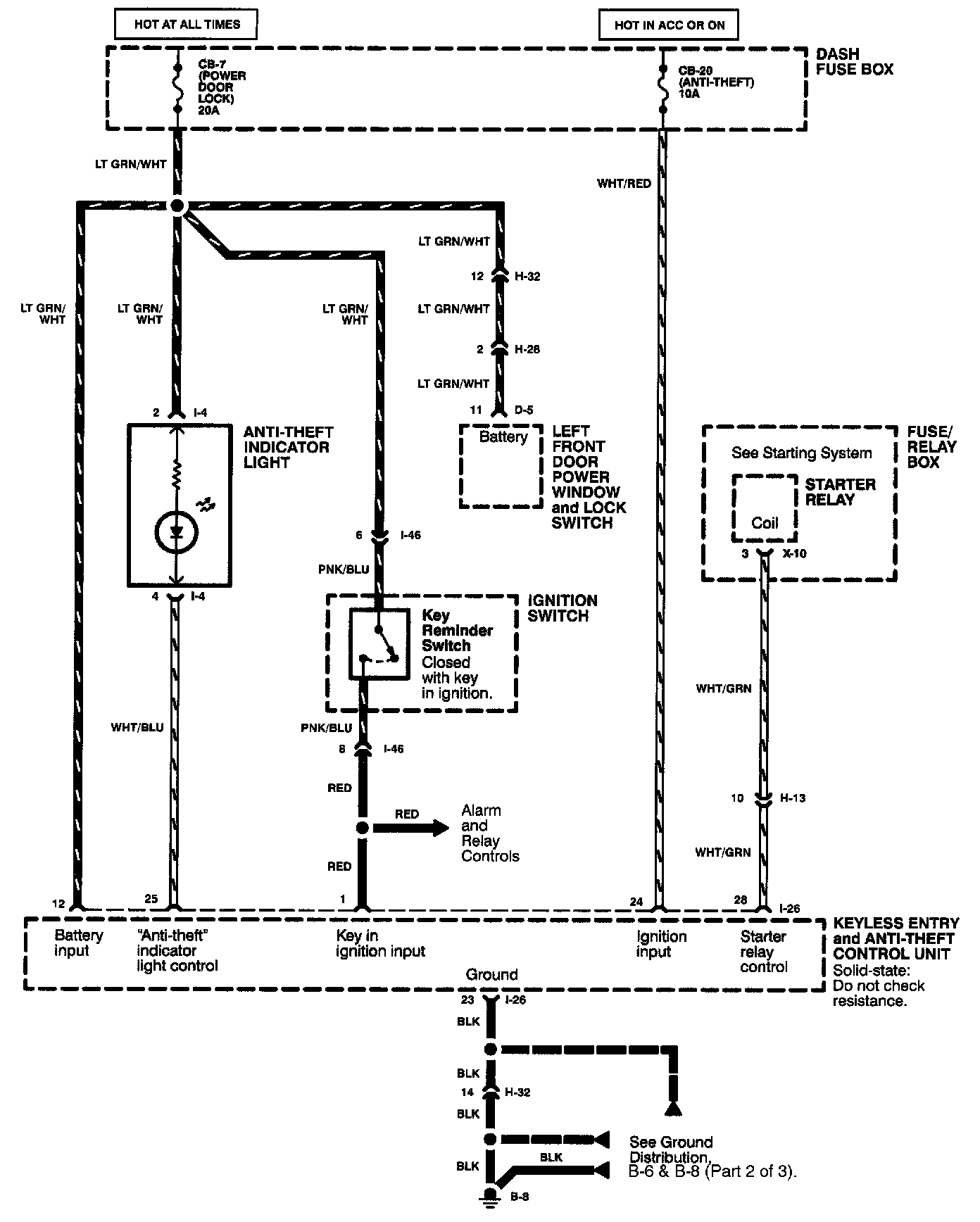

Keyless Entry & Anti-Theft System (2 Of 8):

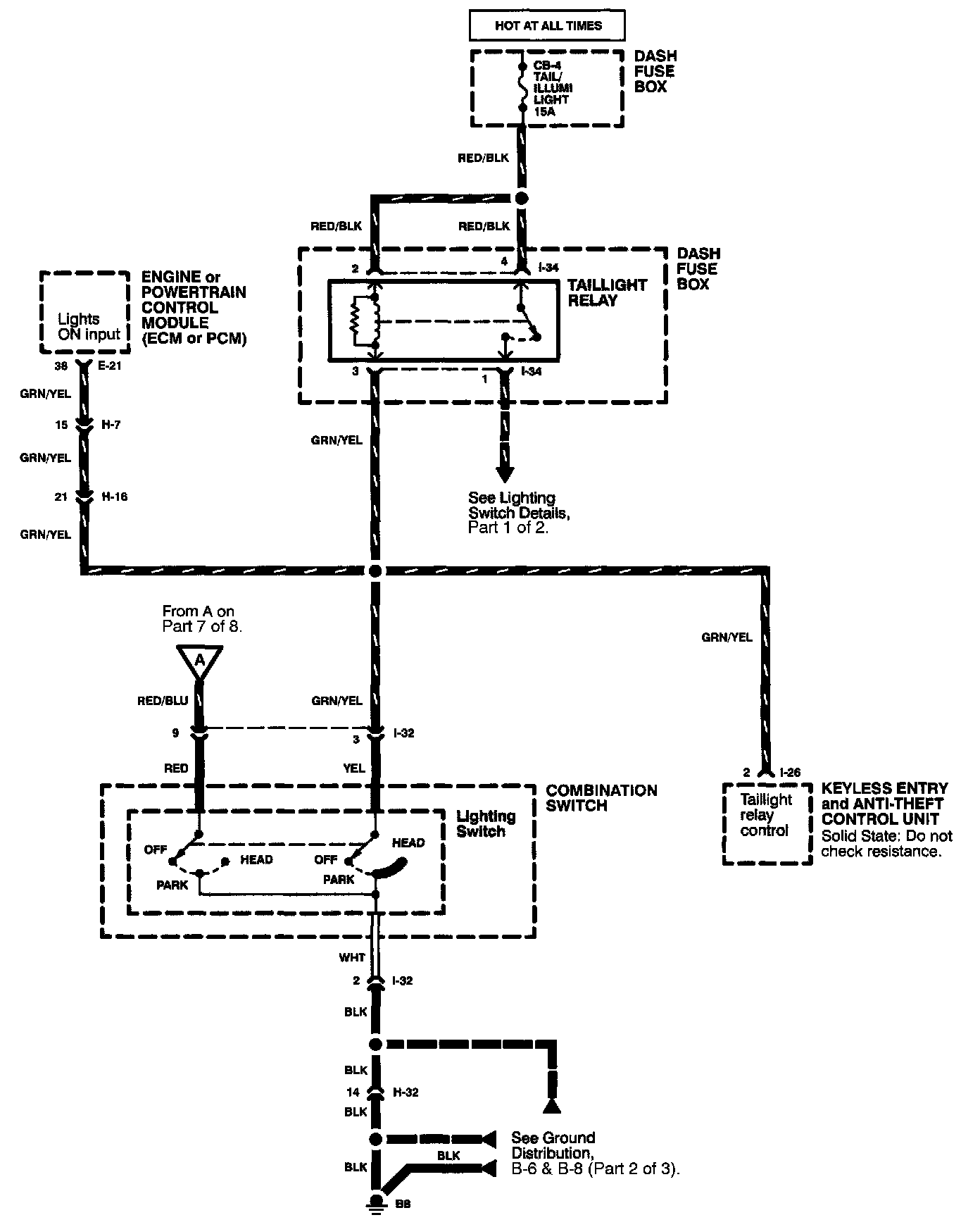

Keyless Entry & Anti-Theft System (3 Of 8):

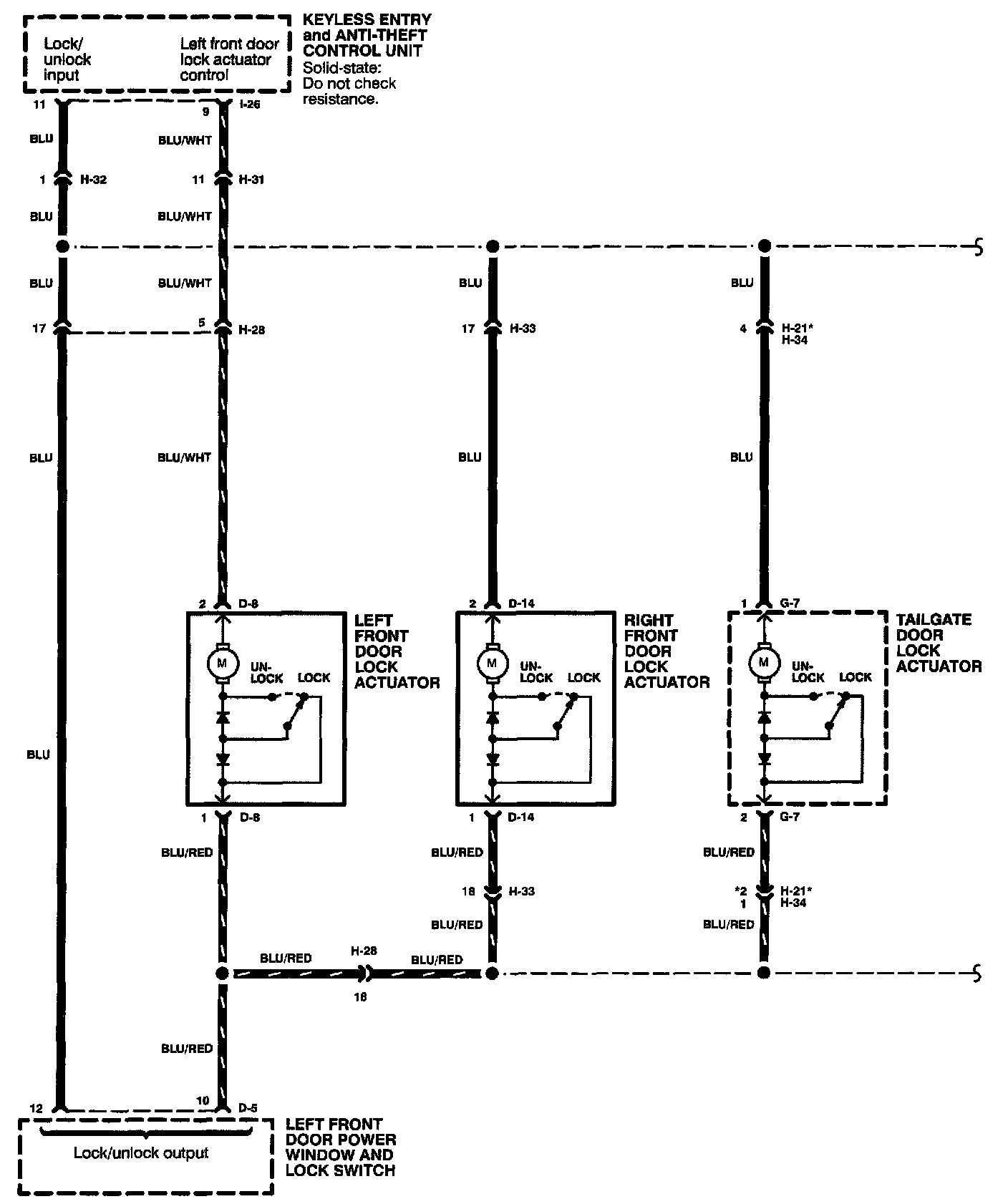

Keyless Entry & Anti-Theft System (4 Of 8):

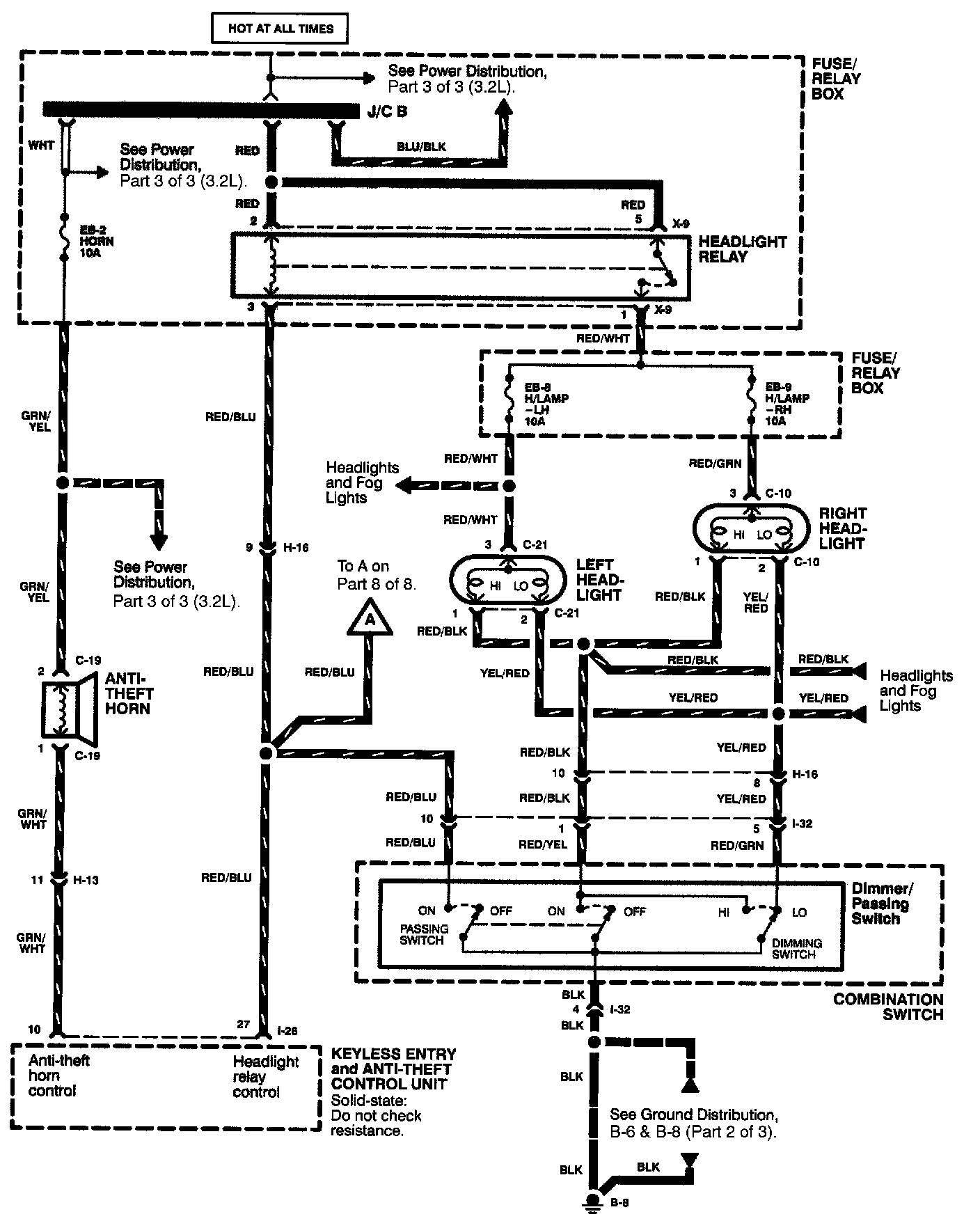

Keyless Entry & Anti-Theft System (5 Of 8):

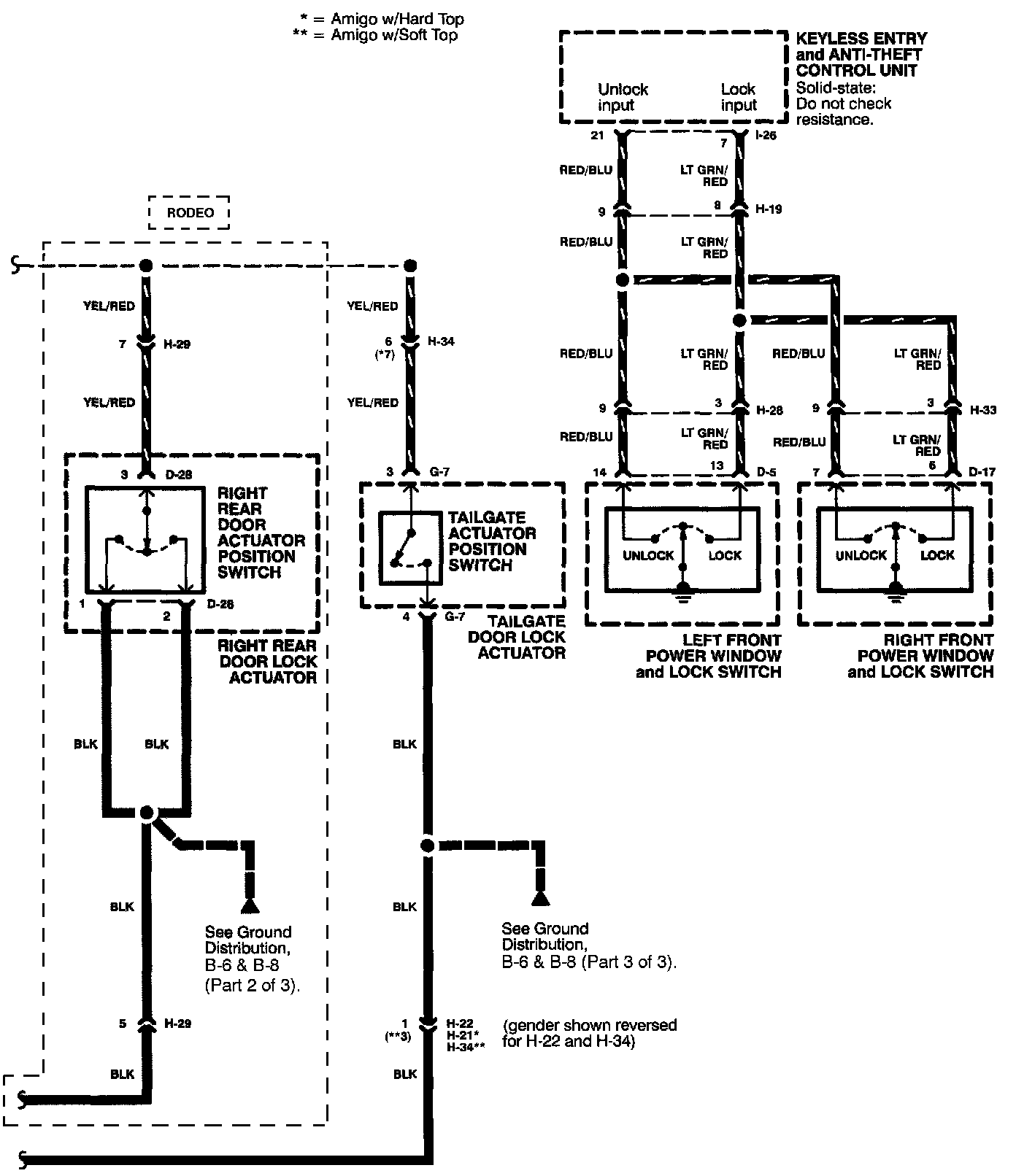

Keyless Entry & Anti-Theft System (6 Of 8):

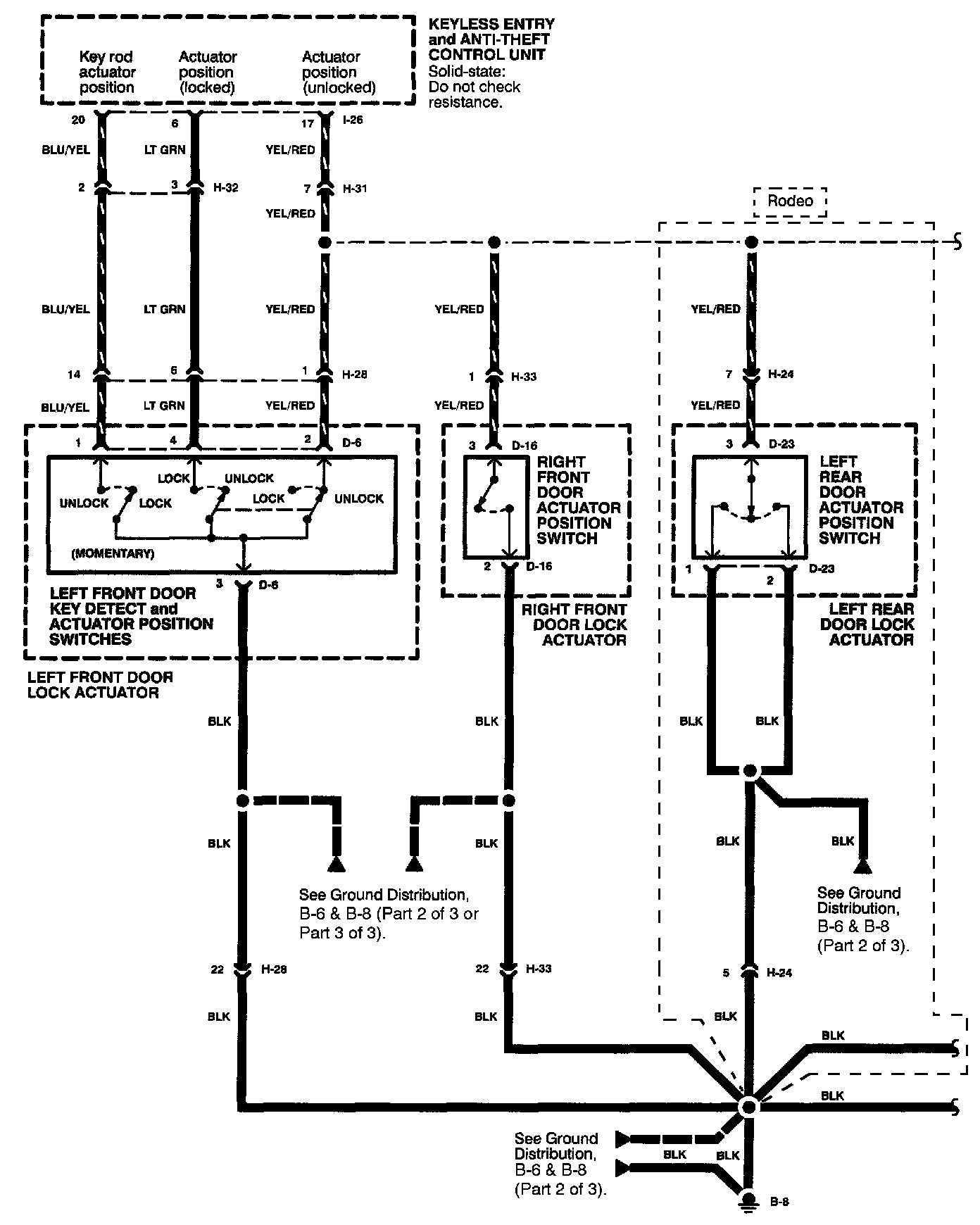

Keyless Entry & Anti-Theft System (7 Of 8):

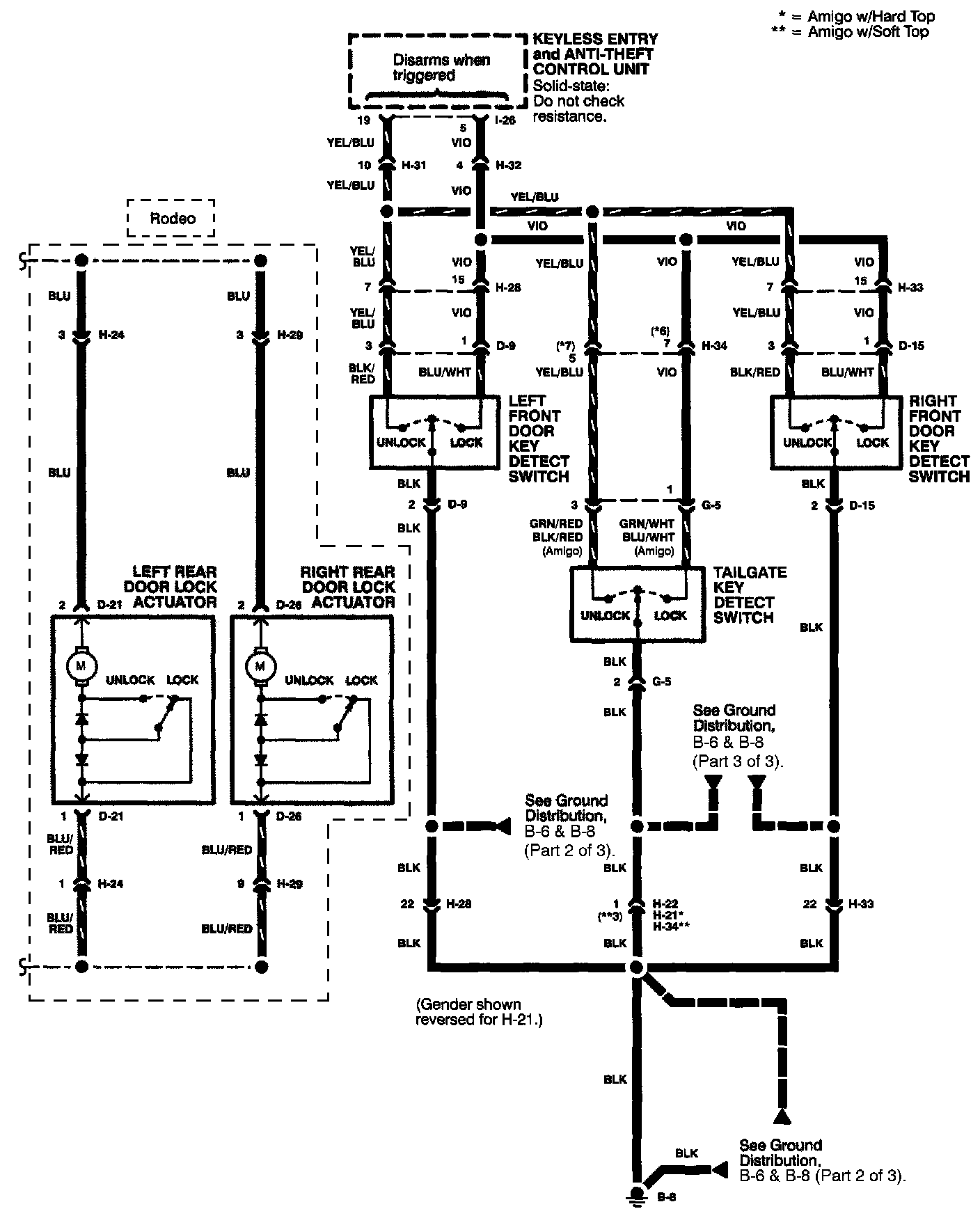

Keyless Entry & Anti-Theft System (8 Of 8):
