Front Wheel Sensor

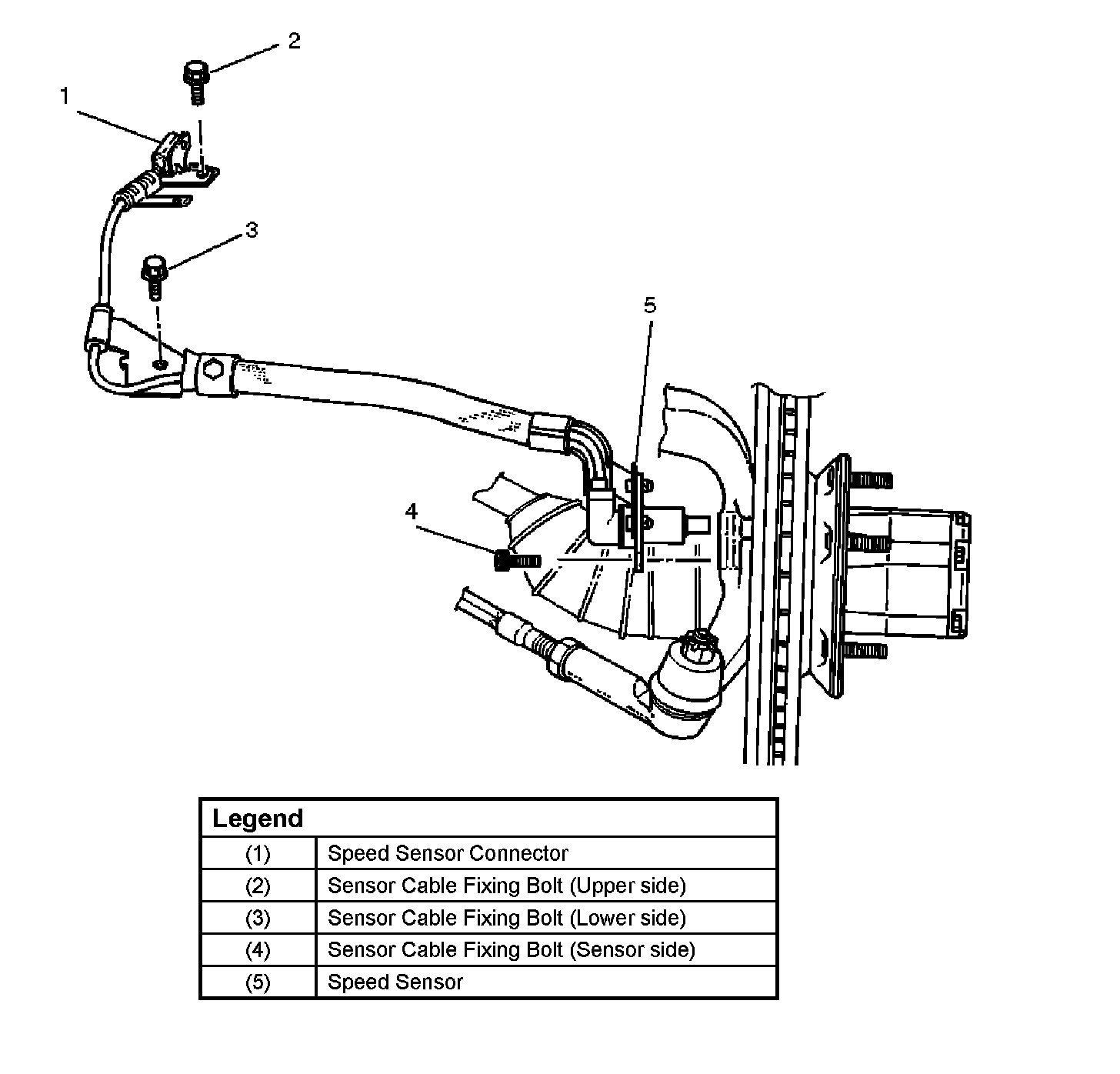

REMOVAL





1. Remove speed sensor connector.
2. Remove sensor cable fixing bolt (Upper side).
3. Remove sensor cable! fixing bolt (Lower side).
4. Remove the speed sensor cable fixing bolt.
5. Remove speed sensor.

INSTALLATION
1. Install speed sensor and take care not to hit the speed sensor pole piece during installation.
2. Install speed sensor fixing bolt and tighten the fixing bolt to the specified torque.

Torque: 11 Nm (95 inch lbs.)

3. Install speed sensor cable fixing bolt (Lower side) and tighten the fixing bolt to the specified torque.

Torque: 24 Nm (18 ft. lbs.)

4. Install speed sensor cable fixing bolt (Upper side) and tighten the fixing bolt to the specified torque.

Torque: 6 Nm (52 ft. lbs.)

NOTE: Confirm that a white line marked on the cable is not twisted when connecting the speed sensor cable.

5. Install speed sensor connector.
