Automatic Transmission/Transaxle

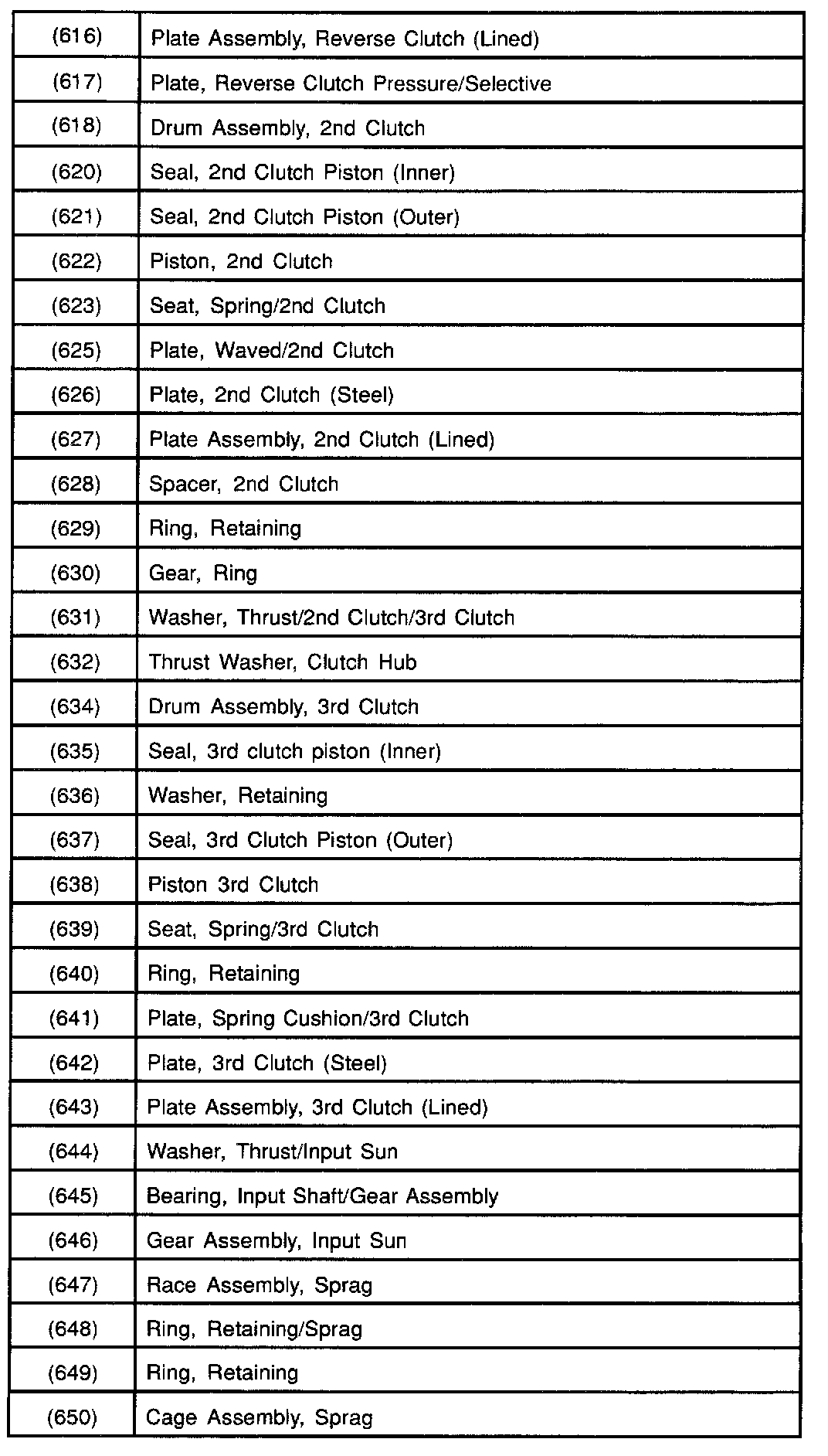

4L30-E Parts List

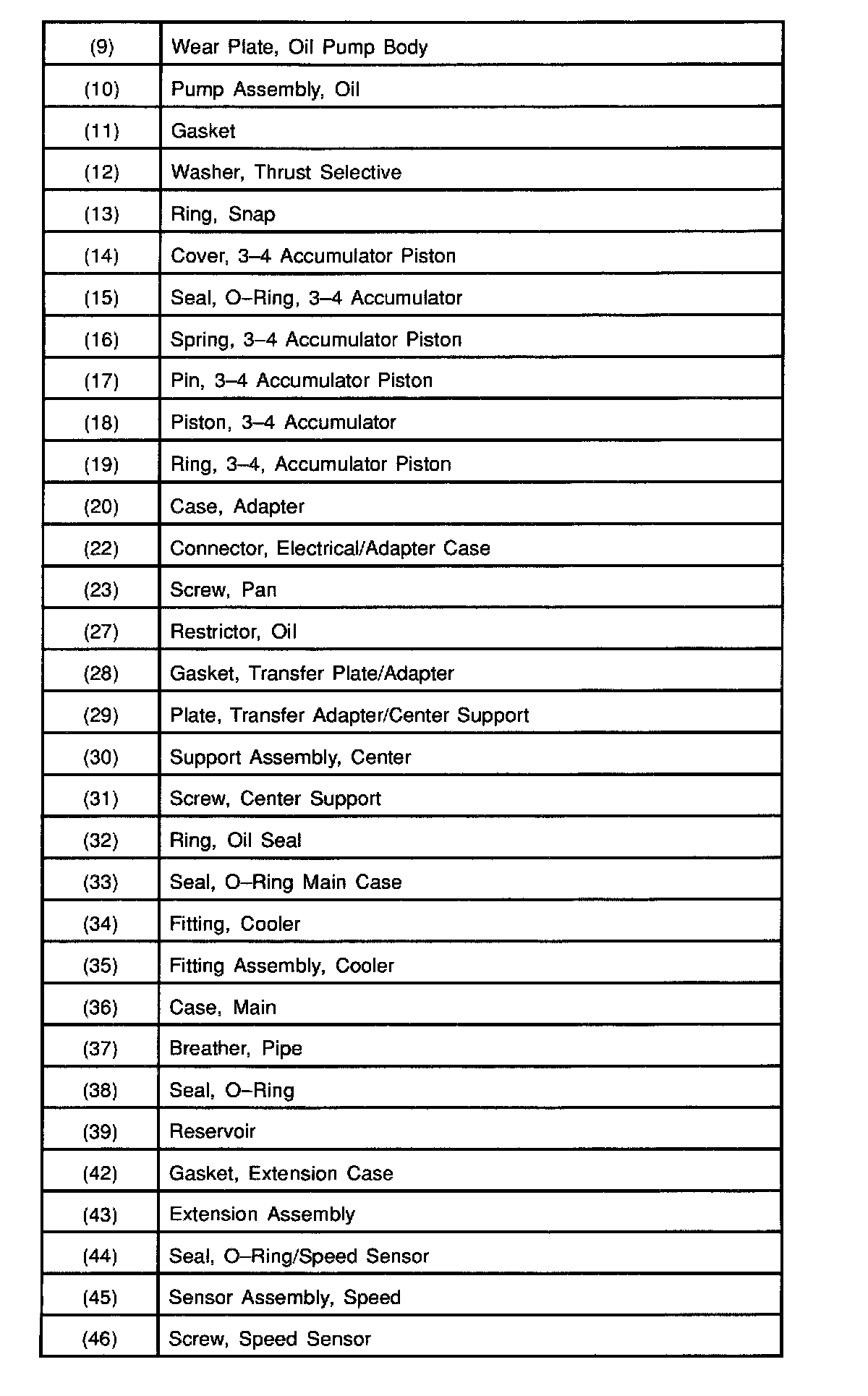

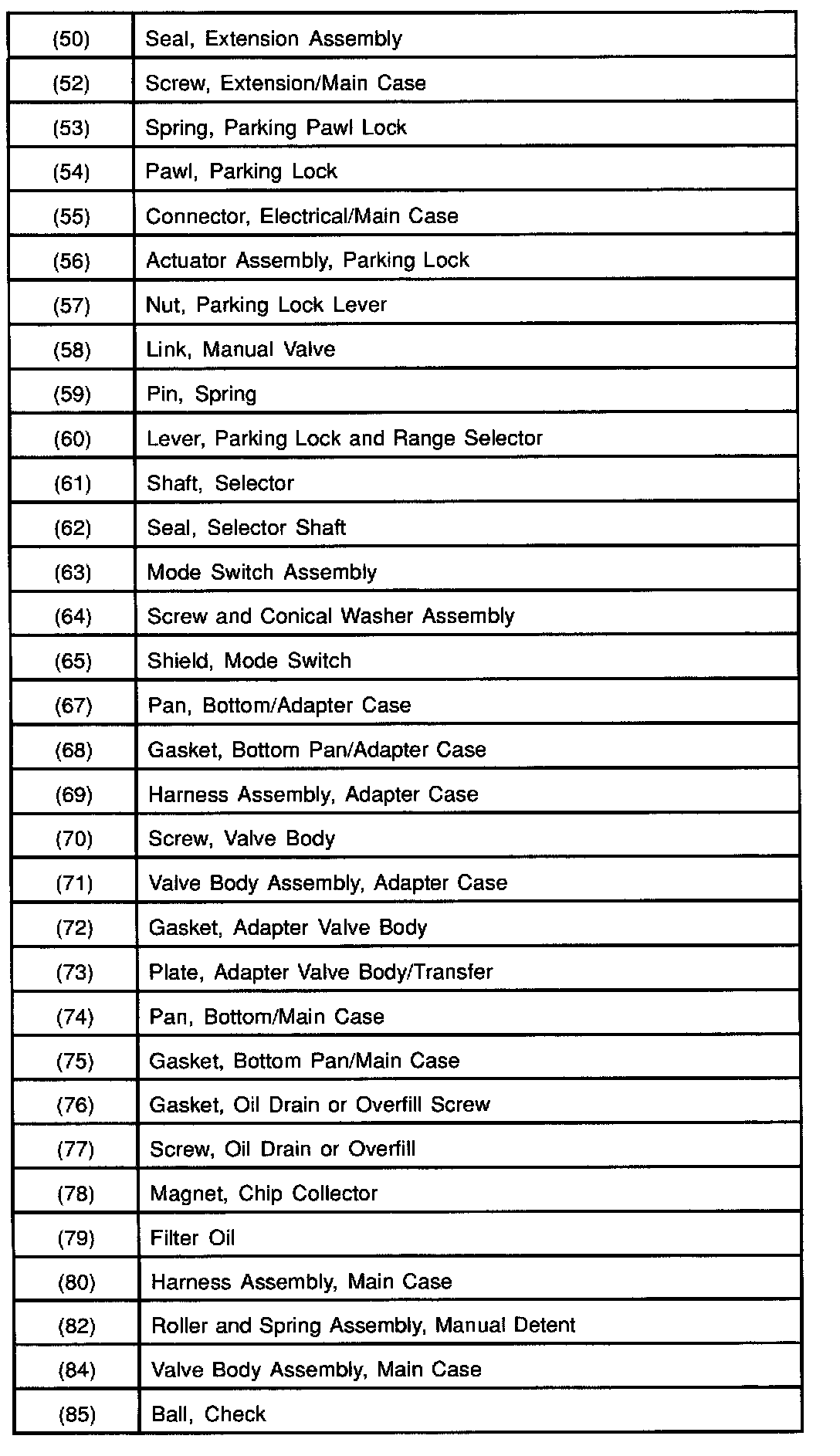

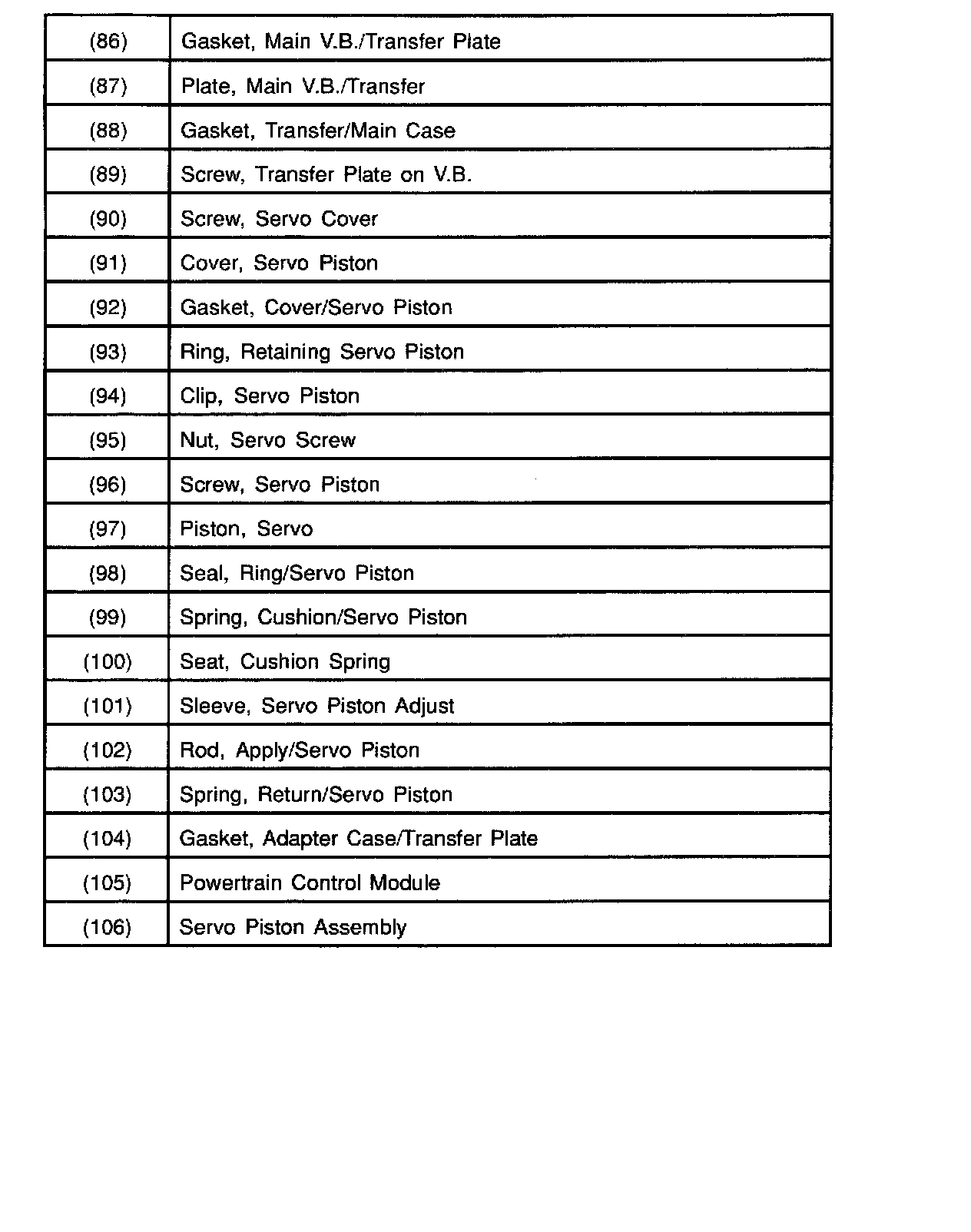

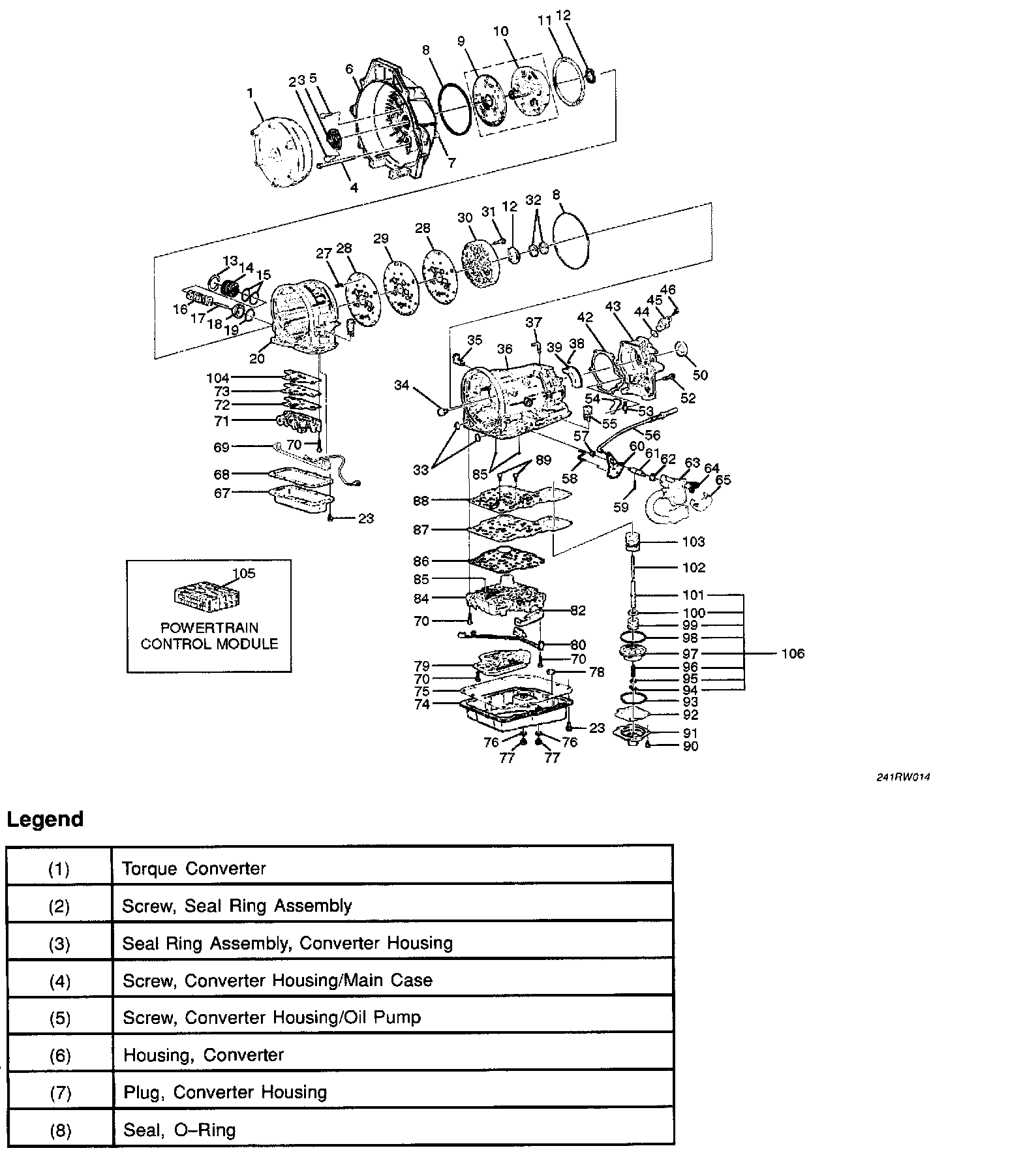

Case And Associated Parts

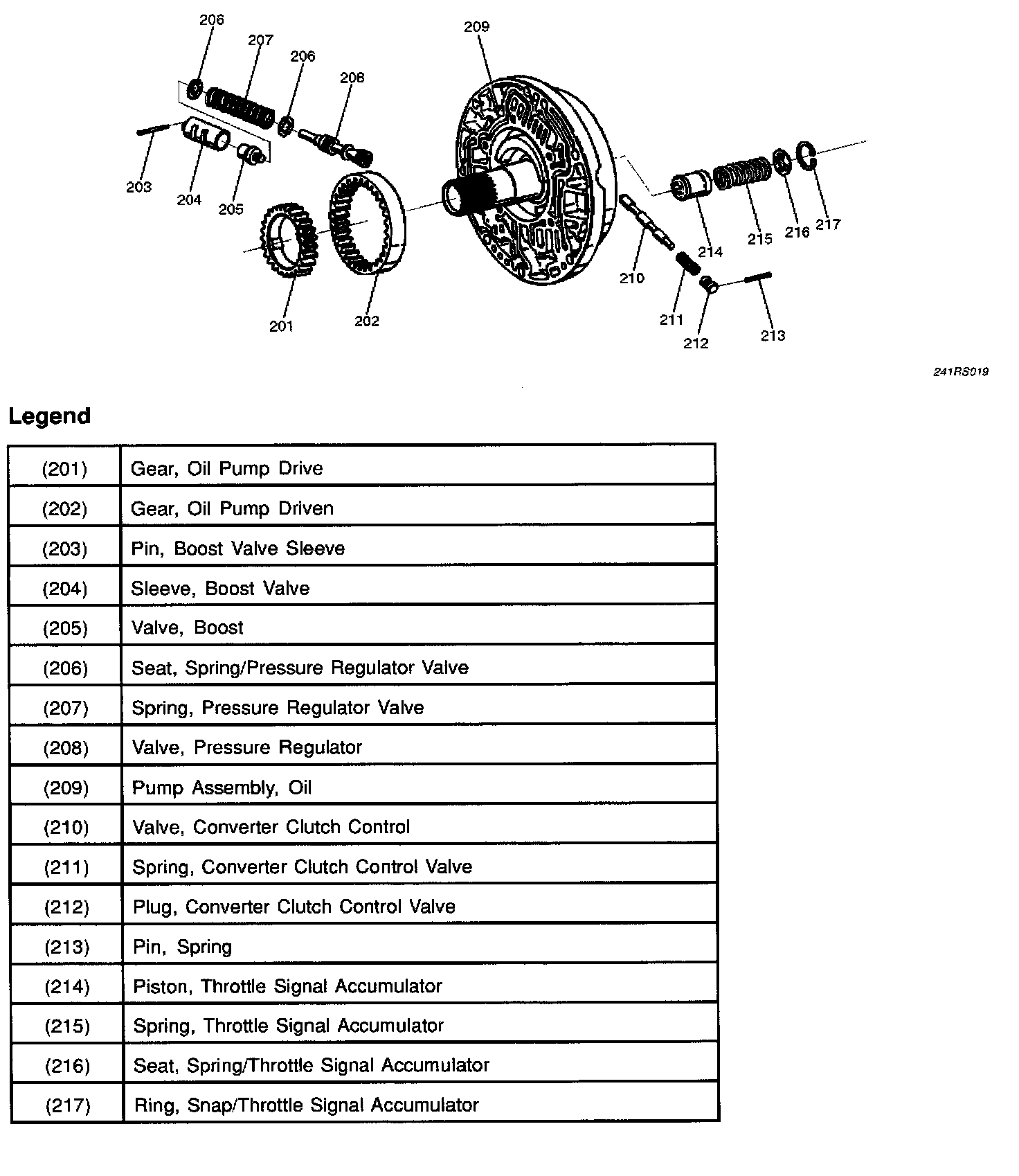

Pump Assembly

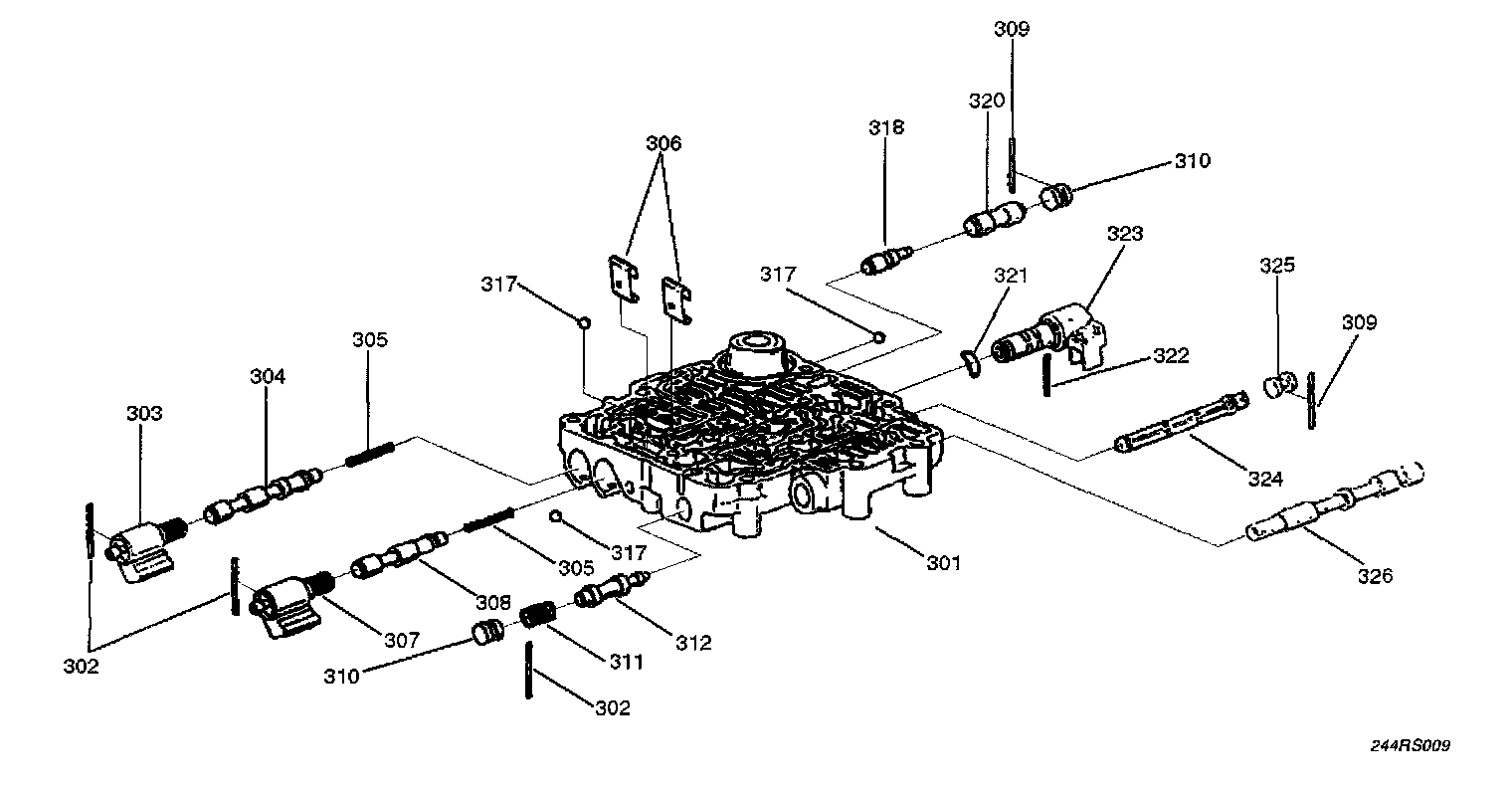

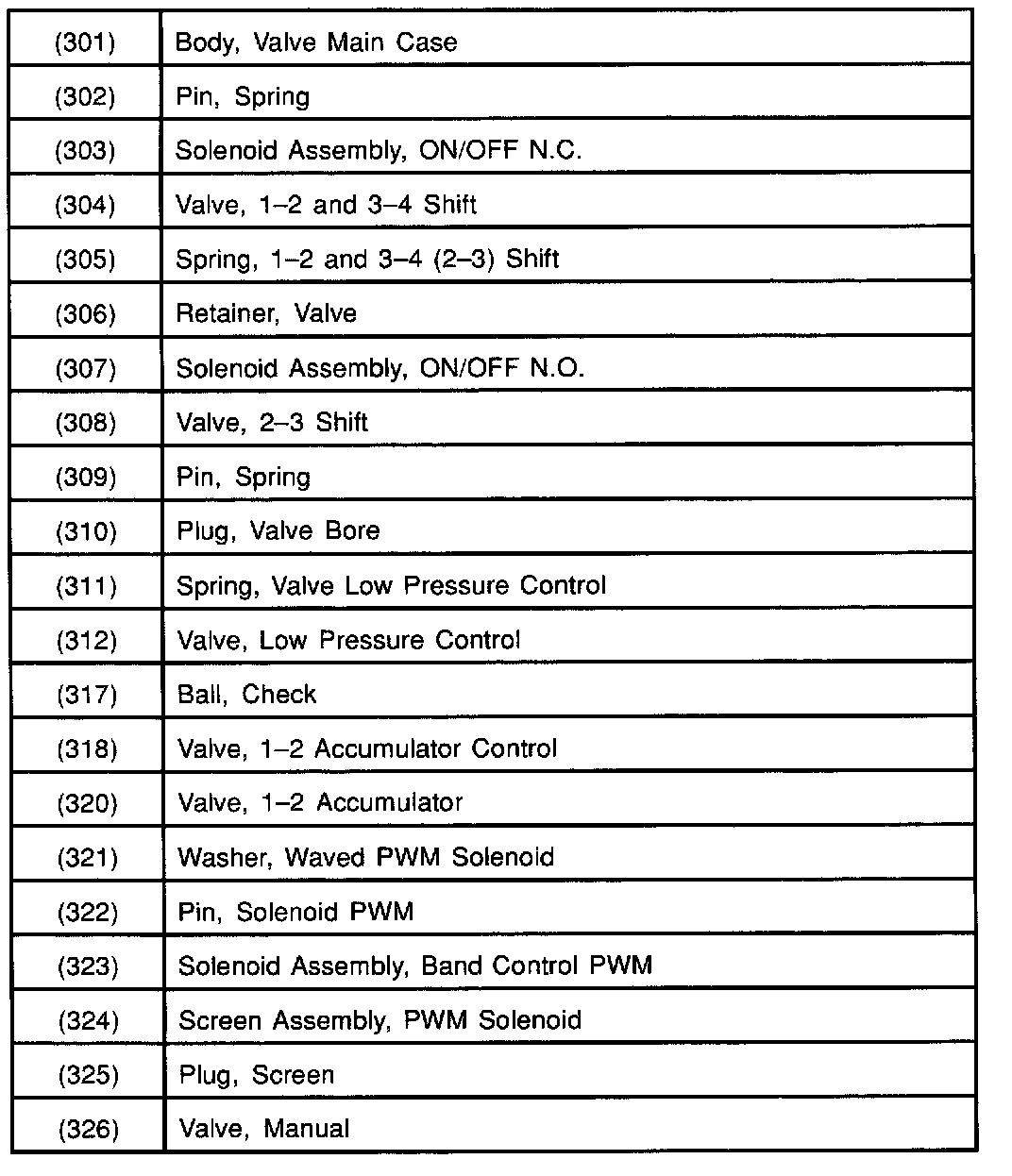

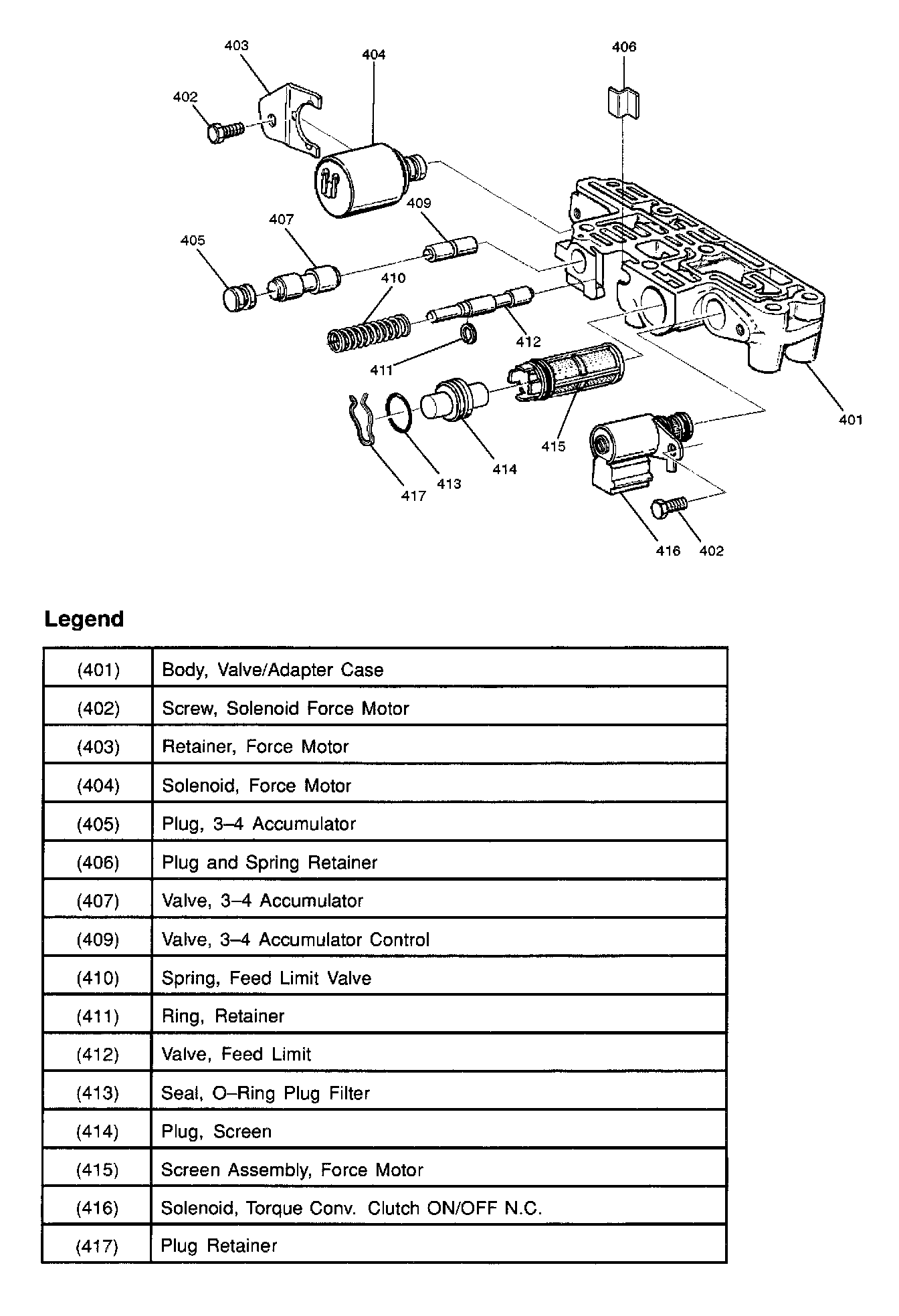

Valve Body Assemblies

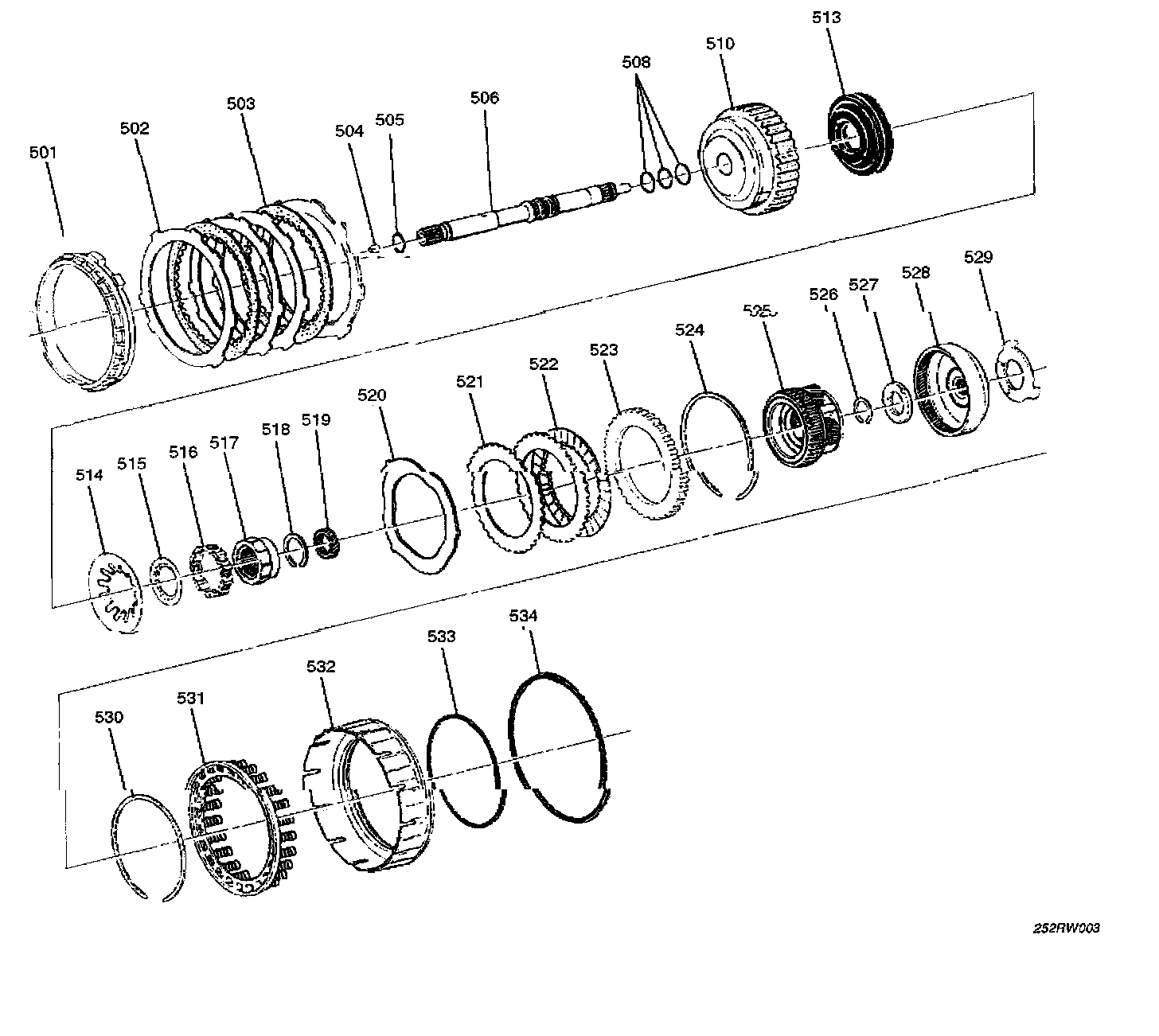

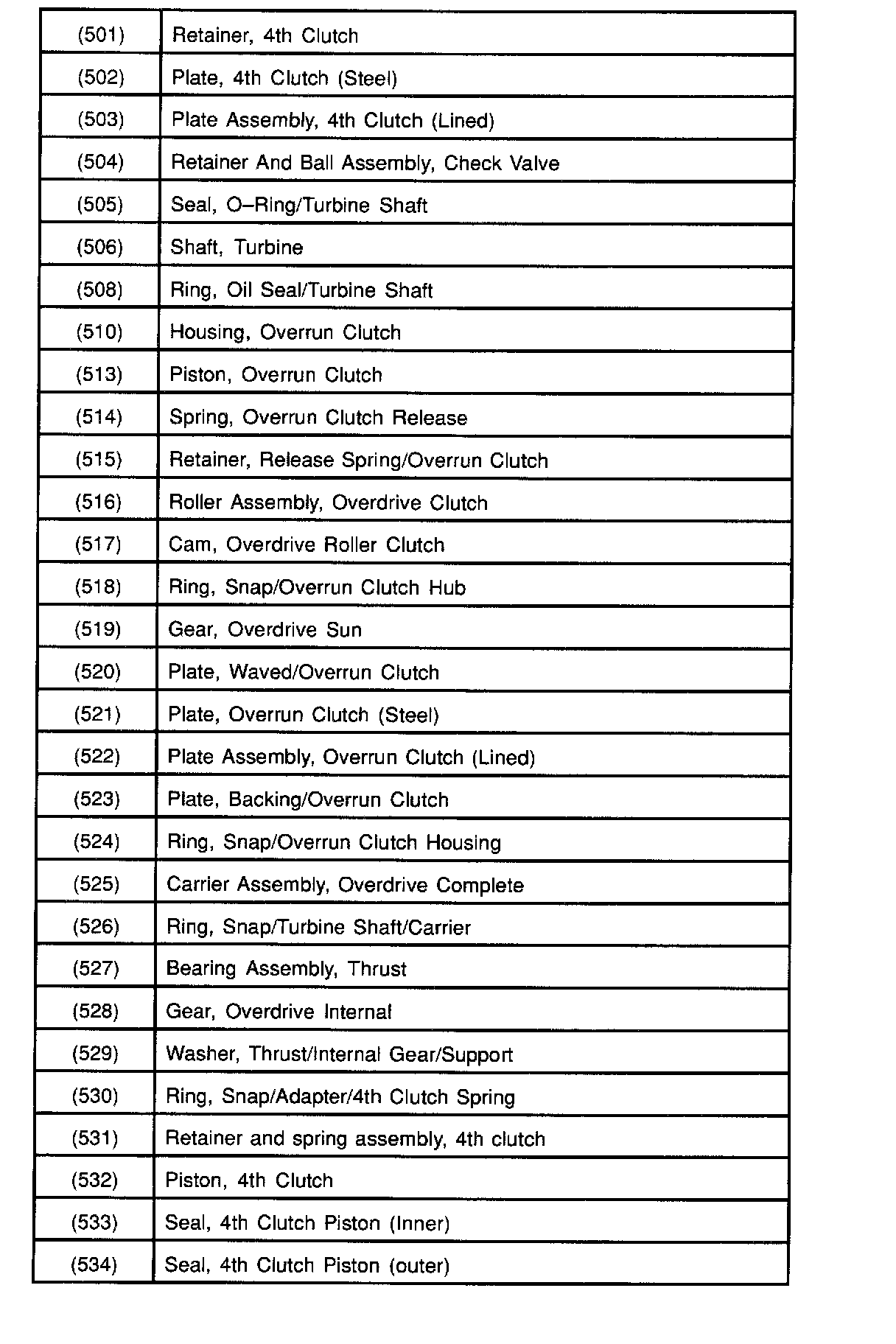

Overdrive Internal Components

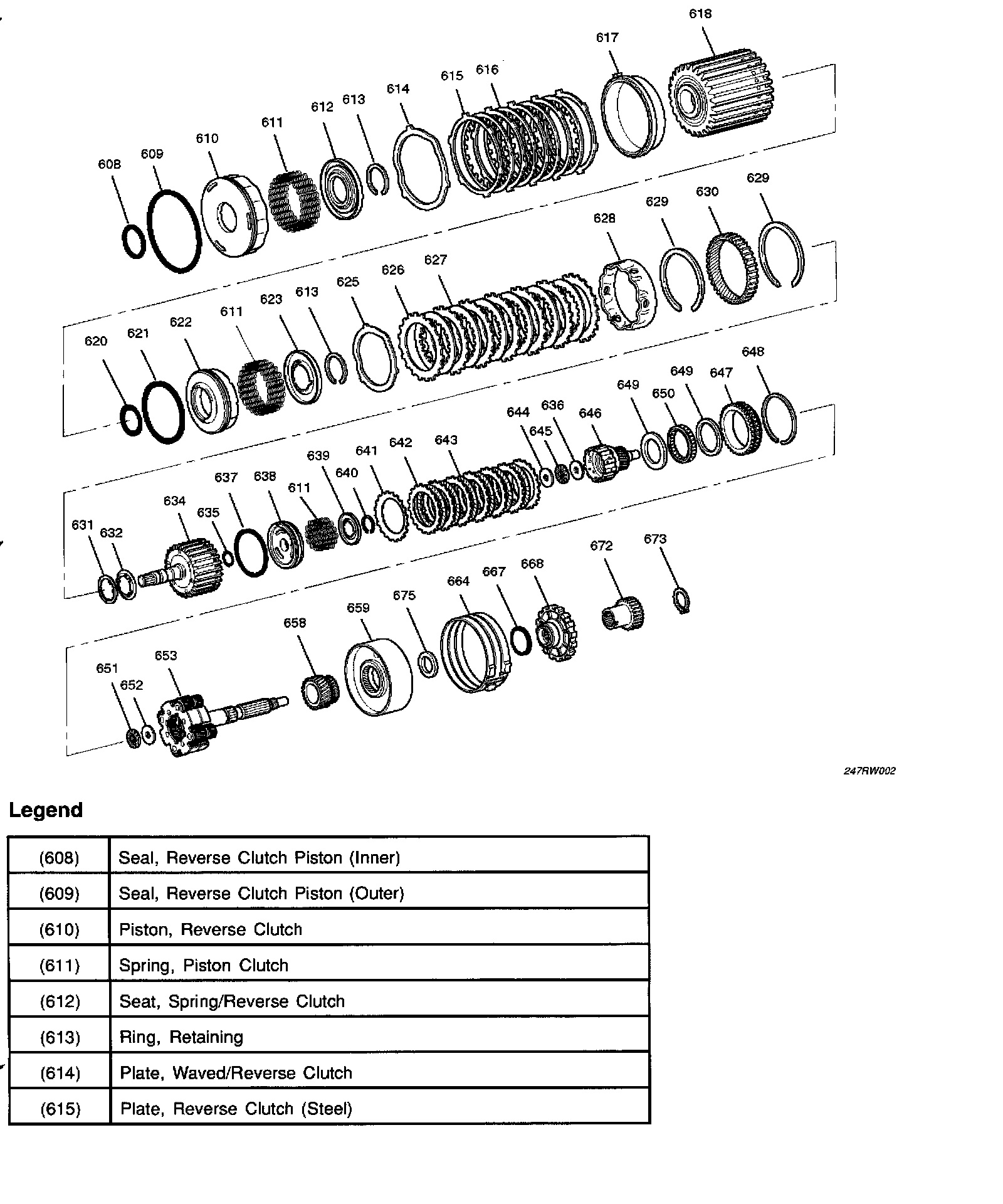

Internal Components





Center Support Assembly
