Intake Air Plenum

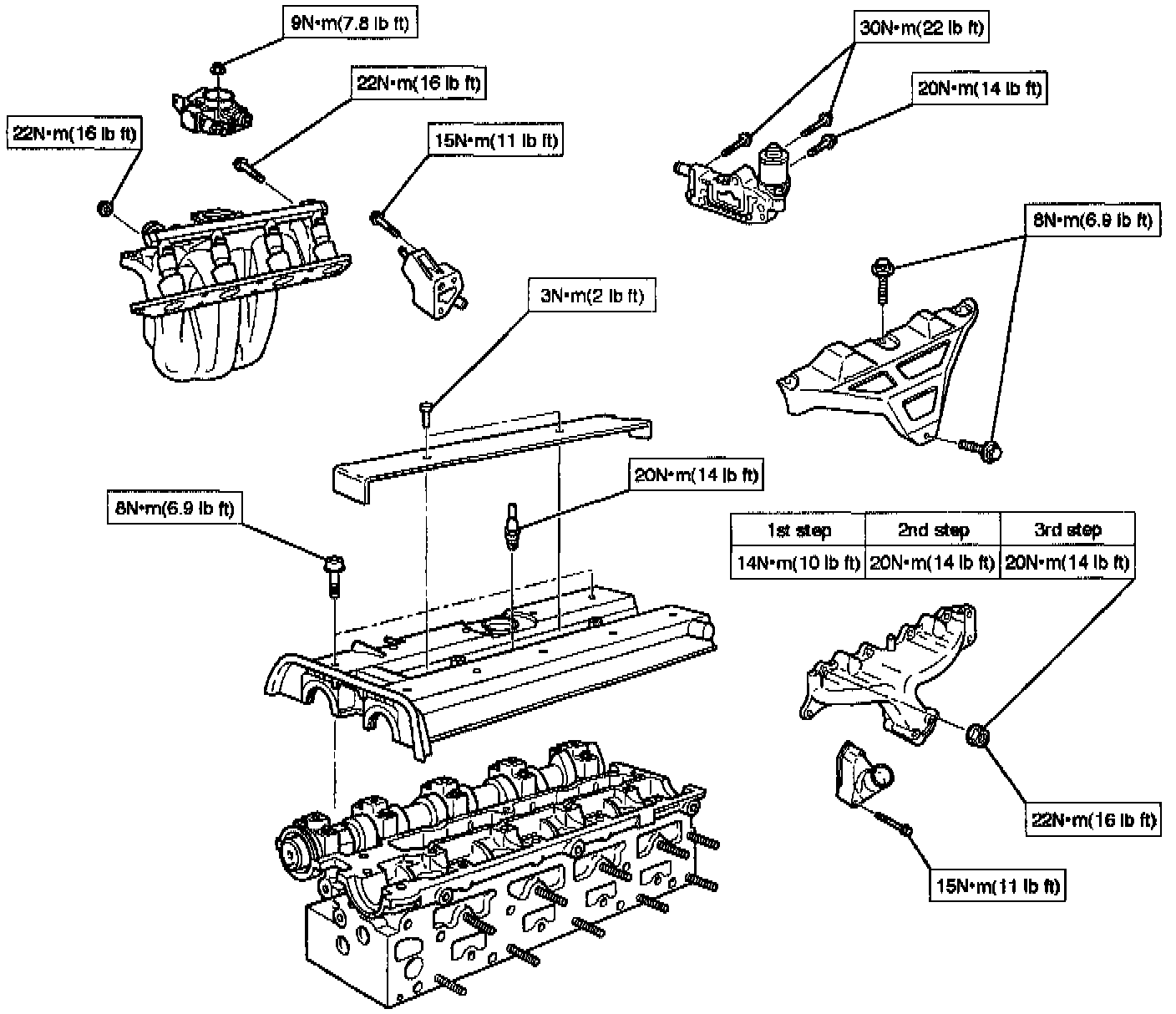

Spark Plug, Throttle Body, EGR Valve Adaptor Assembly, Bypass Housing Assembly, Throttle Assembly, Inlet Manifold Assembly, Exhaust Manifold Assembly, Heat Shield, Ignition Cable Cover:
