Component Locations

Fig 1: Component Location (Amigo, Rodeo & Passport 2.2L)
G98B12048Courtesy of ISUZU MOTOR CO.

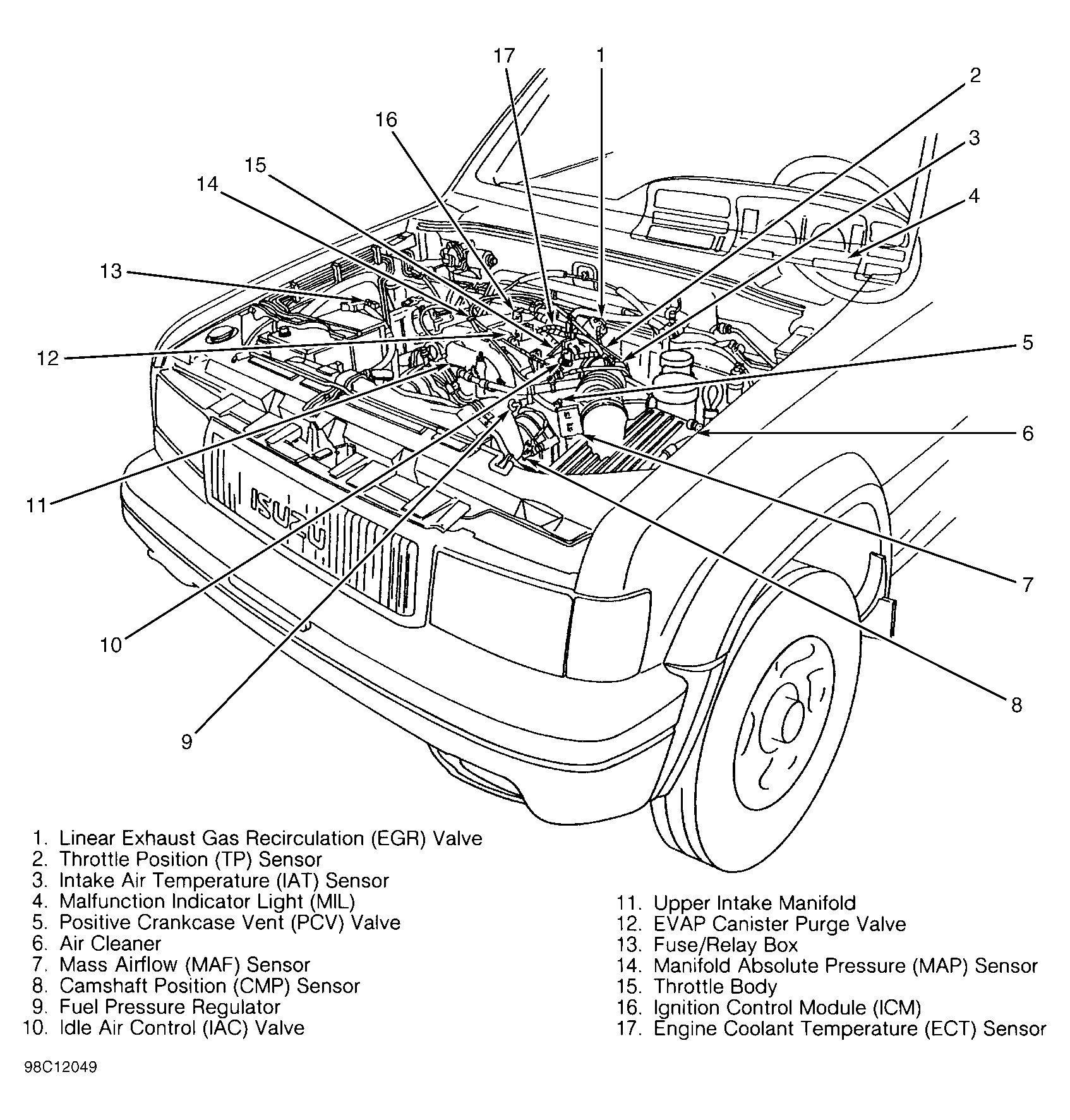

Fig 2: Component Location (Amigo, Rodeo & Passport 3.2L)
G98C12049Courtesy of ISUZU MOTOR CO.
Fig 3: Component Location (Hombre 2.2L) Engine Left Side
G97D06777Courtesy of ISUZU MOTOR CO.
Fig 4: Component Location (Hombre 2.2L) Engine Right Side
G97F06778Courtesy of ISUZU MOTOR CO.
Fig 5: Component Location (Hombre 2.2L) Engine Rear View
G97H06779Courtesy of ISUZU MOTOR CO.
Fig 6: Component Location (Hombre 4.3L) Engine Right Side
G97J06780Courtesy of ISUZU MOTOR CO.
Fig 7: Component Location (Hombre 4.3L) Engine Right/ Rear View
G97B06781Courtesy of ISUZU MOTOR CO.
Fig 8: Component Location (Hombre 4.3L) Engine Left View
G97D06782Courtesy of ISUZU MOTOR CO.

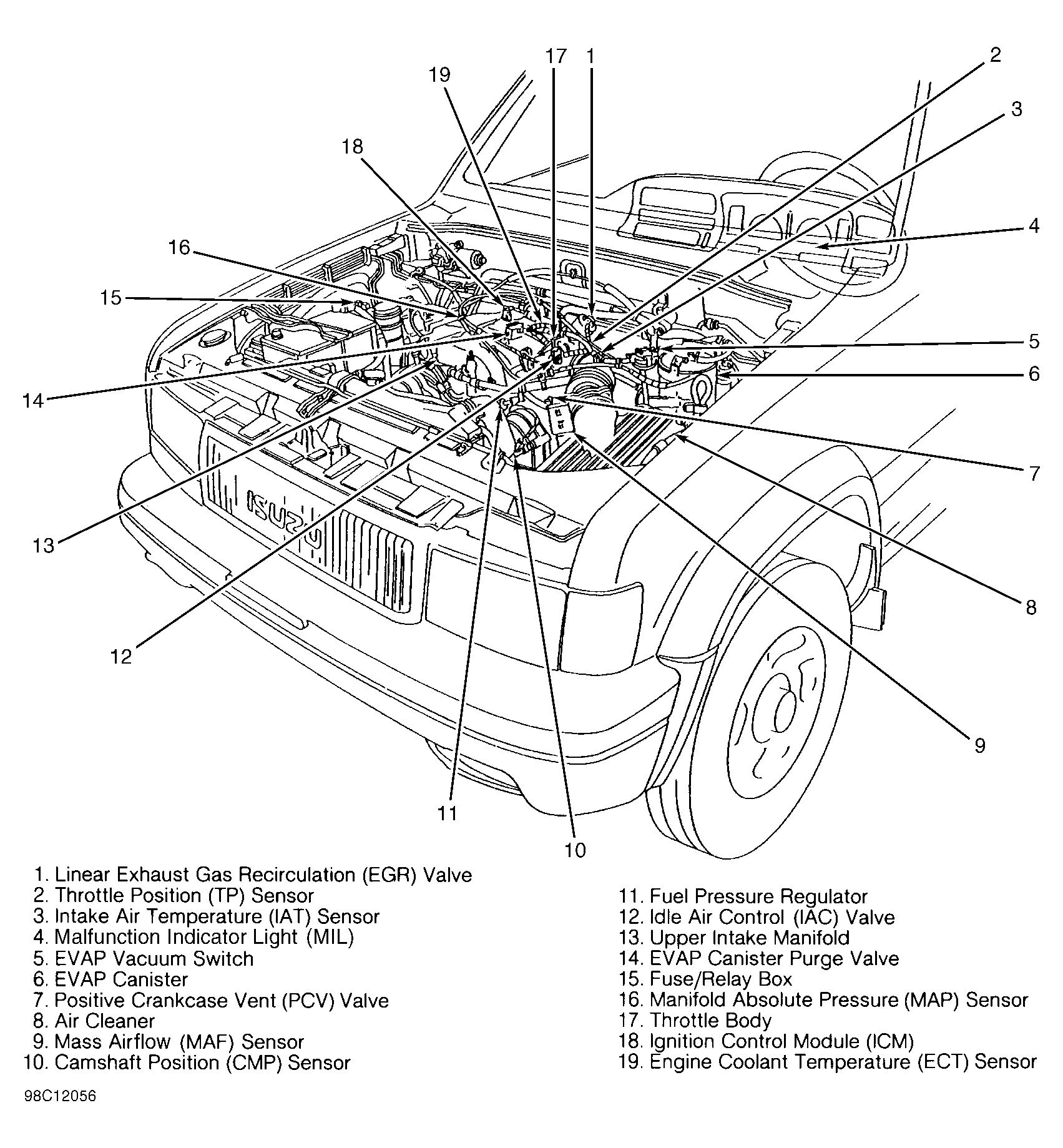

Fig 9: Component Location (Trooper & SLX)
G98C12056Courtesy of ISUZU MOTOR CO.
