Engine Performance-Related Components

The following illustrations are provided to assist in locating components for removal and installation procedures which were not available at time of publication. See Fig 1-Fig 4 .

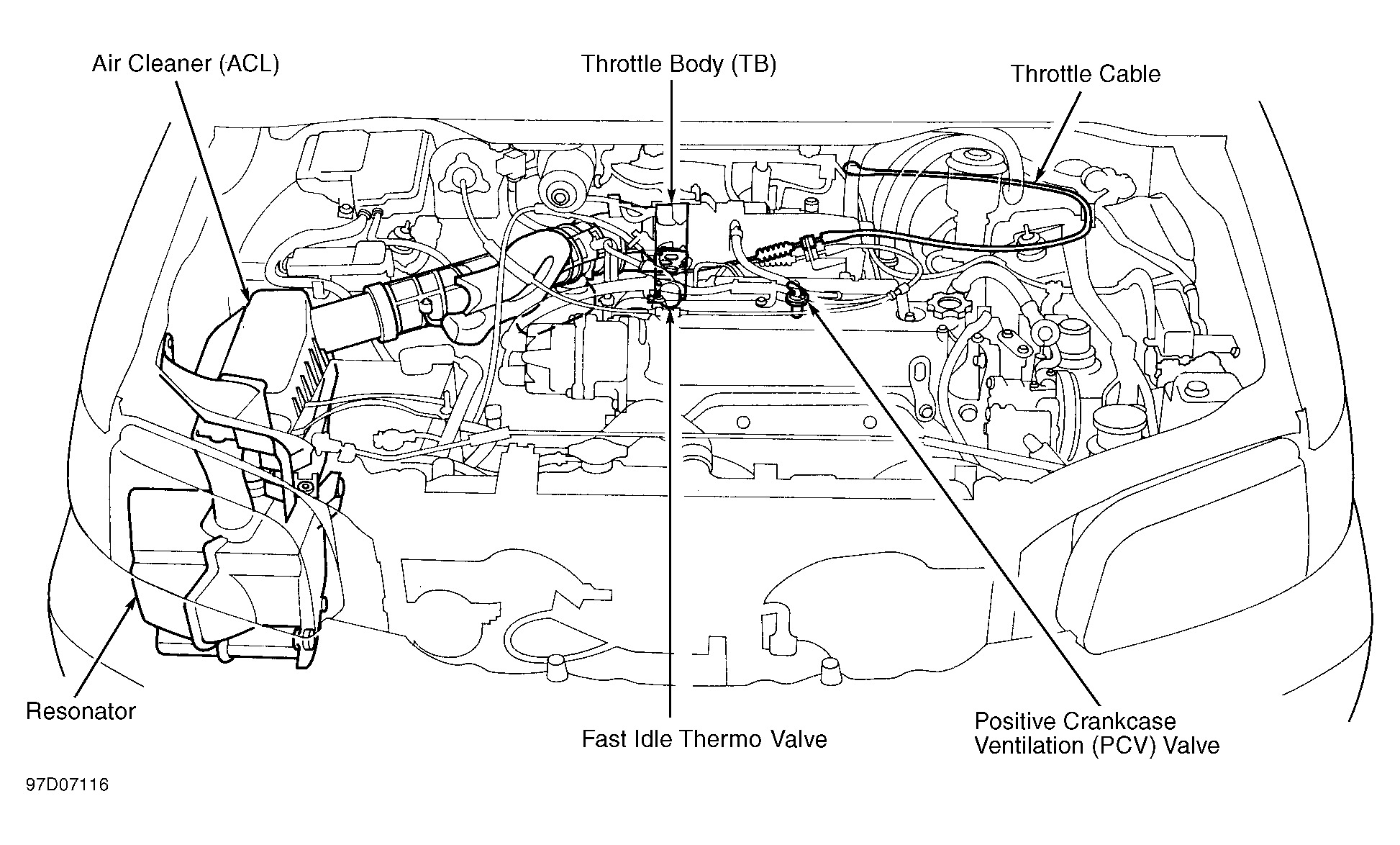

Fig 1: Engine Compartment Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

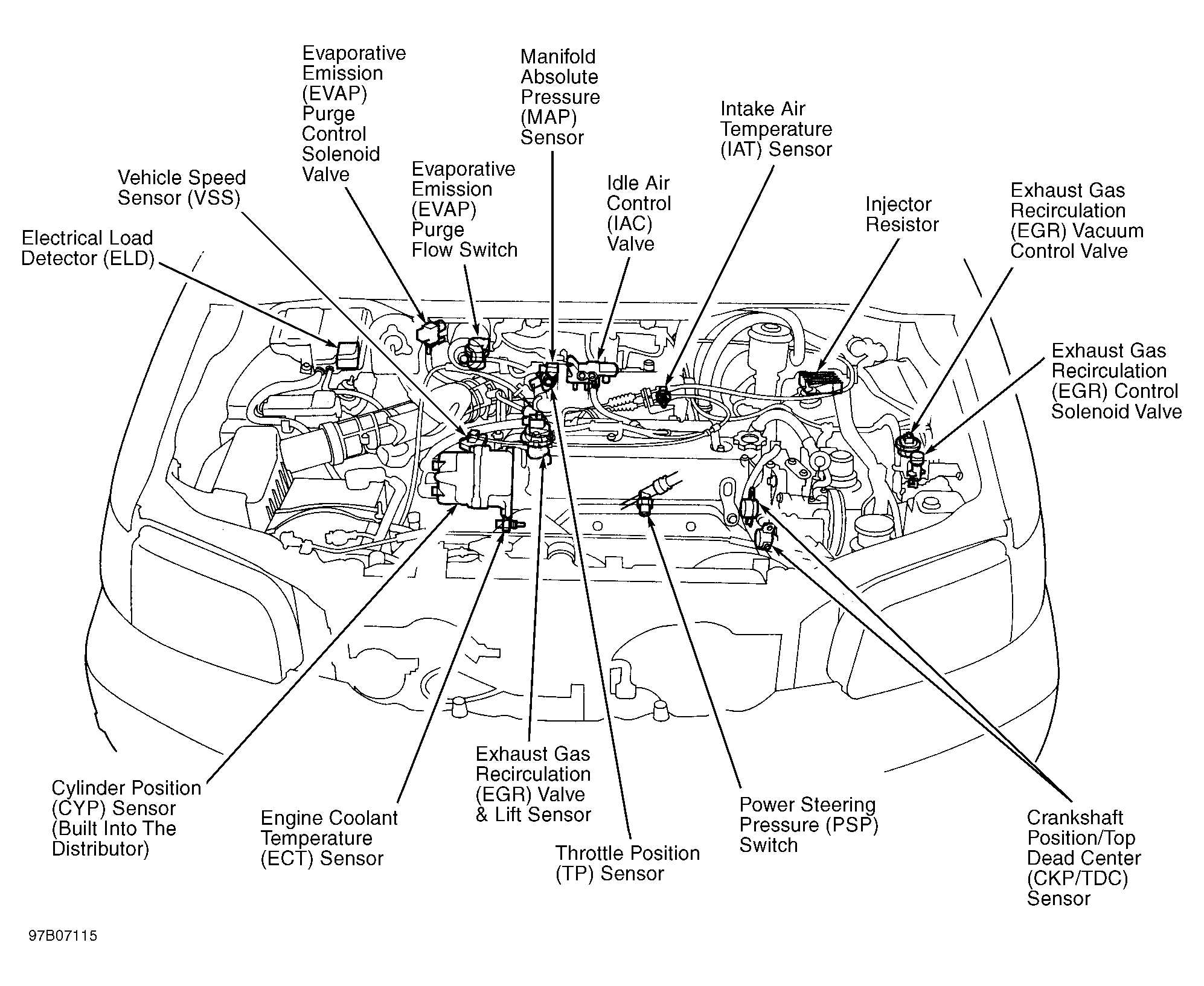

Fig 2: Engine Compartment Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

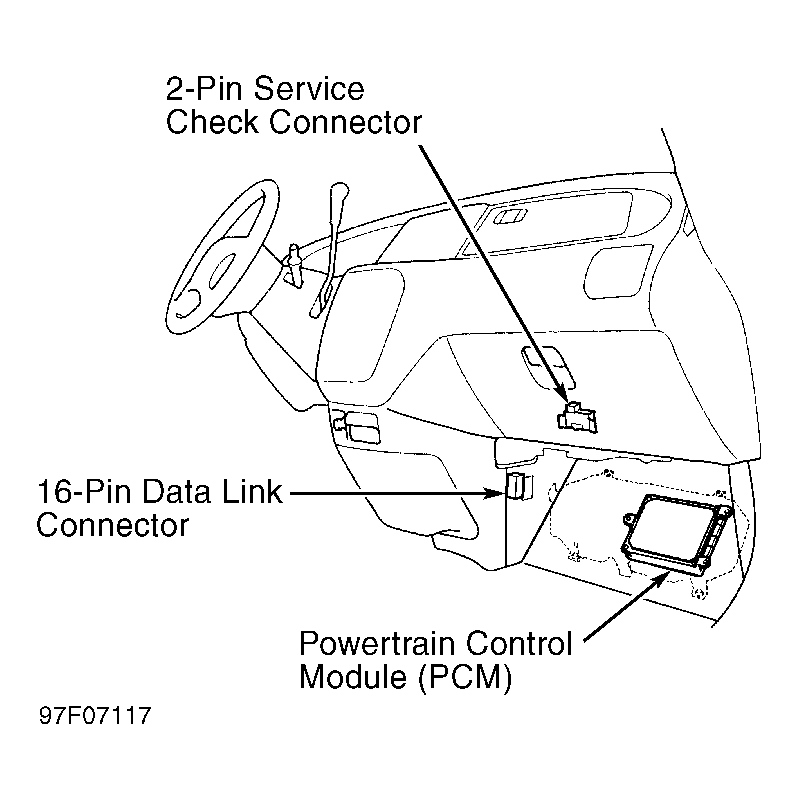

Fig 3: Passenger Compartment Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Passenger Compartment Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
