DTC 8-2: Abs Control Unit (CPU Comparison)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC 8-2: Abs Control Unit (CPU Comparison)

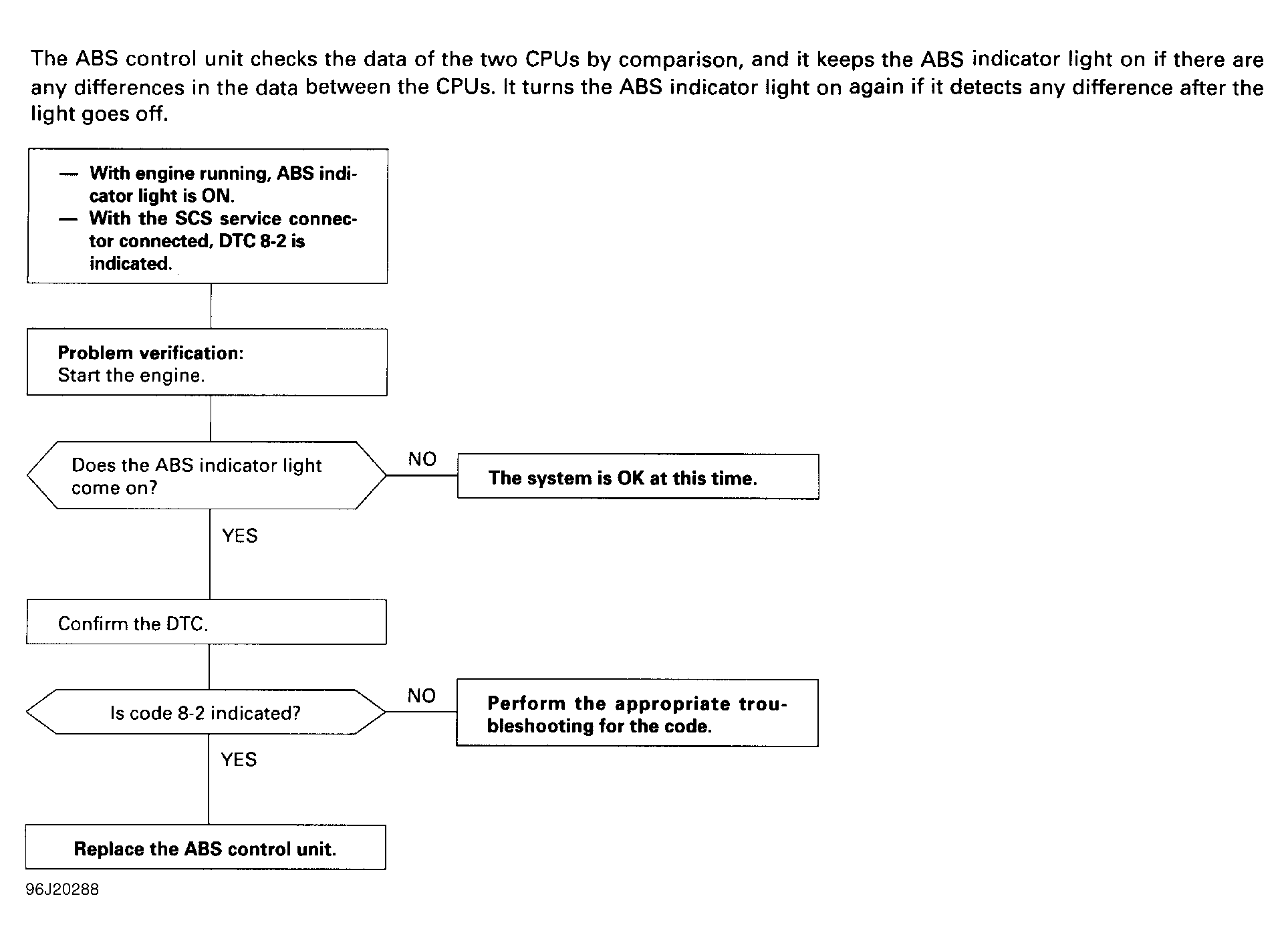

Fig 1: DTC 8-2: ABS Control Unit (CPU Comparison)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
