Crankshaft Position Sensor: Service and Repair

UPDATED BY TSB # 9104007, DATED JUNE 1991

REMOVE OR DISCONNECT

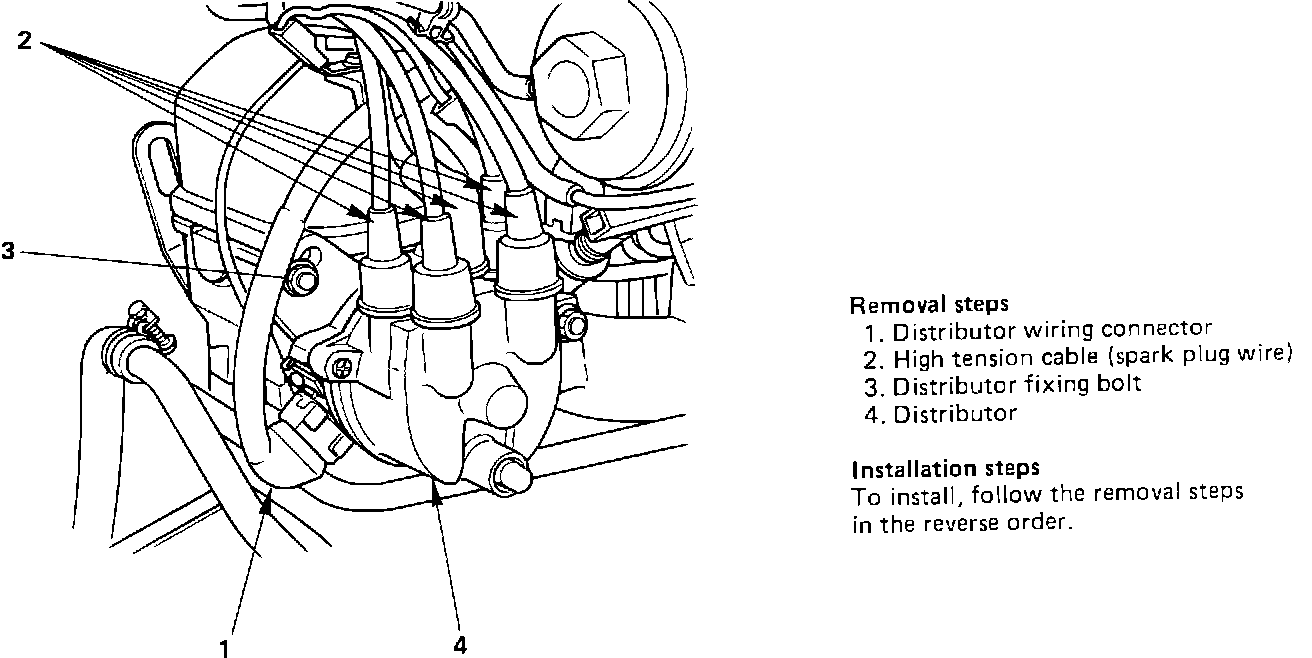

Distributor:





- Distributor.

Distributor:





- Crank angle sensor.

INSTALL OR CONNECT
- Crank angle sensor
- Distributor.


TSB INFORMATION
Engine oil leakage in the distributor indicates that the distributor oil seal may require replacement. The distributor housing, which contains the oil seal, can now be ordered separately from American Isuzu Parts Distribution Network (AIPDN).
