Home >> Isuzu >> 1995 >> Pickup 2WD L4-2.3L (4ZD1) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuse/Relay Box >> Fuse/Relay Box Index

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

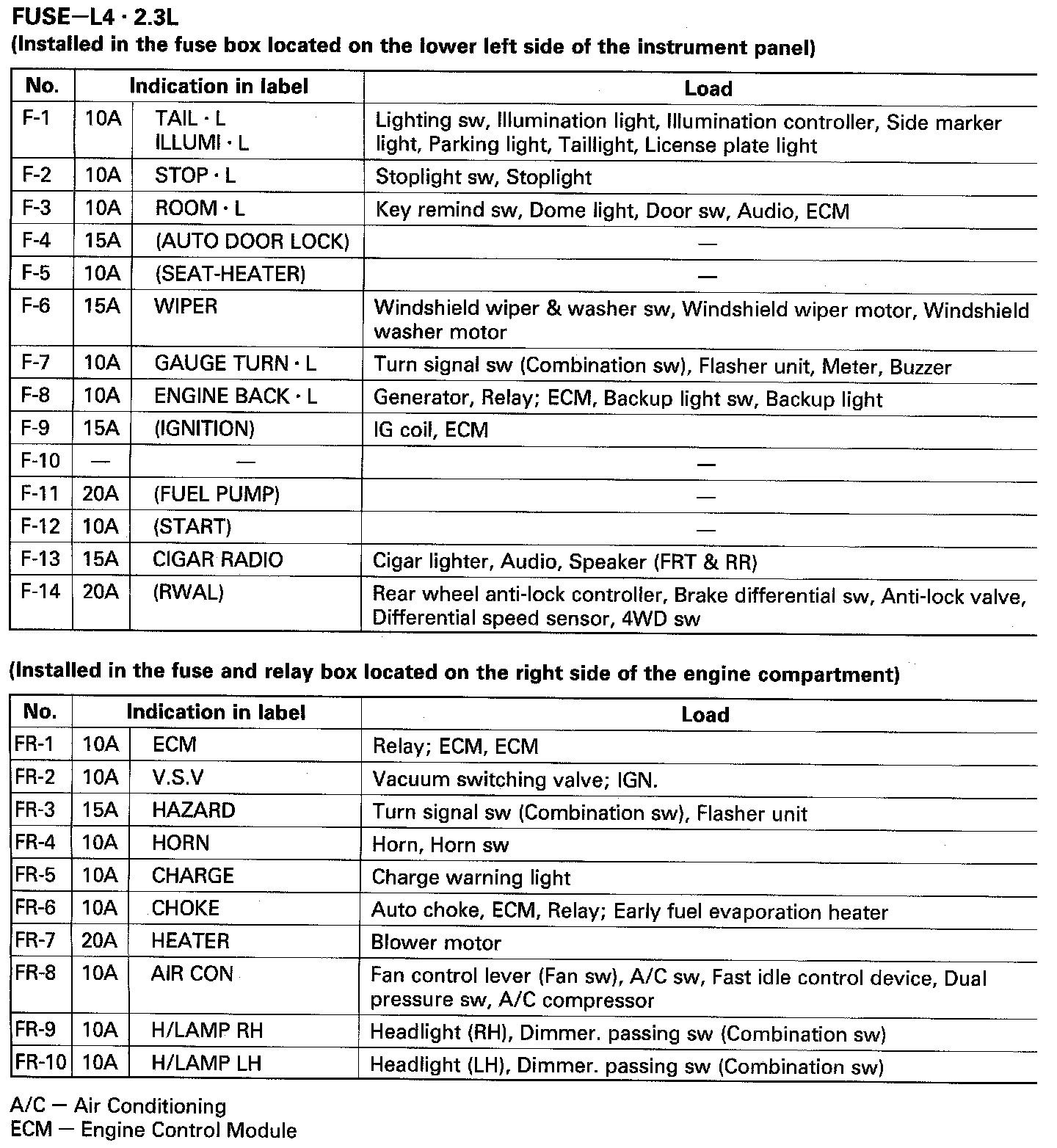

Fuse/Relay Box Index
