Code 33 - Fuel Injector Circuit (Open Or Grounded)

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

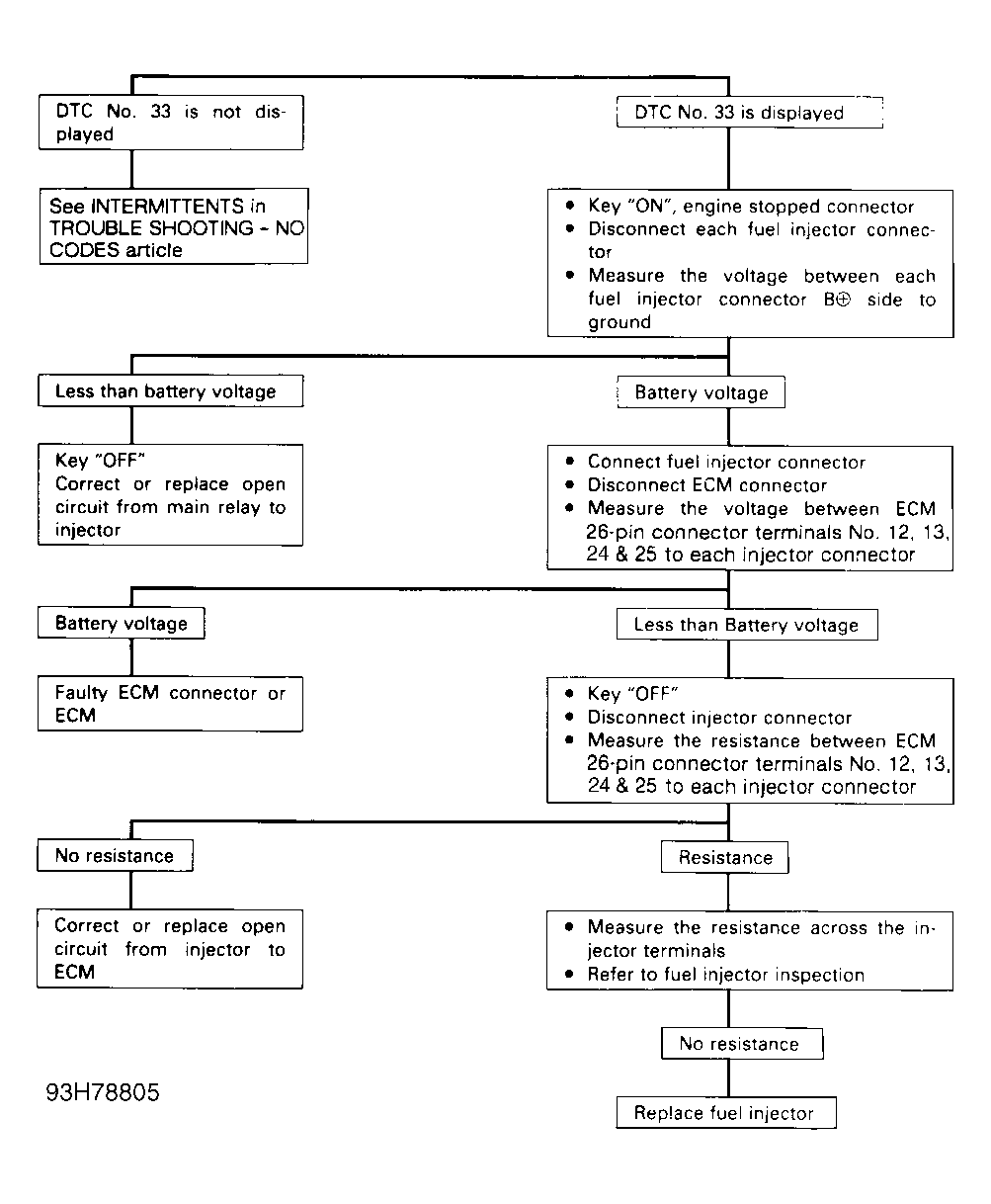

Fig 1: Code 33 - Diagnostic Flowchart Courtesy Isuzu Motor Co
G93H78805
