Alternator & Regulator: Overhaul

For overhaul procedure, see exploded view of alternator. See Fig 1. Ensure brushes are not worn beyond limit line or measure brush length. If brush length is less than .21" (5.5 mm), replace brush and brush holder.

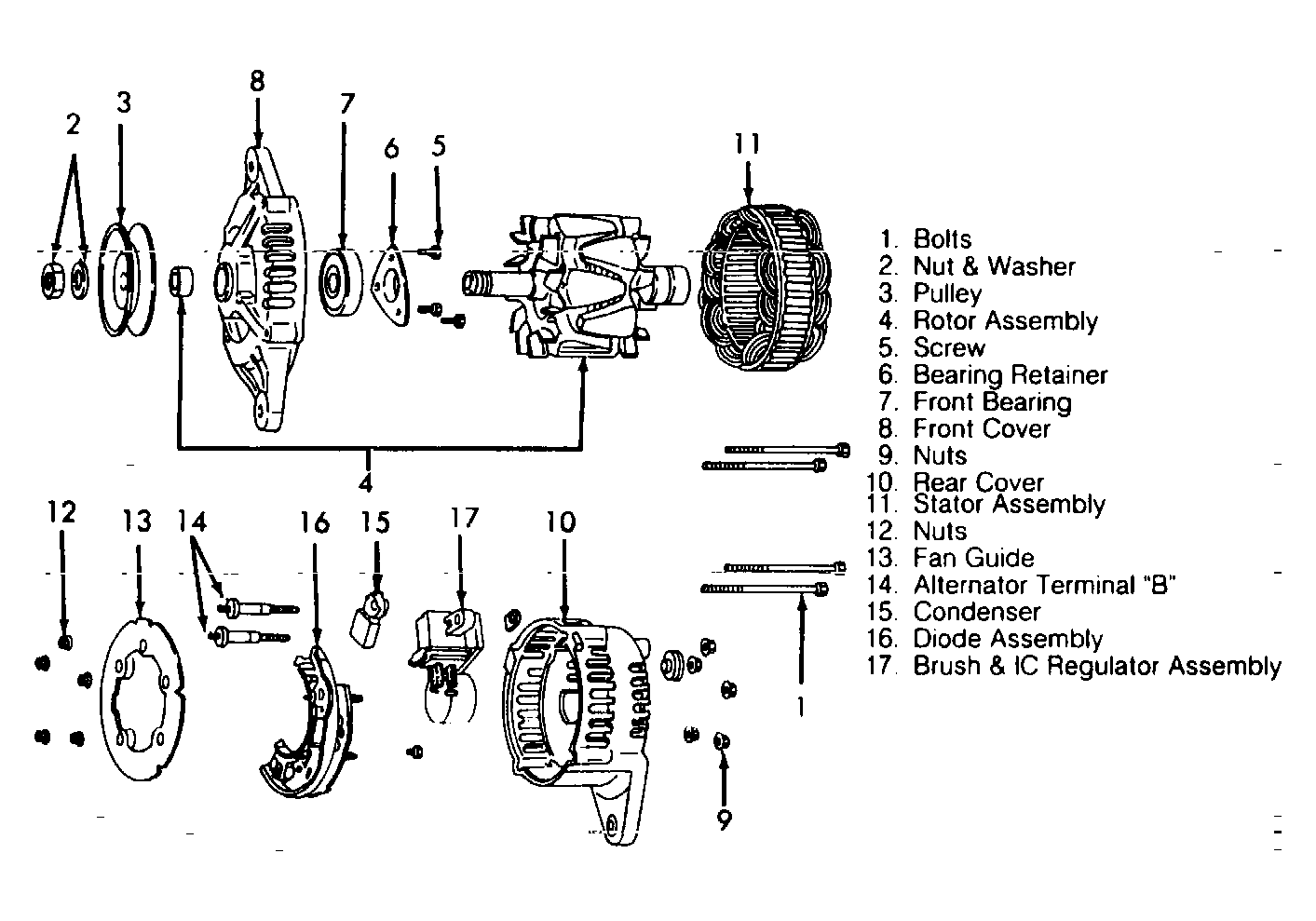

Fig 1: Exploded View Of Hitachi 50 Or 60-Amp Alternator

Courtesy of ISUZU MOTOR CO.
