Steering Column: Overhaul

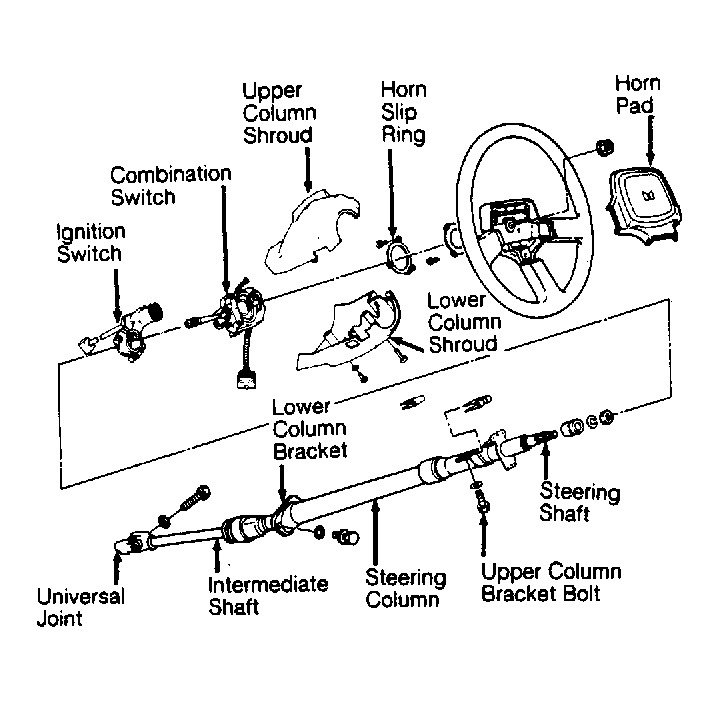

Fig 1: Exploded View of Steering Column Assembly
G91B03179Courtesy of ISUZU MOTOR CO.
